Proof centrifugal duct fan — 380V/3Ph/50Hz, power source type Corded Electric. The complete factory specification follows. Made by Hangzhou Meansoon Ventilation Co., Ltd. (5 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Proof Centrifugal Duct Fan
- Model Number: MPCF-250-B2T-EXVF
- Power Source Type: Corded Electric
- Voltage: 380V/3Ph/50Hz
- Material: Stainless Steel, Plastic, Aluminum Alloy, Copper, Steel
- Blade Material: Plastic
- Noise Level: 75 dB
Technical Specifications
| Duct Diameter | 10 in |
|---|---|
| Mounting | Duct Fan |
| Voltage | 380V/3Ph/50Hz |
| Motor Type | AC Motor |
| Speed | 2800RPM |
| Material | Stainless Steel, Plastic, Aluminum Alloy, Copper, Steel |
| Blade Material | Plastic |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Noise Level | 75 dB |
| Place Of Origin | Zhejiang, China |
| Brand Name | MEANSOON |
| Model Number | MPCF-250-B2T-EXVF |
| Selling Units | Single item |
| Single Package Size | 64X60X69 cm |
| Single Gross Weight | 45.0 kg |
Product Details

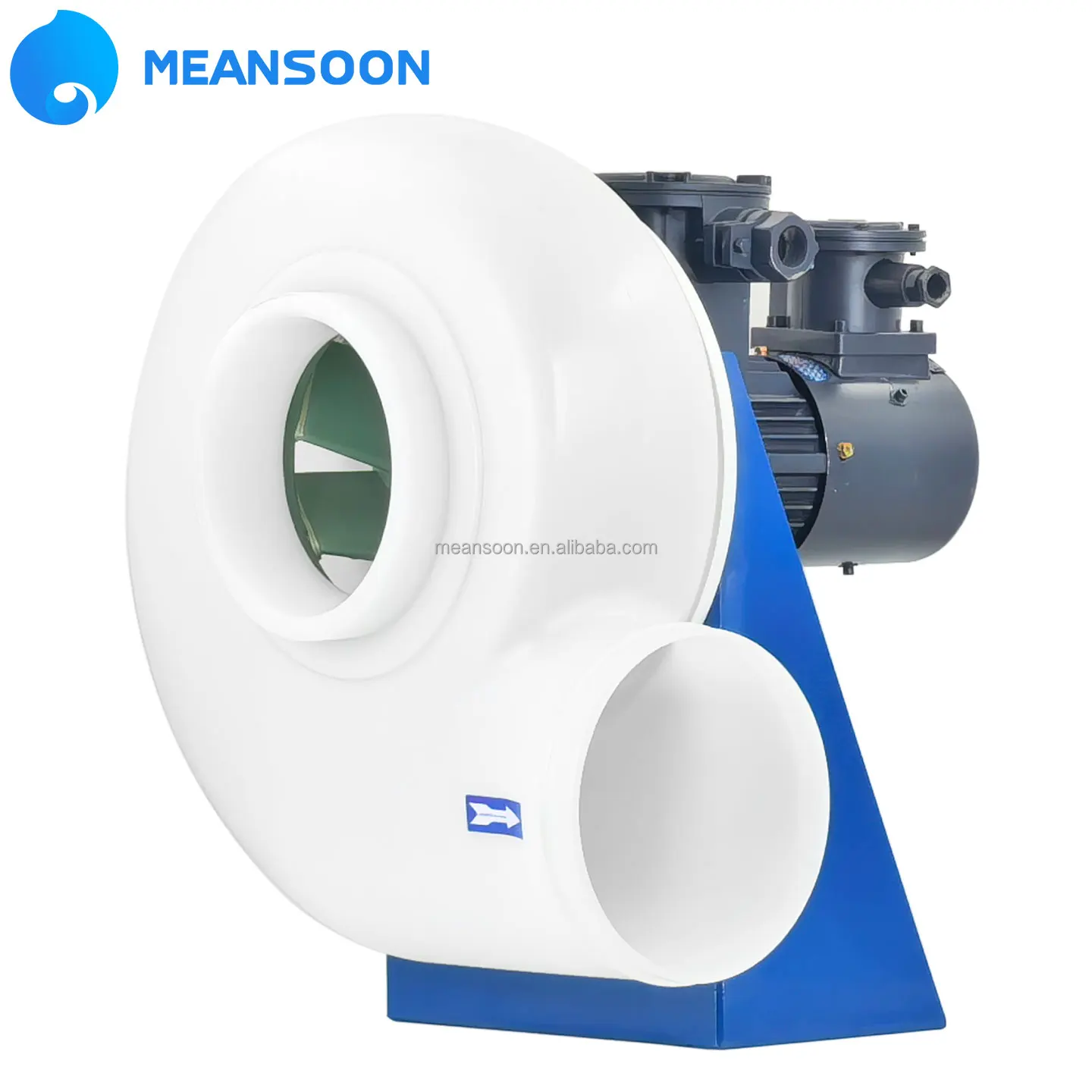

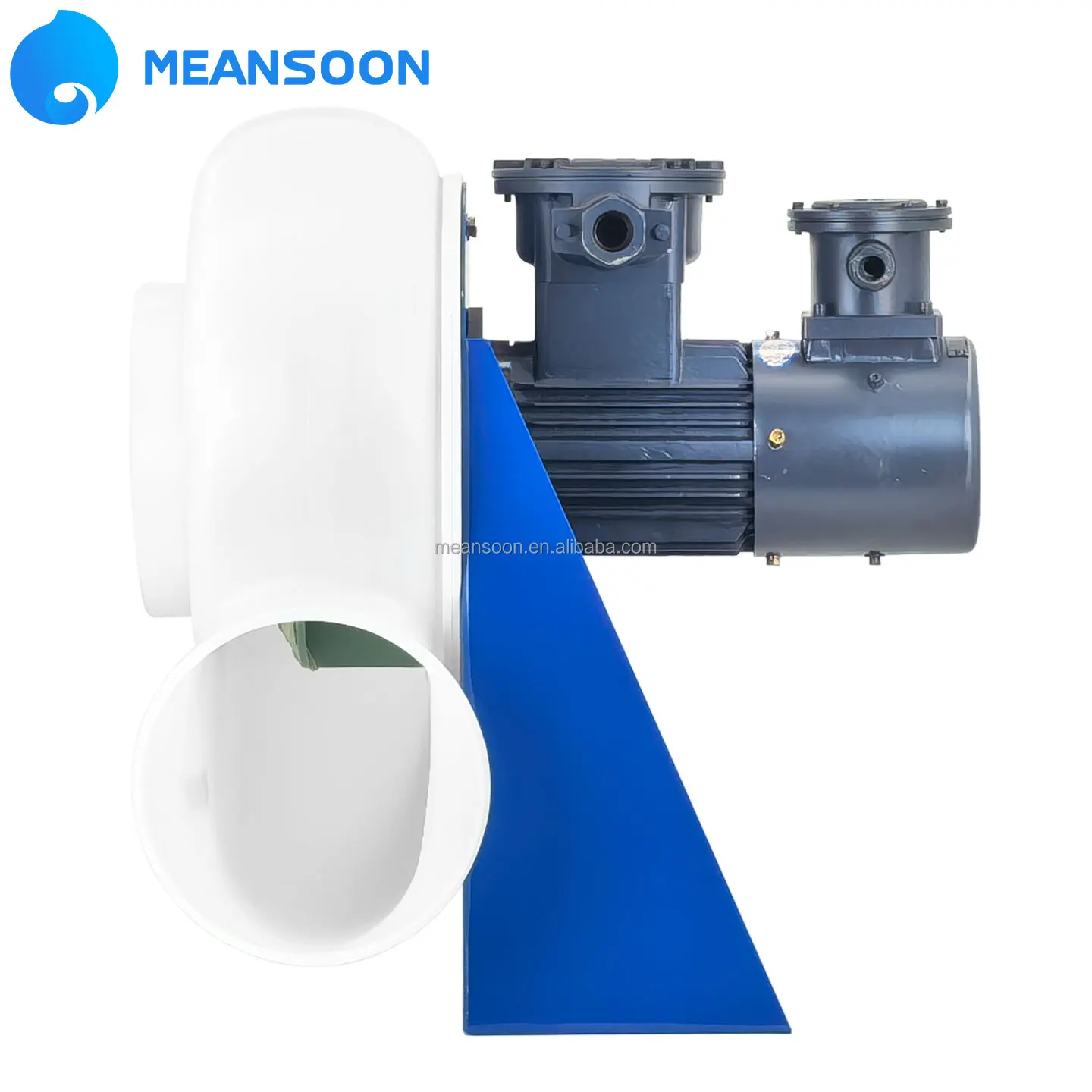

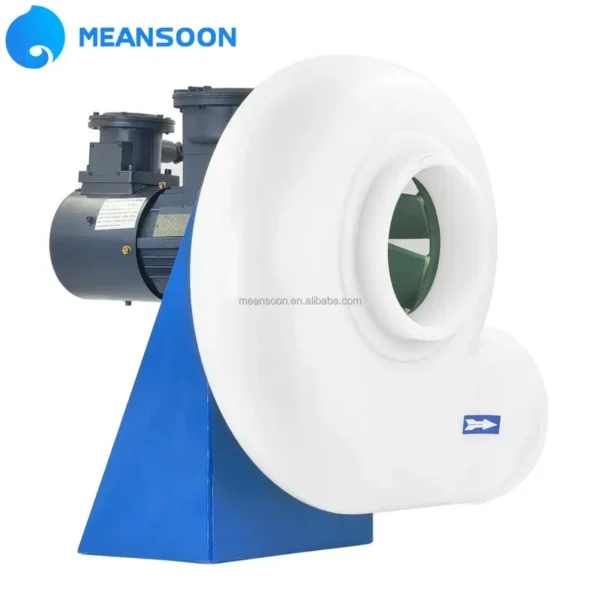

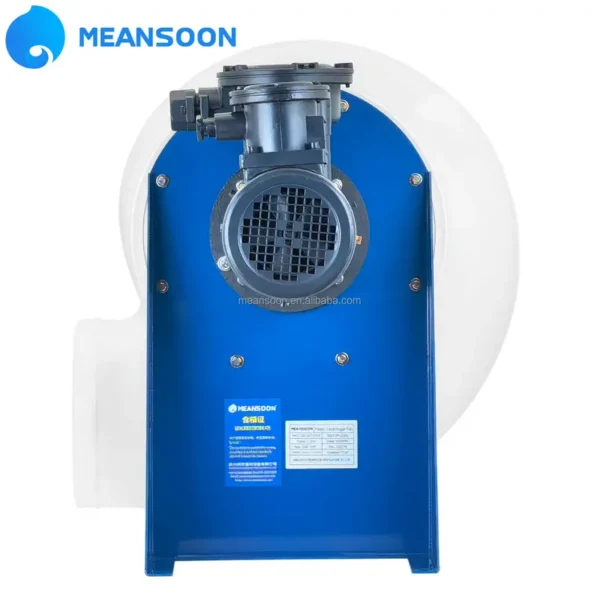

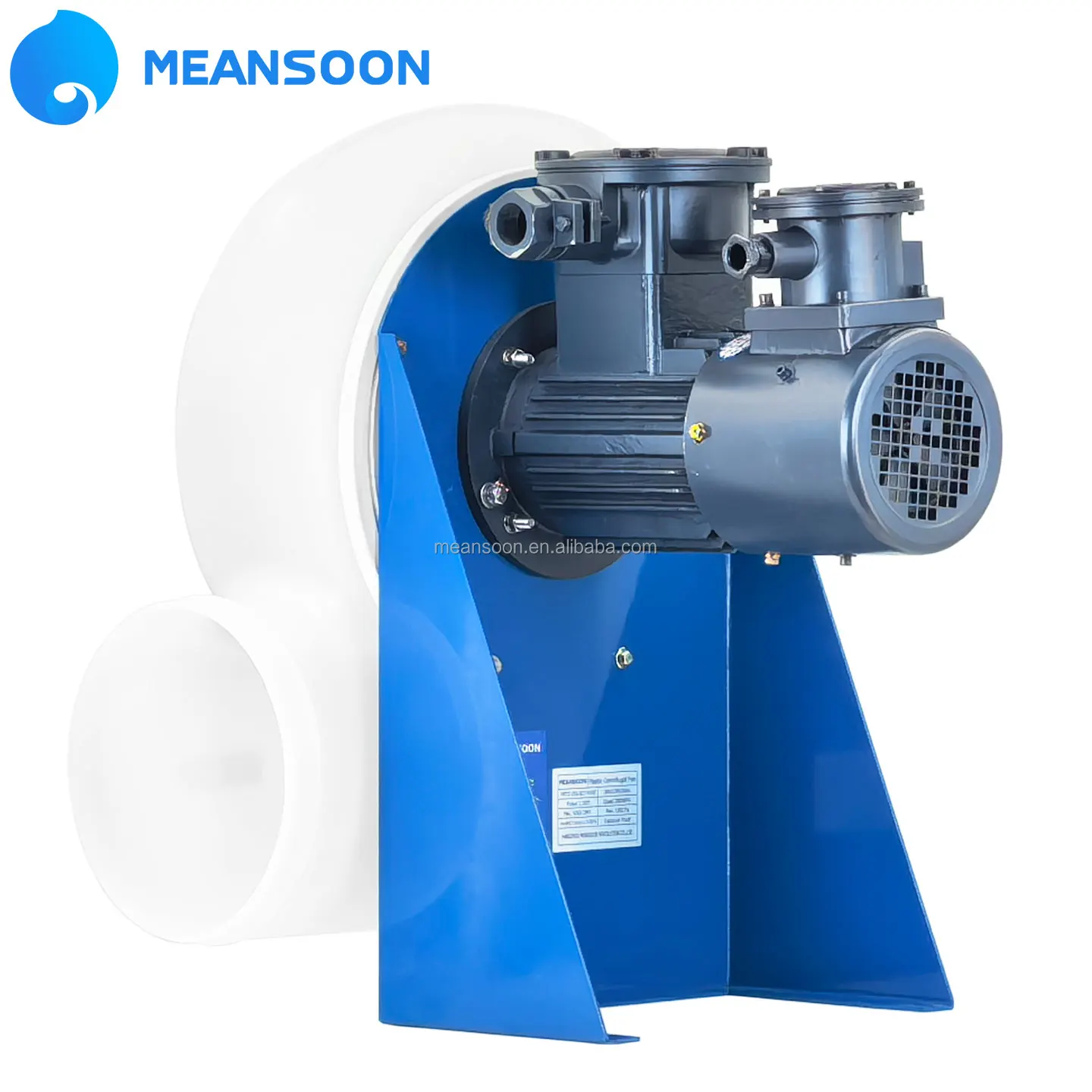

MPCF-250-B2T-EXVF Explosion Proof Variable Frequency Plastic PP Centrifugal Fan for VFD Speed Controller
GENERAL DESCRIPTION
Meansoon Plastic Centrifugal Fan is particularly designed for conveying corrosive vapour and smokes, also with high humidity level and with maximum temperature of 60 ℃.
Suitable for applications where the extraction of corrosive fumes and gases:
Sulphuric acid, Sulphurous acid, Nitric acid, Nitrous acid, Hydrofluoric Acid, Boris Acid, Hydrocyanic Acid, Hydrochloric acid. Ammonia, Soda, Ethanol, Potassium hydroxide, Methanol, Propane, Formol, Benzene, Formaldehyde.
APPLICATION
The MPCF series of Plastic Centrifugal Fan provides good characteristics of low noise and high efficiency, which often are applied in laboratory, fume hood, fume cupboard, chemical storehouse, electroplating factory, medicine factory, mold factory, Electronic workshop and metallurgy for exhaust ventilation.
VOLUTE
The volute is made of polyethylene(PE) plastic. Reversible and rotatable to any the 8 standard discharge positions by 45°increments. All fan is with mounting bolts and nuts in 304 stainless steel.
Inlet/outlet are round with standard size: 160, 200, 250, 300, which are good for plastic duct connection.
IMPELLER
The forward/backward curved impeller is efficiently made of polypropylene PP plastic are dynamically balanced according to DIN ISO 1940.
MOTOR
Direct driving, asynchronous, single or three phase, IP54/PI55, class B/F, B5 shape in 2-pole and 4-pole execution. Single speed: three phase 380 V-50/60Hz, single phase 220V-50/60Hz. Explosion proof versions in accordance with CNEX Directive for three-phase models is available. Motor is outside the airstream. we can provide Variable-frequency motors, driving by VDF.
MOTOR STAND
Metal stand is constructed of epoxy coated in blue, made of steel sheet.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–9 unit: US $510.4 / unit
- 10–49 unit: US $459.4 / unit
- 50+ unit: US $414.4 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this proof centrifugal duct fan?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the proof centrifugal duct fan be supplied for my local voltage?
The standard configuration is 380V/3Ph/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
