Blast Freezer, 750KG, 23KW, Stainless Steel 304

Blast freezer — 23KW, material Stainless Steel 304 / 316. The complete factory specification follows. Made by ShanDong Ecoice Refri Co., Ltd. (5 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Blast Freezer

• Power(W): 23KW
• Voltage: Customized
• Material: Stainless Steel 304 / 316
• Plate Material: Aluminum alloy
• Refrigerant: R22/R404a/R717
• Warranty: 2 Years

Technical Specifications

Product Details

Product Description

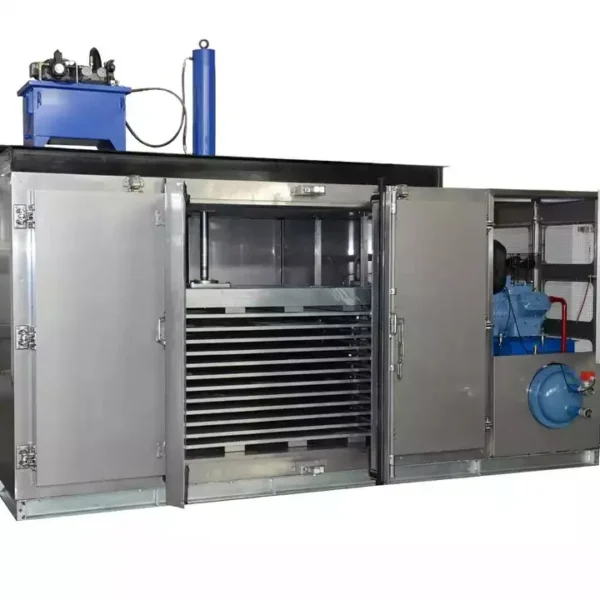

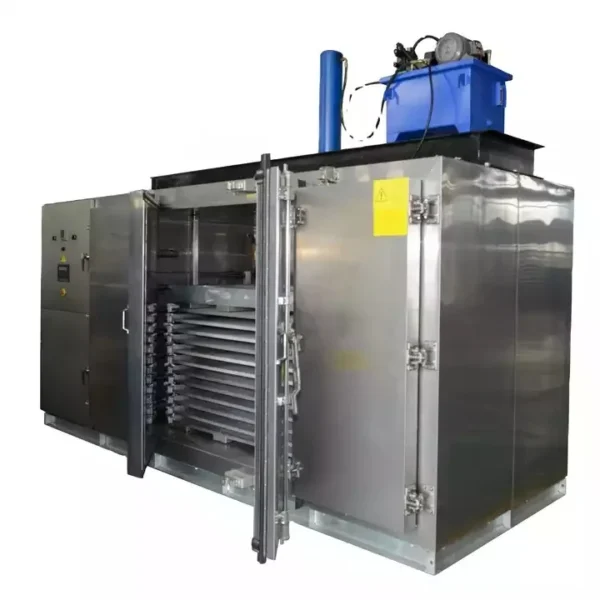

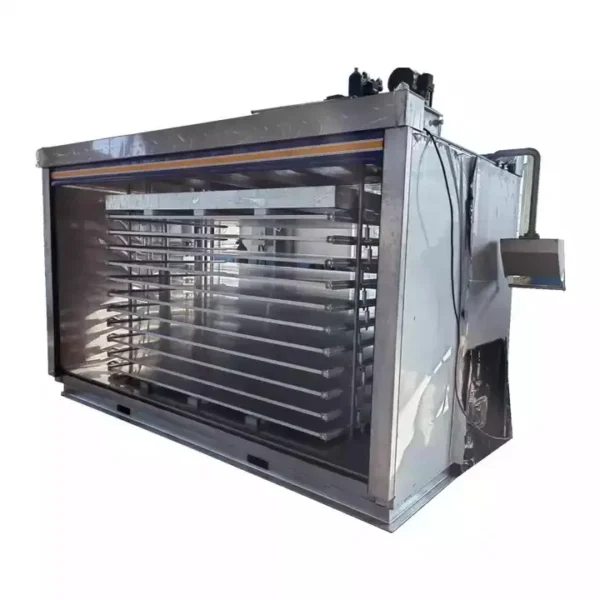

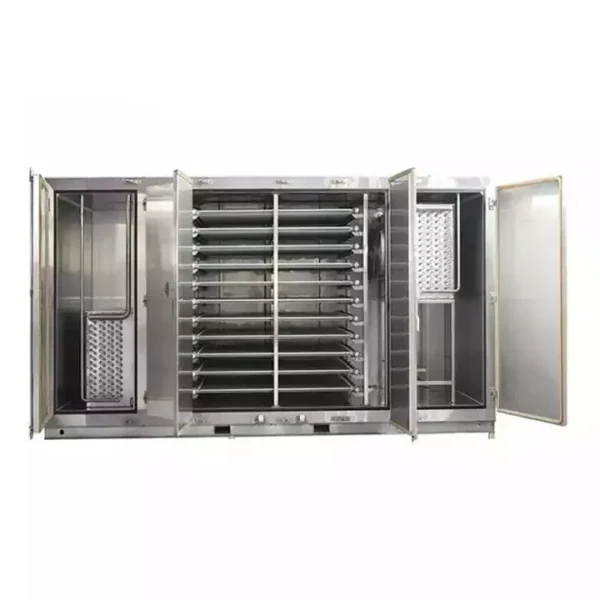

Introduction of Hydraulic Contact Plate Freezer

Contact plate quick freezer can quickly freeze products by moving up and down the inside aluminum plates so that the products
exchange heat with two plates.
Refrigeration system can be equipped as per different requirement of users.

The plate quick freezer is suitable for freezing block food, such as fish fillet, minced fish, shrimp, shellfish and other aquatic
products on land or fishing boats.

Specification

Model	Freezing Temp.	Size(L*W*H) mm	Weight(kg)	Plate Layers	Freezing Capacity (kg/h)
ECO 500	-35	3000*1500*2000	2800	10	500
ECO 750	-35	3250*1500*2250	3400	10	750
ECO 1000	-35	3450*1750*2250	4000	10	1000
ECO 1500	-35	3560*1750*2450	4600	10	1500
ECO 2000	-35	3850*1750*2450	5000	10	2000
ECO 2500	-35	3950*1750*2650	5400	10	2500

Contact Plate Freezer mainly used in frozen food industry, such as fish blocks, shellfish, shrimp, meatballs, etc.
♣Contact Plate Freezer Main feature:
1, Refrigeration system is built to a compartment beneath the freezing cabinet. It's ideal for small capacity
freezing.
2, Air cooling or water cooling compressors are optional.
3, Doors opened on the front and rear enable access. Easy installed and moved
4, Uniform blocks and even pressure between aluminum plates.
5, Adopt high efficient compressor, well-insulated panels and hygeian extrusion plates.
♣ Contact Plate Freezer Main parameters
1, Digital temperature display(PLC/touch screen control panel)
2, Hydraulic system to lift and press the freezing plates
3, plates are corrosion resistant, polyurethane foam insulation
4, stainless steel insulated boards and doors.
5, cabinet is made up of heavy-duty structural frame, polyurethane insulation and stainless steel sheet
cladding. Leak proof and folding doors at the back.
6, Frozen time:2-4hr/batch
7, Freezing temp.:-28C(+/-2)
8, Refrigerant:R22(Freon), water defrosting
9, Compressor: Bitzer

Oil Pipe
Oil Pipe Can be choose go through down or up as customer technical requirements.
When capacity below 1000kg per time we suggest go through up, when capacity bigger than 1000kg per time we suggest go through
down.

Evaporator
air cold type plate contact freezer need Evaporator to cooling the machine, but water cold type don't need.

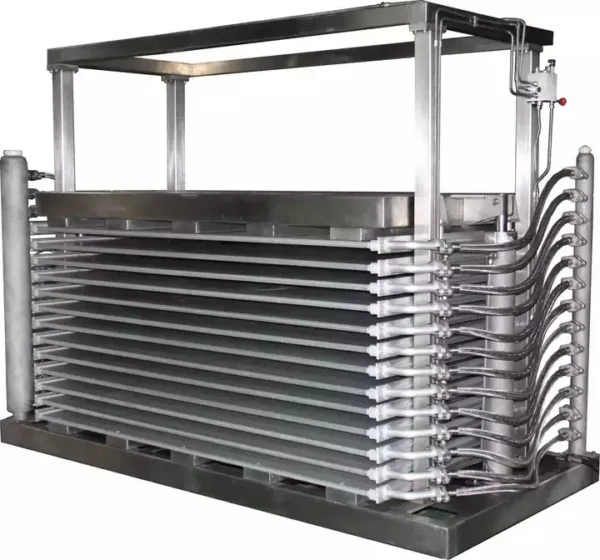

Plates
All aluminum in plate freezer we welding by ourself factory and fill in nitrogen, the plate number depends on machine capacity
customer need.

Hydraulic station
Hydraulic station we use brand DECO , stable and energy saving,contact plate freezer us Hydraulic station to control plate up and
down, and control oil speed.

Expansion valve
Expansion valve brand danfoss. when capacity bellow 1000kg per time, one valve supply two plates, when capacity bigger than 1000kg
per time, one valve supply one plate.
Bitzer Compressor
1, Bitzer compressor is built to a compartment beneath the freezing cabinet. It's ideal for small capacity freezing.
2, Air cooling or water cooling compressors are optional.
3.Adopt high efficient compressor, well-insulated panels and hygeian extrusion plates.

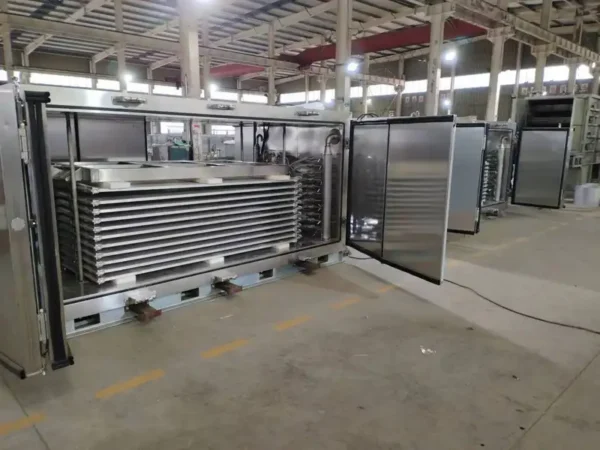

Details Images

Packing & Delivery

WOODEN CASES

Company Profile

ShanDong EcoIce Refrigeration Co., Ltd is specialized in manufacturing flake ice machine, heat exchanger,quick freezer , seafood process machines and water chiller in China. With a professional refrigeration and air conditioning system R&D team, we can supply customized OEM & ODM products. For any new project, we could prepare samples for quality check on client request. Now our factory has been awarded ISO9001: 2000, ISO14000, RoHS and UL certificate. With advanced equipment, strong technical team, best management system and 20+ years international business experience, we are cooperating many clients from Europe, North America, South America, Middle East, Africa and South of Asia… We sincerely welcome customers all over the world to visit our company and set up business relationship for mutual development.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $10000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this blast freezer?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the blast freezer be supplied for my local voltage?

The standard configuration is Customized. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
