Equipment small quick freezer — 380V, 13KW. The complete factory specification follows. Made by WOBO Industrial Group Corp. (8 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Equipment Small Quick Freezer
- Power(W): 13KW
- Voltage: 380V
- Material: Stainless Steel
- Warranty: 1 Year
- After Warranty Service: Online and video technical support
- Warranty Of Core Components: 1 Year

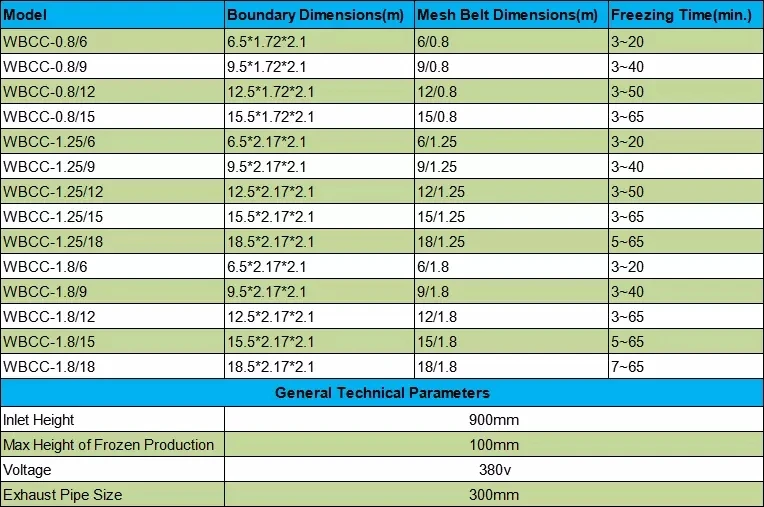

Technical Specifications
| Type | Tunnel Freezer |
|---|---|
| Temperature Control | -80℃ to 0℃ |
| Voltage | 380V |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | PLC |
| Key Selling Points | Energy Saving |
| Power(W) | 13KW |
| Place Of Origin | Henan, China |
| Weight (Kg) | 3800 |
| Brand Name | Cryo Chains |
| Dimension(L*W*H) | 12.5*2.17*2.1m |
| Freezing Time | 3~50min |
| Inlet Height | 900mm |
| Exhaust Pipe Size | 300mm |
| Material | Stainless Steel |
| After Warranty Service | Online and video technical support |
| Local Service Location | None |
| Applicable Industries | Farms |
| Warranty Of Core Components | 1 Year |
| Weight | 3800 |
| Selling Units | Single item |
| Single Package Size | 80X60X60 cm |
| Single Gross Weight | 68.000 kg |
Product Details

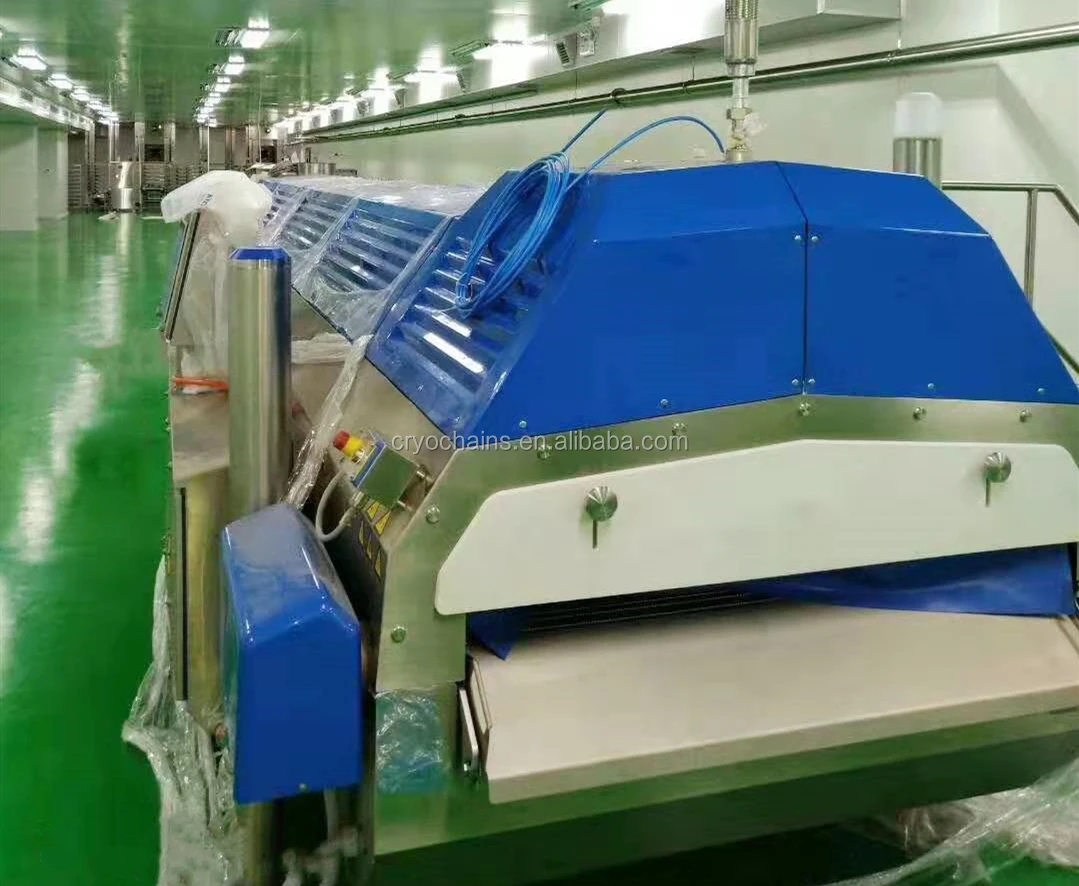

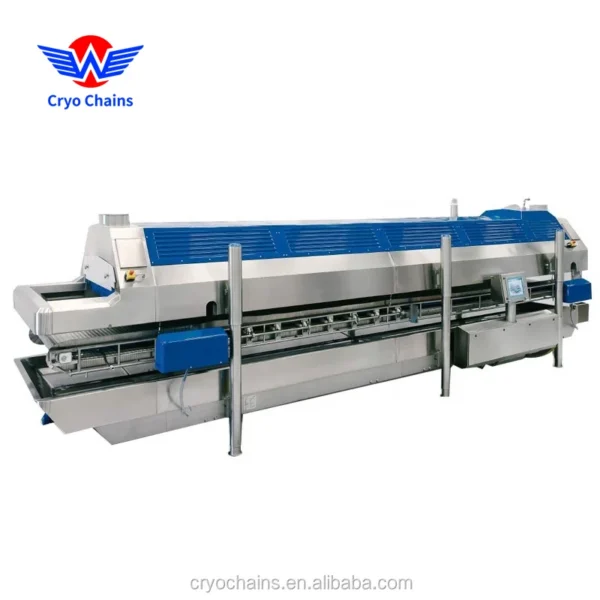

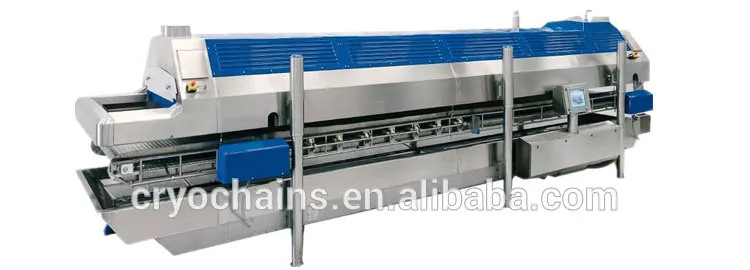

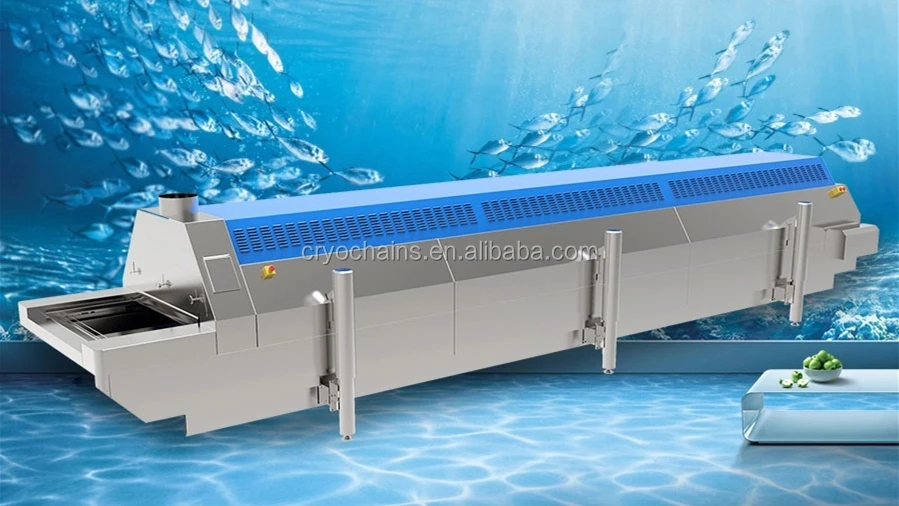

IQF Blasting Liquid Nitrogen Tunnel Freezing Machine: | ||||||||
Small Quick Freezer Iqf Tunnel Freezer Liquid Nitrogen Cooling Tunnels For Chicken. | ||||||||

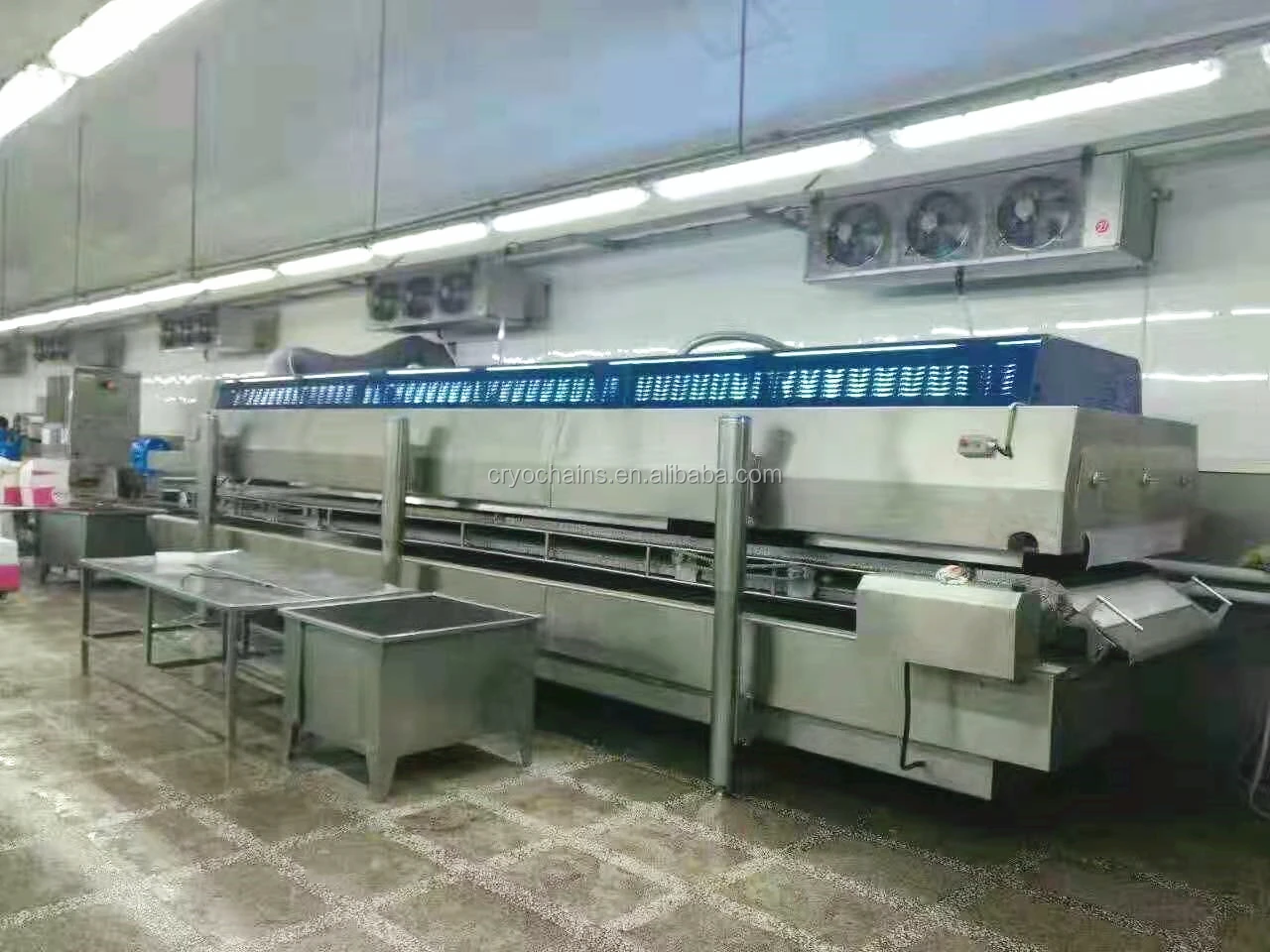

Introduction of IQF Liquid Nitrogen Quick Freezer:
modular in design, enabling you to expand production by adding additional tunnels for a longer freezing production line. It is available in several models and belt widths with production rates of 300–2,500 kg/h .

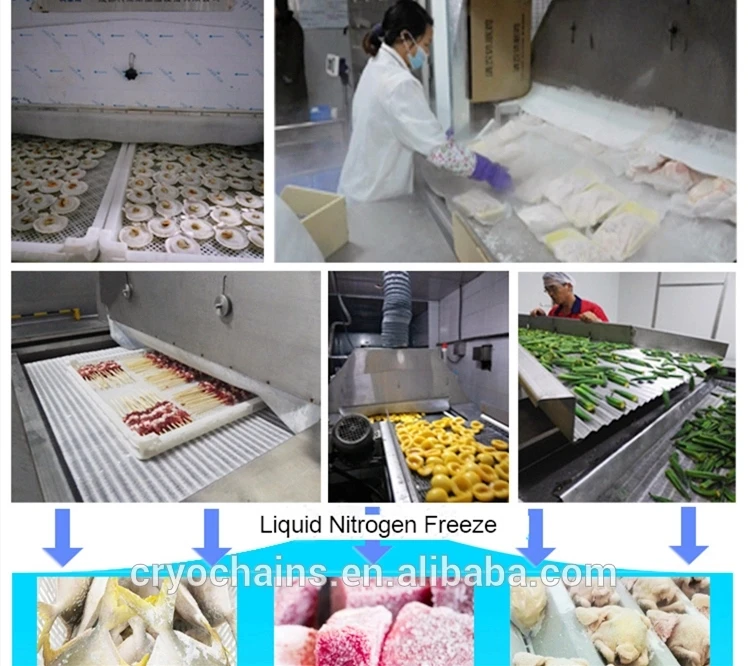

Liquid nitrogen temperatures can reach minus 196℃(-196℃).When it is in contact with food,Gasification will be able to take heat away more quickly.The ultra-low temperature and high heat exchange rate achieve a really quick reozen.Such repid freezing,generating the smallest ice crystals, and helps maintain food texture.This also prevents water loss, and almost no loss:to maintain the original color,flavor and original quality of the food.These vaporized refrigerant nitrogen is directed to the front end of the refrigerating machine uniformly,complete the exchange of hot inverse,thereby improving the utilization of the nitrogen.
Feature of Liquid Nitrogen Quick Freezer:
2) Fast freezing time, the fastest freezing time is 5 minutes.
3) No damage of cell structure, no dehydration and dry loss,no moisture loss.
4) Improve productivity, improve texture, color, flavor of frozen product.
5) The nitrogen freezer is Environmental, no pollution, no noise.
6) Easy to operate and easy to repair, dont need special technician.

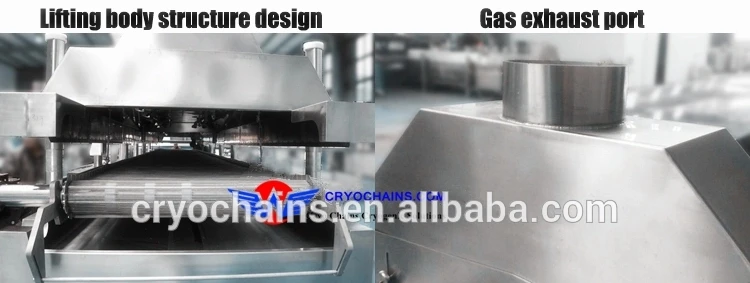

With lifting mechanism, ultra-high configuration;

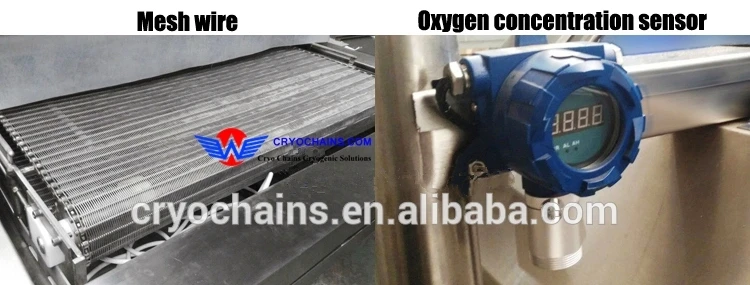

With oxygen concentration alarm, safety and energy saving;
Exquisite workmanship, pay attention to quality;

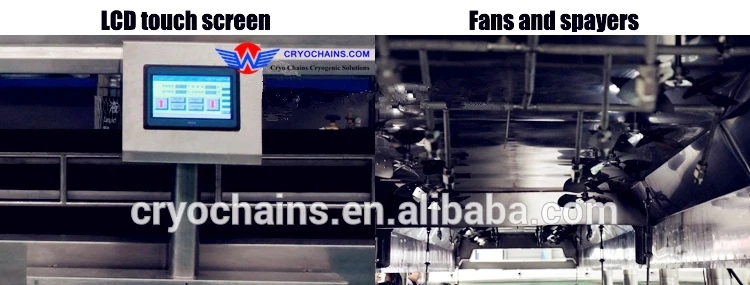

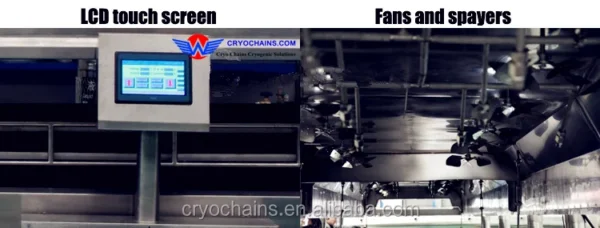

Intelligent temperature control, fast refrigeration;
Clean and environmentally friendly.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $10000 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this equipment small quick freezer?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the equipment small quick freezer be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
