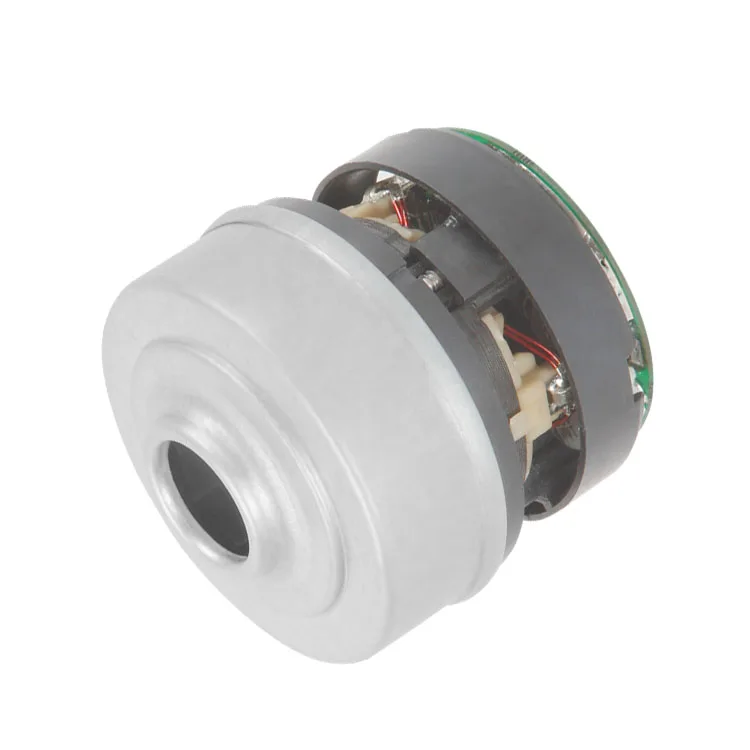

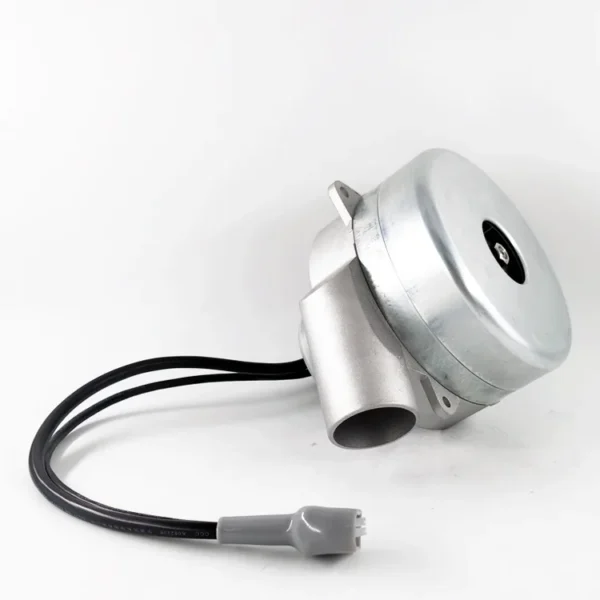

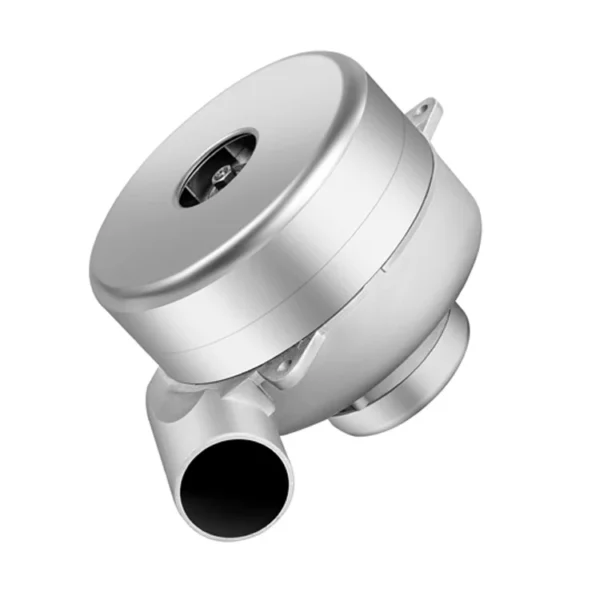

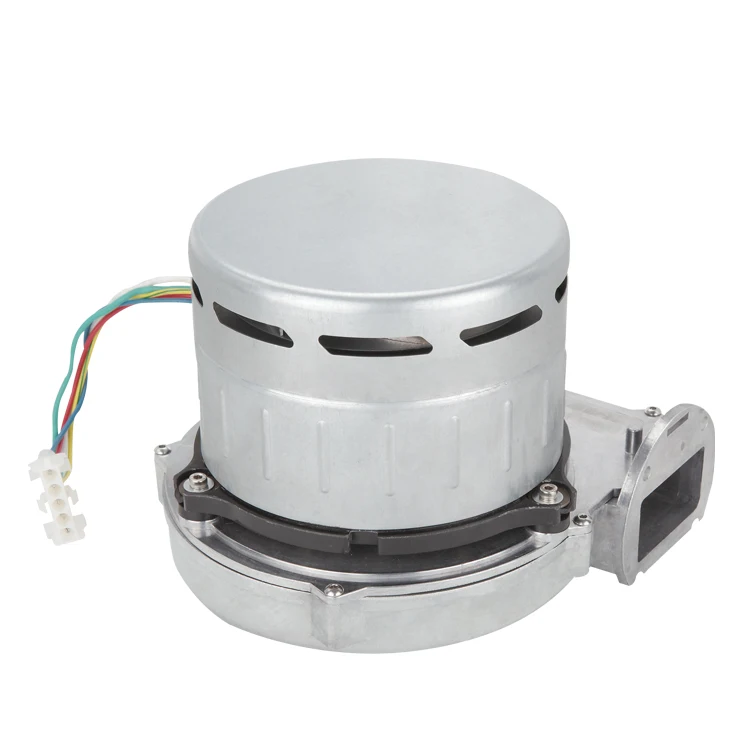

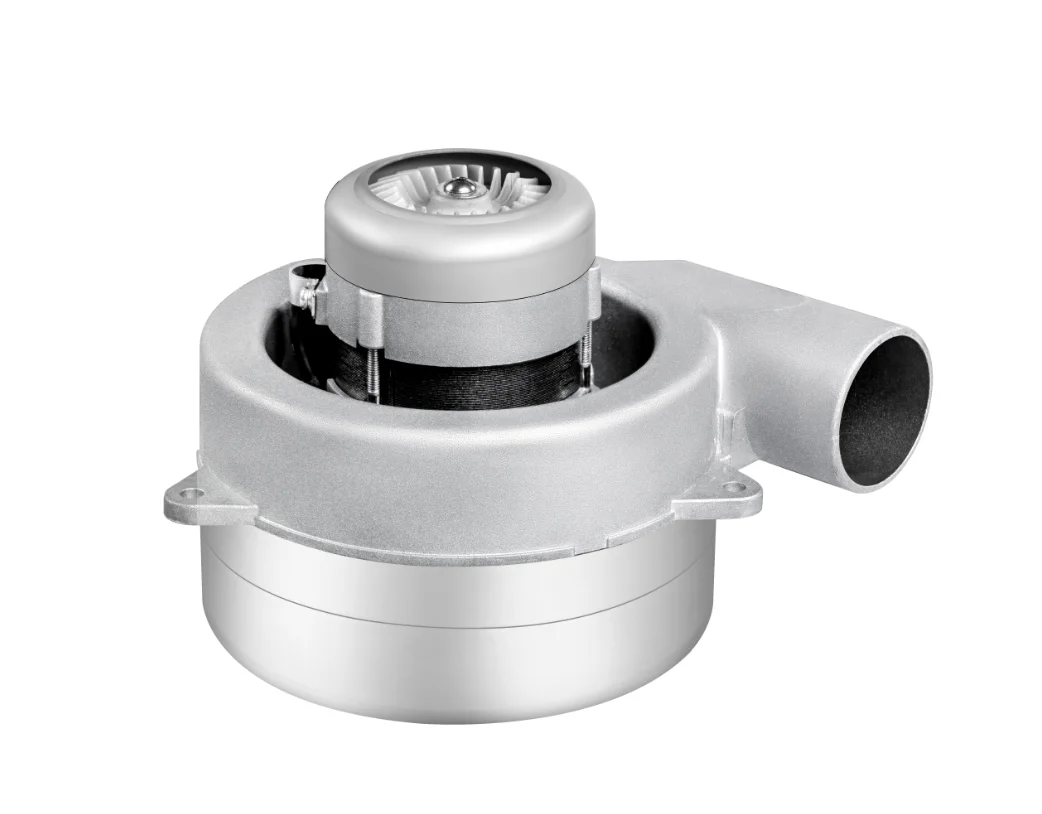

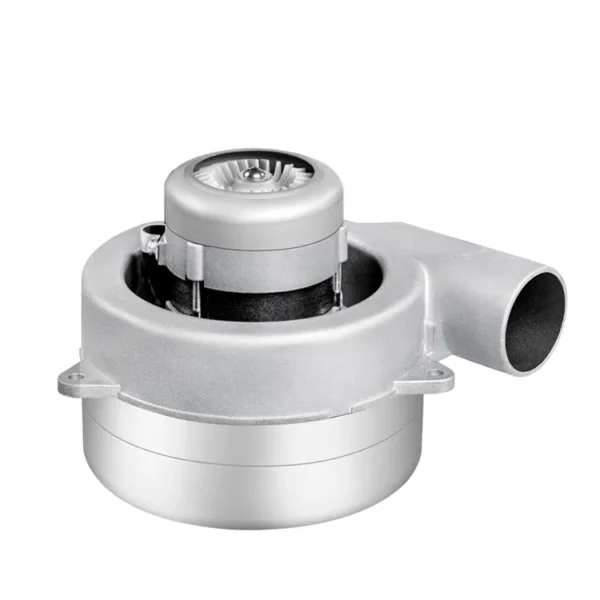

This bldc brushless fan is published with the manufacturer’s full specification — type Brushless Motor, 15000rpm. Made by Ningbo Newthink Motor Co., Ltd. (7 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Bldc Brushless Fan
- Model Number: NXK60Z
- Speed(RPM): 15000rpm
- Warranty: 1year
- Certification: ISO9001:2015
- Place Of Origin: Zhejiang, China
- Protect Feature: Explosion-Proof
Technical Specifications
| Commutation | Brushless |
|---|---|
| Speed(RPM) | 15000rpm |
| Efficiency | IE 2 |
| Type | Brushless Motor |
| Construction | Permanent Magnet |
| Protect Feature | Explosion-Proof |
| Usage | Commercial |
| Warranty | 1year |
| Continuous Current(A) | 9A |
| Model Number | NXK60Z |
| Torque | / |
| Place Of Origin | Zhejiang, China |
| Brand Name | NEWTHINK |
| Weight | 2.6kg |
| Vacuum Pressure | 32kPa |
| Certification | ISO9001:2015 |
| Packaging Details | CARTON AND PALLET |
| Port Of Dispatch | NINGBO/SHANGHAI |
| Selling Units | Single item |
| Single Package Size | 25X25X22 cm |
| Single Gross Weight | 4.000 kg |
| Supply Ability | 5000 pieces per Month |
Product Details
Model | NXK60C501Z21 | NXK60C801Z21 | NXK60C122Z21 | Tolerance |
Max. Power (W) | 500 | 800 | 1200 | ±10% |
Voltage (V) | 230 | 230 | 230 | |
Frequency (Hz) | 50/60 | 50/60 | 50/60 | |

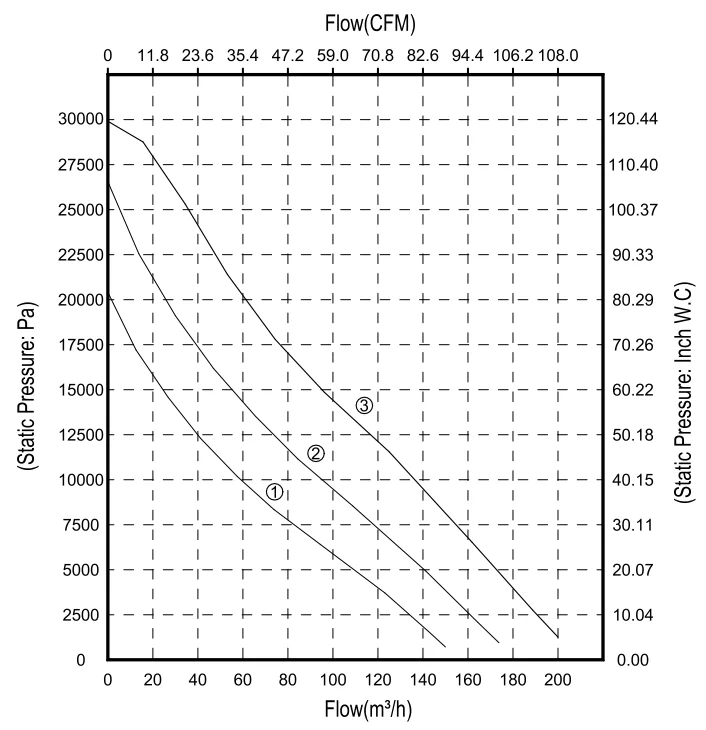

Performance Curves No. | ① | ② | ③ | |
Max.Air Flow (m3min) | 2.41 | 2.7 | 3.22 | ±10% |
Max. Vacuum (kPa) | 18.2 | 25.3 | 31.5 | ±10% |
Max. Speed(rpm/min) | — | — | 29000 | ±10% |

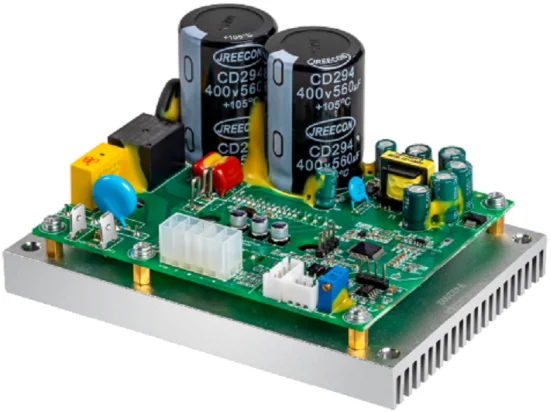

Speed Control | 0~5V DC/PWM | 0~5V DC/PWM | 0~5V DC/PWM | |
Net Weight (kg) | 2.60 | 2.60 | 2.70 | ±10% |
Newthink locates in Ningbo city and covers an area of over 5000㎡. Annual output reach to 600,000~800,000 pcs. The production strictly according to ISO9001:2015, and passed CE, RoHS, UL, ETL and etc. The number of patents is more than 30. Nowadays, our motors have been sold in more than 20 countries and regions including the US, Asia, and Europe.
Ningbo Newthink Motor found in 2011, a trailblazer in DC brushless motor technology, has nowadays become one of the important bases in brushless motor R&D in China.
2. * What's your MOQ?
Personally, I want to offer the need you wanted, but Automatic production need to start in one thousand set. Whatever, I'll try my best to arrange it.
3.Could you offer oversea after-service?
Engineers in NEWTHINK MOTOR has been and still are ready to supply the best solution for your problems.
4. May I ask for the technical information?
Dear sir or madam, What I'm able to offer is the former product test performance, showing in the EFFECT DATA. More information, please send me your inquiry in detail. I'll check it from engineers in electric and mechanical. BTW, secret data are unable to offer. Thanks for your consideration.
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–99 piece: US $180 / piece
- 100–999 piece: US $120 / piece
- 1000+ piece: US $99 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this bldc brushless fan?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this bldc brushless fan carry?
It is supplied with ISO9001:2015 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Newthink Motor Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Ningbo Newthink Motor Co., Ltd. range on HVACR Nexus.

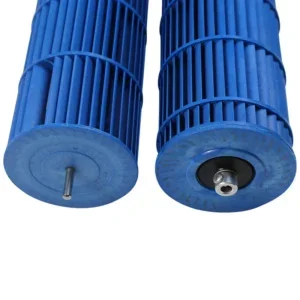

See more in Cross Flow Fans on HVACR Nexus.
