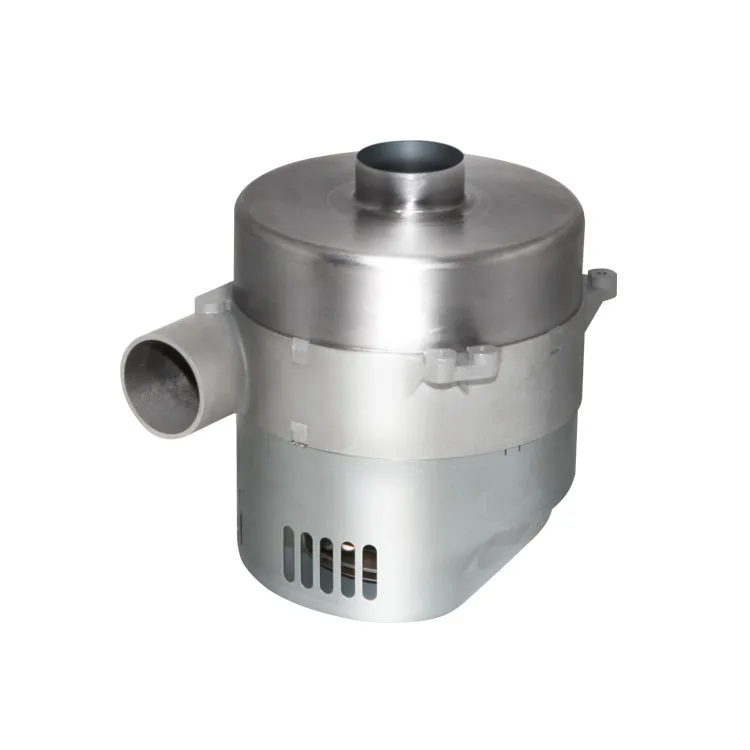

The pass brushless blower listed here carries 230V, power source Electric, documented exactly as the manufacturer publishes it. Made by Ningbo Newthink Motor Co., Ltd. (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Pass Brushless Blower
- Model Number: NXK57B
- Power Source: Electric
- Power Cord Length: F
- Rated Voltage: 230V
- Material: Stainless Steel
- Blade Material: Stainless Steel
Technical Specifications
| Application | Gas Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | 230V |
| Electric Current Type | DC |
| Motor Type | DC Motor |
| Speed | 14000 |
| Material | Stainless Steel |
| Blade Material | Stainless Steel |
| Noise Level | 92dB |
| Pressure | High Pressure |
| Warranty | 1 Year |
| Customized Support | OEM, ODM |
| Power Cord Length | F |
| Place Of Origin | Zhejiang, China |
| Brand Name | NEWTHINK |
| Model Number | NXK57B |
| Selling Units | Single item |
| Single Package Size | 25X25X22 cm |
| Single Gross Weight | 3.0 kg |
Product Details
Item | Technical Data | Technical Data |
Model | NXK57-600-FZB1 | NXK57-1200-FZB1 |
Motor Type | 1 Phase DC Brushless Motor | 1 Phase DC Brushless Motor |
Input Power | 600W | 1200W |
Current@Voltage | 2.4Amp @230V | 2.4Amp @230V |
Frequency | 50/60Hz | 50/60Hz |
Max. Sealed Vacuum Pressure | 14.1 kPa | 21.4 kPa |
Max. Air Flow | 174 m³/h | 210 m³/h |
Speed Control Method | PWM/0~10V DC | PWM/0~10V DC |
Speed Range (max, min) | 10000～14000（±10%） | 10000～14000（±10%） |
Insulation Level | F | F |
Warranty | 1 Year | 1 Year |
Weight | 2.5kg | 2.5kg |
Founded in 2011, It is a manufacturer which specialize in researching and developing brushless motors and blower. The application of products mainly cover vacuum cleaner equipment, home appliance, medical machine, garden instruments, sewing machine and automatic industrial devices etc.
Newthink locates in Ningbo city and covers an area of over 5000㎡. Annual output reach to 600,000~800,000 pcs. The production strictly according to ISO9001:2015, and passed CE, RoHS, UL, ETL and etc. The number of patents is more than 30. Nowadays, our motors have been sold in more than 20 countries and regions including the US, Asia, and Europe.
Obeying to the creed ”Devoted to technology innovation, define china creation”, Newthink has provided solutions for the overall application of professional, all-inclusive, energy saving and environment friendly brushless motor in wide areas. After many years of engineering practice, products has satisfied the demand of many clients in both overall solutions and key requirement specifications as well as in after sale service. Cooperating with their customers to their best extend and creating extraordinary value to solve application difficulties, Newthink has become the best partner of innumerable client
We are based in Zhejiang, China, start from 2011,sell to Domestic Market(40.00%),North America(30.00%),Southeast Asia(5.00%),Mid East(5.00%),Eastern Europe(5.00%),Northern Europe(5.00%),Southern Europe(5.00%).
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Motor,Blower
4. why should you buy from us not from other suppliers?
Newthink Motor is a professional motor manufacture. We have a professional engineer team which have more than15 years of experience in design research and development of motors. Otherwise we have a professional sales team which can offer you a good service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CTP；
Accepted Payment Currency:USD,CNY,EUR;
Accepted Payment Type: T/T,PayPal,Western Union,;
Language Spoken:English,Chinese
NXK71B series
Max. air flow: 3.7 m³/min
Max. vacuum pressure: 4.3kPas.
NXK71A series
Max. air flow: 4.4 m³/min
Max. vacuum pressure: 6.4kPa
NXK60Y series
Max. vacuum pressure: 31.3kPa
NXK60Z series
Max. vacuum pressure: 31.5kPa
NXK43K series
NXK51 series
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–99 piece: US $200 / piece
- 100–999 piece: US $190 / piece
- 1000+ piece: US $170 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this pass brushless blower?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the pass brushless blower be supplied for my local voltage?
The standard configuration is 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
