This boiler is published with the manufacturer’s full specification — applicable power supply AC220V/50Hz/1O, type Oil Burner. Made by Hebei Yong Chun Heating Equipment Co.,ltd (8 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Boiler
- Output Power: 46-116 KW
- Applicable Power Supply: AC220V/50Hz/1O
- Motor Power: 0.18 KW
- Warranty: 6 Months
- After Warranty Service: Video technical support
- Place Of Origin: Hebei, China
Technical Specifications
| Type | Oil Burner |
|---|---|
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 6 Months |
| Weight (Kg) | 11 |
| Place Of Origin | Hebei, China |
| Brand Name | Jihang |
| Output Power | 46-116 KW |
| Control Mode | Fully automatic single stage flame control |
| Applicable Fuel | Diesel oil |
| Fuel Consumption | 9.5 |
| Adaptable Pressure Range | 0.6-1.2 MPa |
| Applicable Power Supply | AC220V/50Hz/1O |
| Motor Power | 0.18 KW |
| Main Body Size Of Burner | 530*450*300 mm |
| Burner Weight | 11 kg |
| After Warranty Service | Video technical support |
| Selling Units | Single item |
Product Details

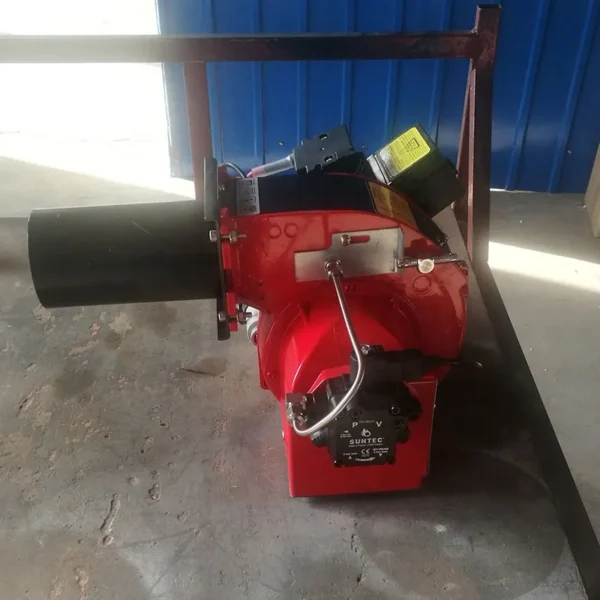

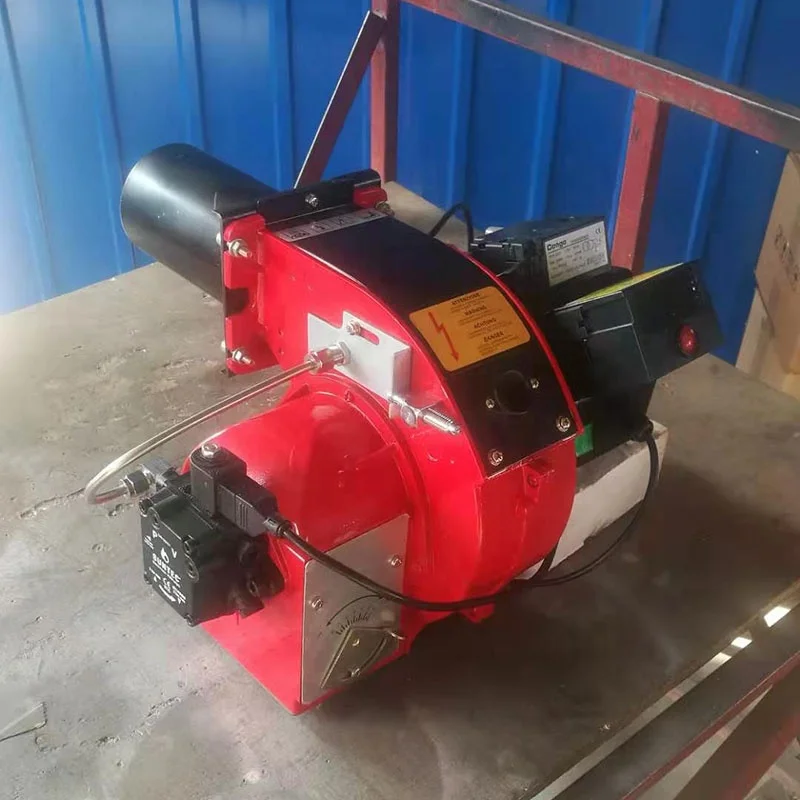

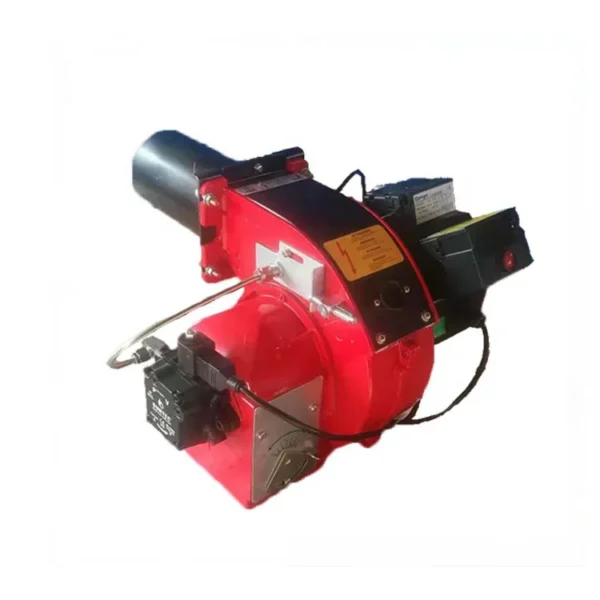

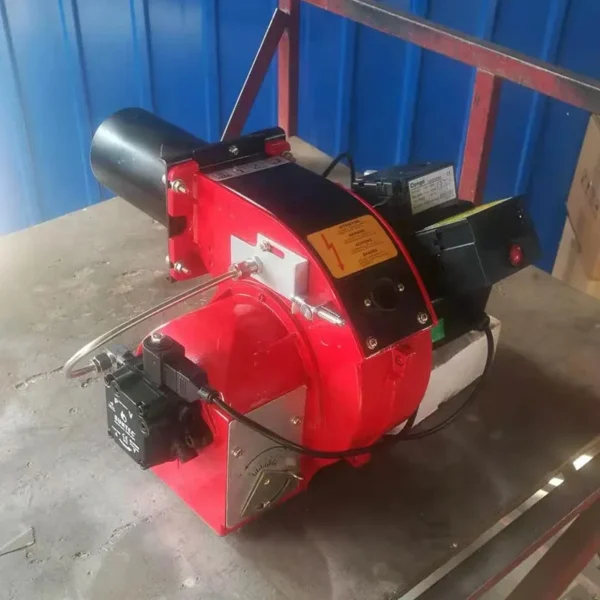

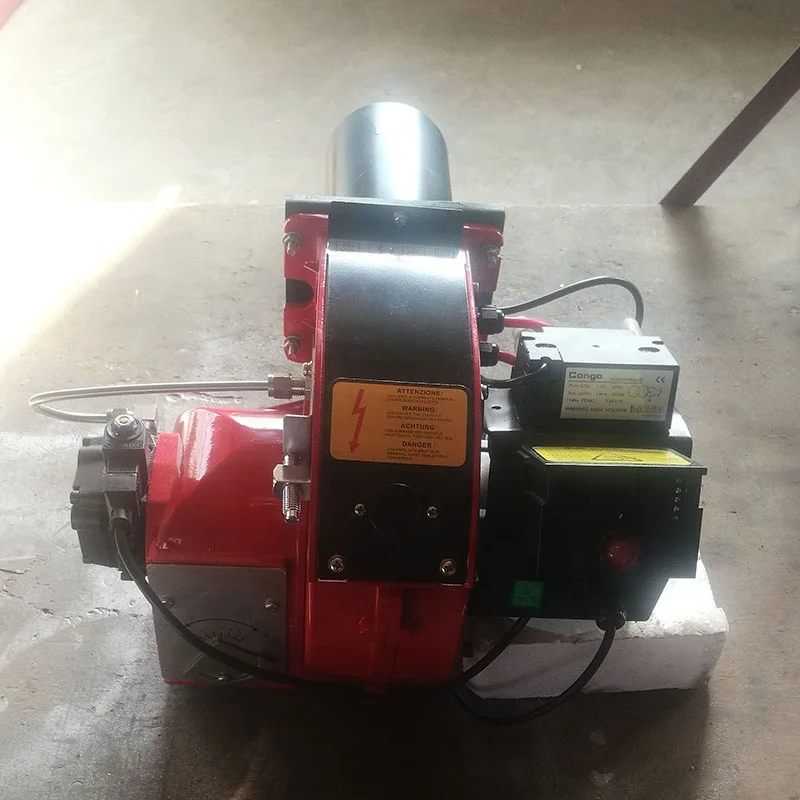

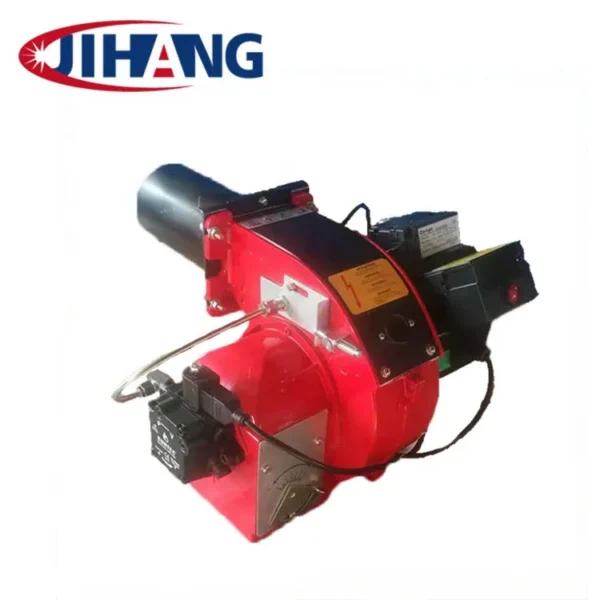

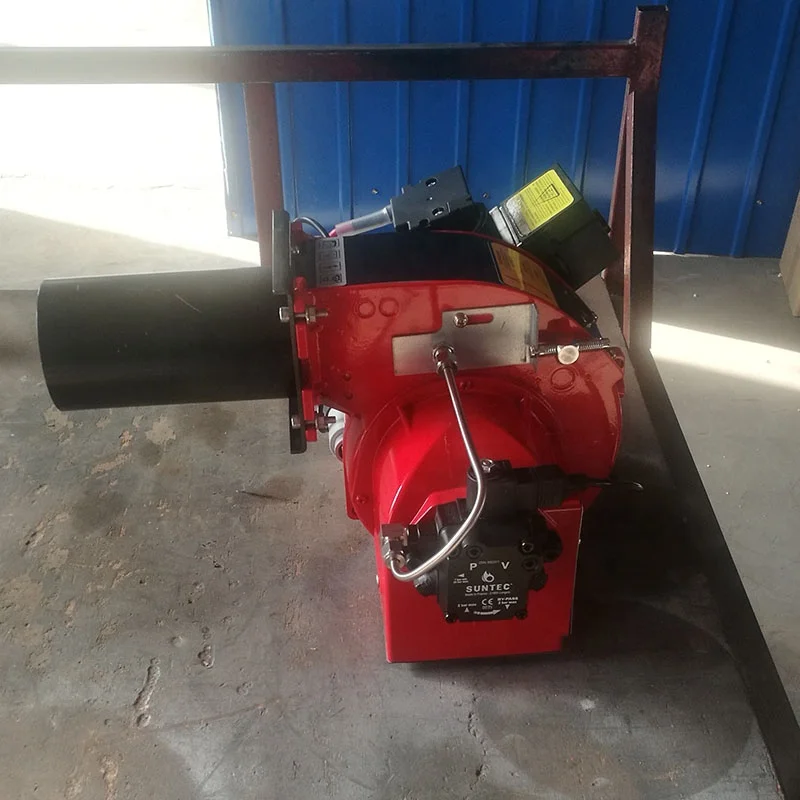

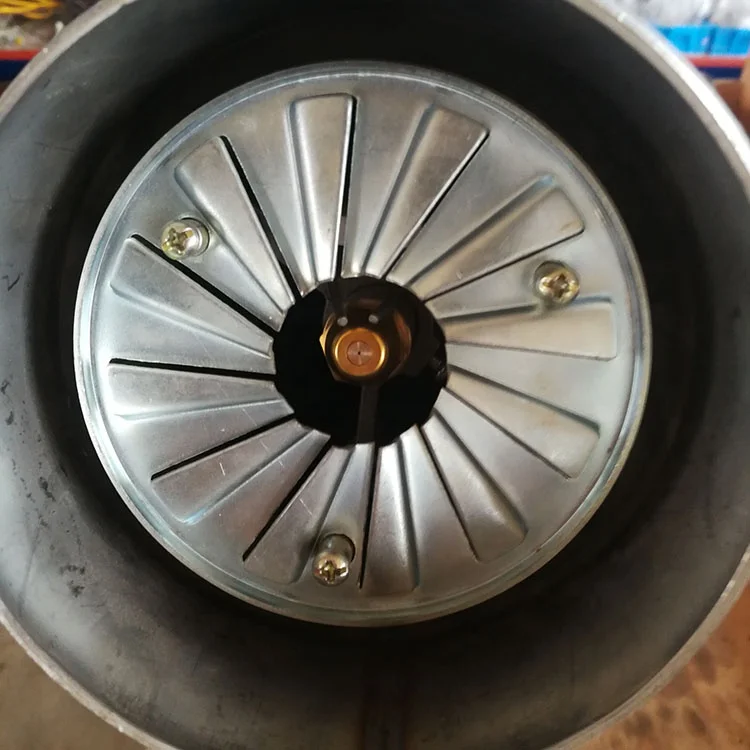

Fully Automatic One Stage Diesel Burner In Boiler Parts Waste Oil Burner For The Bakery Oven
| Technical parameters | ||||||
| Model | JH-10-Y | JH-15-Y | JH-30-Y | JH-40-Y | JH-60-Y | |
| Output power | KW | 46-116 | 81-174 | 116-302 | 174-464 | 232-696 |
| 104Kcal/h | 4-10 | 7-15 | 10-30 | 15-40 | 20-60 | |
| Control mode | Fully automatic single stage flame control | Fully automatic two-stage flame control | ||||
| Applicable fuel | Diesel oil | |||||
| Fuel consumption | kg/h | 9.5 | 14.3 | 28.5 | 38.1 | 57.1 |
| Standard inlet pressure | Pa | 0 | ||||
| Adaptable pressure range | MPa | 0.6-1.2 | ||||
| Design fuel calorific value | Kcal/Nm³ | 10500 | ||||
| Adapt to ambient temperature | ℃ | -15~60 | ||||
| Applicable power supply | AC220V/50Hz/1O | AC380V/50Hz/3O | ||||
| Motor power | KW | 0.18 | 0.18 | 0.37 | 0.75 | 1.1 |
| Safety Protection Level | IP | 55(The protection level can be improved according to the order requirement.) | ||||
| Flange Installation Form | Sliding adjustable flange | |||||
| Fuel access port size | 1/2 | |||||
| Main Body Size of Burner (Length * Width * Height) | mm | 530*450*300 | 530*450*300 | 750*600*330 | 1130*700*480 | 1250*840*570 |
| Burner weight | kg | 11 | 12 | 19 | 50 | 59 |
1.Is your company a manufacturer or a distributor?
Answer: our company is a manufacturer with a complete sales, production, technology and after-sales service team.
2.What are the payment methods?
Answer: orders less than $500 can be remitted by Western Union, but only by international express, such as DHL, Fex, UPS, etc. large orders support T / T payment, and the final payment is settled before shipment.
3.Warranty policy: except for oil pump, nozzle, solenoid valve (oil burner), ignition needle and ignition line, the whole burner is guaranteed for one year, and the shell of the sensor is burnt out due to thermal radiation, which is not covered by warranty.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 6 Months warranty. Spare parts and technical support remain available after the warranty period.
Can the boiler be supplied for my local voltage?
The standard configuration is AC220V/50Hz/1O. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hebei Yong Chun Heating Equipment Co.,ltd, based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Hebei Yong Chun Heating Equipment Co.,ltd range on HVACR Nexus.
