The one- stage air heater listed here carries applicable power supply AC220V/50Hz/1O, type Gas Burner, documented exactly as the manufacturer publishes it. Made by Hebei Yong Chun Heating Equipment Co.,ltd (8 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This One- Stage Air Heater
- Output Power: 23-58 KW
- Applicable Power Supply: AC220V/50Hz/1O
- Motor Power: 0.08 KW
- Warranty: 6 Months
- Place Of Origin: Hebei, China
- Type: Gas Burner
Technical Specifications
| Type | Gas Burner |
|---|---|
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Warranty | 6 Months |
| Weight (Kg) | 6 |
| Place Of Origin | Hebei, China |
| Brand Name | Jihang |
| Output Power | 23-58 KW |
| Control Mode | Fully automatic single stage flame control |
| Applicable Fuel | Nature gas,LPG |
| Adaptable Pressure Range | 30-50 mbar |
| Applicable Power Supply | AC220V/50Hz/1O |
| Motor Power | 0.08 KW |
| Flange Installation Form | Sliding adjustable flange |
| Fuel Access Port Size | DN15 |
| Burner Weight | 6.1 kg |
| Main Body Size Of Burner | 400*350*450 mm |
| Selling Units | Single item |
Product Details

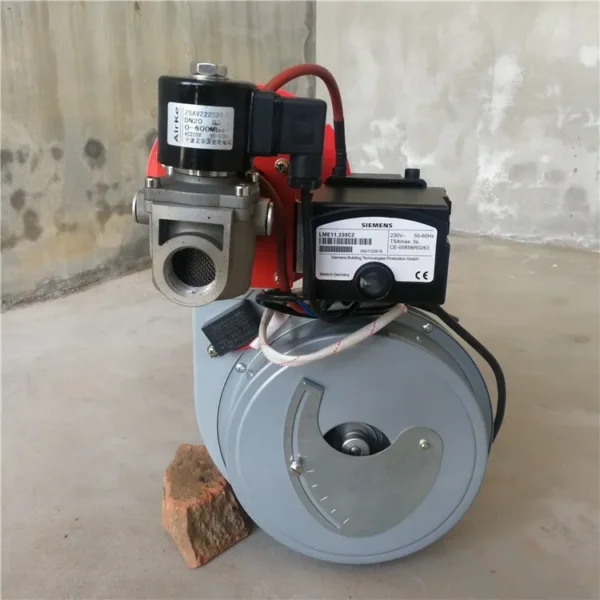

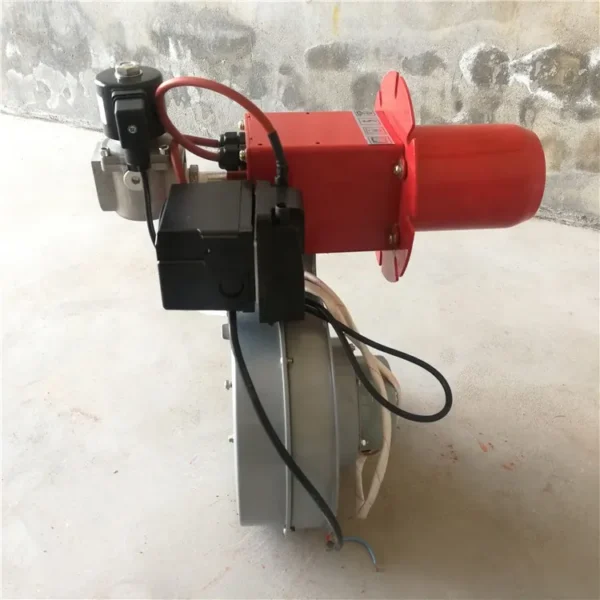

JH-5-Q One- Stage Air Heaters Industrial LPG Gas Burner Natural Gas Burner For Powder Coating Oven
| Technical Parameters | |||||||
| Model | JH-5-Q | JH-10-Q | JH-15-Q | JH-30-Q | JH-40-Q | JH-60-Q | |
| Output power | KW | 23-58 | 46-116 | 81-176 | 116-302 | 174-464 | 232-696 |
| 104Kcal/h | 2-6 | 4-10 | 7-15 | 10-30 | 15-40 | 20-60 | |
| Control mode | Fully automatic one stage flame control | Fully automatic two-stage flame control | |||||
| Applicable fuel | Nature gas | ||||||
| Fuel consumption | m³ | 5.9 | 11.8 | 18 | 35.3 | 47.1 | 70.6 |
| Adaptable pressure range | mbar | 30-50 | 50-150 | ||||
| Design fuel calorific value | Kcal/Nm³ | 35.53(8500Kcal/Nm³) | |||||
| Adapt to ambient temperature | ℃ | -15~60 | |||||
| Applicable power supply | AC220V/50Hz/1O | AC380V/50Hz/3O | |||||
| Motor power | KW | 0.08 | 0.18 | 0.18 | 0.37 | 0.75 | 1.1 |
| Safety Protection Level | IP | 44 | 54 | ||||
| Flange Installation Form | Sliding adjustable flange | ||||||
| Fuel access port size | DN15 | DN15 | DN20 | DN20 | DN25 | DN40 | |
| Main Body Size of Burner (Length * Width * Height) | mm | 400*350*450 | 560*400*350 | 560*400*350 | 750*550*550 | 1150*760*500 | 1280*860*500 |
| Burner weight | kg | 6.1 | 15 | 15.7 | 21 | 44.5 | 64 |
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this one- stage air heater?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 6 Months warranty. Spare parts and technical support remain available after the warranty period.
Can the one- stage air heater be supplied for my local voltage?
The standard configuration is AC220V/50Hz/1O. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
