This bolier induced draft fan is published with the manufacturer’s full specification — 220V/380V, blade material Cast Iron. Made by Foshan Luomei Electric Technik Co.,ltd (10 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.

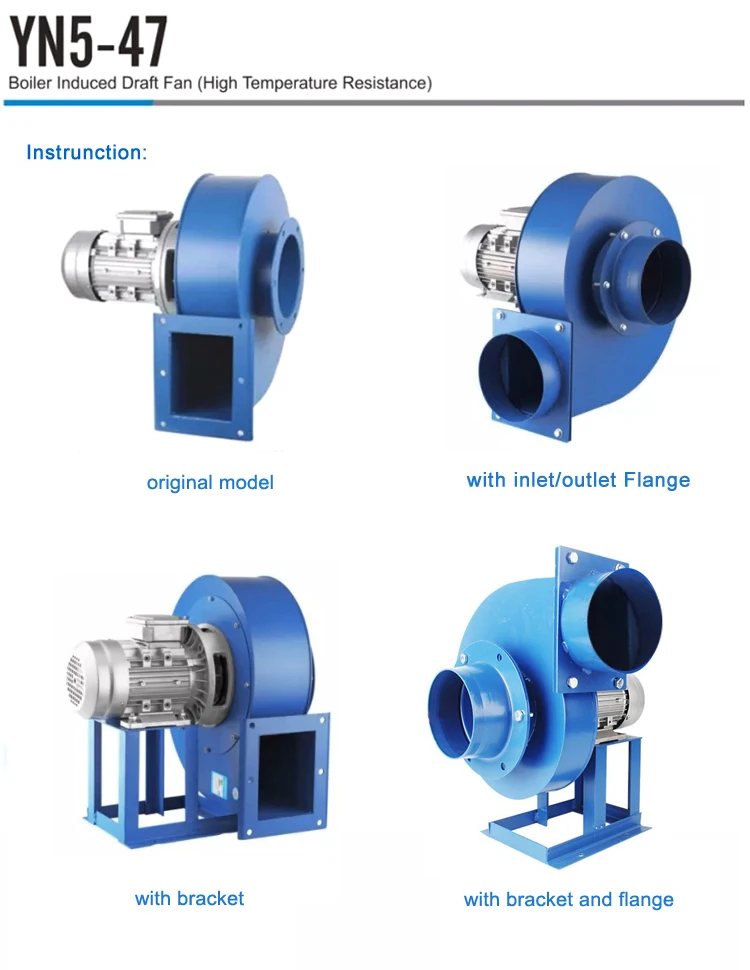

Key Features of This Bolier Induced Draft Fan
- Model Number: YN5-47-060
- Voltage: 220V/380V
- Blade Material: Cast Iron

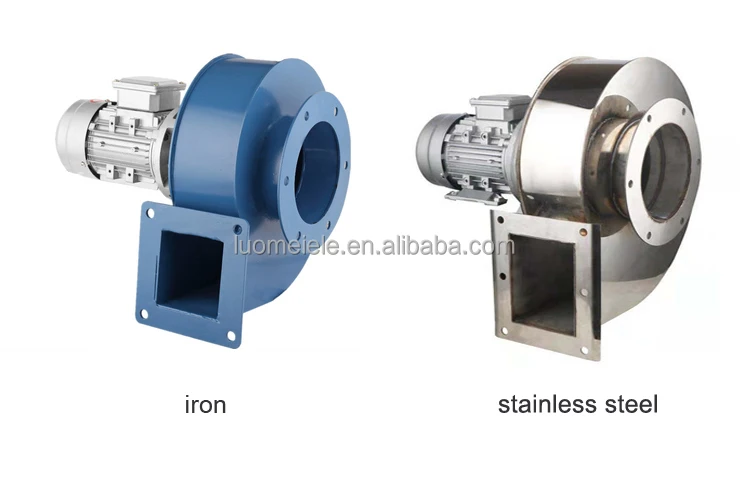

- Material: Iron
- Place Of Origin: Guangdong, China
- Motor Type: Copper Wire
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 220V/380V |
| Blade Material | Cast Iron |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Guangdong, China |
| Brand Name | LUOMEI |
| Model Number | YN5-47-060 |
| Pressure | 310Pa |
| Frequency | 50 Hz |
| Material | Iron |
| Motor Type | Copper Wire |
| Temperature Resistance | 200 ℃ |
| Rotation | 2800RPM |
| Color | Blue |
| Usage | boiler fan |
| Phase | 1/3 Phase |
| Weight | 10KG |
| Selling Units | Single item |
| Single Package Size | 35X25X25 cm |
| Single Gross Weight | 12.000 kg |
Product Details
– High temperature resistance, high efficiency, high air volume, low vibration, low noise, laser cuttingof wind shells,
beautiful shape
— Y2 aluminium alloy die casting material is used in the motor, which greatly reduces weight, achieveslightweight,
convenient istallation and novel shape. The main components of the motor are high temperature resistant materials (high temperaturebe arings. high temperature grease, high temperature insulation materials, etc.).

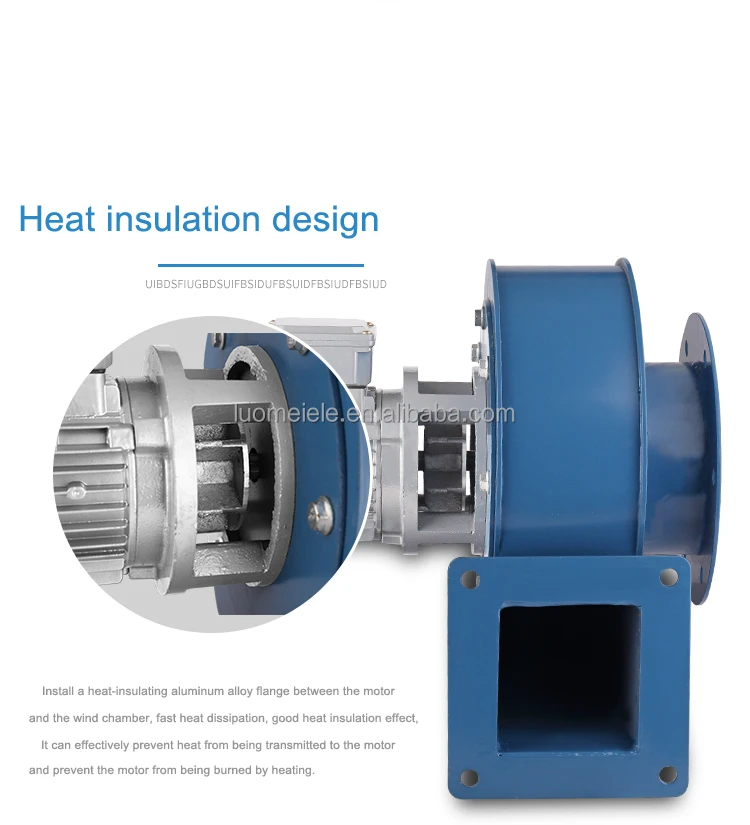

— The motor is cooled by connecting the heat insulating connecting seat (with internal cooling vanes) with the wind
housing to ensure the normal operation of the motor at high temperature
— widely used in heating furnace, hot air stove, numerical control boiler, steam boiler, drying,chemical industry, food,
grain machineryAnd other related industries.
— Normal operating temperature of fan: 180C-200C
| Model | Power | Voltage | Frequency | Speed | Flow | Pressure |
| YN5-47-060 | 60W | 220V/380V | 50HZ | 2800r/min | 240m3/h | 310Pa |
| YN5-47-090 | 90W | 220V/380V | 50HZ | 2800r/min | 350m3/h | 360Pa |
| YN5-47-120 | 120W | 220V/380V | 50HZ | 2800r/min | 480m3/h | 450Pa |
| YN5-47-180 | 180W | 220V/380V | 50HZ | 2800r/min | 650m3/h | 510Pa |
| YN5-47-250 | 250W | 220V/380V | 50HZ | 2800r/min | 860m3/h | 580Pa |
| YN5-47-370 | 370W | 220V/380V | 50HZ | 2800r/min | 1100m3/h | 650Pa |
| YN5-47-550 | 550W | 220V/380V | 50HZ | 2800r/min | 1450m3/h | 680Pa |
| YN5-47-750 | 750W | 220V/380V | 50HZ | 2800r/min | 1810m3/h | 790Pa |
| YN5-47-1100 | 1100W | 220V/380V | 50HZ | 2800r/min | 2250m3/h | 940Pa |
| YN5-47-1500 | 1500W | 220V/380V | 50HZ | 2800r/min | 2800m3/h | 1140Pa |
| YN5-47-2200 | 2200W | 220V/380V | 50HZ | 2800r/min | 3100m3/h | 1280Pa |
| YN5-47-3000 | 3000W | 380V | 50HZ | 2800r/min | 3800m3/h | 1580Pa |
