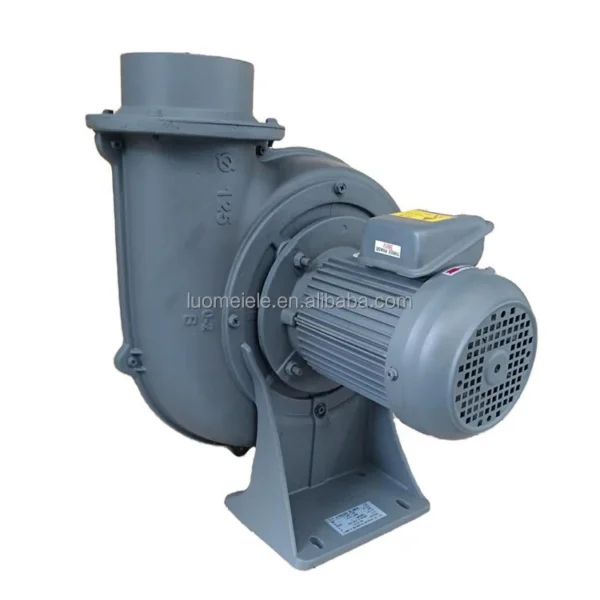

The centrifugal dust extraction fan listed here carries 380V, 33m3/min@50Hz / 37m3/min@60Hz, documented exactly as the manufacturer publishes it. Made by Foshan Luomei Electric Technik Co.,ltd (10 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Dust Extraction Fan
- Model Number: PF150-3
- Voltage: 380V
- Max Airflow: 33m3/min@50Hz / 37m3/min@60Hz
- Blade Material: Cast Iron
- Material: Aluminium Alloy
- Warranty: Unavailable
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 380V |
| Blade Material | Cast Iron |
| Electric Current Type | AC |
| Warranty | Unavailable |
| After-Sales Service Provided | No after-sales service |
| Customized Support | OEM |
| Place Of Origin | Guangdong, China |
| Brand Name | LUOMEI |
| Model Number | PF150-3 |
| Max Pressure | 1.6KPa@50Hz/2.5KPa@60Hz |
| Max Airflow | 33m3/min@50Hz / 37m3/min@60Hz |
| Phase | Three |
| Inlet/Outlet | 150/150 mm |
| Net Weight | 33KG |
| Material | Aluminium Alloy |

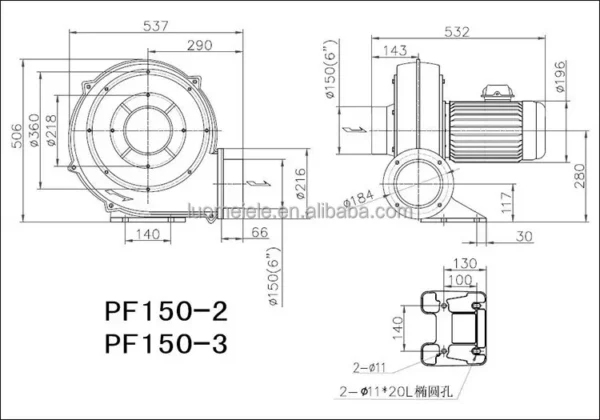

| Size | 537*532*506mm |
| Product Name | industrial blower fan with motor |
| Motor | copper coil |
| Rotation | 2800RPM@50Hz / 3400RPM@60Hz |
| Packaging Details | industrial blower fan with motor packed with cartons and wooden cartons |
| Port Of Dispatch | Shenzhen |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 50000 cartons per Month |
Product Details
2. Aluminum alloy material, greatly reduce weight, achieve the goal of light weight.
3. Design ( 1 HP motor for I . E. C above ) , full close outer fan type aluminum frame, motor axis of special design, can be suitable for long time use, high temperature resistance 120°C, if you have special request, we can customize temperature resistance 200°C
4. Special blade design, unilateral opening without blocking.
5. Special air damper, can adjust the airflow, easy to operate (CX) TB) HTB applicable.
6. The air inlet and outlet of the fan are designed independently,optional reducing pipe,docking use,the air outlet can choose four directions,the motor can be left or right.
Voltage | 220V or 380V or 415V or more with customize |
MOQ | 1 |
Package | carton or wooden carton |
Other technical information | welcome to inquiry us |
south of china, we design and produce blowers since 2002, have rich experience in production and sales, our main selling markets are Europe, North America, Oceania, Southeast Asia and the Middle East.
Main products: air blower,ring blower, side channel blower, vacuum blower, regenerative blower, vortex gas pump, turbine blower, turbo fan, industrial air heater, centrifugal blower, centrifugal fan, radial compressor,radial fan,air knife, blower
accessories(air filter,pressure relief,valve,silencer/muffler), air pump, aerator etc
If you are interested in our products, welcome to contact our company,looking forward to creat a good business with you.
We are blower manufacturer, sell to whole world, we provide 1 unit to customer for test.
2. how can place an order?
For small orders, we can help you make alibaba trade assurance order, then you can pay use VISA for pay, also can accept paypal, western union, e-checking, mastercard etc. (this way have 2% of total amount transaction fee)
For big orders, in order to help you save transaction fee, we can make invoice to you, and send our bank account to you, you can pay use bank transfer (bank to bank also called T/T), this way have extra bank handing fee 30~50USD, you need to choose"SHA"
3.what other products do you have?
We sell ring blower, centrifugal blower, air knife, air heater, silencer, pressure relief valve, air filter, air pump, etc, you
can contact us for get product list.
4. why should you buy from us not from other suppliers?
High speed produce,high quality product and best services, Our products will be tested once after production and again before delivery,so the failure rate of our products is basically zero.
At the same time, in order to prevent the breakage of goods, we will repack the goods once before shipment. The foam package is built inside, and the carton is strengthened outside. We believe that our efforts will bring a better experience to our customers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Ordering and Pricing
- Minimum order quantity: 1 carton
- Volume pricing:
- 1–9 carton: US $420 / carton
- 10–29 carton: US $400 / carton
- 30–99 carton: US $390 / carton
- 100+ carton: US $375 / carton
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal dust extraction fan?
The standard minimum order quantity is 1 carton. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a Unavailable warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal dust extraction fan be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
