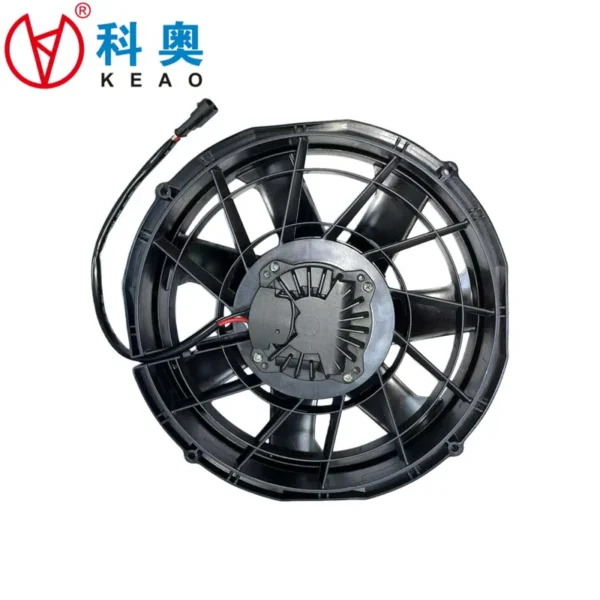

Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - view 2

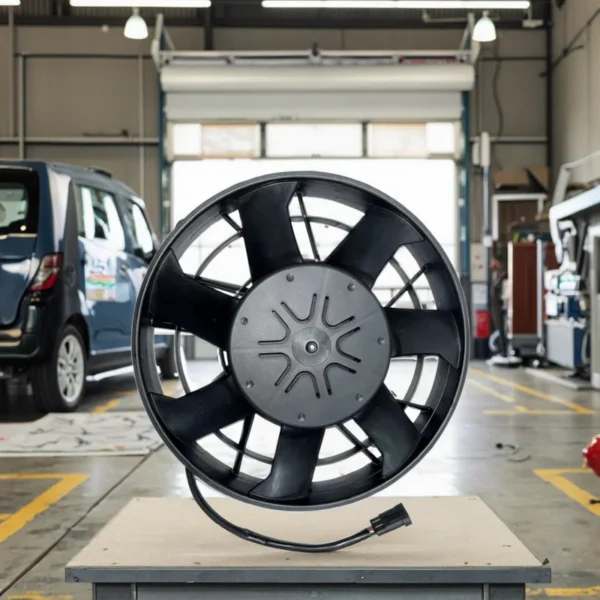

Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - view 3

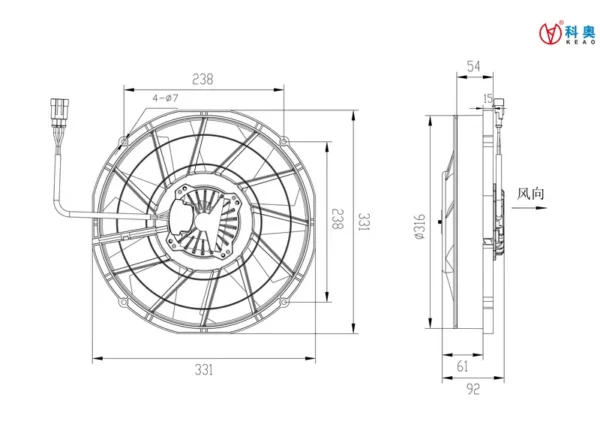

Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - view 4
Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - view 5
Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - view 6

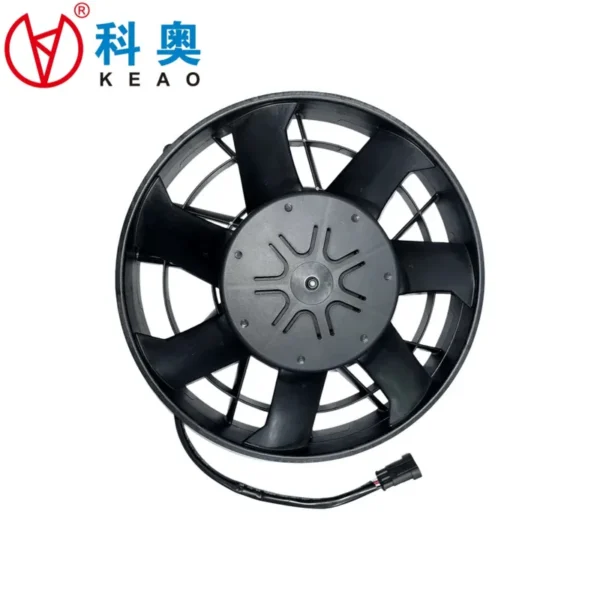

Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E

$56.00

Brushless Condenser: 216 w, speed ≥3200 rpm. Supplied direct from the factory with the complete specification. Model Number: KLNFW259E.

Warranty
13 months
Place Of Origin
Guangdong, China
Model Number
KLNFW259E
Speed
≥3200 rpm
Power
216 w
Working Temperature
-40~85℃
  • Reply within one working day
  • Factory-direct pricing, OEM & ODM accepted
  • Full specification and test reports supplied

Get Factory Pricing

Price, MOQ and lead time direct from the manufacturer. Free, no account needed.

Enquiring about Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E

Key specification for this brushless condenser: 216 w, speed ≥3200 rpm. Everything below is reproduced from the factory data sheet. Made by Guangzhou Keao Mechanical & Electrical Co., Ltd. (19 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Brushless Condenser

  • Model Number: KLNFW259E
  • Power: 216 w
  • Speed: ≥3200 rpm
  • Warranty: 13 months
  • Place Of Origin: Guangdong, China
  • Single Package Size: 35X35X11 cm

Technical Specifications

Purpose for manufacturing
Condition New
OE NO. VA113BBL504PRAN94A, VA89BBL378BRA94A, VA89BBL369SRAN94A, VA113BBL506PN94A
Warranty 13 months
Place Of Origin Guangdong, China
Model Number KLNFW259E
Brand Name KEAO or Customizable logos
Car Model Bus/Truck/Refrigerator car
Product Name Brushless Condenser Fan
Air Volume 2400 m³/h
Static Pressure 100 Pa
Speed ≥3200 rpm
Power 216 w
Noise 80 dB(A)
Lifetime 20000~40000 hours
Protection Grade IP68
Working Temperature -40~85℃
Weight 4 kg
Selling Units Single item
Single Package Size 35X35X11 cm
Single Gross Weight 4.000 kg

Product Details

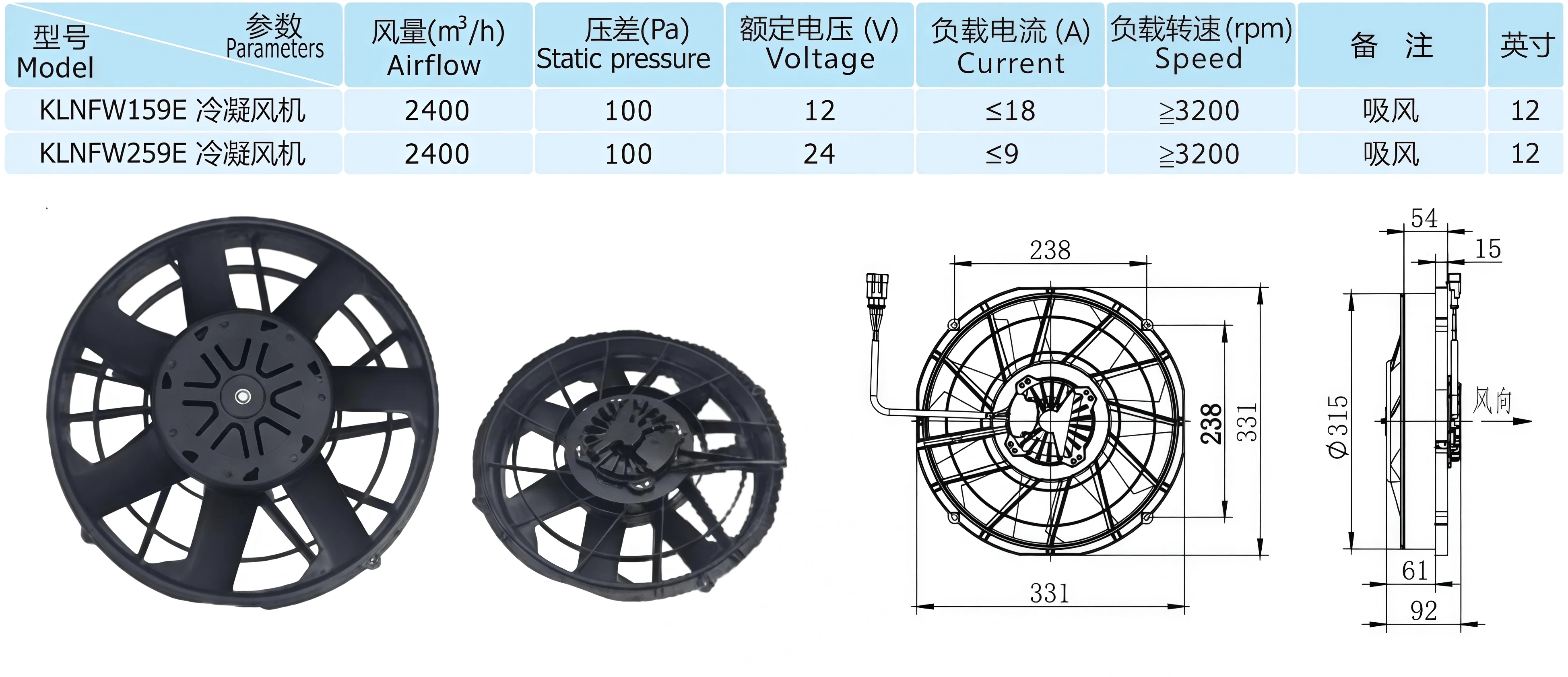

Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 1Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 2
KLNF、KZFF eries motor fan and blowers are with :
* High efficient and reliable working performance.
* Power supply 12V and 24V for you option.
* Customized speed without additional cost.
* Good price & Long term cooperation deep discount.
* Low noise levels and a long life working.
* Fast delivery, easy installation,Mounting kits included .

You can contact us to request:
* Product specification sheet (including air volume curve).
* Provide photos or videos of today's factory production.
* Recent customer cases.
Products Description
Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 3Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 4
Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 5Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 6
Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 7Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 8
Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 9Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 10

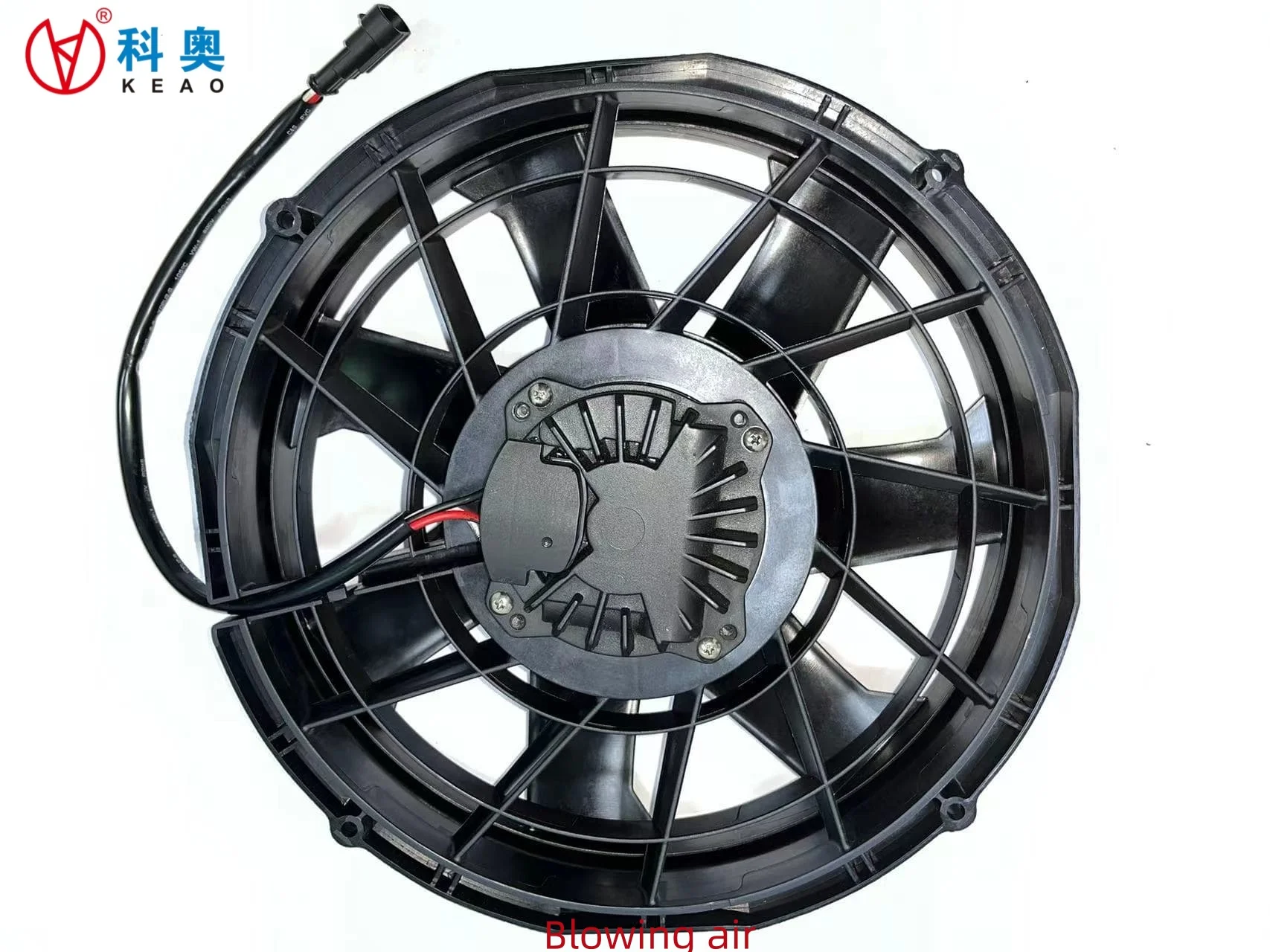

Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 11Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 12

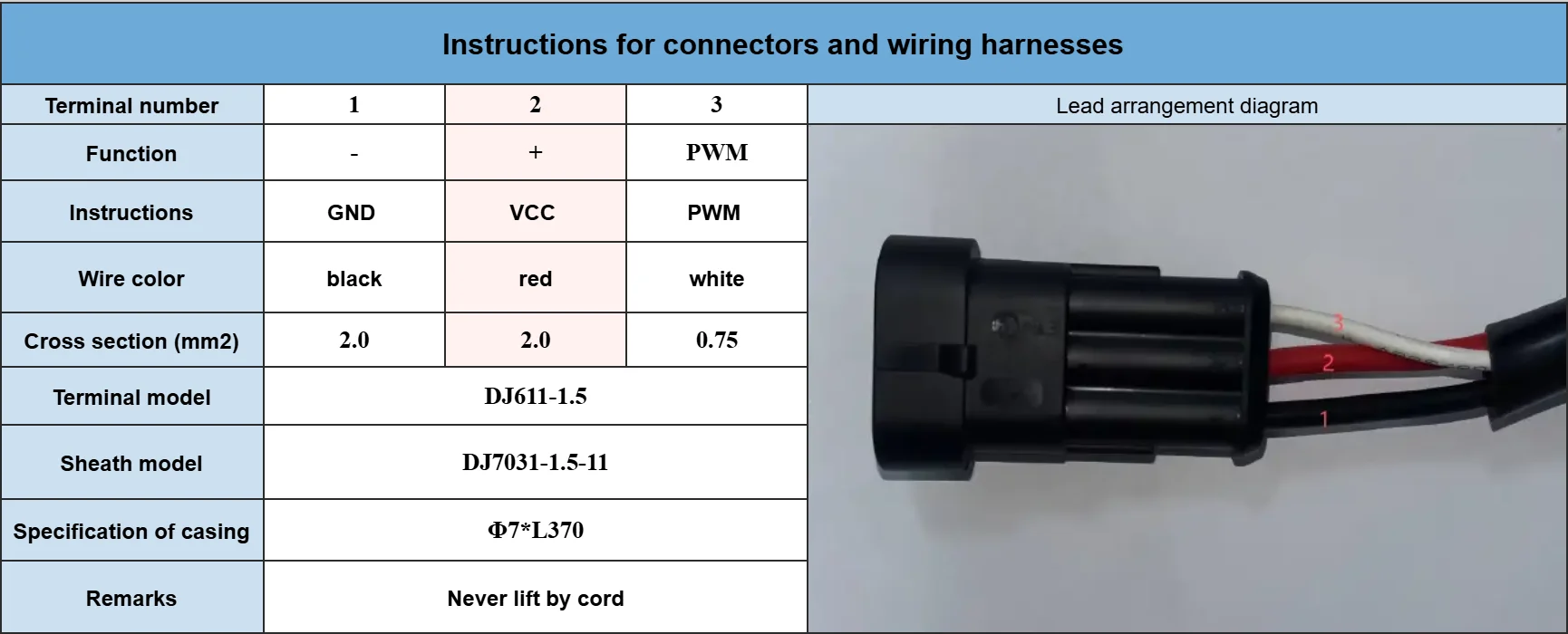

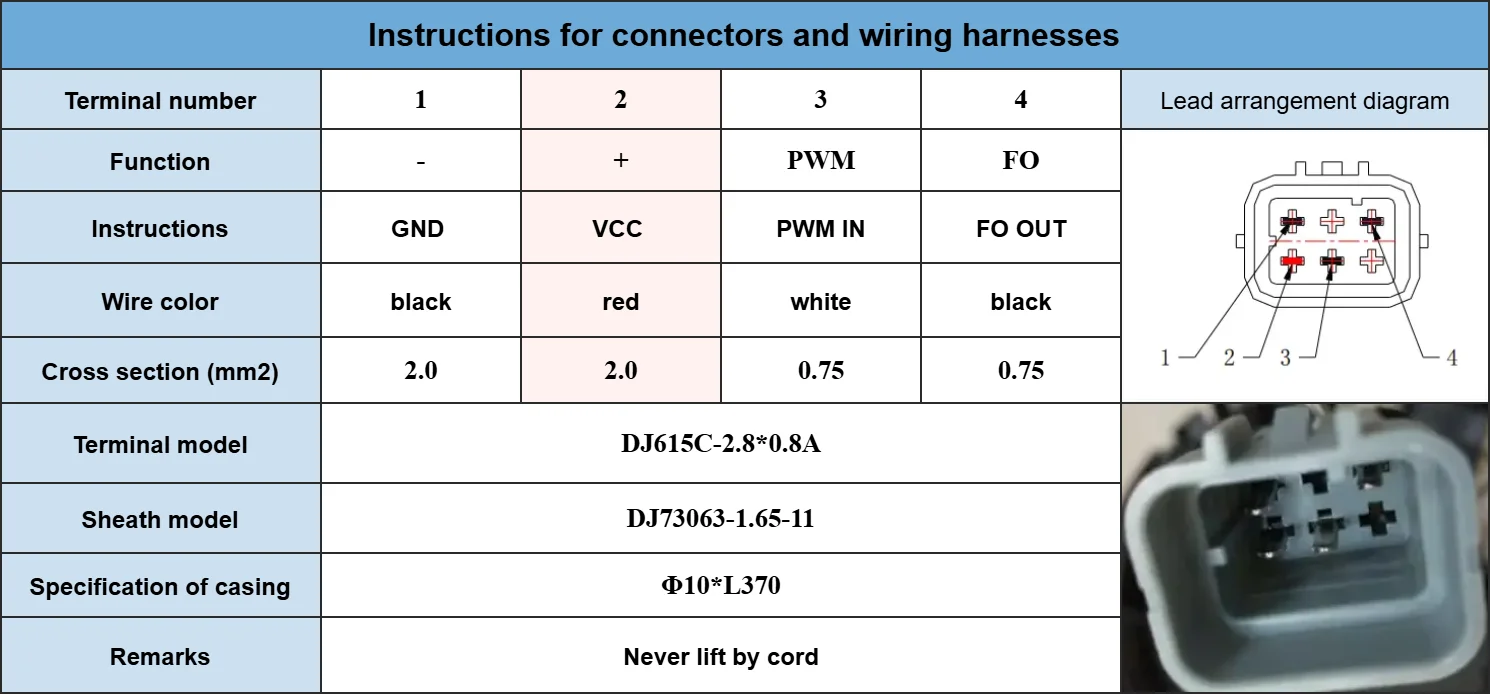

Wiring harness and installation
default configuration:

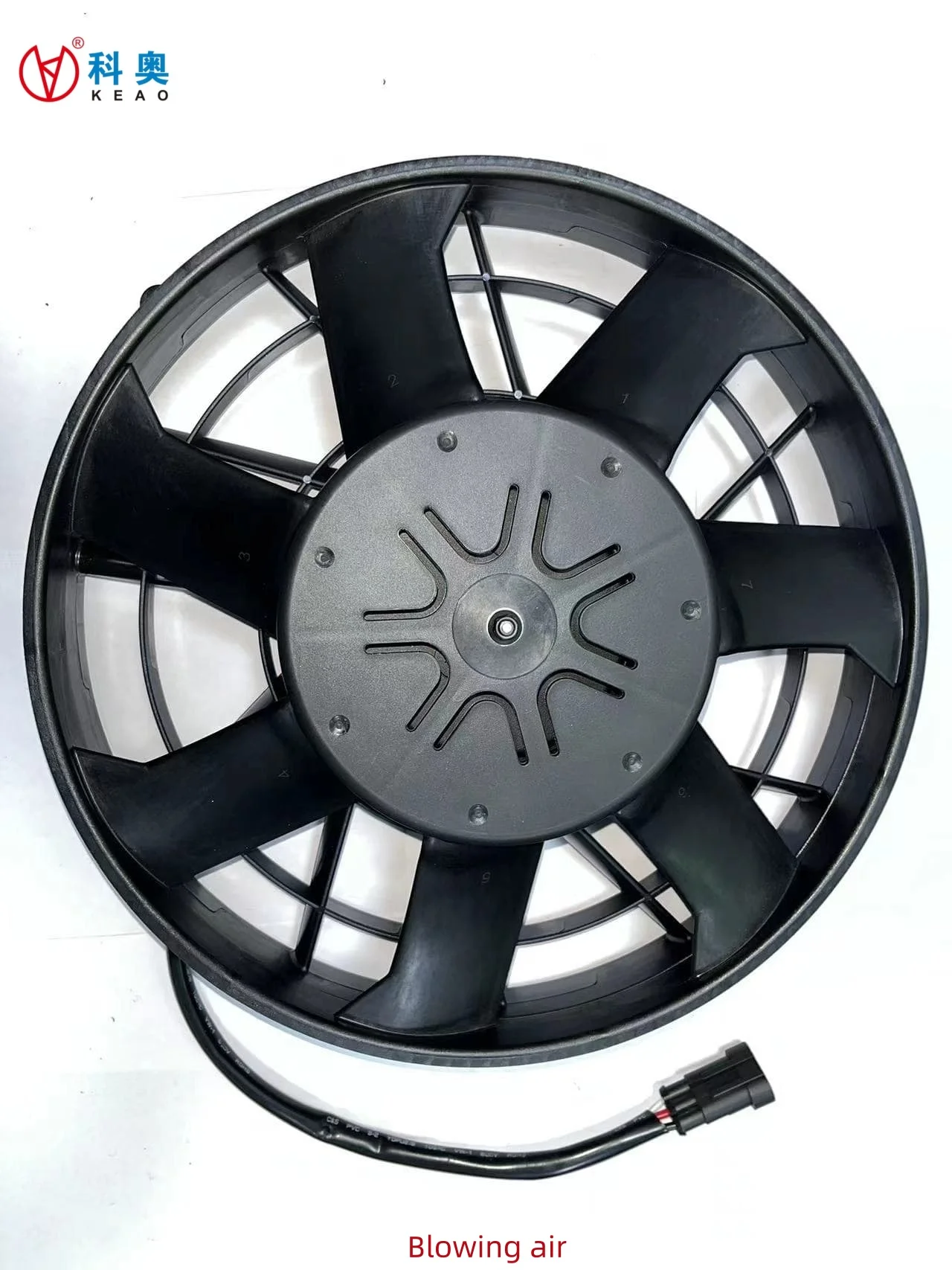

Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 13Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 14
Another option:(Add signal feedback)
Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 15Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 16
Installation:
To ensure the safe and reliable operation of the fan, please follow the following fastening requirements during installation: *Fixed screw: It is recommended to use M6 hexagon socket head cap screws. *Tightening torque: 3 N · m. *Operation suggestion: Please use a calibrated torque wrench for tightening to ensure accurate torque values. *Caution: Insufficient torque may cause loosening, while excessive torque may damage screws or fan mounting holes.
Upgrade Your Choice
Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 17Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 18
Find Your Perfect Brushless Fan
7.5inch(Diameter of fan blades)
Model number
voltage
(v)
Airflow
power
(w)
Air volume
( m³/h)
Speed
(rpm)
Diameter X thickness
(mm)
KLNFW121
12
blowing
81
400
3600
209X74
KLNFW121F
12
Sucking
81
400
3600
209X74
KLNFW221
24
blowing
81
400
3600
209X74
KLNFW221F
24
Sucking
81
400
3600
209X74
9inch(Diameter of fan blades)
Model number
voltage
(v)
Airflow
power
(w)
Air volume
( m³/h)
Speed
(rpm)
Diameter X thickness
(mm
KLNFW173
12
blowing
108
600
3200
248X74
KLNFW122
12
blowing
162
800
3200
249X94
KLNFW173F
12
Sucking
108
600
3200
248X74
KLNFW122F
12
Sucking
162
800
3200
249X94
KLNFW273
24
blowing
108
600
3200
248X74
KLNFW222
24
blowing
162
800
3200
249X94
KLNFW273F
24
Sucking
108
600
3200
248X74
KLNFW222F
24
Sucking
162
800
3200
249X94
10inch(Diameter of fan blades)
Model number
voltage
(v)
Airflow
power
(w)
Air volume
( m³/h)
Speed
(rpm)
Diameter X thickness
(mm)
KLNFW174
12
blowing
135
900
3200
286X74
KLNFW123
12
blowing
162
1400
3200
278X97
KLNFW123G
12
blowing
162
1400
3200
278X97
KLNFW174F
12
Sucking
135
900
3200
286X74
KLNFW123F
12
Sucking
162
1400
3200
278X97
KLNFW123GF
12
Sucking
162
1400
3200
278X97
KLNFW274
24
blowing
135
900
3200
286X74
KLNFW223
24
blowing
162
1400
3200
278X97
KLNFW223G
24
blowing
162
1400
3200
278X97
KLNFW274F
24
Sucking
135
900
3200
286X74
KLNFW223F
24
Sucking
162
1400
3200
278X97
KLNFW223GF
24
Sucking
162
1400
3200
278X97
11inch(Diameter of fan blades)
Model number
voltage
(v)
Airflow
power
(w)
Air volume
( m³/h)
Speed
(rpm)
Diameter X thickness
(mm)
KLNFW175
12
blowing
149
1200
3200
310X77
KLNFW124
12
blowing
189
1400
3200
314X78
KLNFW124S
12
blowing
243
1400
3200
304X79
KLNFW158A
12
blowing
243
1800
3200
304X94
KLNFW158G
12
blowing
243
1800
3200
335X94
KLNFW175F
12
Sucking
149
1200
3200
310X77
KLNFW124F
12
Sucking
189
1400
3200
314X78
KLNFW124SF
12
Sucking
243
1400
3200
304X79
KLNFW158AF
12
Sucking
243
1800
3200
304X94
KLNFW158GF
12
Sucking
243
1800
3200
335X94
KLNFW275
24
blowing
149
1200
3200
310X77
KLNFW224
24
blowing
189
1400
3200
314X78
KLNFW224S
24
blowing
243
1400
3200
304X79
KLNFW258A
24
blowing
243
1800
3200
304X94
KLNFW258G
24
blowing
243
1800
3200
335X94
KLNFW275F
24
Sucking
149
1200
3200
310X77
KLNFW224F
24
Sucking
189
1400
3200
314X78
KLNFW224SF
24
Sucking
243
1400
3200
304X79
KLNFW258AF
24
Sucking
243
1800
3200
304X94
KLNFW258GF
24
Sucking
243
1800
3200
335X94
12inch(Diameter of fan blades)
Model number
voltage
(V)
Airflow
power
(W)
Air volume
( m³/h)
Speed
(rpm)
Diameter X thickness
(MM)
KLNFW176
12
blowing
189
1400
3200
338X76
KLNFW151A
12
blowing
243
2000
2700
331X95
KLNFW151
12
blowing
243
2200
3200
331X95
KLNFW151E
12
blowing
243
2200
3200
331X95
KLNFW151G
12
blowing
243
2200
3200
331X95
KLNFW151GE
12
blowing
243
2200
3200
331X95
KLNFW176F
12
Sucking
189
1400
3200
338X76
KLNFW151F1
12
Sucking
243
2000
3200
331X95
KLNFW159A
12
Sucking
243
2200
3200
331X91
KLNFW159AF2
12
Sucking
243
2000
3200
323X91
KLNFW151F
12
Sucking
243
2200
3200
331X95
KLNFW151GF
12
Sucking
243
2200
3200
331X95
KLNFW159C
12
Sucking
243
2300
3200
331X98
KLNFW159E
12
Sucking
243
2400
3200
331X98
KLNFW151JF
12
Sucking
270
2400
3200
331X79
KLNFW276
24
blowing
189
1400
3200
338X76
KLNFW251A
12
blowing
243
2000
2700
331X95
KLNFW251
24
blowing
243
2200
3200
331X95
KLNFW251E
24
blowing
243
2200
3200
331X95
KLNFW251G
24
blowing
243
2200
3200
331X95
KLNFW251G
24
blowing
243
2200
3200
331X95
KLNFW251GE
24
blowing
243
2200
3200
331X95
KLNFW276F
24
Sucking
189
1400
3200
338X76
KLNFW251F1
24
Sucking
243
2000
3200
331X95
KLNFW259A
24
Sucking
243
2200
3200
331X91
KLNFW259AF2
24
Sucking
243
2000
3200
323X91
KLNFW251F
24
Sucking
243
2200
3200
331X95
KLNFW251GF
24
Sucking
243
2200
3200
331X95
KLNFW259C
24
Sucking
243
2300
3200
331X98
KLNFW259E
24
Sucking
243
2400
3200
331X98
KLNFW251JF
24
Sucking
270
2400
3200
331X79
KLNFW251LF
24
Sucking
513
3200
4100
331X79
13inch(Diameter of fan blades)
Model number
voltage
(V)
Airflow
power
(W)
Air volume
( m³/h)
Speed
(rpm)
Diameter X thickness
(MM)
KLNFW177BF
12
Sucking
135
1200
3200
361X81
KLNFW277BF
24
Sucking
135
1200
3200
361X81
14inch(Diameter of fan blades)
Model number
voltage
(V)
Airflow
power
(W)
Air volume
( m³/h)
Speed
(rpm)
Diameter X thickness
(MM)
KLNFW177
12
blowing
189
1200
3200
380X84
KLNFW177S
12
blowing
189
1800
3000
380X84
KLNFW177F
12
Sucking
189
1200
3200
380X84
KLNFW177SF
12
Sucking
189
1800
3000
380X84
KLNFW277
24
blowing
189
1200
3200
380X84
KLNFW277S
24
blowing
189
1800
3000
380X84
KLNFW277F
24
Sucking
189
1200
3200
380X84
KLNFW277SF
24
Sucking
189
1800
3000
380X84
16inch(Diameter of fan blades)
Model number
voltage
(V)
Airflow
power
(W)
Air volume
( m³/h)
Speed
(rpm)
Diameter X thickness
(MM)
KLNFW179
12
blowing
162
1000
2300
416X82
KLNFW179F
12
Sucking
162
1000
2300
416X82
KLNFW279
24
blowing
162
1000
2300
416X82
KLNFW279F
24
Sucking
162
1000
2300
416X82
KLNFW179SF
12
Sucking
243
2400
2300
416X91
KLNFW279SF
24
Sucking
243
2400
2300
416X91
KLNFW179GF
12
Sucking
311
2700
2500
443X91
KLNFW279GF
24
Sucking
297
2700
2500
443X91
Need a Custom Solution? We Can Help.
Find Your Perfect Brushed Fan
7.5inch(Diameter of fan blades)
Model number
voltage(V)
Airflow
power
(W)
Air volume
( m³/h)
Speed
(rpm)
Diameter & thickness
(MM)
KLNF121A
12
blowing
81
400
3600
209X57
KLNF121
12
blowing
81
400
3600
209X69
KLNF121AF
12
Sucking
81
400
3500
209X57
KLNF121F
12
Sucking
81
400
3500
209X69
KLNF221A
24
blowing
81
400
3600
209X57
KLNF221
24
blowing
81
400
3600
209X69
KLNF221AF
24
Sucking
81
400
3500
209X57
KLNF221F
24
Sucking
81
400
3500
209X69
9inch(Diameter of fan blades)
Model number
voltage
(V)
Airflow
power
(W)
Air volume
( m³/h)
Speed
(rpm)
Diameter & thickness
(MM)
KLNF173A
12
blowing
135
600
3200
247X56
KLNF173
12
blowing
135
600
3200
249X94
KLNF122
12
blowing
162
800
3000
249X94
KLNF173AF
12
Sucking
135
600
3200
247X56
KLNF173F
12
Sucking
135
600
3200
249X94
KLNF122F
12
Sucking
162
800
3000
249X94
KLNF273A
24
blowing
122
600
3200
247X56
KLNF273
24
blowing
122
600
3200
249X94
KLNF222
24
blowing
162
800
3000
249X94
KLNF273AF
24
Sucking
122
600
3200
247X56
KLNF273F
24
Sucking
122
600
3200
249X94
KLNF222F
24
Sucking
162
800
3000
249X94
10inch(Diameter of fan blades)
Model number
voltage
(V)
Airflow
power
(W)
Air volume
( m³/h)
Speed
(rpm)
Diameter & thickness
(MM)
KLNF174A
12
blowing
135
900
3200
238X56
KLNF174
12
blowing
135
900
3200
283X68
KLNF123
12
blowing
176
1400
3200
270X98
KLNF174AF
12
Sucking
135
900
3200
238X56
KLNF174F
12
Sucking
135
900
3200
283X68
KLNF123F
12
Sucking
176
1400
3200
270X98
KLNF274A
24
blowing
135
900
3200
238X56
KLNF274
24
blowing
135
900
3200
283X68
KLNF223
24
blowing
176
1400
3200
270X98
KLNF174AF
24
Sucking
135
900
3200
238X56
KLNF274F
24
Sucking
135
900
3200
283X68
KLNF223F
24
Sucking
176
1400
3200
270X98
11inch(Diameter of fan blades)
Model number
voltage
(V)
Airflow
power
(W)
Air volume
( m³/h)
Speed
(rpm)
Diameter & thickness
(MM)
KLNF175G
12
blowing
149
1000
2700
310X68
KLNF175A
12
blowing
149
1200
3200
310X65
KLNF175
12
blowing
149
1200
3200
310X78
KLNF158A
12
blowing
216
1800
3200
310X94
KLNF175GF
12
Sucking
149
1000
2700
310X68
KLNF175AF
12
Sucking
149
1200
3200
310X65
KLNF175F
12
Sucking
149
1200
3200
310X78
KLNF158AF
12
Sucking
216
1800
3200
310X94
KLNF275G
24
blowing
149
1000
2700
310X68
KLNF275A
24
blowing
149
1200
3200
310X65
KLNF275
24
blowing
149
1200
3200
310X78
KLNF258A
24
blowing
216
1800
3200
310X94
KLNF275GF
24
Sucking
149
1000
2700
310X68
KLNF275AF
24
Sucking
149
1200
3200
310X65
KLNF275F
24
Sucking
149
1200
3200
310X78
KLNF258AF
24
Sucking
216
1800
3200
310X94
12inch(Diameter of fan blades)
Model number
voltage
(V)
Airflow
power
(W)
Air volume
( m³/h)
Speed
(rpm)
Diameter & thickness
(MM)
KLNF176
12
blowing
216
1400
2700
331X78
KLNF151E
12
blowing
243
2200
3200
331X94
KLNF151A
12
blowing
270
2200
2650
331X94
KLNF151G
12
blowing
270
2200
3200
331X94
KLNF151
12
blowing
270
2200
3200
331X97
KLNF176F
12
Sucking
216
1400
2700
331X78
KLNF159A
12
Sucking
243
2000
3200
318X92
KLNF151F1
12
Sucking
243
2000
3200
331X94
KLNF159C
12
Sucking
243
2300
3200
331X99
KLNF159E
12
Sucking
243
2400
3200
316X93
KLNF151GF
12
Sucking
270
2200
3200
331X94
KLNF151F
12
Sucking
270
2200
3200
331X97
KLNF276
24
blowing
216
1400
2700
331X78
KLNF251E
24
blowing
243
2200
3200
331X94
KLNF251A
24
blowing
270
2200
2650
331X94
KLNF251G
24
blowing
270
2200
3200
331X94
KLNF251
24
blowing
270
2200
3200
331X97
KLNF276F
24
Sucking
216
1400
2700
331X78
KLNF259A
24
Sucking
243
2000
3200
318X92
KLNF251F1
24
Sucking
243
2000
3200
331X94
KLNF259C
24
Sucking
243
2300
3200
331X99
KLNF259E
24
Sucking
243
2400
3200
316X93
KLNF251GF
24
Sucking
270
2200
3200
331X94
KLNF251F
24
Sucking
270
2200
3200
331X97
13inch(Diameter of fan blades)
Model number
voltage
(V)
Airflow
power
(W)
Air volume
( m³/h)
Speed
(rpm)
Diameter & thickness
(MM)
KLNF177BF
12
Sucking
162
1200
3000
361X83
KLNF277BF
24
Sucking
162
1200
3000
361X83
14inch(Diameter of fan blades)
Model number
voltage
(V)
Airflow
power
(W)
Air volume
( m³/h)
Speed
(rpm)
Diameter & thickness
(MM)
KLNF177
12
blowing
189
1200
2800
380X76
KLNF177F
12
Sucking
189
1200
2800
380X76
KLNF277
24
blowing
189
1200
2800
380X76
KLNF277F
24
Sucking
189
1200
2800
380X76
16inch(Diameter of fan blades)
Model number
voltage
(V)
Airflow
power
(W)
Air volume
( m³/h)
Speed
(rpm)
Diameter & thickness
(MM)
KLNF179
12
blowing
162
1000
2000
416X83
KLNF179F
12
Sucking
162
1000
2000
416X83
KLNF179GF
12
Sucking
311
2500
2500
400X104
KLNF279
24
blowing
162
1000
2000
416X83
KLNF279F
24
Sucking
162
1000
2000
416X83
KLNF279GF
24
Sucking
297
2500
2500
400X104
Need a Custom Solution? We Can Help.
Product Application
Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 19Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 20
Company Profile
Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 21Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 22
Packaging&Shipping
Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 23Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 24
FAQ
Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 25Brushless Condenser, 12inch, 12V/24V, Axial, KLNFW259E - detail 26

Ordering and Pricing

  • Minimum order quantity: 1 piece
  • Volume pricing:
    • 1–49 piece: US $64 / piece
    • 50–499 piece: US $58 / piece
    • 500+ piece: US $56 / piece
  • Ships from: China
  • Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this brushless condenser?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 13 months warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Guangzhou Keao Mechanical & Electrical Co., Ltd., based in China. The company 19 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Keao Mechanical & Electrical Co., Ltd. range on HVACR Nexus.

Purpose

for manufacturing

Condition

New

OE NO.

VA113BBL504PRAN94A, VA89BBL378BRA94A, VA89BBL369SRAN94A, VA113BBL506PN94A

Warranty

13 months

Place Of Origin

Guangdong, China

Model Number

KLNFW259E

Brand Name

KEAO or Customizable logos

Car Model

Bus/Truck/Refrigerator car

Product Name

Brushless Condenser Fan

Air Volume

2400 m³/h

Static Pressure

100 Pa

Speed

≥3200 rpm

Power

216 w

Noise

80 dB(A)

Lifetime

20000~40000 hours

Protection Grade

IP68

Working Temperature

-40~85℃

Weight

4 kg

Selling Units

Single item

Single Package Size

35X35X11 cm

Single Gross Weight

4.000 kg

More from Guangzhou Keao Mechanical & Electrical Co., Ltd.

Other equipment from the same manufacturer — one enquiry can cover several items.

Compare Other Axial Flow Fans

Alternatives in the same category, from different verified suppliers.

Explore related

Specifications, certifications and images on this page are as published by the manufacturer and have not been independently tested or verified by HVACR Nexus. Confirm the full specification and the approvals valid in your market in writing before ordering. Content & IP notice
