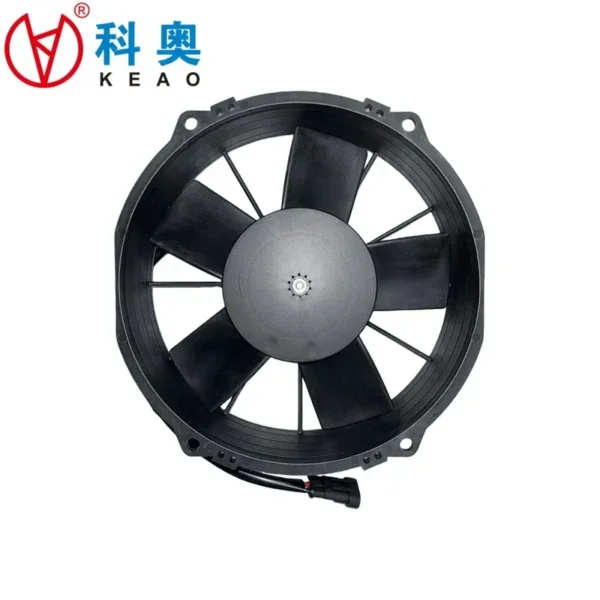

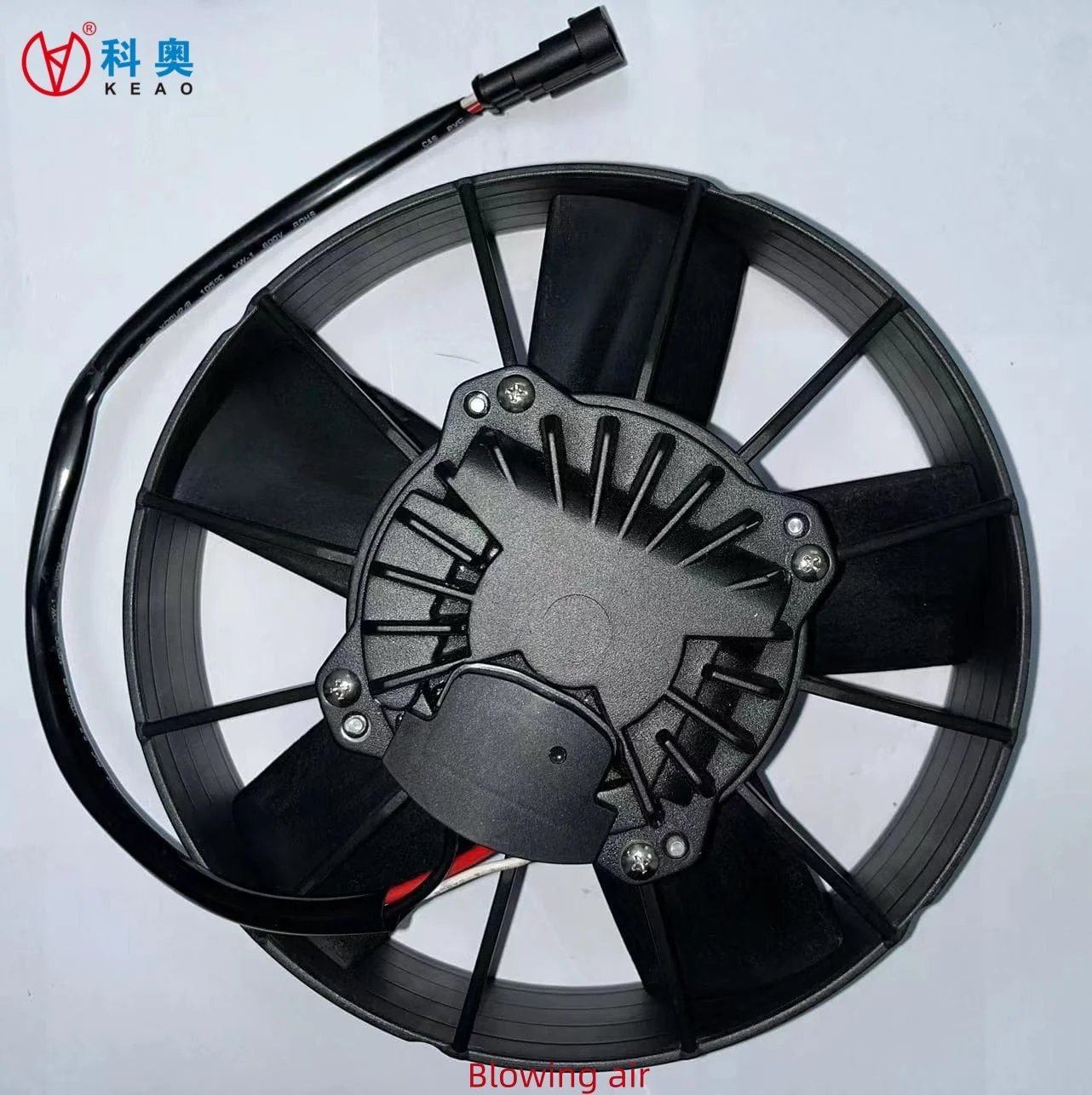

This brushless condenser is published with the manufacturer’s full specification — 144 w, speed ≥3200 rpm. Made by Guangzhou Keao Mechanical & Electrical Co., Ltd. (19 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Brushless Condenser
- Model Number: KLNFW122
- Power: 144 w
- Speed: ≥3200 rpm
- Warranty: 13 months
- Place Of Origin: Guangdong, China
- Single Package Size: 26X25X11 cm
Technical Specifications
| Purpose | for manufacturing |
|---|---|
| Condition | New |
| OE NO. | KLNFW122 |
| Warranty | 13 months |
| Place Of Origin | Guangdong, China |
| Model Number | KLNFW122 |
| Brand Name | KEAO |
| Car Model | Bus/Truck/Refrigerator car |
| Product Name | Brushless Condenser Fan |
| Air Volume | 800 m³/h |
| Static Pressure | 100 Pa |
| Speed | ≥3200 rpm |
| Power | 144 w |
| Noise | 72 dB(A) |
| Lifetime | 20000~40000 hours |
| Protection Grade | IP68 |
| Working Temperature | -40~85℃ |
| Weight | 2 kg |
| Selling Units | Single item |
| Single Package Size | 26X25X11 cm |
| Single Gross Weight | 2.000 kg |
Product Details
KLNF、KZFF eries motor fan and blowers are with :
* High efficient and reliable working performance.
* Power supply 12V and 24V for you option.
* Customized speed without additional cost.
* Good price & Long term cooperation deep discount.
* Low noise levels and a long life working.
* Fast delivery, easy installation,Mounting kits included .
* Customized speed without additional cost.
* Good price & Long term cooperation deep discount.
* Low noise levels and a long life working.
* Fast delivery, easy installation,Mounting kits included .
You can contact us to request:
* Product specification sheet (including air volume curve).
* Provide photos or videos of today's factory production.
* Product specification sheet (including air volume curve).
* Provide photos or videos of today's factory production.
* Recent customer cases.
Products Description
Wiring harness and installation
default configuration：
Another option：（Add signal feedback）
Installation：
To ensure the safe and reliable operation of the fan, please follow the following fastening requirements during installation: *Fixed screw: It is recommended to use M6 hexagon socket head cap screws. *Tightening torque: 3 N · m. *Operation suggestion: Please use a calibrated torque wrench for tightening to ensure accurate torque values. *Caution: Insufficient torque may cause loosening, while excessive torque may damage screws or fan mounting holes.Upgrade Your Choice
Find Your Perfect Brushless Fan | ||||||||||||
7.5inch（Diameter of fan blades） | ||||||||||||
Model number | voltage （v） | Airflow | power （w） | Air volume ( m³/h) | Speed (rpm) | Diameter X thickness (mm） | ||||||
KLNFW121 | 12 | bolwing | 81 | 400 | 3600 | 209X74 | ||||||
KLNFW121F | 12 | Sucking | 81 | 400 | 3600 | 209X74 | ||||||
KLNFW221 | 24 | bolwing | 81 | 400 | 3600 | 209X74 | ||||||
KLNFW221F | 24 | Sucking | 81 | 400 | 3600 | 209X74 | ||||||
9inch（Diameter of fan blades） | ||||||||||||
Model number | voltage （v） | Airflow | power （w） | Air volume ( m³/h) | Speed (rpm) | Diameter X thickness (mm） | ||||||
KLNFW173 | 12 | bolwing | 108 | 600 | 3200 | 248X74 | ||||||

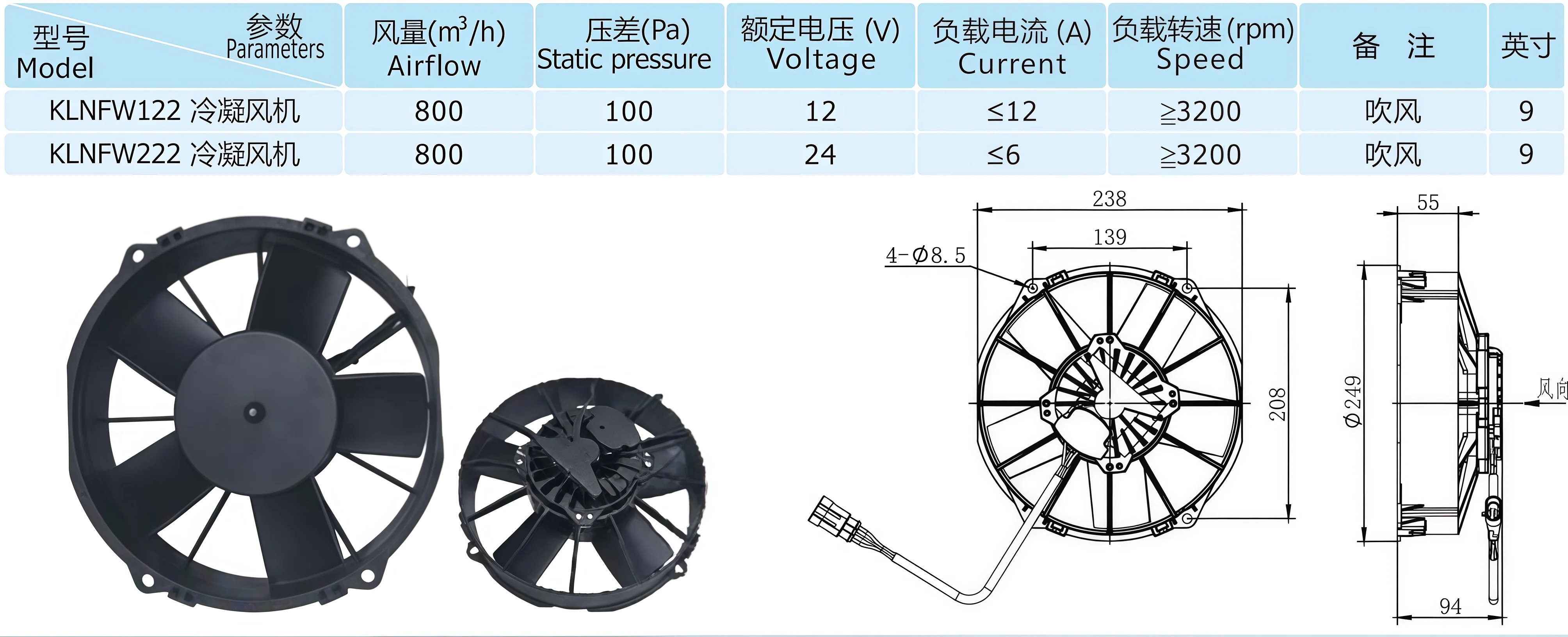

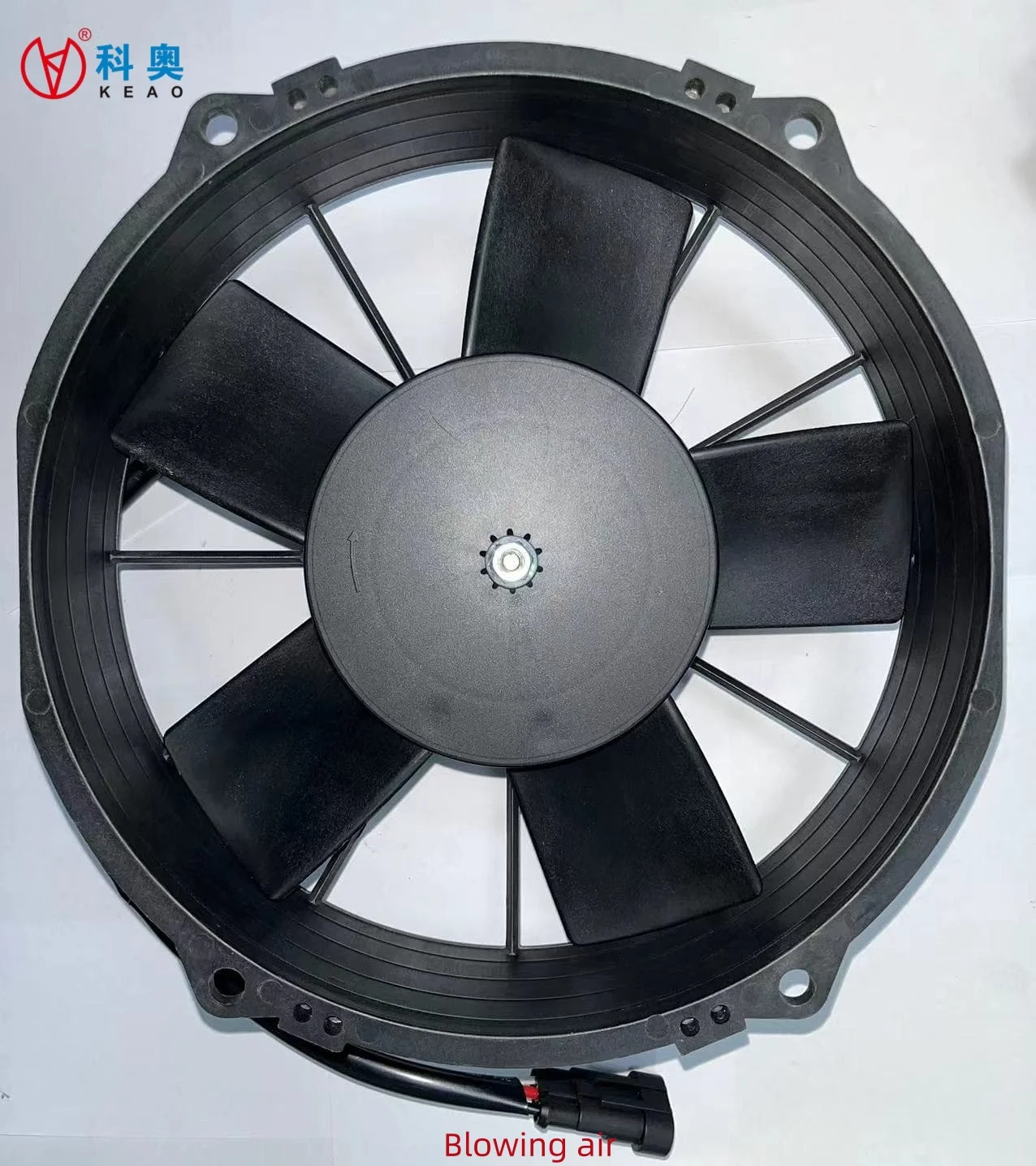

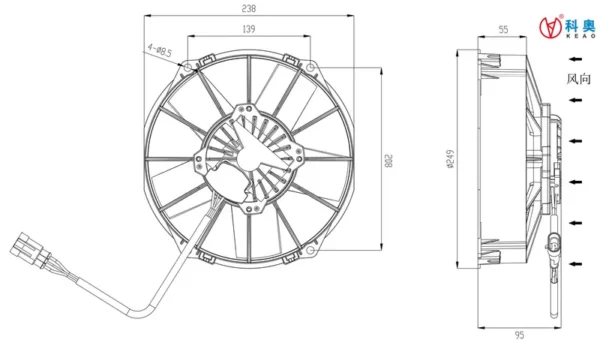

KLNFW122 | 12 | bolwing | 162 | 800 | 3200 | 249X94 | ||||||
KLNFW173F | 12 | Sucking | 108 | 600 | 3200 | 248X74 | ||||||

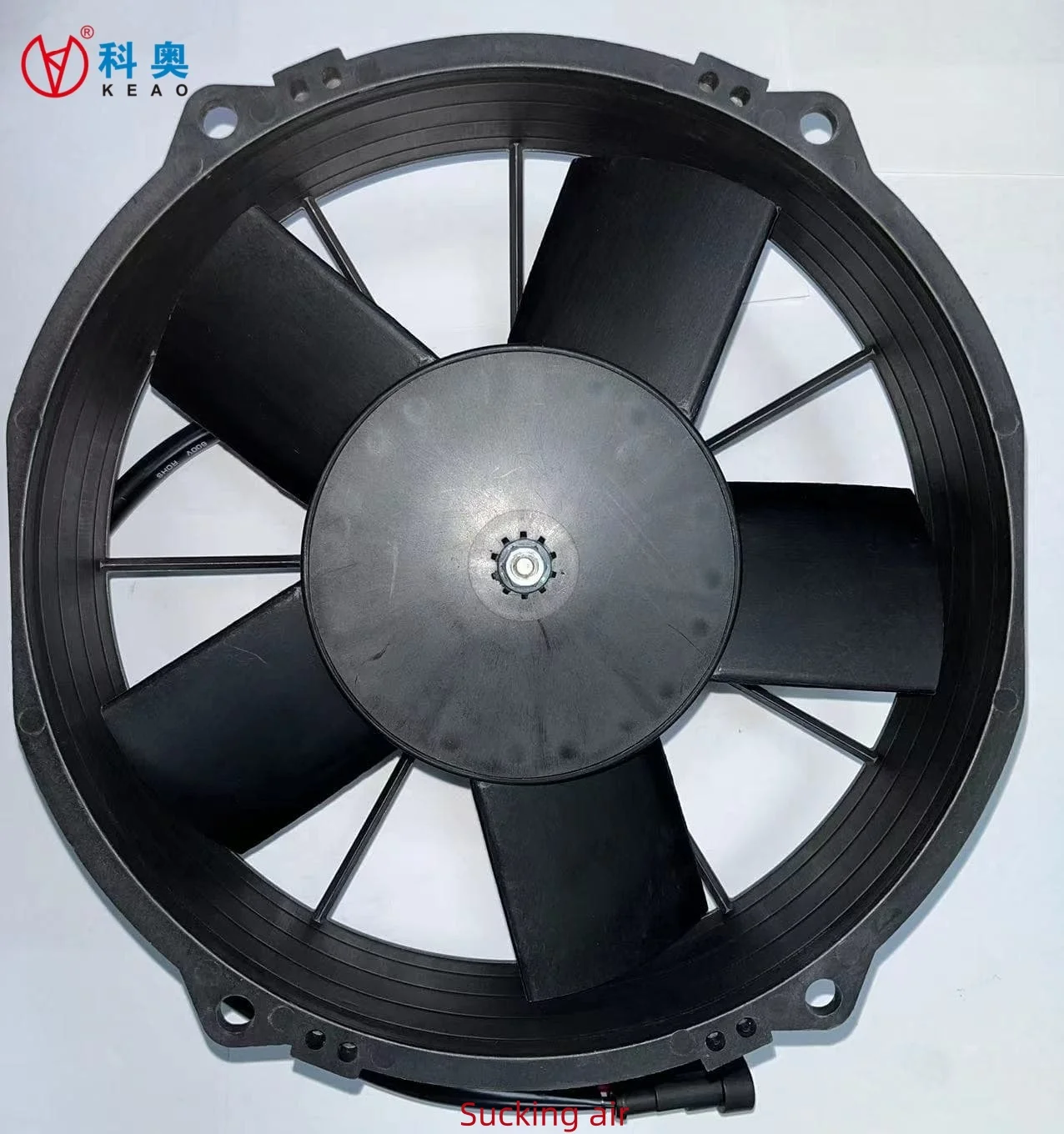

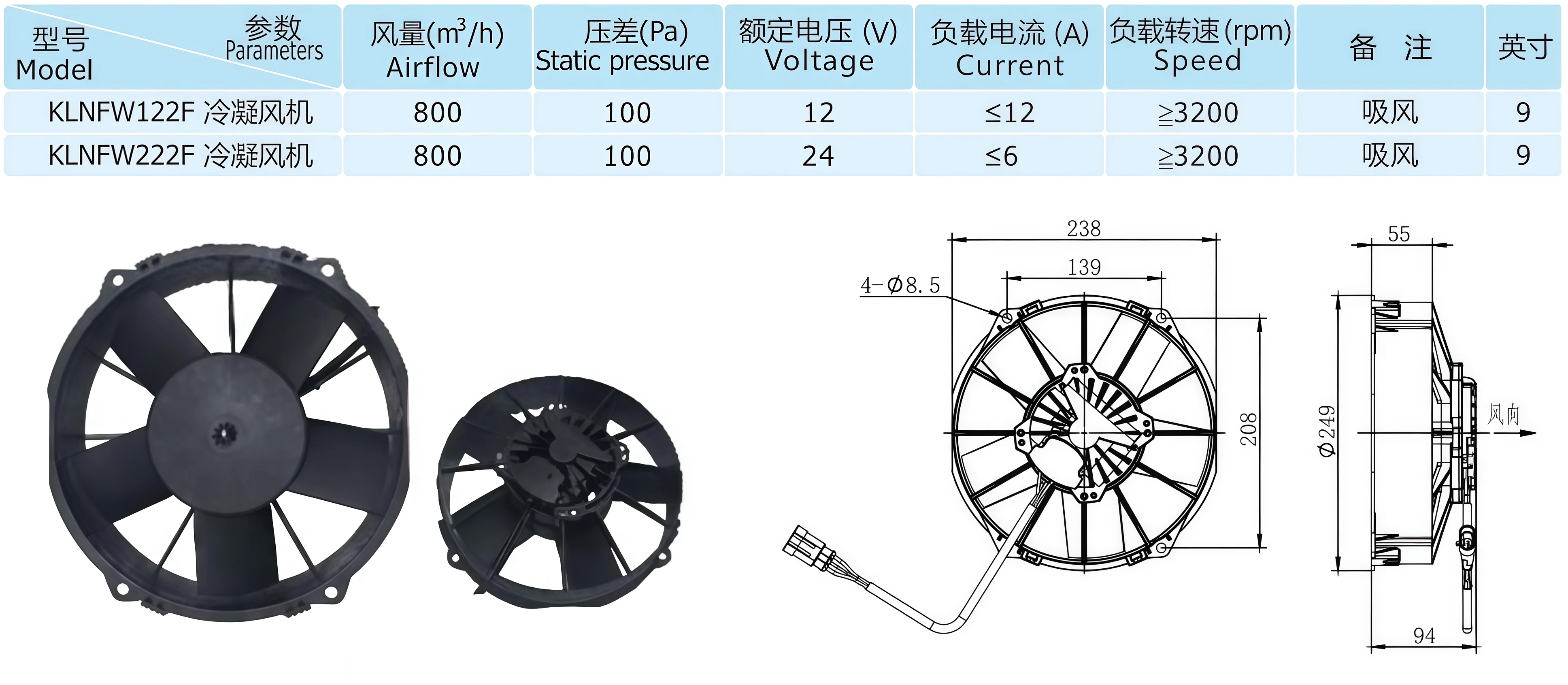

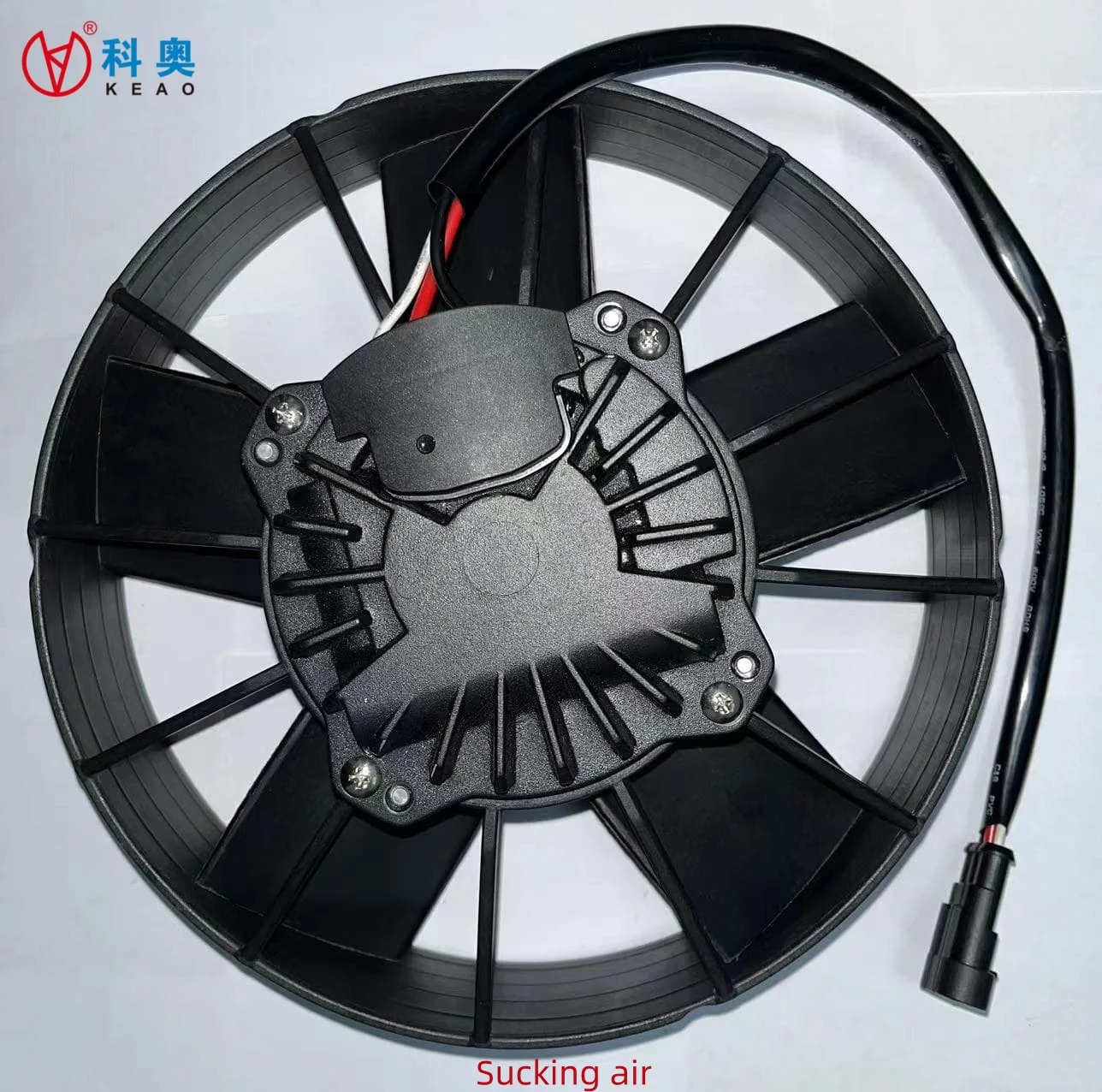

KLNFW122F | 12 | Sucking | 162 | 800 | 3200 | 249X94 | ||||||
KLNFW273 | 24 | bolwing | 108 | 600 | 3200 | 248X74 | ||||||
KLNFW222 | 24 | bolwing | 162 | 800 | 3200 | 249X94 | ||||||
KLNFW273F | 24 | Sucking | 108 | 600 | 3200 | 248X74 | ||||||
KLNFW222F | 24 | Sucking | 162 | 800 | 3200 | 249X94 | ||||||
10inch（Diameter of fan blades） | ||||||||||||
Model number | voltage （v） | Airflow | power （w） | Air volume ( m³/h) | Speed (rpm) | Diameter X thickness (mm） | ||||||
KLNFW174 | 12 | bolwing | 135 | 900 | 3200 | 286X74 | ||||||
KLNFW123 | 12 | bolwing | 162 | 1400 | 3200 | 278X97 | ||||||
KLNFW123G | 12 | bolwing | 162 | 1400 | 3200 | 278X97 | ||||||
KLNFW174F | 12 | Sucking | 135 | 900 | 3200 | 286X74 | ||||||
KLNFW123F | 12 | Sucking | 162 | 1400 | 3200 | 278X97 | ||||||
KLNFW123GF | 12 | Sucking | 162 | 1400 | 3200 | 278X97 | ||||||
KLNFW274 | 24 | bolwing | 135 | 900 | 3200 | 286X74 | ||||||
KLNFW223 | 24 | bolwing | 162 | 1400 | 3200 | 278X97 | ||||||
KLNFW223G | 24 | bolwing | 162 | 1400 | 3200 | 278X97 | ||||||
KLNFW274F | 24 | Sucking | 135 | 900 | 3200 | 286X74 | ||||||
KLNFW223F | 24 | Sucking | 162 | 1400 | 3200 | 278X97 | ||||||
KLNFW223GF | 24 | Sucking | 162 | 1400 | 3200 | 278X97 | ||||||
11inch（Diameter of fan blades） | ||||||||||||
Model number | voltage （v） | Airflow | power （w） | Air volume ( m³/h) | Speed (rpm) | Diameter X thickness (mm） | ||||||
KLNFW175 | 12 | bolwing | 149 | 1200 | 3200 | 310X77 | ||||||
KLNFW124 | 12 | bolwing | 189 | 1400 | 3200 | 314X78 | ||||||
KLNFW124S | 12 | bolwing | 243 | 1400 | 3200 | 304X79 | ||||||
KLNFW158A | 12 | bolwing | 243 | 1800 | 3200 | 304X94 | ||||||
KLNFW158G | 12 | bolwing | 243 | 1800 | 3200 | 335X94 | ||||||
KLNFW175F | 12 | Sucking | 149 | 1200 | 3200 | 310X77 | ||||||
KLNFW124F | 12 | Sucking | 189 | 1400 | 3200 | 314X78 | ||||||
KLNFW124SF | 12 | Sucking | 243 | 1400 | 3200 | 304X79 | ||||||
KLNFW158AF | 12 | Sucking | 243 | 1800 | 3200 | 304X94 | ||||||
KLNFW158GF | 12 | Sucking | 243 | 1800 | 3200 | 335X94 | ||||||
KLNFW275 | 24 | bolwing | 149 | 1200 | 3200 | 310X77 | ||||||
KLNFW224 | 24 | bolwing | 189 | 1400 | 3200 | 314X78 | ||||||
KLNFW224S | 24 | bolwing | 243 | 1400 | 3200 | 304X79 | ||||||
KLNFW258A | 24 | bolwing | 243 | 1800 | 3200 | 304X94 | ||||||
KLNFW258G | 24 | bolwing | 243 | 1800 | 3200 | 335X94 | ||||||
KLNFW275F | 24 | Sucking | 149 | 1200 | 3200 | 310X77 | ||||||
KLNFW224F | 24 | Sucking | 189 | 1400 | 3200 | 314X78 | ||||||
KLNFW224SF | 24 | Sucking | 243 | 1400 | 3200 | 304X79 | ||||||
KLNFW258AF | 24 | Sucking | 243 | 1800 | 3200 | 304X94 | ||||||
KLNFW258GF | 24 | Sucking | 243 | 1800 | 3200 | 335X94 | ||||||
12inch（Diameter of fan blades） | ||||||||||||
Model number | voltage （V） | Airflow | power （W） | Air volume ( m³/h) | Speed (rpm) | Diameter X thickness (MM） | ||||||
KLNFW176 | 12 | bolwing | 189 | 1400 | 3200 | 338X76 | ||||||
KLNFW159A | 12 | bolwing | 243 | 2000 | 3200 | 323X91 | ||||||
KLNFW151A | 12 | bolwing | 243 | 2200 | 2700 | 331X95 | ||||||
KLNFW151 | 12 | bolwing | 243 | 2200 | 3200 | 331X95 | ||||||
KLNFW151E | 12 | bolwing | 243 | 2200 | 3200 | 331X95 | ||||||
KLNFW151G | 12 | bolwing | 243 | 2200 | 3200 | 331X95 | ||||||
KLNFW151GE | 12 | bolwing | 243 | 2200 | 3200 | 331X95 | ||||||
KLNFW176F | 12 | Sucking | 189 | 1400 | 3200 | 338X76 | ||||||
KLNFW151F1 | 12 | Sucking | 243 | 2000 | 3200 | 331X95 | ||||||
KLNFW159AF2 | 12 | Sucking | 243 | 2000 | 3200 | 323X91 | ||||||
KLNFW151F | 12 | Sucking | 243 | 2200 | 3200 | 331X95 | ||||||
KLNFW151GF | 12 | Sucking | 243 | 2200 | 3200 | 331X95 | ||||||
KLNFW159C | 12 | Sucking | 243 | 2300 | 3200 | 331X98 | ||||||
KLNFW159E | 12 | Sucking | 243 | 2400 | 3200 | 331X98 | ||||||
KLNFW151JF | 12 | Sucking | 270 | 2400 | 3200 | 331X79 | ||||||
KLNFW276 | 24 | bolwing | 189 | 1400 | 3200 | 338X76 | ||||||
KLNFW259A | 24 | bolwing | 243 | 2000 | 3200 | 323X91 | ||||||
KLNFW251A | 24 | bolwing | 243 | 2200 | 2700 | 331X95 | ||||||
KLNFW251 | 24 | bolwing | 243 | 2200 | 3200 | 331X95 | ||||||
KLNFW251E | 24 | bolwing | 243 | 2200 | 3200 | 331X95 | ||||||
KLNFW251G | 24 | bolwing | 243 | 2200 | 3200 | 331X95 | ||||||
KLNFW251G | 24 | bolwing | 243 | 2200 | 3200 | 331X95 | ||||||
KLNFW251GE | 24 | bolwing | 243 | 2200 | 3200 | 331X95 | ||||||
KLNFW276F | 24 | Sucking | 189 | 1400 | 3200 | 338X76 | ||||||
KLNFW251F1 | 24 | Sucking | 243 | 2000 | 3200 | 331X95 | ||||||
KLNFW259AF2 | 24 | Sucking | 243 | 2000 | 3200 | 323X91 | ||||||
KLNFW251F | 24 | Sucking | 243 | 2200 | 3200 | 331X95 | ||||||
KLNFW251GF | 24 | Sucking | 243 | 2200 | 3200 | 331X95 | ||||||
KLNFW259C | 24 | Sucking | 243 | 2300 | 3200 | 331X98 | ||||||
KLNFW259E | 24 | Sucking | 243 | 2400 | 3200 | 331X98 | ||||||
KLNFW251JF | 24 | Sucking | 270 | 2400 | 3200 | 331X79 | ||||||
KLNFW251LF | 24 | Sucking | 513 | 3200 | 4100 | 331X79 | ||||||
13inch（Diameter of fan blades） | ||||||||||||
Model number | voltage （V） | Airflow | power （W） | Air volume ( m³/h) | Speed (rpm) | Diameter X thickness (MM） | ||||||
KLNFW177BF | 12 | Sucking | 135 | 1200 | 3200 | 361X81 | ||||||
KLNFW277BF | 24 | Sucking | 135 | 1200 | 3200 | 361X81 | ||||||
14inch（Diameter of fan blades） | ||||||||||||
Model number | voltage （V） | Airflow | power （W） | Air volume ( m³/h) | Speed (rpm) | Diameter X thickness (MM） | ||||||
KLNFW177 | 12 | bolwing | 189 | 1200 | 3200 | 380X84 | ||||||
KLNFW177S | 12 | bolwing | 189 | 1800 | 3000 | 380X84 | ||||||
KLNFW177F | 12 | Sucking | 189 | 1200 | 3200 | 380X84 | ||||||
KLNFW177SF | 12 | Sucking | 189 | 1800 | 3000 | 380X84 | ||||||
KLNFW277 | 24 | bolwing | 189 | 1200 | 3200 | 380X84 | ||||||
KLNFW277S | 24 | bolwing | 189 | 1800 | 3000 | 380X84 | ||||||
KLNFW277F | 24 | Sucking | 189 | 1200 | 3200 | 380X84 | ||||||
KLNFW277SF | 24 | Sucking | 189 | 1800 | 3000 | 380X84 | ||||||
16inch（Diameter of fan blades） | ||||||||||||
Model number | voltage （V） | Airflow | power （W） | Air volume ( m³/h) | Speed (rpm) | Diameter X thickness (MM） | ||||||
KLNFW179 | 12 | bolwing | 162 | 1000 | 2300 | 416X82 | ||||||
KLNFW179F | 12 | Sucking | 162 | 1000 | 2300 | 416X82 | ||||||
KLNFW279 | 24 | bolwing | 162 | 1000 | 2300 | 416X82 | ||||||
KLNFW279F | 24 | Sucking | 162 | 1000 | 2300 | 416X82 | ||||||
KLNFW179SF | 12 | Sucking | 243 | 2400 | 2300 | 416X91 | ||||||
KLNFW279SF | 24 | Sucking | 243 | 2400 | 2300 | 416X91 | ||||||
KLNFW179GF | 12 | Sucking | 311 | 2700 | 2500 | 443X91 | ||||||
KLNFW279GF | 24 | Sucking | 297 | 2700 | 2500 | 443X91 | ||||||
Find Your Perfect Brushless Fan | ||||||||||||
Model number | voltage （V） | Airflow | power （W） | Air volume ( m³/h) | Speed (rpm) | Diameter X thickness (MM） | ||||||
KLNF122 | 12 | bolwing | 162 | 800 | 3000 | 249X94 | ||||||
KLNF122F | 12 | Sucking | 162 | 800 | 3000 | 249X94 | ||||||
KLNF222 | 24 | bolwing | 162 | 800 | 3000 | 249X94 | ||||||
KLNF222F | 24 | Sucking | 162 | 800 | 3000 | 249X94 | ||||||
Need a Custom Solution? We Can Help. | ||||||||||||
Product Application
Company Profile
Packaging&Shipping
FAQ
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $60 / piece
- 50–499 piece: US $55 / piece
- 500+ piece: US $53 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this brushless condenser?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 13 months warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Keao Mechanical & Electrical Co., Ltd., based in China. The company 19 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Keao Mechanical & Electrical Co., Ltd. range on HVACR Nexus.
