Key specification for this centrifugal fan: 380 V, blade material Galvanized sheet. Everything below is reproduced from the factory data sheet. For a binding price and lead time, send the volume you need and where it ships to.
This centrifugal fan is listed with the manufacturer’s full published specification — voltage 380 V, blade material Galvanized sheet, type Forward Curved Blade Radial Fan. It is produced by Jiangxi Jinjinwo Environmental Protection Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Centrifugal Fan
- Model Number: HTFC-I-22
- Voltage: 380 V
- Blade Material: Galvanized sheet
- Speed: 1100rpm, 900rpm, 1300rpm, 1400rpm, 1500rpm
- Warranty: 1 Year
- Place Of Origin: Jiangxi, China
Technical Specifications
| Voltage | 380 V |
|---|---|
| Blade Material | Galvanized sheet |
| Speed | 1100rpm, 900rpm, 1300rpm, 1400rpm, 1500rpm |
| Mounting | Free Standing |
| Type | Forward Curved Blade Radial Fan |
| Customized Support | OBM, ODM, OEM |
| After-Sales Service Provided | Video Technical Support |
| Warranty | 1 Year |
| Place Of Origin | Jiangxi, China |
| Brand Name | XJTKJ |
| Model Number | HTFC-I-22 |

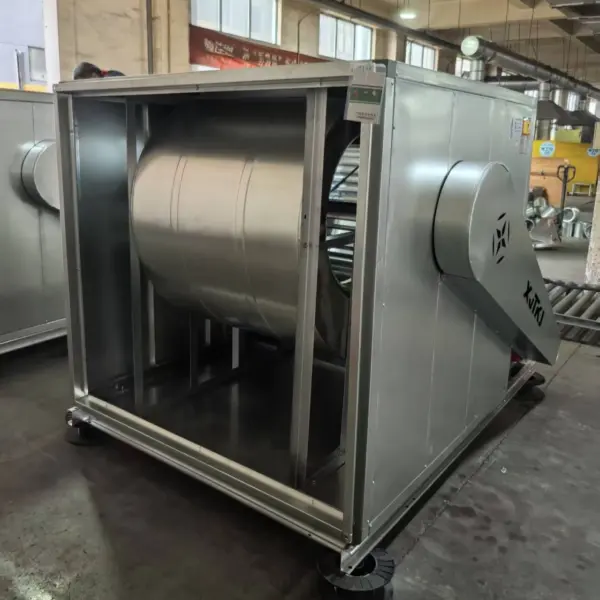

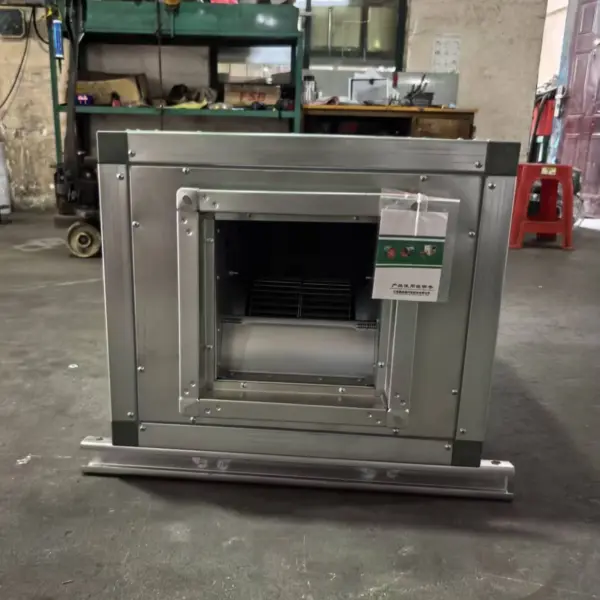

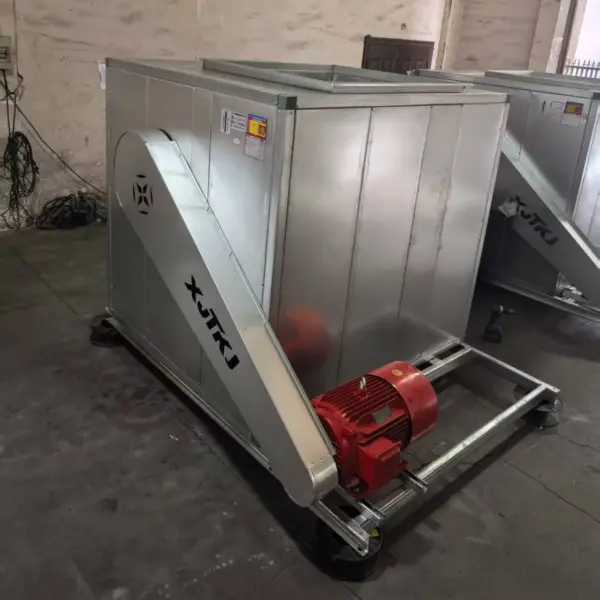

| Product Name | No. 22 HTFC-I type cabinet centrifugal fan |
| Selling Units | Single item |
Product descriptions from the supplier

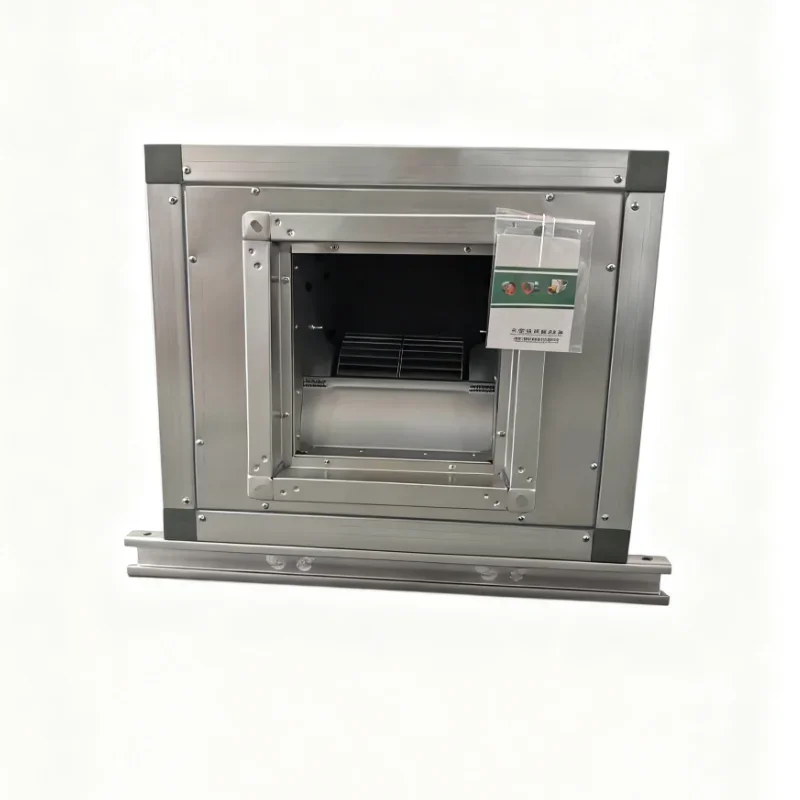

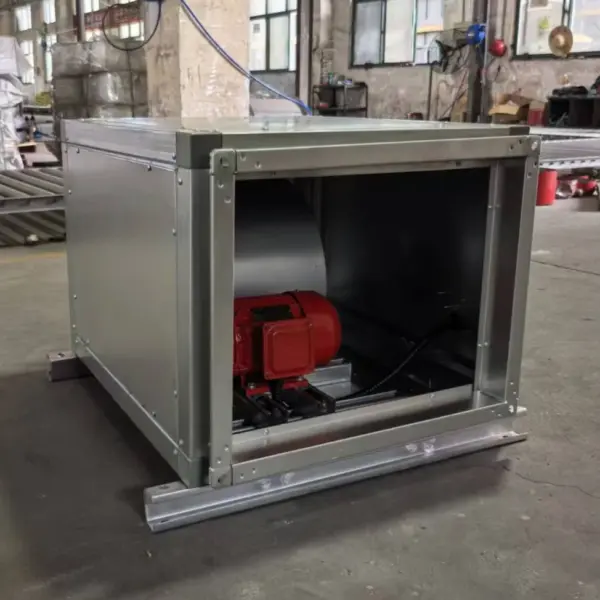

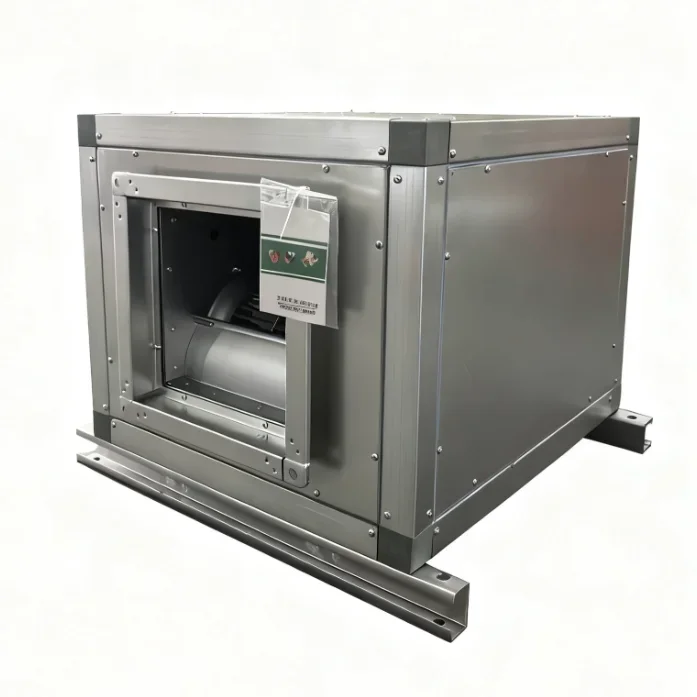

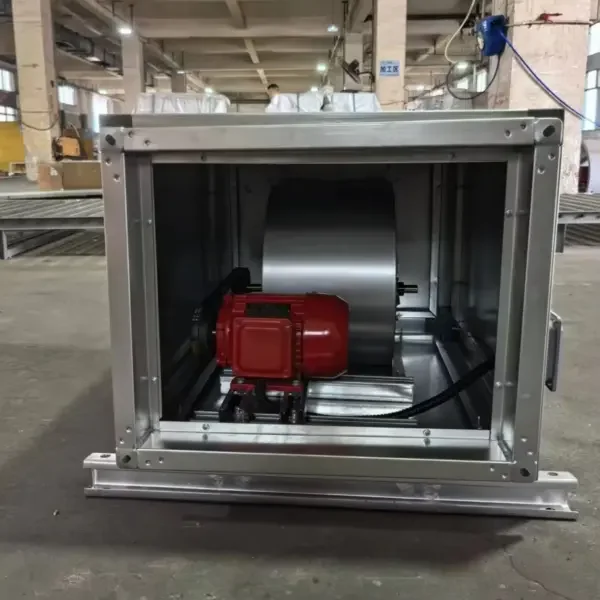

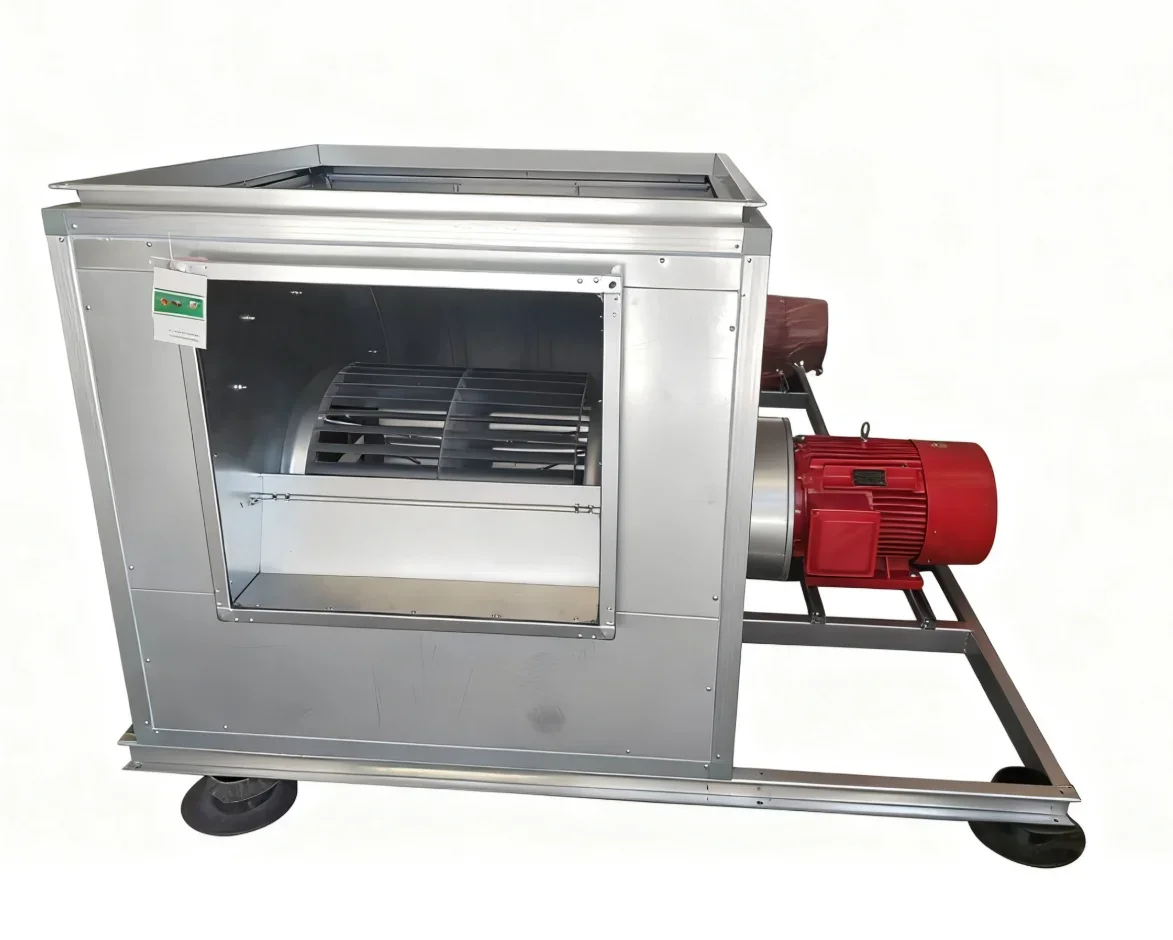

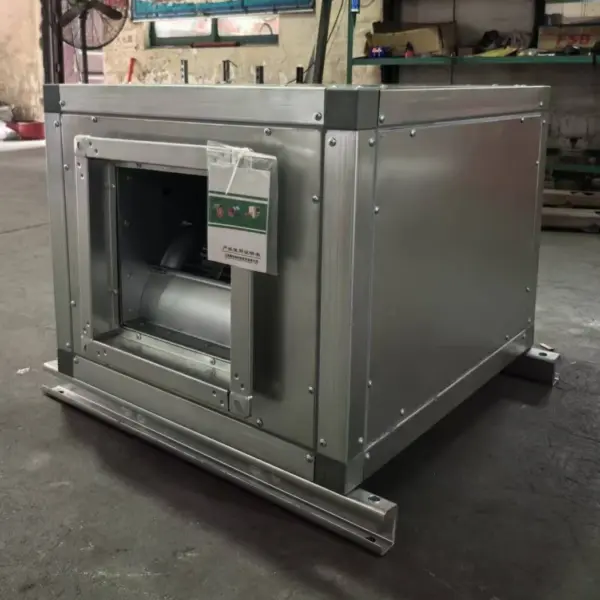

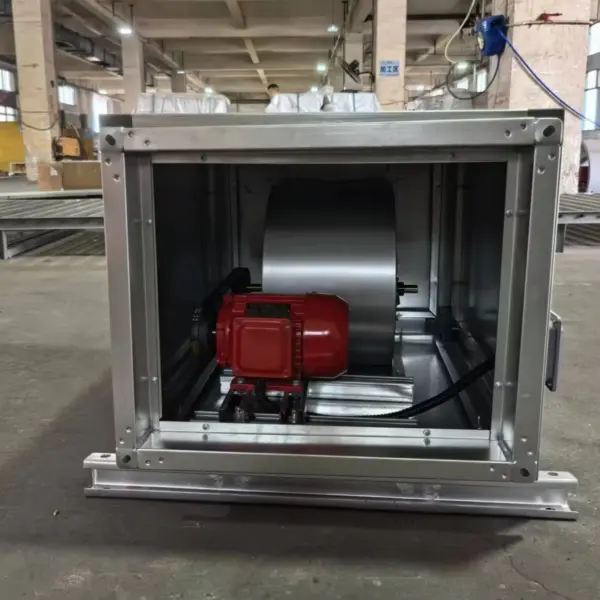

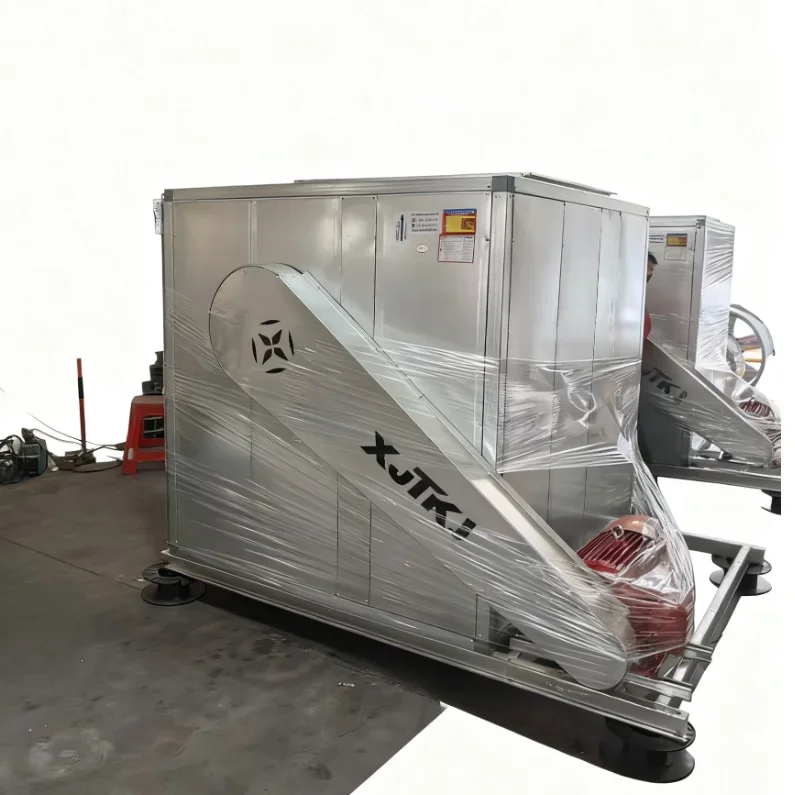

Cabinet-style centrifugal fans
|

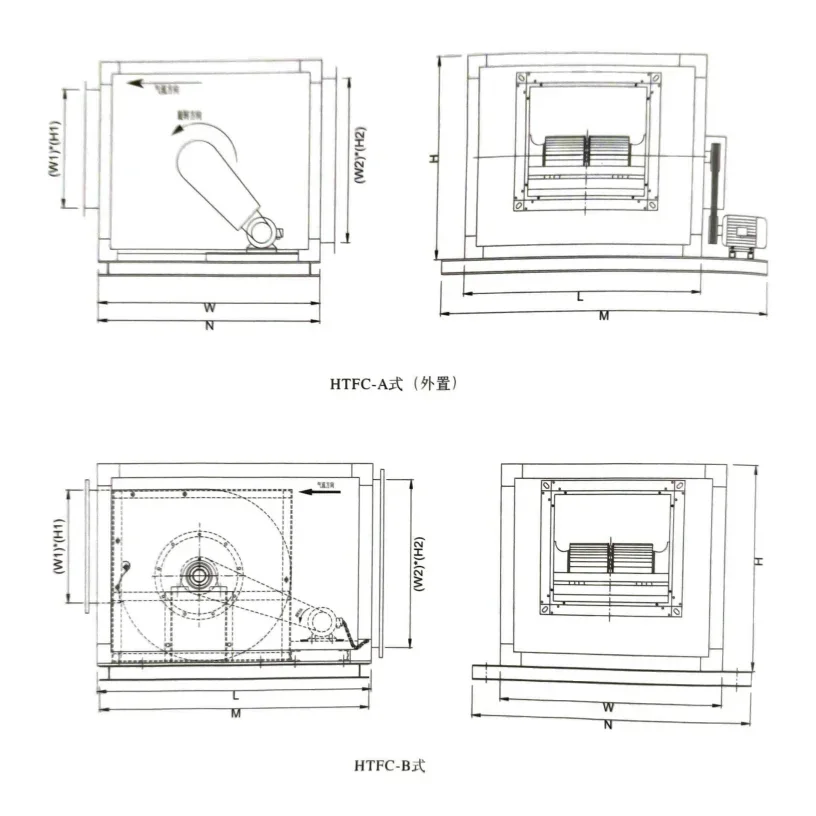

HTFC-A/B Type Forward-Inclined Cabinet Centrifugal Fan External Parameters Table
|
|||||||||
|
Fan model
|
L
|
W(wide)
|
H(high)
|
Air outlet
|
Underframe
|
||||
|
Type A
|
Type B
|
W1
|
H1
|
M(A)
|
M(B)
|
N
|
|||
|
HTFC-I-20
|
1120
|
1300
|
1100
|
1020
|
630
|
570
|
1870
|
1400
|
1180
|
|
HTFC-I-22
|
1240
|
1400
|
1160
|
1080
|
690
|
620
|
1990
|
1500
|
1240
|
|
HTFC-I-25
|
1380
|
1600
|
1320
|
1240
|
780
|
710
|
2180
|
1700
|
1400
|
|
HTFC-I-27.5
|
1500
|
1700
|
1460
|
1380
|
840
|
750
|
2250
|
1800
|
1540
|
|
HTFC-I-30
|
1600
|
1800
|
1580
|
1500
|
940
|
840
|
2550
|
1900
|
1640
|
|
HTFC-I-33
|
1680
|
1900
|
1730
|
1650
|
1070
|
1030
|
2630
|
2000
|
1810
|

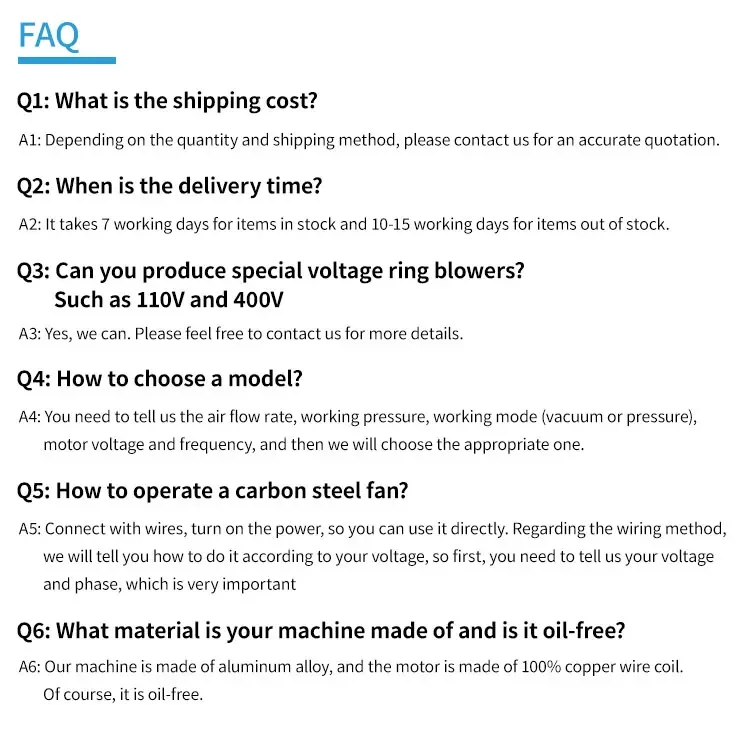

Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this centrifugal fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 380 V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
