The canopen ethercat bus motor listed here carries 48 V DC, 200W, documented exactly as the manufacturer publishes it. Made by Changzhou Jkongmotor Co., Ltd. (13 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Canopen Ethercat Bus Motor
- Model Number: JKIDS60-P01A
- Rated Power: 200 / 400
- Power: 200W
- Rated Voltage: 48 V DC
- Voltage: 24V
- Speed Rpm: 3 000 RPM
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Voltage | 48 V DC |
| Rated Power | 200 / 400 |
| Speed Rpm | 3 000 RPM |
| Speed(RPM) | 3000Rpm |
| Efficiency | IE 4 |
| Type | Servo Motor |
| Construction | Permanent Magnet |
| Frame | 60 |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Drip-proof |
| Usage | Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese medicine ingredient industry, etc |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 12A |
| Model Number | JKIDS60-P01A |
| Torque | 0.64N.m(0.47lb.ft) |
| Place Of Origin | Jiangsu, China |
| Brand Name | Jkongmotor |
| Motor Name | integrated servo motor ethercat |
| Model Name | JKIDS60-P01A |
| Voltage | 24V |
| Power | 200W |
| Control Method (Optional) | Pulse / RS485 / Canopen |
| Encoder Type | 17Bit |
| Protection Level | Waterproof type: IP30, IP54, IP65, optional |
| Certification | ISO, CE, Rohs, Reach |
| Other Dc Servo Motor | 42mm / 57mm / 60mm / 80mm integrated dc servo motor |
| Selling Units | Single item |
| Single Package Size | 10X10X10 cm |
| Single Gross Weight | 5.0 kg |
Product Details
Specification
Model naming rules for low voltage integrated dc servo motor
1.Jkongmotor company name 2.Product series model, IDS: Integrated Dc Servo Motor 3.Frame number (42/57/60/80) 4.Control method optional (P/R/C) P——pulse, R——RS485, C——CANopen 5.The motor model 6.Encoder type: A——17 bit

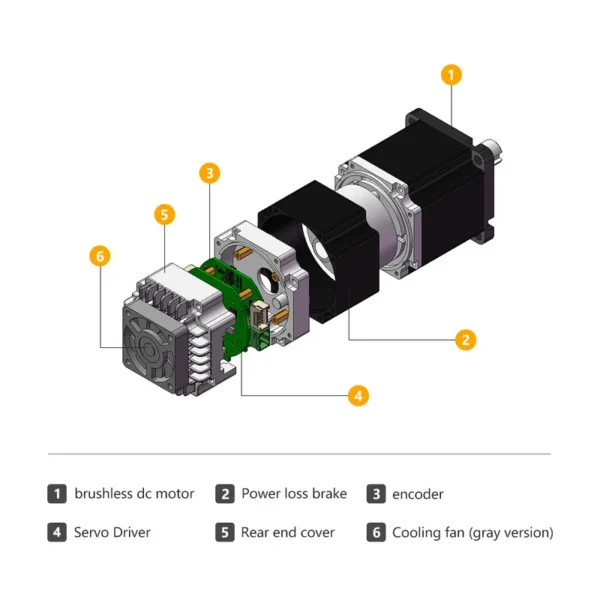

Characteristics of Integrated Dc Servo Motor:
1、 Adopting a new 32-bit M4+core with 120M or 240M main frequency
2、 Stable torque characteristics from low to high speeds, with high speed and precision
3、 Equipped with brake resistor interface to prevent damage to the electromechanical braking system
4、Wide speed range, low temperature rise, and high efficiency
4、Wide speed range, low temperature rise, and high efficiency
5、 Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor
6、 Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions
7、 Configure a 17 bit single turn absolute encoder
Communication method:
1、Pulse type
2、RS485 MOdbus RTU network type
3、CANopen network type
Protection level:
Waterproof type: IP30, IP54, IP65, optional
Usage:
Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese
medicine ingredient industry, etc
Communication method:
1、Pulse type
2、RS485 MOdbus RTU network type
3、CANopen network type
Protection level:
Waterproof type: IP30, IP54, IP65, optional
Usage:
Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese
medicine ingredient industry, etc
Integrated solution for precision control motors
Traditional split solution

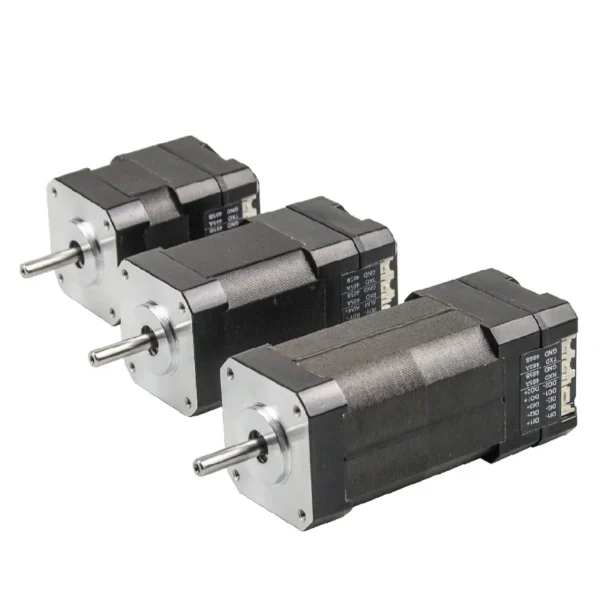

42mm Square Integrated Dc Servo Motor | ||||||||||||||||
Model | Power (W) | Rated Voltage (VDC) | Rated Current (A) | Rated Speed (rpm) | Rated Torque (N.m) | Body Length L (mm) | Encoder | Control method (optional) | ||||||||
JKIDS42-P01A | 26 | 24 | 1.8 | 4000 | 0.0625 | 61 | 17bit | Pulse / RS485 / CANopen | ||||||||
JKIDS42-P02A | 53 | 24 | 3.3 | 4000 | 0.125 | 81 | 17bit | Pulse / RS485 / CANopen | ||||||||
JKIDS42-P03A | 78 | 24 | 4.5 | 4000 | 0.185 | 101 | 17bit | Pulse / RS485 / CANopen | ||||||||
JKIDS42-P04A | 78 | 24 | 4.5 | 3000 | 0.25 | 120 | 17bit | Pulse / RS485 / CANopen | ||||||||
57mm Square Integrated Dc Servo Motor | ||||||||||||||||
Model | Power (W) | Rated Voltage (VDC) | Rated Current (A) | Rated Speed (rpm) | Rated Torque (N.m) | Body Length L (mm) | Encoder | Control method (optional) | ||||||||
JK57IDS57-P01A | 91 | 24/36 | 3.5 | 3000 | 0.29 | 101 | 17bit | Pulse / RS485 / CANopen | ||||||||
JK57IDS57-P02A | 140 | 24/36 | 5.4 | 3000 | 0.45 | 121 | 17bit | Pulse / RS485 / CANopen | ||||||||
JK57IDS57-P003A | 200 | 36/48 | 7.5 | 3000 | 0.64 | 141 | 17bit | Pulse / RS485 / CANopen | ||||||||
60mm Square Integrated Dc Servo Motor | ||||||||||||||||
Model | Power (W) | Rated Voltage (VDC) | Rated Current (A) | Rated Speed (rpm) | Rated Torque (N.m) | Body Length L (mm) | Encoder | Control method (optional) | ||||||||
JKIDS60-P01A | 200 | 24 | 12 | 3000 | 0.64 | 94 | 17bit | Pulse / RS485 / CANopen | ||||||||
JKIDS60-P02A | 400 | 48 | 11 | 3000 | 1.27 | 112 | 17bit | Pulse / RS485 / CANopen | ||||||||
80mm Square Integrated Dc Servo Motor | ||||||||||||||||
Model | Power (W) | Rated Voltage (VDC) | Rated Current (A) | Rated Speed (rpm) | Rated Torque (N.m) | Body Length L (mm) | Encoder | Control method (optional) | ||||||||
JKIDS80-P01A | 750 | 48/72 | 19/12 | 3000 | 2.4 | 155 | 17bit | Pulse / RS485 / CANopen | ||||||||
JKIDS80-P02A | 1000 | 72 | 17 | 3000 | 3.2 | 175 | 17bit | Pulse / RS485 / CANopen | ||||||||
BLDC Motor
1、Various Size: 42mm to 130mm
2、Different Gearbox: Planetary Gearbox / Worm Gearbox / Eccentric Gearbox
3、Parameters Customized: Shaft / Flange / Brake / Encoder / Integrated Driver / Cables
4、Complete and mature drive system support
5、Without brush, low interference, long life, low maintenance cost, low noise, smooth operation
BLDC Gear / Brake Motor
1、Planetary Gearbox
2、High Precision Planetary Gearbox
3、Worm Gearbox
4、Eccentric Gearbox
5、Encoder / Brake
6、Integrated Dc Servo Motor
7、High-precision output
8、High-performance transmission can achieve high torque transmission, high-precision output, high rigidity and low noise
9、Small size, compact structure, large load-bearing capacity, and the design itself can also achieve high-precision positioning
BLDC Motor Driver
1、Including：JKBLD120 / JKBLD300 / JKBLD480 / JKBLD720 / JKBLD750 / JKBLD1100 / JKBLD2200
2、Suitable for the bldc motor with Hallsensor or without hallsensor
3、Optional for RS232 / RS485 Control
4、Stable operation and can be appropriately overloaded
5、Suitable for brushless motors of various specifications
6、Complete and mature drive system support
7、Perfect pre-sales, during-sales and after-sales services
Stepper Motor
1、Various Size: 20mm to 130mm
2、Parameters Customized: Shaft / Flange / Brake / Encoder / Integrated Driver / Cables
Geared / Brake Stepper Motor
1、Planetary Gearbox / High Precision Planetary Gearbox / Worm Gearbox / Eccentric Gearbox
2、Encoder / Brake optional
Stepper Motor Driver
1、Different type for stepper motors from nema 8 to nema 52 stepping motors
2、Suitable for Hybrid Stepper Motor or Closed Loop Stepping Motor
Linear Screw Motor
1、Linear Actuators / Linear Guide Rail
2、Ball Screw / T-Screw…
Integrated Servo Motor
1、Integrated Dc Servo Motor
2、Integrated Stepper Motor
3、Encoder / Brake / Gearbox / Shaft
Brush Dc Motor
1、From 42mm to 90mm
2、Encoder / Brake / Gearbox optional
Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
1. who are we?
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(26.00%),Western Europe(20.00%),North
America(20.00%),Northern Europe(10.00%),Eastern Europe(7.00%),Africa(5.00%),Southeast Asia(5.00%),Mid East(5.00%),South America(2.00%). There are total about 51-100 people in our office.
America(20.00%),Northern Europe(10.00%),Eastern Europe(7.00%),Africa(5.00%),Southeast Asia(5.00%),Mid East(5.00%),South America(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
We are based in Jiangsu, China, start from 2011,sell to Domestic Market(26.00%),Western Europe(20.00%),North
America(20.00%),Northern Europe(10.00%),Eastern Europe(7.00%),Africa(5.00%),Southeast Asia(5.00%),Mid East(5.00%),South America(2.00%). There are total about 51-100 people in our office.
America(20.00%),Northern Europe(10.00%),Eastern Europe(7.00%),Africa(5.00%),Southeast Asia(5.00%),Mid East(5.00%),South America(2.00%). There are total about 51-100 people in our office.
3.what can you buy from us?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Always final Inspection before shipment;
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Accepted Payment Currency:USD,EUR,CAD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Ordering and Pricing
- Minimum order quantity: 3 piece
- Volume pricing:
- 3–99 piece: US $80 / piece
- 100–299 piece: US $70 / piece
- 300–999 piece: US $65 / piece
- 1000+ piece: US $60 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this canopen ethercat bus motor?
The standard minimum order quantity is 3 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this canopen ethercat bus motor carry?
It is supplied with ISO, CE, Rohs, Reach documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the canopen ethercat bus motor be supplied for my local voltage?
The standard configuration is 48 V DC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Changzhou Jkongmotor Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Changzhou Jkongmotor Co., Ltd. range on HVACR Nexus.
