This ceiling fan is published with the manufacturer’s full specification — voltage 415, 1.5KW. Made by Shanghai Yesen Ventilation Equipment Co., Ltd. (11 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ceiling Fan
- Power: 1.5KW
- Voltage: 415
- Blade Material: Stainless Steel
- Speed: 55RPM
- Warranty: 3 Years
- Warranty Time: 3 years
Technical Specifications
| Mounting | Ceiling Fan |
|---|---|
| Voltage | 415 |
| Speed | 55RPM |
| Blade Material | Stainless Steel |
| Warranty | 3 Years |
| After-Sales Service Provided | Online support |
| Customized Support | ODM |
| Core Components | Motor, Gearbox |
| Place Of Origin | Shanghai, China |
| Brand Name | HVLS FAN |
| Type | other |
| Certification | CCC, ce, RoHS, ISO9001:2008 |
| Coverage Area | 1800 square meter |
| Warranty Time | 3 years |
| Size | 7.3m/24ft |
| Power | 1.5KW |
| Usage | Big Space Cooling and Ventilation |
| Motor Type | AC Motor |
| Selling Units | Single item |
| Single Package Size | 84X84X52 cm |
| Single Gross Weight | 150.0 kg |
Product Details
Model no | YS-7300 | YS-6100 | YS-5500 | YS-4900 | YS-3600 | YS-2500 |
Diameter | 24FT | 21FT | 18FT | 16FT | 12FT | 8FT |
Blade number | 6 | 6 | 6 | 6 | 6 | 6 |
Power | 1.5KW | 1.5KW | 1.5KW | 1.1KW | 1.1KW | 0.75KW |
Max speed | 20-50RPM | 20-50RPM | 20-50RPM | 20-72RPM | 20-72RPM | 20-100RPM |
Weight | 140KG | 130KG | 125KG | 120KG | 110KG | 85KG |
Air volume | 13500m3/min | 9000m3/min | 7500m3/min | 6000m3/min | 4500m3/min | 1600m3/min |
Cover area | 850m2 | 550m2 | 460m2 | 370m2 | 260m2 | 90m2 |
big ceiling fan industrial ceiling fan using Toshiba/Danfoss/Schneider inverterwhich is the most famous inverter in worldwide. The overload protective device in controller box can automatically disconnect the power supply once accident occurs. So safety is assured. You can regulate the wind speed at will by rotary switch. What's more, the inverter can control the fan to rotate in forward and reversing direction. |
1.Low backlash assembly process and gear grinding technique,lower noise 2.Strength the bearing frame structure,increase oil seal and strength the motor structure with trapezoidal shaft structure,higher safety 3.Passed CCC,CE,UL certificates |

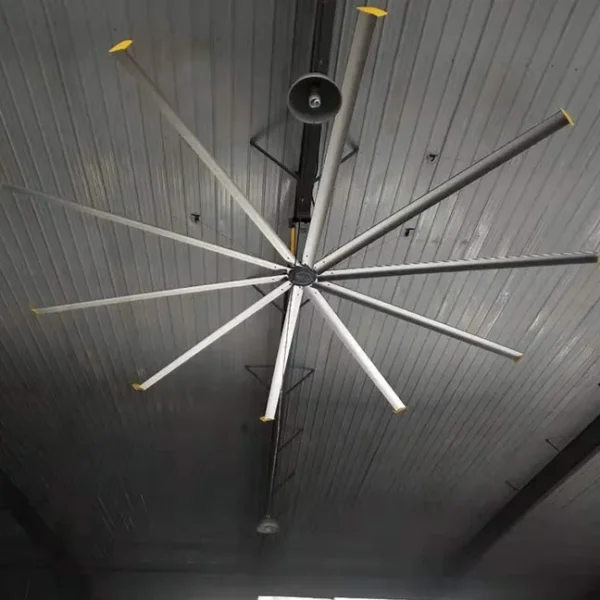

The blade is the core technique of the fan. We use simulation software ANSYS to make the blades with most reasonable transversal surface and inner limiting plate. HVLS fans have 6/8/10 PCS of blades and winglets to ensure maximum airflow and efficiency. Unique designed winglets at the airfoil tips greatly eliminate wind noise. The blades is made of aluminum alloy with plastic spraying finish, so it can resist corrosion and dust very well. |
1 | Super thick steel wire rope passing through suspender and steel beam,When the ceiling fan falls off accidentally, lift it firmly |
2 | Four wire ropes pass through the motor shell, the tail end is fixed on the roof, balancing the ceiling fan, and preventing the ceiling fan from falling off accidentally |
3 | Laser cutting integrated molding,no longer have the risk of fracture, no longer have the risk of screw fall off |
4 | grade fastener:all the fasteners use high-intensity industrial bolt,and actualstress can reach more than 10 times, |
5 | Fan blade connector,It connects six individual blades together,To make them whole, and when one fan leaf falls off unexpectedly,Because of the presence of fan-blade connectors,The other blades will pull on the fallen ones |
Motor and Accessories | 0.80M*0.80M*0.50M |
Blade | 3.52M*0.30M *0.30M |
Off season: 150 units in stock
Peak season: 50-100 units in stock
If you need us to prepare goods in advance, please contact us in advance:
1-50 sets, 2 weeks
50-100 sets, 35 days
A: Of course, we are a factory focusing on large ceiling fans based in Shanghai, China, be your direct fan supplier.

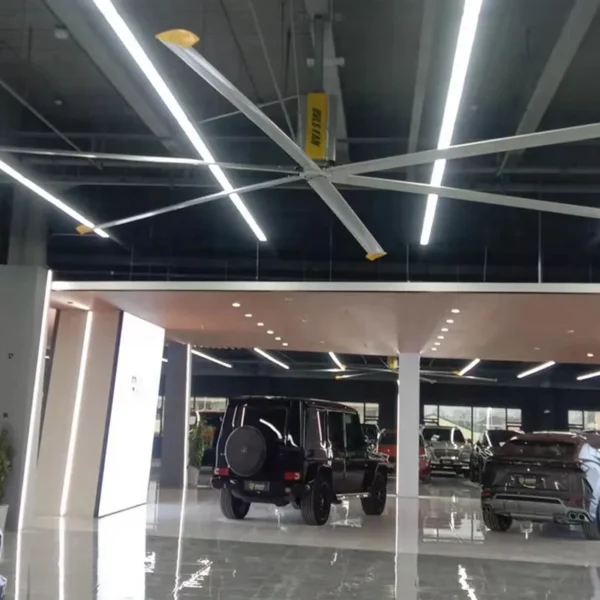

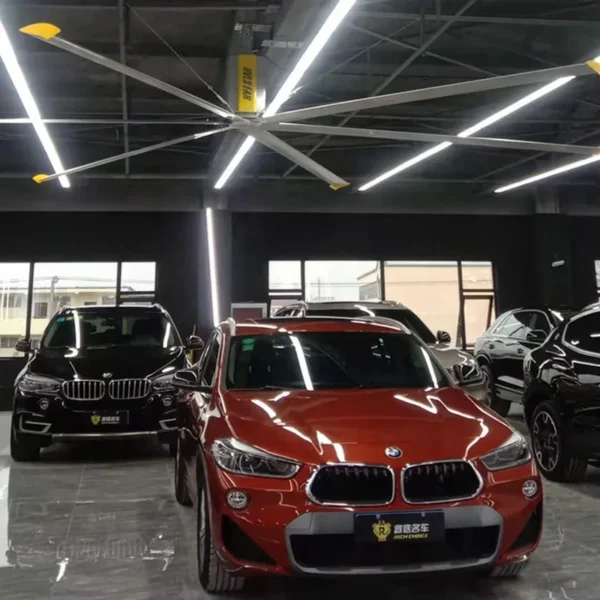

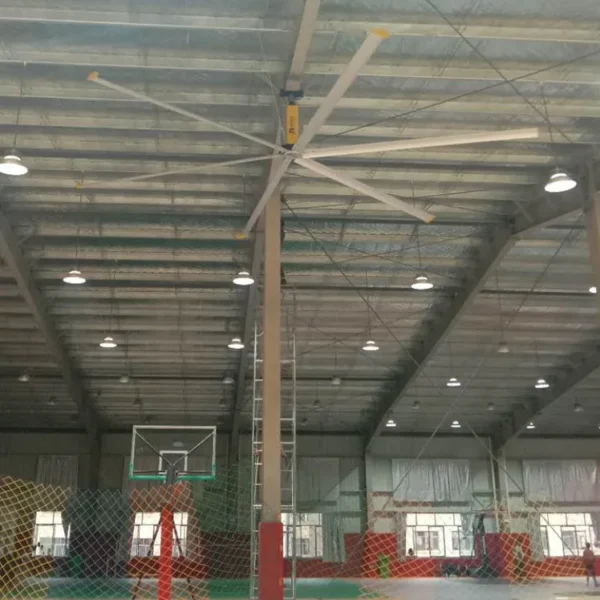

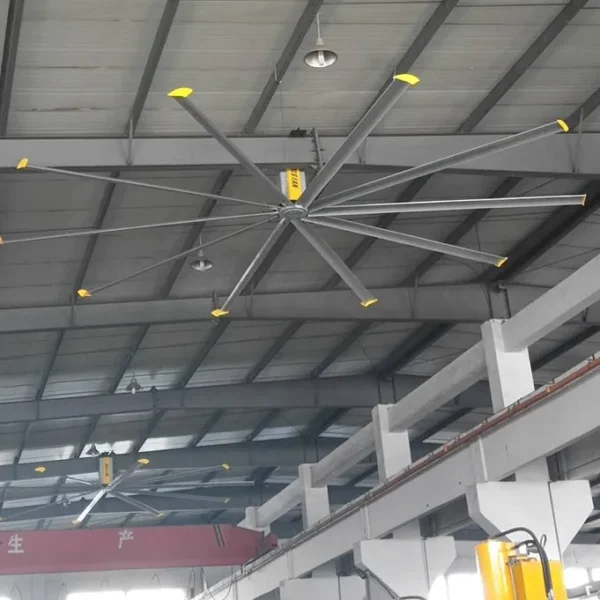

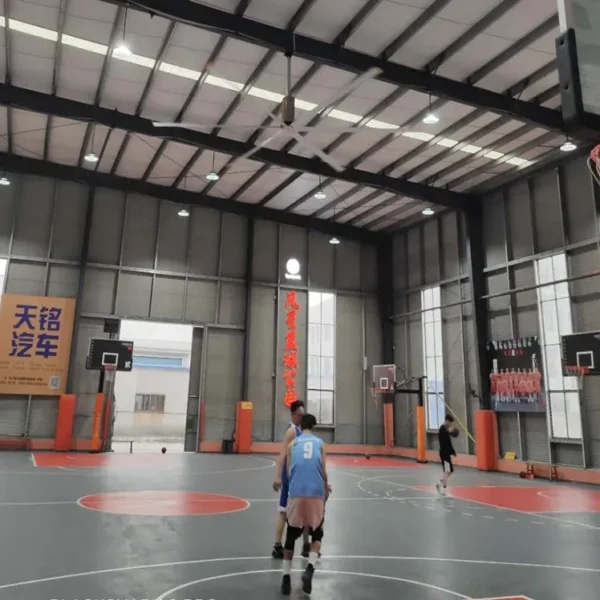

A: Ths fan is widely used in factory, logistics & warehouse, supermarket, halls etc.
Q: Is it used in electrcity?
Q: What the price per fan?
Q: How long is the delivery time?
Q: How long is the warranty?
Ordering and Pricing
- Minimum order quantity: 5 set
- Volume pricing:
- 5–19 set: US $1250 / set
- 20+ set: US $1215 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ceiling fan carry?
It is supplied with CCC, ce, RoHS, ISO9001:2008 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ceiling fan be supplied for my local voltage?
The standard configuration is 415. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
