Ceiling Fan, JULAI, 24ft, 7.3m, ATEX

The ceiling fan listed here carries 220 V, 380 V, max airflow 14800m³/min, documented exactly as the manufacturer publishes it. Made by Julai (Chongqing) Ventilation Equipment Co., Ltd. (6 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Ceiling Fan

• Model Number: HVLS-DF1549(16′), HVLS-DF1555(18′), HVLS-DF1561(20′), HVLS-DF1573(24′)
• Power Source: Electric
• Power: 220-380V
• Voltage: 220 V, 380 V

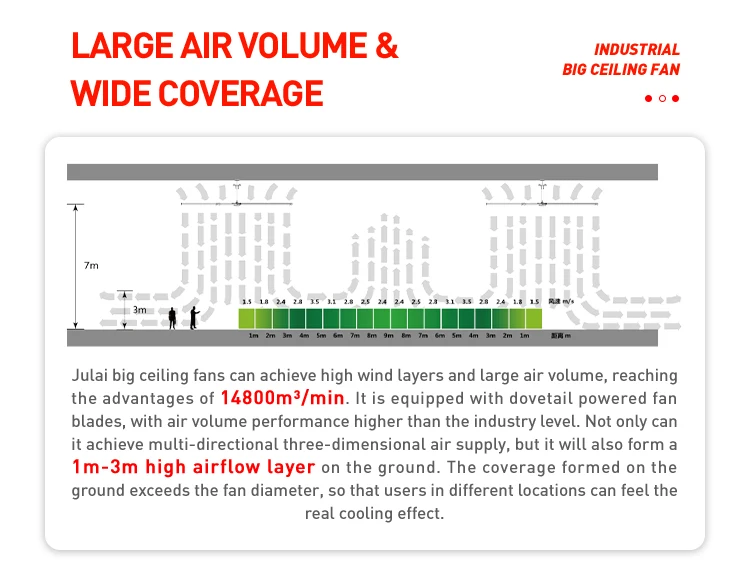

• Max Airflow: 14800m³/min
• Blade Material: Aluminum Alloy

Technical Specifications

Product Details

Product details

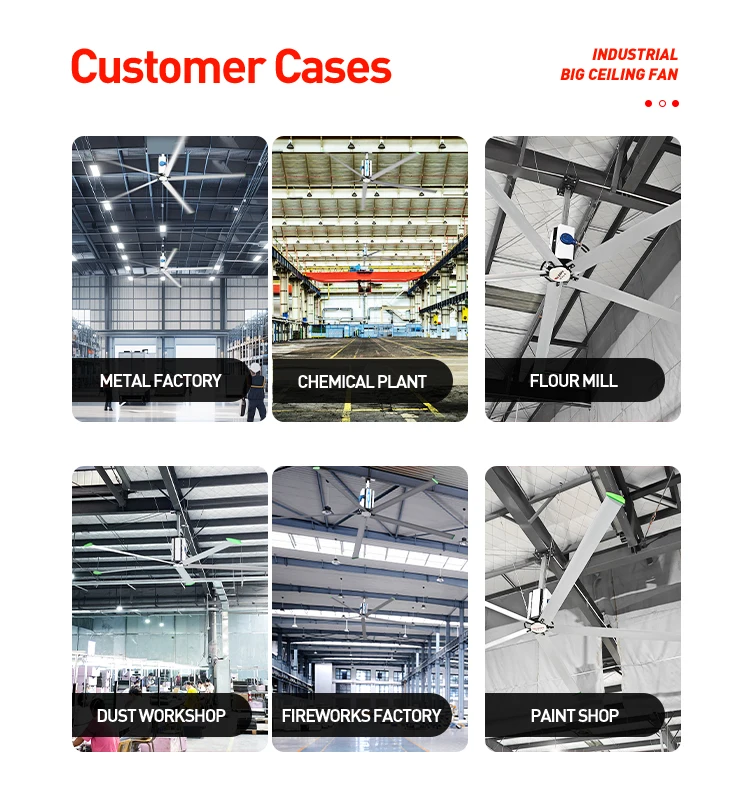

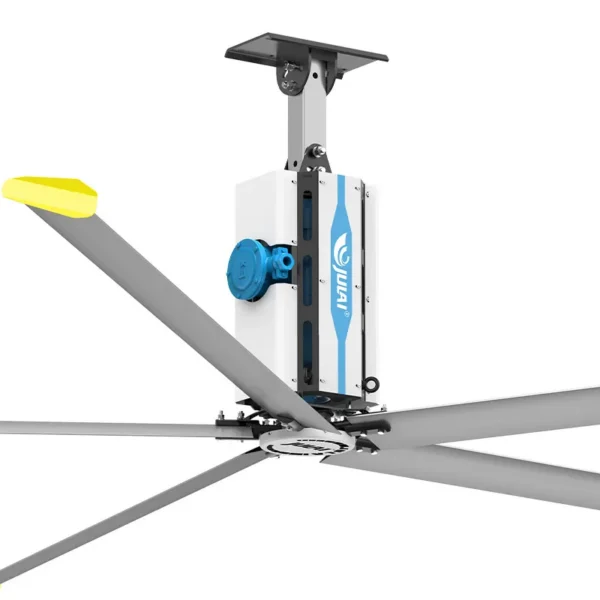

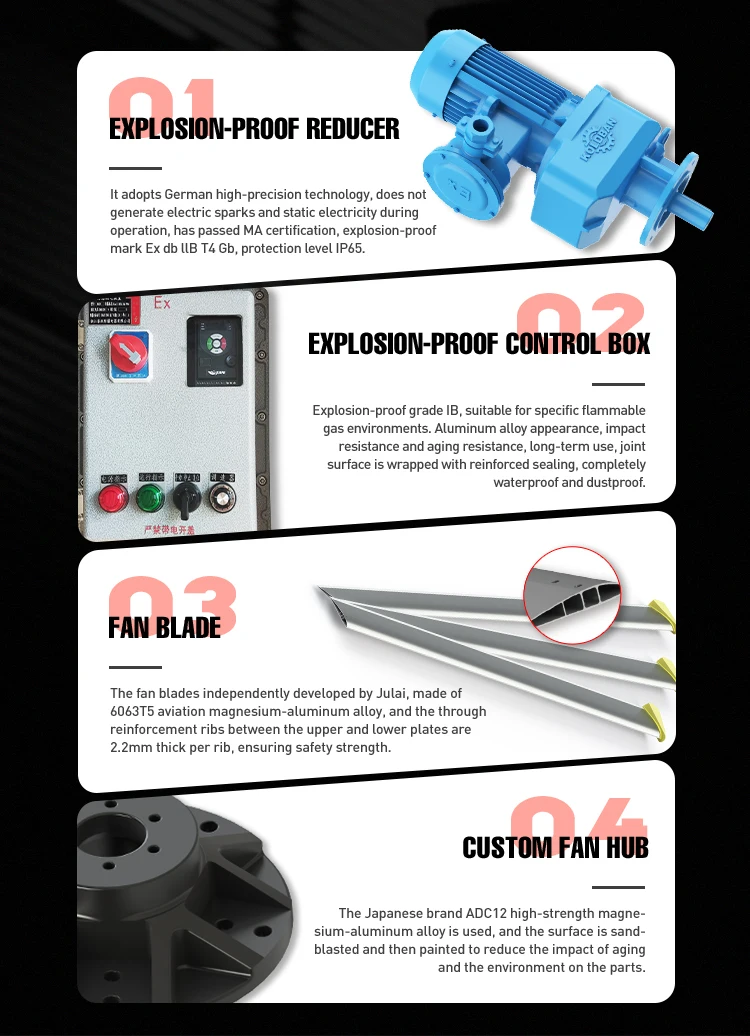

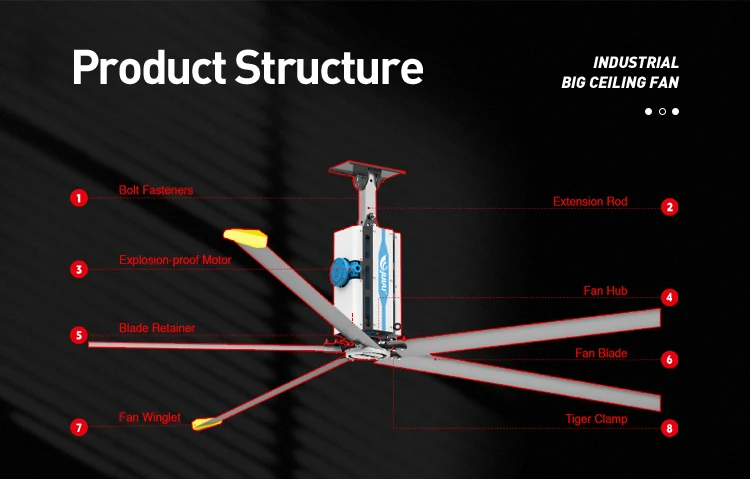

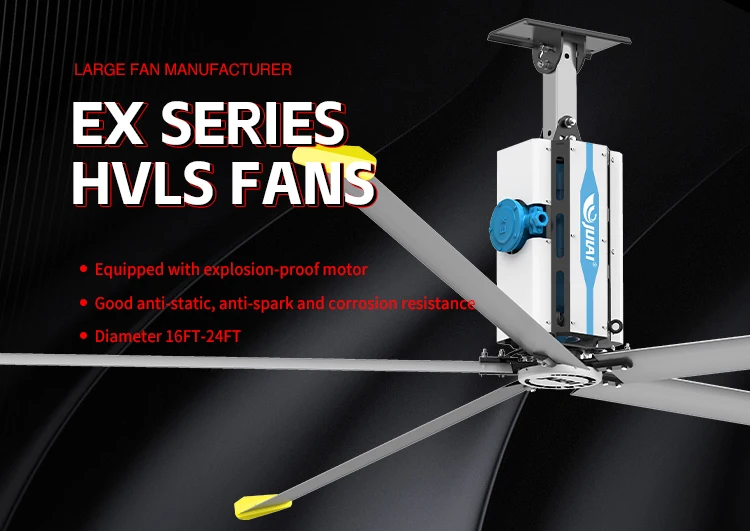

The "EX Series" industrial ceiling fans are equipped with explosion-proof motors as devices, and are matched with explosion-proof distribution boxes and special explosion-proof pipelines, They have good anti-static, anti-spark and corrosion resistance, ensuring that even if electric sparks are generated in an enVironment containing flammable and explosive gases or dust, they will not cause an explosion. They play an important role in ventilation and cooling in flammable and explosive places. This series of products has dimensions ranging from 16-24FT, and the appropriate size can be selected according to the project scenario. lt is widely used in flammable and explosive industries such as petroleum, chemical industry, coal mining and metallurgy, textile, and medicine, as well as in dangerous places such as gas stations, oil depots, and warehouses,environments.needs from multiple angles.

model	diameter	power	speed	volume	weight	noise
HVLS-DF1573	24'(7.3m)	1.5kw	30-57rpm	14800m³/m	135kg	55dba
HVLS-DF1561	20'(6.1m)	1.5kw	30-65rpm	13500m³/m	127kg	55dba
HVLS-DF1555	18'(5.5m)	1.5kw	30-75rpm	12000m³/m	124kg	55dba
HVLS-DF1549	16'(4.9m)	1.5kw	30-80rpm	11000m³/m	121kg	55dba

Contact Us

Certificate

Exhibition

Package

FAQ

Q1: Are you manufacturer or trading company?

A1: We are a factory in Chongqing, China. Focusing on HVLS large ceiling fans, wall fan, pedestal fan.

Q2: Where does your fan use in?

A2: The fan is widely used in factory, logistics & warehouse, Church, Gymnasium,halls etc.

Q3: Is it powered electricity?

A3: Yes, it's power supply is electricity, but only 1.5KW or less, very energy-saving.

Q4: What is the price?

A4: That depends. We will offer you the best price according to the quantity and the model.

Q5: How long is the delivery time?

A5: Normally 3-5 working days.

Q6: How long is the warranty?

A6: We offer 3-year warranty to guarantee the quality. Most importantly, its service life is 12-15 years.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ceiling fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the ceiling fan be supplied for my local voltage?

The standard configuration is 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Julai (Chongqing) Ventilation Equipment Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Julai (Chongqing) Ventilation Equipment Co., Ltd. range on HVACR Nexus.
