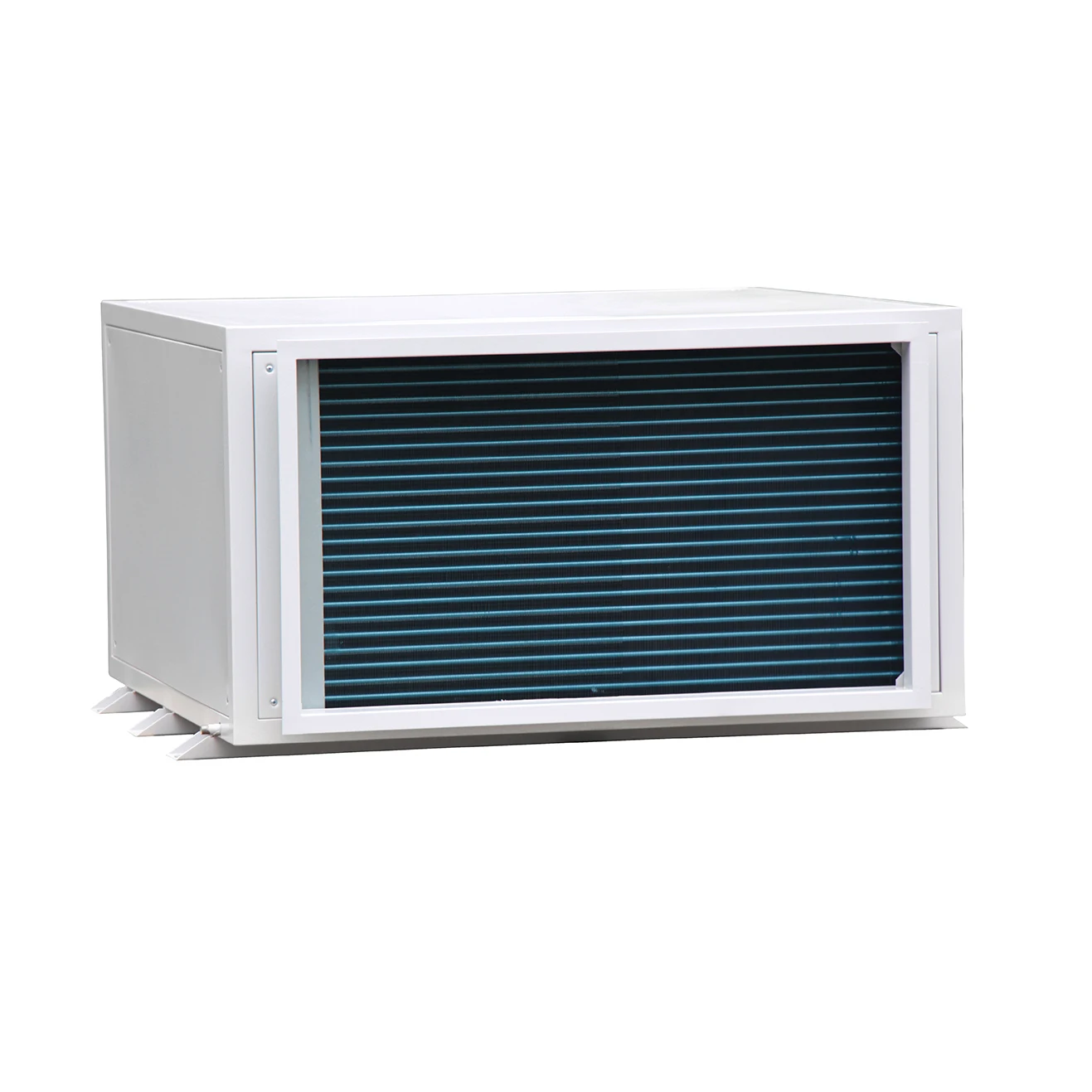

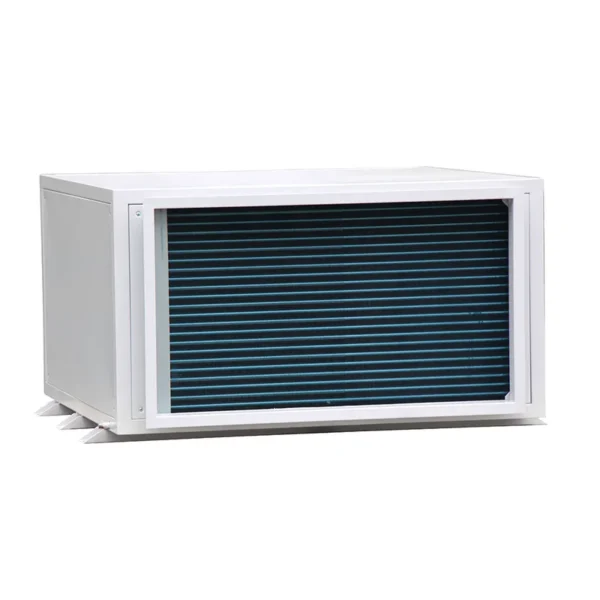

Ceiling Mounted Dehumidifier, 220V-380V, 90L/D, 0-50dB

Key specification for this ceiling mounted dehumidifier: 220V~380V/50~60HZ, power source Electric. Everything below is reproduced from the factory data sheet. Made by Shanghai Feizhong Refrigeration Equipment Co., Ltd. (5 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Ceiling Mounted Dehumidifier

• Power Source: Electric
• Power(W): 1400
• Voltage: 220V~380V/50~60HZ
• Dehumidifying Capacity: 90L/D
• Material: Metal
• Refrigerant: R410A

Technical Specifications

Product Details

Product details:

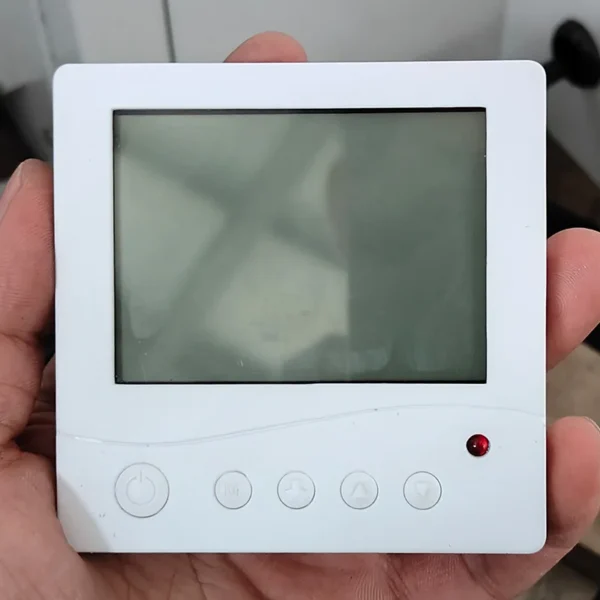

1、Compressor and main components is of world famous brand 2、High efficiency,energy saving and longevity life 3、Eco-friendly refrigerant R22/R407C/410A 4、Large air volume, slience running design 5、Easy use intelligent automatic control panel 6、Ceiling mounted without taking floor space,ultrathinly design 7、Automatic control sterilization device to ensure clean air 8. Humidity control accuracy to ±1%,set freely. 9 Compressor protection,overload,overheat and short out protection 10、Automatic defrosting when the ambient temp below 18℃

Technical Parameter

MODEL	DCFZ-7	DCFZ-10	DCFZ-15	DCFZ-20
Refrigerating capacity	7kg/h	10kg/h	15kg/h	20kg/h
Standard operating conditions	T=30℃ RH=80%
Power	380V~50Hz
Rated input power	2.82KW	4.2KW	5.6KW	8.4KW
Rated current	6.9A	7.8A	13A	16A
ambient temperature	5～38℃
Air circulation flow	2000m3/h	2800m3/h	4300m3/h	5600m3/h
refrigerant（R22）	1.50kg	1.80kg	1.50kg*2	1.80kg*2
drainge	External hose with 24 hours continuously drainage
Sound level	55dB	62dB	65dB	72dB
Humidity scope	10%-99%
Overal dismension (mm)	1100×700×735	1100×1000×580	1300×1200×700	1300×1200×700
Net weight	90kg	110kg	150kg	180kg

MODEL	DDH-838B	DDH-858B	DDH-890B	DDH-8138B	DDH-8156B
Refrigerating capacity	38kg/d	58kg/d	90kg//d	138kg//d	156kg/d
Standard operating conditions	T=30℃ RH=80%
Power	220V~50Hz
Rated input power	0.95KW	0.95KW	1400W	1500W	2000W
Rated current	4.5A	4.5A	7.1A	7.5A	10.2A
ambient temperature	5～38℃
Air circulation flow	500m3/h	500m3/h	1000m3/h	1300m3/h	1800m3/h
refrigerant（R22）	0.6kg	0.6kg	0.9kg	0.9kg	1.25kg
drainge	External hose with 24 hours continuously drainage
Running noise	45dB	45dB	50dB	50dB	50dB
Humidity scope	10%-99%
Overal dismension (mm)	780×585×375	670×585×375	860×520×425	860×520×425	900×650×470
Net weight	30kg	30kg	50kg	50kg	70kg

FAQ

1 .Are you a factory or trading company? Yes, we are factory supplier focus on humidity control for 10 years.

2. Can you accept small orders? Do not worry. A small order is accepted to get more orders in the future.

3. How do I know which model I should choose? Please tell us the supplying area size (length*width*height), and the RH you need. We will study and suggest you the right model.

4. Do you accept OEM or ODM? Yes, welcomed.

5. What about payment? Accepted Payment Type: T/T L/C，PayPal, Western etc.

6. How to guarantee the quality of your products? Good quality control and test strictly before shipment.

7. Why do We need a dehumidifier? If you regularly see condensation on your windows, or damp and mould spots in the corners of cold or little used rooms, the air in your home probably contains excess moisture. If you don’t do anything about it, this moisture can damage your carpets, curtains, furniture and even your walls. You need a dehumidifier to remove this excess moisture before it becomes a serious problem.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–5 piece: US $349 / piece
  • 6+ piece: US $335 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ceiling mounted dehumidifier?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the ceiling mounted dehumidifier be supplied for my local voltage?

The standard configuration is 220V~380V/50~60HZ. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
