Centrifugal Blower, 370W, Cast Iron, 220V, 2800rpm, AC Motor
$25.00
Centrifugal Blower. Key specification: 220V/380V, power source type Corded Electric. Ships factory-direct with the manufacturer’s data sheet. Material: Cast Iron. Speed: 2800rpm.
Centrifugal blower — 220V/380V, power source type Corded Electric. The complete factory specification follows. Made by Taizhou Qiou Mechanical And Electrical Co., Ltd. (3 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Blower
Model Number: DF 370W
Power Source Type: Corded Electric
Voltage: 220V/380V
Material: Cast Iron
Blade Material: Cast Iron
Noise Level: 40 dB and above
Technical Specifications
Mounting
Free Standing
Voltage
220V/380V
Motor Type
AC Motor
Speed
2800rpm
Material
Cast Iron
Blade Material
Cast Iron
Power Source Type
Corded Electric
Warranty
1 Year
After-Sales Service Provided
Online support
Customized Support
OEM, ODM
Noise Level
40 dB and above
Place Of Origin
Zhejiang, China
Brand Name
QIOU
Model Number
DF 370W
Product Name
AC Centrifugal Blower,Backward Curved Centrifugal Fan,Blower Fan
Application
Industrial Exhaust Ventilation
Feature
High Efficiency Low Noise Power Saving
Usage
Dusty Air Ventilation
Motor
Copper Motor
Keyword
Centrifugal Blower Ventilation Fan Industrial Exhaust Fan
Pressure
850Pa
Selling Units
Single item
Product Details
Product Description

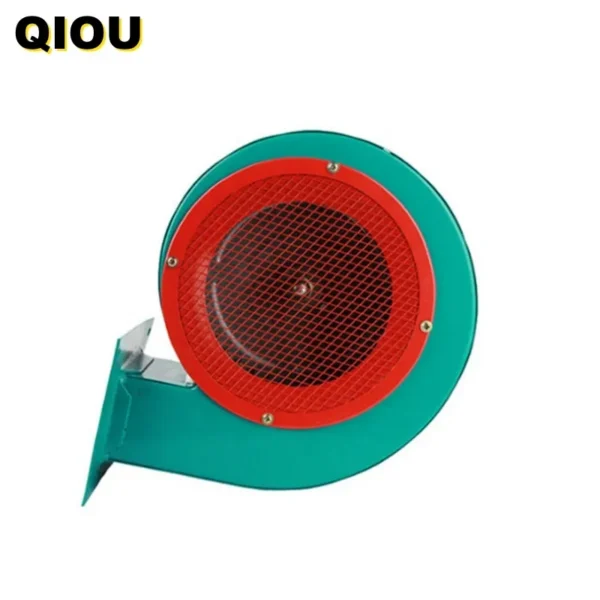

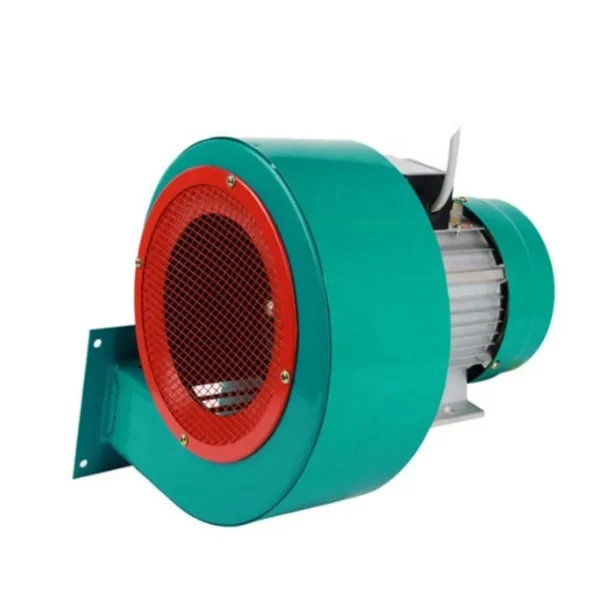

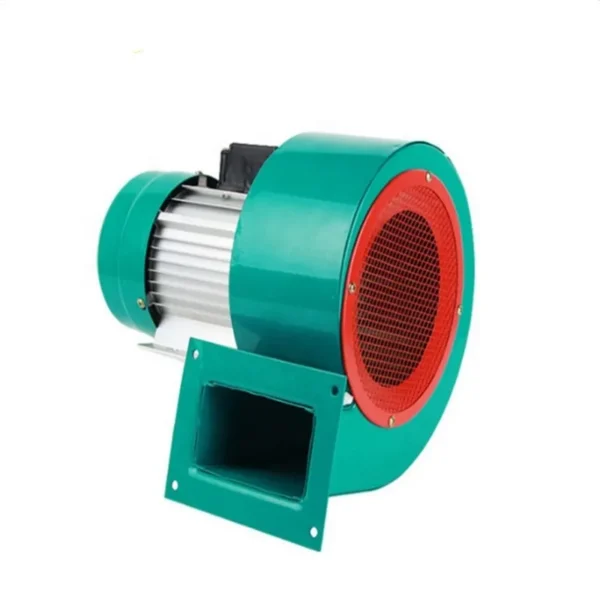

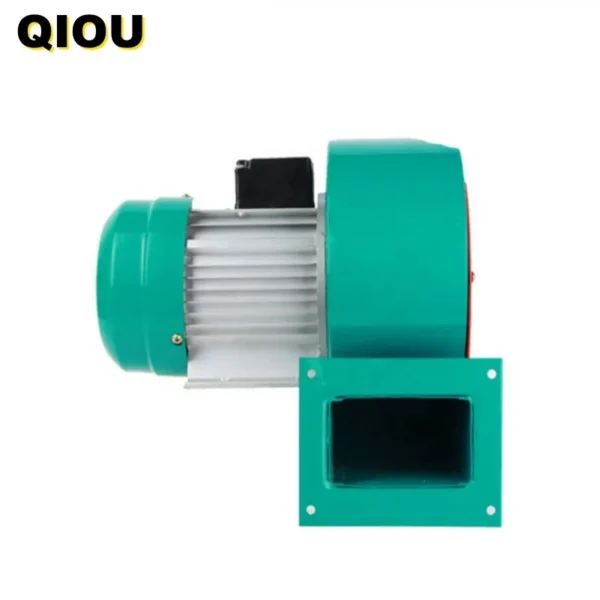

370W Low Noise DF Centrifugal Exhaust Blower Backward Curved Impeller Fan Industrial Centrifugal Blower Fan
DF series multi-wing low noise centrifugal fans are low-noise,high-efficiency,large-flow ,low-vibration ,long-life span ,removable foot ,flexible mounting fans,they are novally designed,small area occupy,easy to install and using,they can meet the requirements of modern environment protection.They are ideal equipments for air exhausting and dust-removal,air ocndition in high-grade buildings,hotels,factories and mines vessels,basement etc.
1.Low noise,high efficiency,large air volume,high pressure,low vibration,long life,removable foot,flexible installation. 2.Fan impeller automatic punch blanking,mechanical insertion,after dynamic balance strict correction,reduce vibration,stable operation,durable. 3.Y2 aluminum alloy die-casting materail is used in the motor,which greatly reduces weight,achieves lightweight,convenient installation and beautiful appearance. 4.Widely used in telecommunications,power,electricity,electronics,geology,coal mines,ships,papermaking and other related industries. 5.Particlarly suitable for printing,plastics,packaging,film blowing,drying,cooling and other machinery and general ventilation.
Specification
Model
Voltage(V)
Power(W)
Speed(r/min)
Air Volume (m3/h)
Pressure(Pa)
DF-1
220/380
120
2800
350
390
DF-2
220/380
180
2800
405
450
DF-3
220/380
250
2800
505
860
DF-4
220/380
370
2800
660
860
DF-5
220/380
550
2800
850
1020
DF-6
220/380
750
2800
1200
1210
DF-7
220/380
1100
2800
1800
1500
DF-8
220/380
2200
2800
2800
1650
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Taizhou Qiou Mechanical and Electrical Co., Ltd. is engaged in the field of electric motor, axial fan, blower,centrifugal fan,industrial fan, exhaust fan and other fans. With over 10 years of experience in the design,development,and manufacture of the fans and motors,we export to over 30 countries and regions. High quality, prompt delivery, superior service and competitive prices are always assured. Developing business based on the quality is the tenet we have always held. Besides the products listed in our catalogs, we also offer OEM services. Feel free to reach us for any customized fans and motors solutions. We sincerely wish to cooperate with clients and friends worldwide to build a brilliant future together!
FAQ
Q: How about the quality guarantee period? A: One year. Q: What tests do your products need to go through? A: Air pressure flow test – Flame retardant test of plastic shell – High temperature resistance test – Low temperature test -Noise test – Stacked – Water proof – Drop destructive test. Q: Can you provide samples? A: After price confirmed, you can require for samples to check quality. If you need the samples, we will charge for the sample cost. But the sample cost can be refundable. Q: Do you accept OEM or ODM orders? A: Yes, we accept OEM and ODM from customers. Q: How long is your delivery time? A: Small quantity is around 5-7 working days after receiving the prepayment. Large quantity orders need to negotiate the delivery time. Q: How are you going to ship my order? A: Usually, for sample order we will ship by express like EMS, DHL, FedEx, UPS, special-line logistic. For bulk order, we will ship by sea or air to your destination sea port or airport. If you have own freight forwarder, we can deliver the goods to them as well. Q: When can I get the quotation? A: We usually quote within 12 hours after we get your inquiry. If you are urgent to get the price, please send the message on other chat tools or call us directly. Q : What are your terms of payment? A : Generally, 30% T/T in advance, 70% balance before shipment.The common way is by T/T. We can also accept other payments.
Ordering and Pricing
Minimum order quantity: 1 piece
Volume pricing:
1–99 piece: US $30 / piece
100–499 piece: US $28 / piece
500+ piece: US $25 / piece
Ships from: China
Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
