This centrifugal blower is published with the manufacturer’s full specification — 5V/12V, power source Electric. Made by Guangzhou Mega Technology Limited Company (8 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Blower
- Model Number: 6015
- Power Source: Electric
- Voltage: 5V/12V
- Material: Plastic
- Blade Material: Plastic
- Speed: 3500RPM
Technical Specifications
| Blade Diameter | 2.165 in |
|---|---|
| Voltage | 5V/12V |
| Speed | 3500RPM |
| Type | Duct Axial Fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | Mega |
| Model Number | 6015 |
| Size | 60x60x15mm |
| Application: | Computer Case |
| Pressure: | 7.92mmH2O-10.02mmH2O |
| Bearing Type: | Sleeve |
| Lead Wire: | 2 wires |
| Weight: | 35g |
| Color | Black |
| Certification | RoHS |
| Selling Units | Single item |
| Single Package Size | 6X6X2 cm |
| Single Gross Weight | 0.580 kg |
Product Details

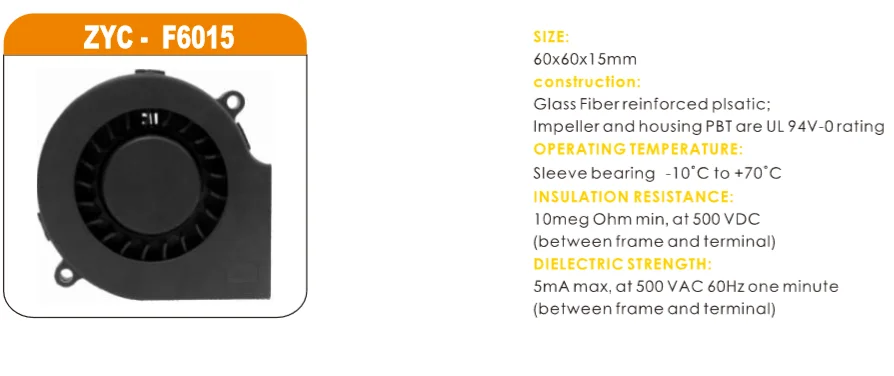

6015 low noise centrifugal blower fan

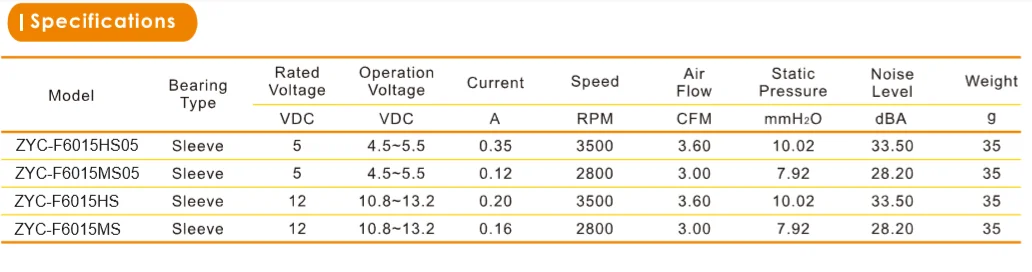

| Specification | |
| Dimension mm (LXWXThickness) | 60x60x15MM |
| Frame | aluminum |
| Material | BLACK PBT (UL94V-0) |
| Bearing System | sleeve |
| Rated Voltage(v) | 5V/12V |
| Rated Current(A) | 0.12A-0.35A |
| Rated Power(W) | 4.5W-5.5W |
| Rated Speed (RPM) | 3500RPM |
| Air Flow (CFM) | 3.00CFM – 3.60CFM |
| Air Pressure (H2O) | 7.9mmH2O-10.2mmH2O |
| Noise (dBA) | 28.2dBA-33.5dBA |
| Motor Protection | Impedance Protected |
| Certificate | CE Rohs |
| Power Joint | Lead Wire |
Customer Services:
1. Warranty: 1 year warranty for all products.
2. Private Labelling: All of axial fans are able to be Private labeled.
3. Products Quality: 100% products inspection before delivery.
4. Just in time delivery: Normally, Lead time is 30 days.
5. Customized Service: As we have our own molding department,
customized service can be provided.
6. Prompt customers Services: E-mail will be replied in 24 hours.

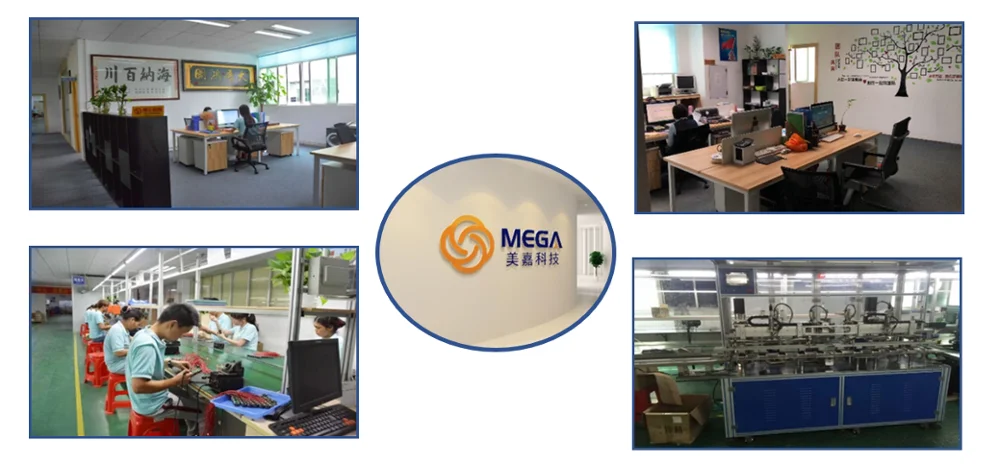

Factory production view :

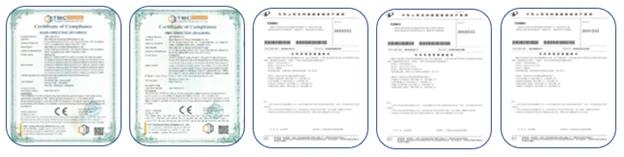

Certificate:
FAQ for AC/ DC Cooling fan:
1. Can I do OEM?
Yes.
2. What is your payment term?
Trade Assurance, T/T, Western Union, Paypal
3. Delivery time of the sample?
About 3-7 working days.
4. Delivery time of order?
Depends on quantity, negociable.
5. What is your guarantee period?
12 months.
For some other products:
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–999 piece: US $3.2 / piece
- 1000–4999 piece: US $2.6 / piece
- 5000+ piece: US $1.3 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal blower carry?
It is supplied with RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 5V/12V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Mega Technology Limited Company, based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Mega Technology Limited Company range on HVACR Nexus.
