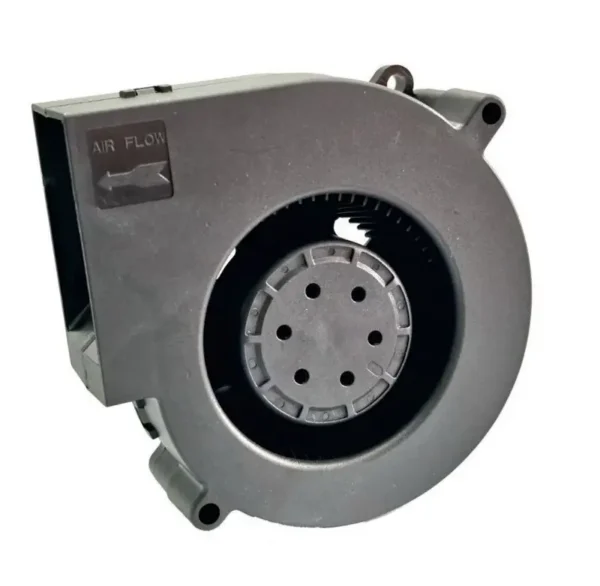

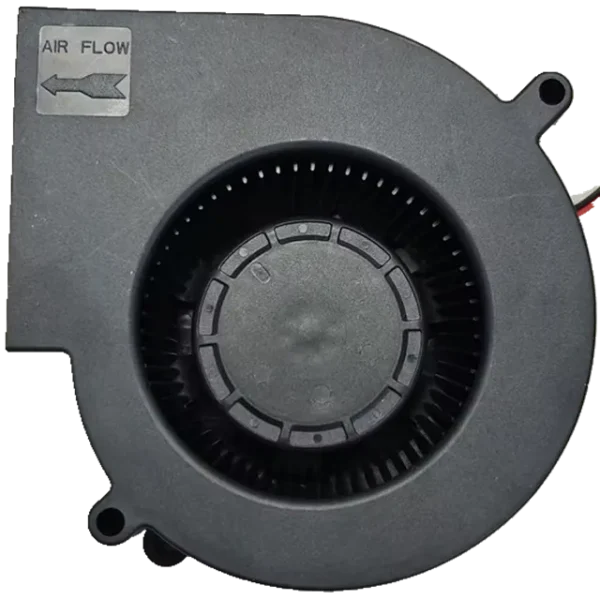

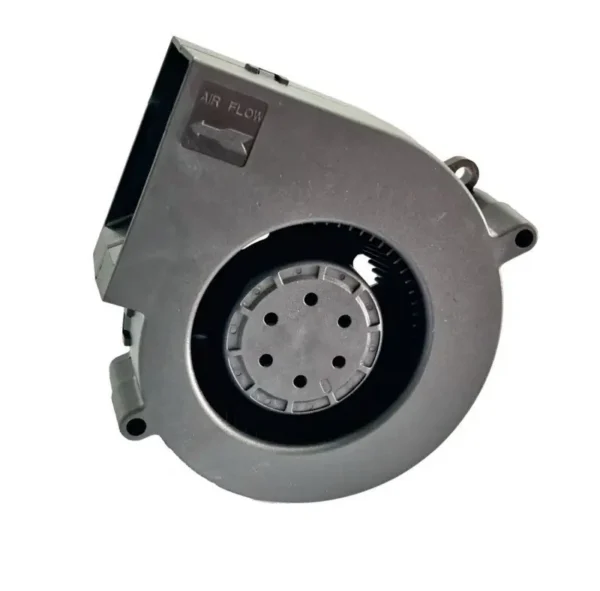

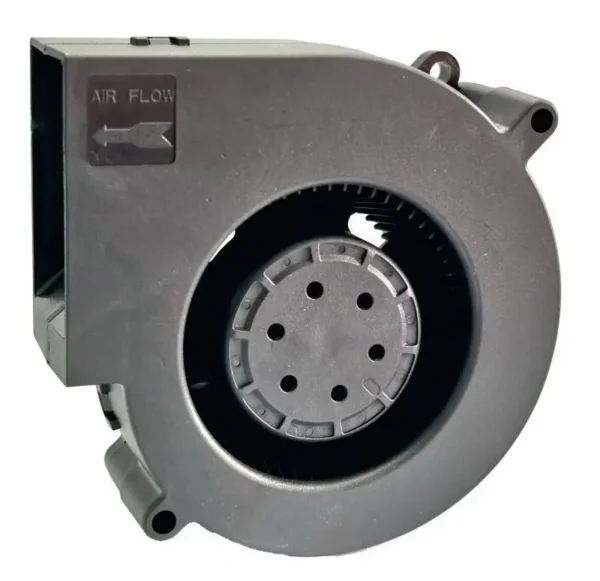

Key specification for this centrifugal blower: 24V, 41.76W. Everything below is reproduced from the factory data sheet. Made by SHENZHEN YCCFAN TECHNOLOGY CO., LTD. (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Blower
- Model Number: YBD9733B24
- Power (Watts): 41.76W
- Voltage – Rated: 24V
- Place Of Origin: Guangdong, China
- Application: air purifier
- Feature: High Pressure
Technical Specifications
| Place Of Origin | Guangdong, China |
|---|---|
| Brand Name | YCCFAN |
| Model Number | YBD9733B24 |
| Application | air purifier |
| Description | 97x94x33mm 24v dc blower |
| RPM | 6500RPM |
| Power (Watts) | 41.76W |
| Voltage – Rated | 24V |
| Fan Static Pressure | 113.74mmH2O |
| Series | DC blower |
| Size / Dimension | 97x94x33mm |
| Product Name | DC Blower |
| Motor | DC Brushless Motor |
| Feature | High Pressure |
| Function | PWM FG |
| Bearing Type | Two Ball Bearings |
| Noise | 63.6dBA |
| Lead Wire | 4pin customize |
| IP Rating | IP55 |
| Lifetime | 70,000 Hours/40 degree |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
| SPECIFICATION |
| ||
| ITEMS | UNIT | PARAMETERS | |
| Dimension | mm | 97*94*33 | |
| Material | —- | BLACK PBT (UL94V-0) | |
| Bearing System | B:Dual Ball |
| |
| Rated Voltage | VDC | 24.0 | |
| Rated Current | Amp | 1.55 | |
| Rated Speed | RPM | 6500±10% | |
| Air Flow | CFM | 52.27 | |
| Air Pressure | mmAq | 113.74 | |
| Waterproof Class | IP44 | Insulating Paint |
|
| IP55 | Vacuum Coating or PCBa Coating |
| |
| IP56 | Epoxy Waterproof Glue or Injection by Mould |
| |
Quality Control:
1.Incoming quality control
2.In process quality control
3.QA Inspection
4.100% testing before the packing
Services
1. 100 % testing before the fan leave our factory
2. Good after services to every customer
3. We often give one-year warranty on quality of products, and will give your refund if any quality problems occurs when you receive our items.

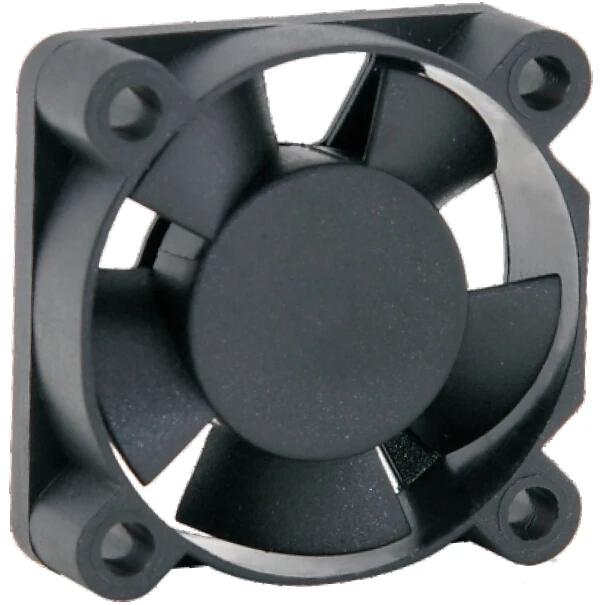

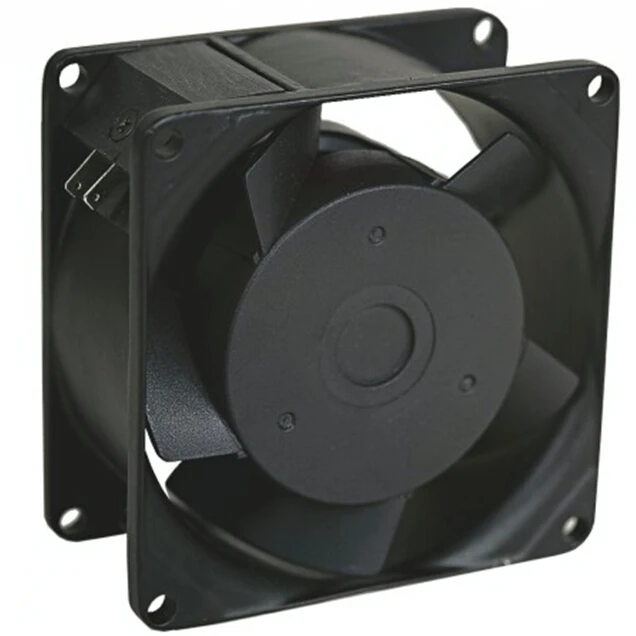

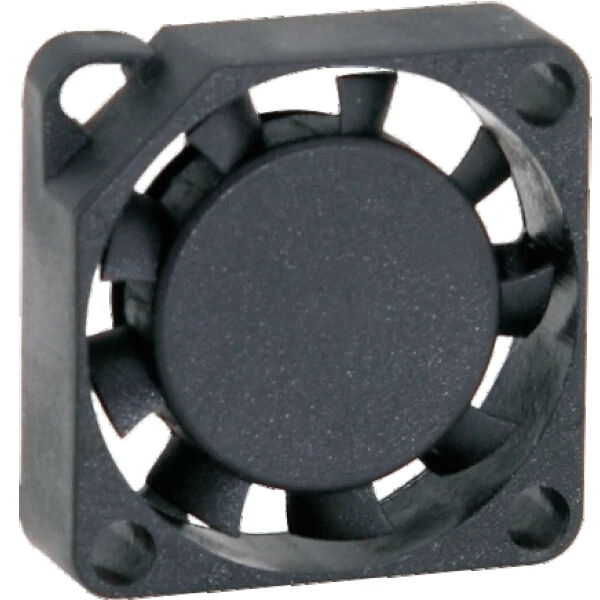

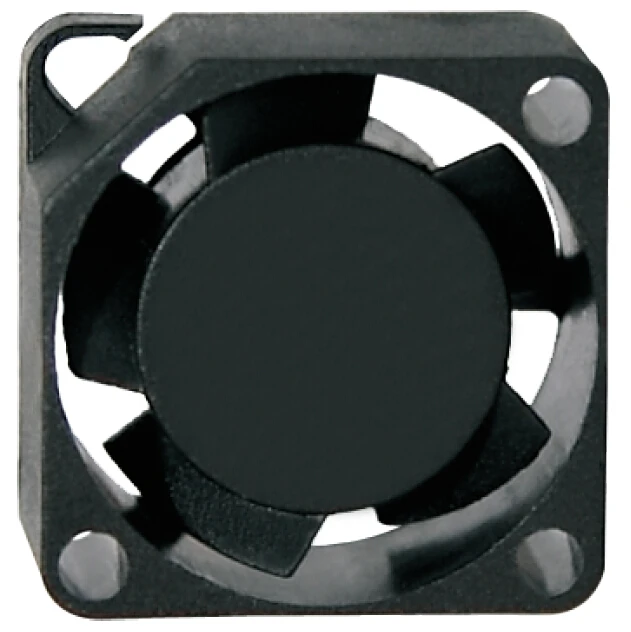

| DC Axial | DC Blower | AC Axial |
|
20x20x6mm |
20x20x6mm |
80x80x25mm |
|
20x20x10mm |
35x35x7mm |
80x80x38mm |
|
30x30x10mm |
52x40x10mm |
92x92x38mm |
| 4010
| 5020 | 12025 |
| 6038
| 6015 | 12038 |
| 8025
| 6028 | 15050 |
| 8038
| 7530 | 17251 |
| 9225
| 9330 | 20060 |
| 9238
| 9733 | EC6038 |
| 12025
| 10025 | EC8038 |
| 12038
| 12032 | EC9238 |
| 17251
| EC17251 |

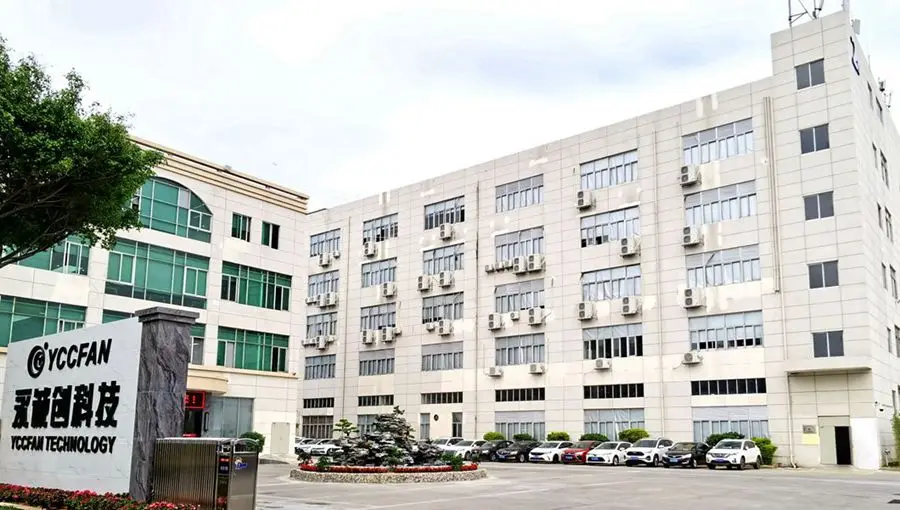

YCCFAN Technology Co., Ltd
www.yccfan.com
We entertain customers and visitors from domestic and abroad every week. of a year. By face-to-face talking, we know each other better and solve each others' questions. Some customer from US, Germany, Korea.. fly to our factory to sign the contacts.
Thanks for trusting us so many years. It is our honor to work with you together. We will do our best to provide valuable products with attractive price and good after-sales service. Hoping we can work togher for another tens of years.
Ordering and Pricing
- Minimum order quantity: 1000 piece
- Volume pricing:
- 1000–4999 piece: US $8 / piece
- 5000–9999 piece: US $7.6 / piece
- 10000+ piece: US $7 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 1000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by SHENZHEN YCCFAN TECHNOLOGY CO., LTD., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full SHENZHEN YCCFAN TECHNOLOGY CO., LTD. range on HVACR Nexus.
