This fan is published with the manufacturer’s full specification — 110v 220v, blade material Plastic. Made by Shenzhen Yccfan Technology Co., Ltd. (9 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Fan
- Model Number: YEH1238X2
- Voltage: 110v 220v
- Blade Material: Plastic
- Material: UL94V-0 PBT plastic
- Place Of Origin: Guangdong, China
- Application: industrial equipment
Technical Specifications
| Voltage | 110v 220v |
|---|---|
| Blade Material | Plastic |
| Electric Current Type | EC |
| Mounting Type | screw mounting |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | YCCFAN |
| Model Number | YEH1238X2 |
| Application | industrial equipment |
| Usage | Air cooler |
| Item | ec fan |
| Bearing Type | dual ball / sleeve bearing |
| Material | UL94V-0 PBT plastic |
| Product Name | axial flow fan |

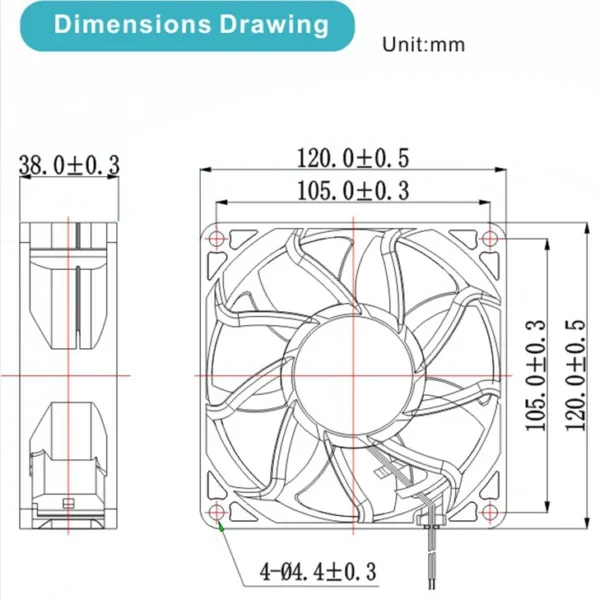

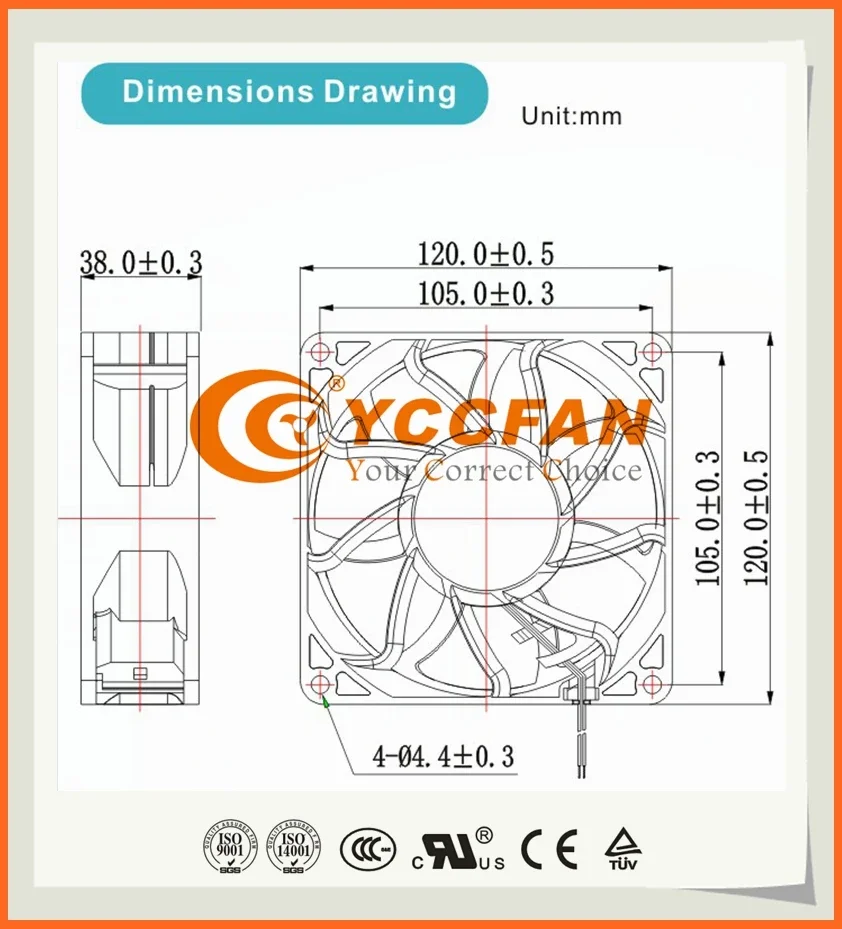

| Size | 120x120x38mm |
| Air Pressure | 5.02mmAq – 7.84mmAq |
| Fan’S Market | Global market |
| Product Type | EC fan |
| Packaging Details | carton / pallet package, 40pcs in a carton , 12kgs each carton with 120x120x38mm ec fan |
| Port Of Dispatch | shenzhen / hongkong |
| Selling Units | Single item |
| Single Package Size | 10X10X8 cm |
| Single Gross Weight | 0.06 kg |
| Supply Ability | 1000000 pieces per Month |
Product Details

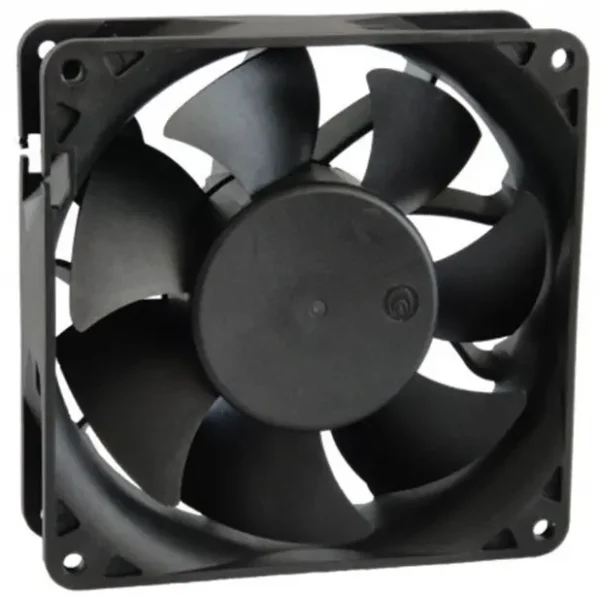

best efficient Double voltage usage 110V – 220V EC fan 120x120x38mm cooling fan

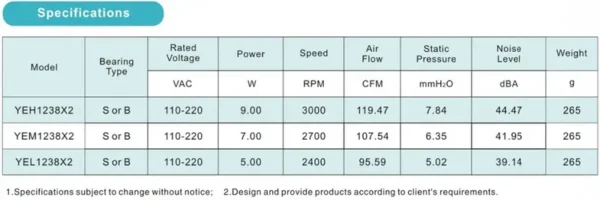

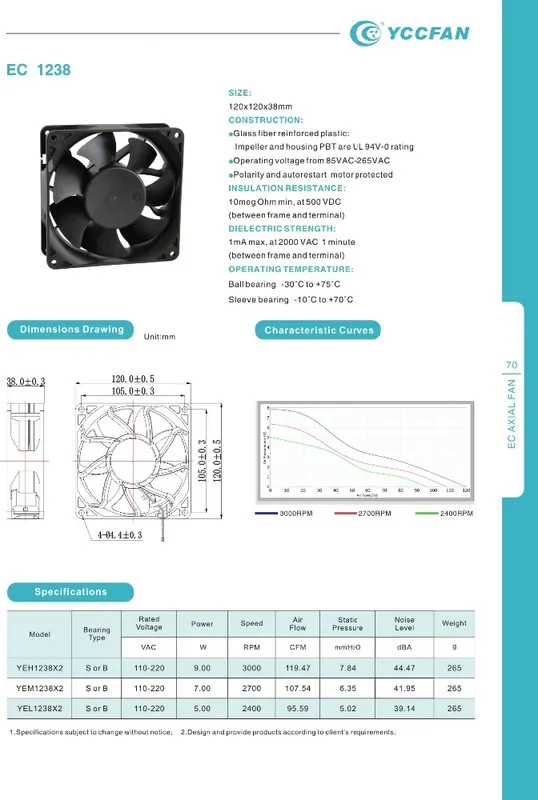

120x120x38mm fan specificacations
| ITEMS | PARAMETERS |
| Dimension | 120*120*38mm |
| Fan Frame | BLACK PBT (UL94V-0) |
| Fan Impeller | BLACK PBT (UL94V-0) |
| Bearing System | Sleeve Bearing Hypro Bearing (YES)Dual Ball Bearing(NMB) |
| Rated Voltage | 220VDC |
| Operating Voltage Range | 198~242VDC |
| Start-up Voltage | 110VDC |
| Rated Current | 0.06±0.02(Label:9.0W)Amp |
| Rated Power | 6.90Watt |
| Rated Speed | 3000±10%RPM |
| Air Flow | 119.47CFM |
| Air Pressure | 7.84mmAq |
| Noise Level | 44.47dBA |
| Motor Protection | Polarity Protection |
| Locked Motor Protection | Auto Restart |
| Soft Start | —– |
| FG Sensor | Tachometer Sensor |
| RD Alarm | Locked Motor Alarm |
| PWM Control | Control Speed |
Customized
1. Rated voltage: 3v 5v 9v 12v 18v 24v 48v dc voltage can be made if need.
2. Air flow, air pressure, speed and rated voltage can be customized as customer's requirement
3. Privated Labelling: All of axial fan are able to be Private labeled.
4. 2 wires, 3 or 4 wires (PWM / FG / RD function ) can be made if needed.
5. Sleeve bearing : 30000hours @ 25°C temperature
Hypro bearing : 30000hours @ 40°C temperature
NMB Ball bearing :50000hours @ 40°C temperature
6. Size: L x W x Thickness(We can produce 20mm to 250mm cooling fan)
Voltage: DC(3V, 5V, 7V, 9V, 12V, 18V, 24V, 48V…)
AC(100-125v, 220-240v, 380v)
Bearing Type: Sleeve Bearing( 30,000 hours in 25℃ operation temperature with 1 year warranty)
Dual Ball Bearing( 50,000 hours in 40℃ operation temperature with 2 years warranty)
Parameter: Speed(RPM), Air Flow(CFM), Noise(dBA),
Power Joint: Terminal Type
Lead Wire Type (+, -, Tachometer Sensor, Lock Alarm, Speed Control )
Dustproof & Waterproof: IP xx(IP 68 is the highest level)
DC FAN is powered by 3.3v 5v 12v 18v 24v 48v,AC FAN powered by 110v 125v 220v 240v 380v,

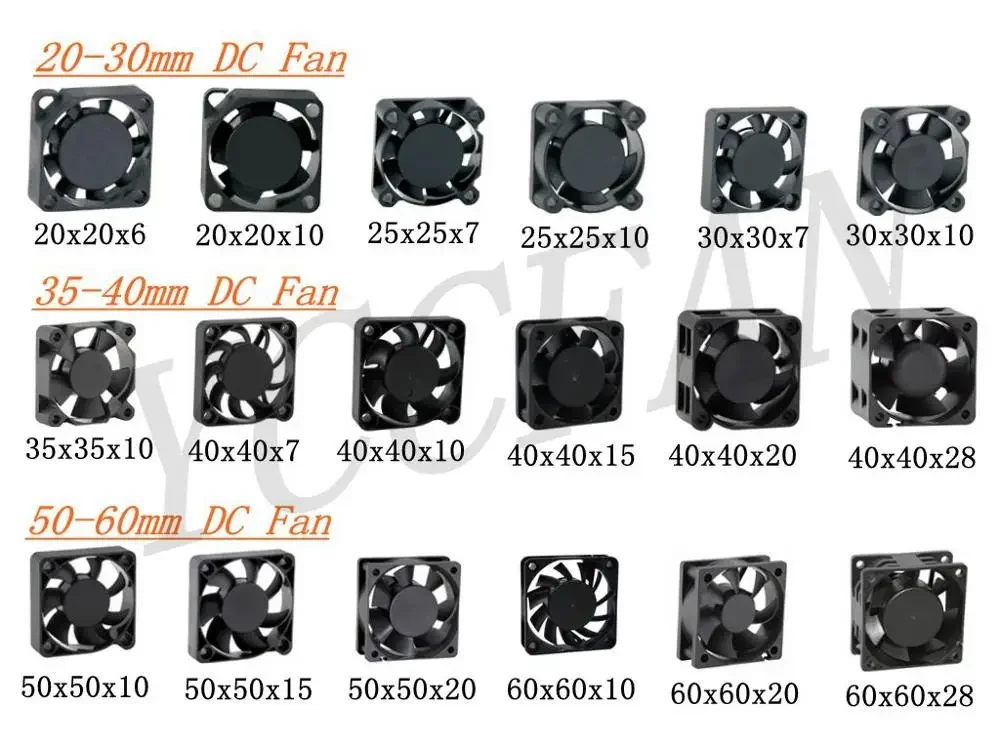

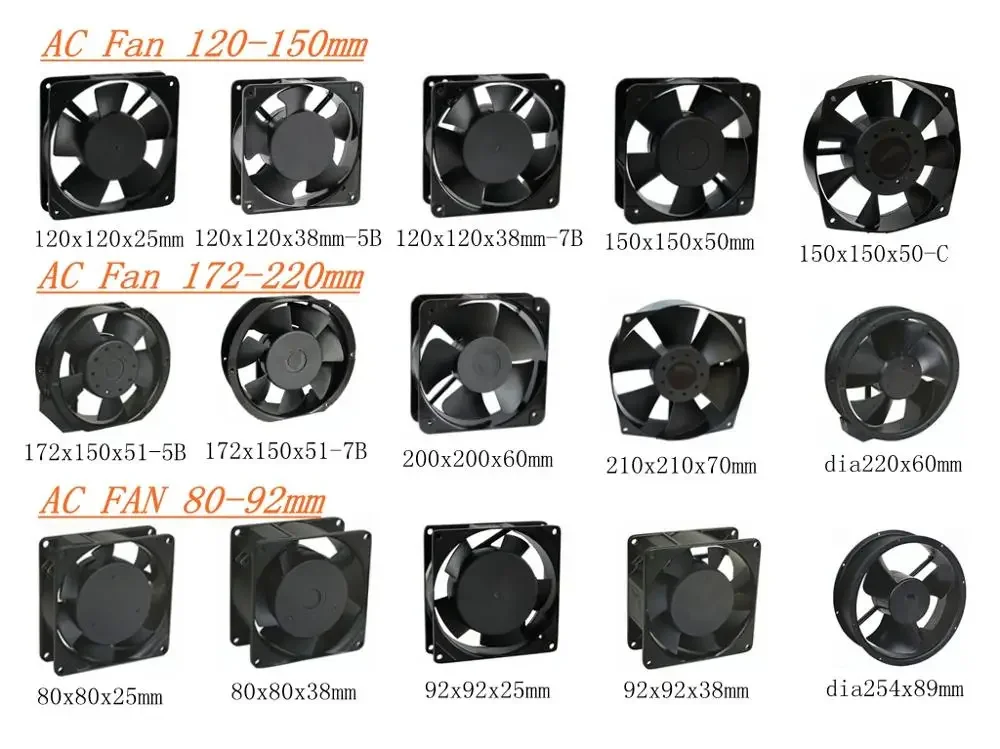

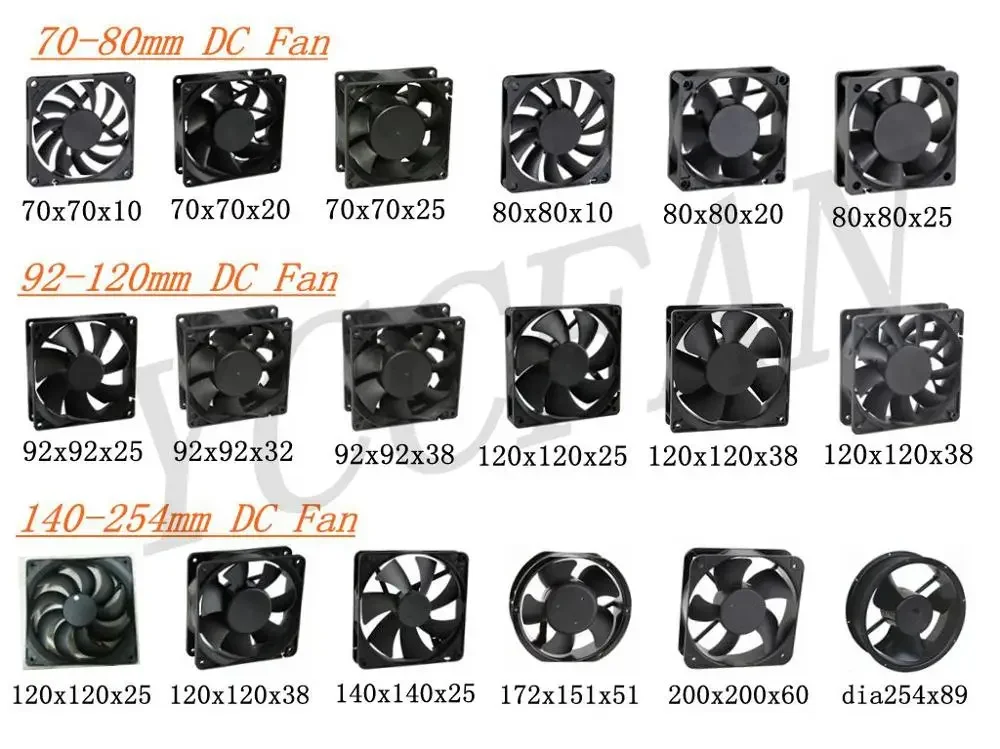

YCCFAN manufacture DC/AC fan from 20mm – 254mm.
For more information,pls check below lists to find you need, feel free to e-mail me questions.
———————————————————————YCCFAN——————————————————————————
——————————————————————–Your Correct Choice—————————————————————–
——————————————————————-YCCFAN'S SERVICE——————————————————————

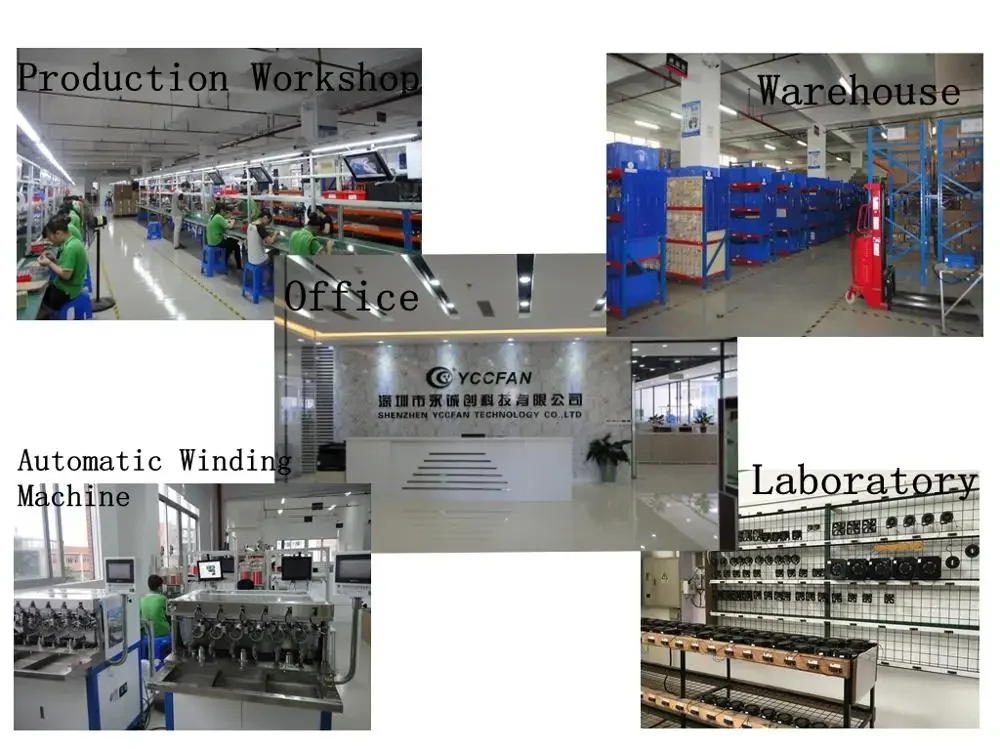

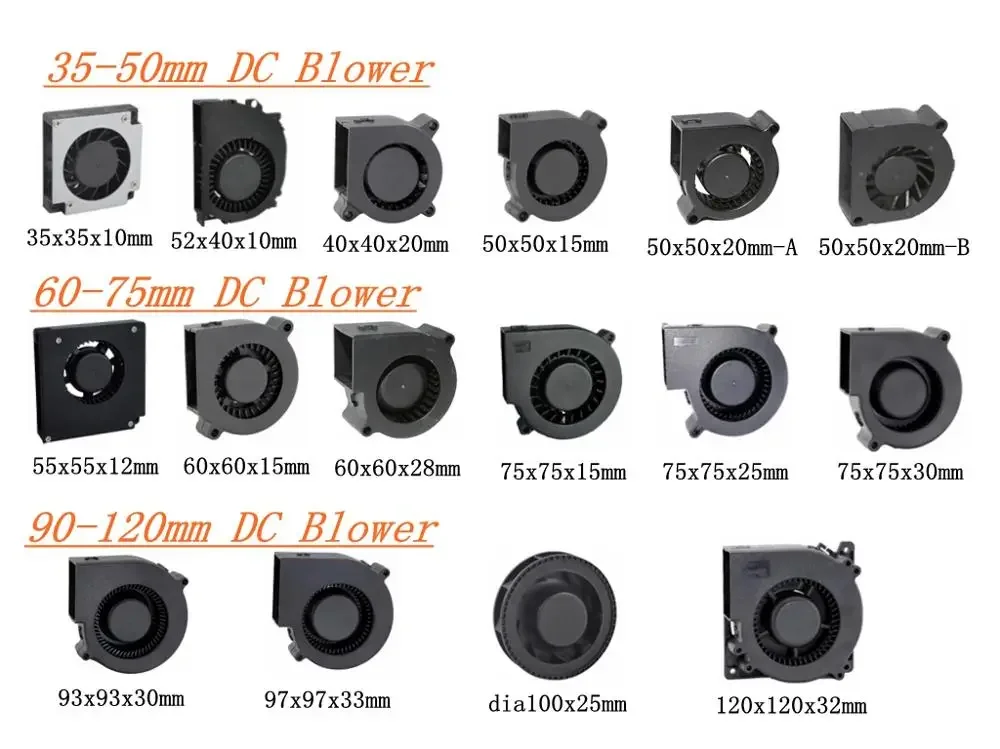

YCCFAN,founded in 2006, located in Shenzhen,China. AC/DC/EC brushless fan and DC blower fan manufacturer.
Plant area 6000square meter,employ 240staffs,monthly capacity 1 million pieces.
Our
Company advocate " Zero Defect" and " Do things right at first time", Production Dept strictly implementation of RoHS environmental requirements and ISO9001 & ISO14001 quality management. QC group check randomly the products from production line every 2 hours.
UL & CUL & CE & RoHS & SGS & ISO9001 & ISO14001 &3C and more to be continued.

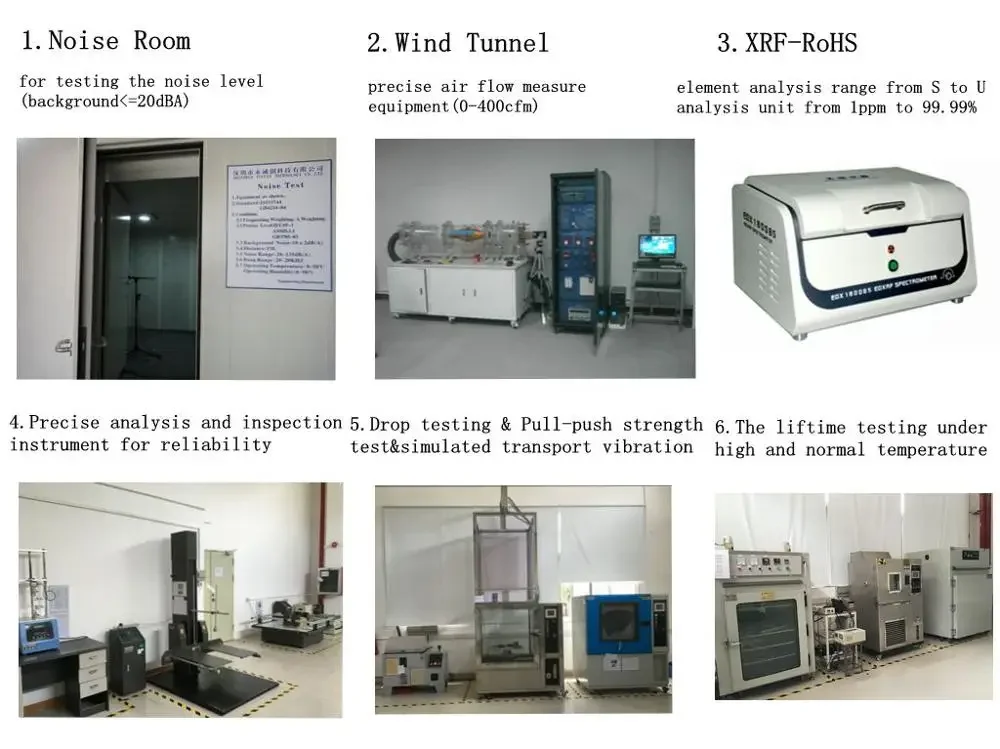

Every year, YCCFAN invest 50% of turnover to purchase experimental and detecting instrument.
Meanwhile we R&D new products and improve structure and performance.

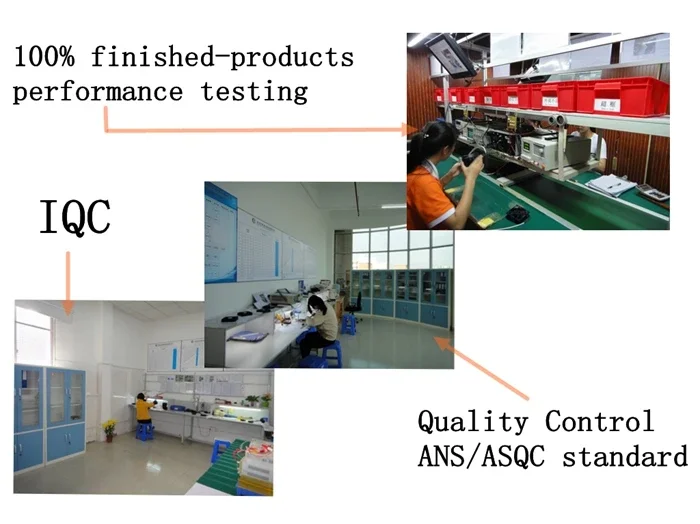

Quality Assurance
1. 100 % testing before the fan leave our factory
2. Good after services to every customer
3. We often give one-year warranty on quality of products, and will give your refund if any quality problems occurs when you receive our items.
4. Inspection 100% raw material for quality, UL94V-0 plastic are compliance to RoHS.
Environmental protection and fireproofing material.
5. For any questions, pls contact me freely. I will reply you in 10 minitues.
Ordering and Pricing
- Minimum order quantity: 1000 piece
- Volume pricing:
- 1000–4999 piece: US $3.1 / piece
- 5000+ piece: US $3 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan?
The standard minimum order quantity is 1000 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the fan be supplied for my local voltage?
The standard configuration is 110v 220v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Yccfan Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Yccfan Technology Co., Ltd. range on HVACR Nexus.
