The centrifugal blower listed here carries voltage 24vdc, material Aluminum, documented exactly as the manufacturer publishes it. Made by Ningbo Wonsmart Motor Fan Co., Ltd. (17 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Blower
- Model Number: WS130120S2-24-220-S200
- Voltage: 24vdc
- Material: Aluminum
- Blade Material: Plastic
- Noise Level: 40 dB and above
- Speed: 28500rpm
Technical Specifications
| Duct Diameter | 200mm |
|---|---|
| Mounting | industrial assembly |
| Voltage | 24vdc |
| Speed | 28500rpm |
| Material | Aluminum |
| Blade Material | Plastic |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Noise Level | 40 dB and above |
| Place Of Origin | Zhejiang, China |
| Brand Name | WONSMART |
| Model Number | WS130120S2-24-220-S200 |
| Bearing | NMB ball bearing |
| Driver | External driver |
| Color | Black |
| Item Name | WS130120S2-24-220-S200 |
| Keyword | Centrifugal Blower Ventilation Fan Industrial Exhaust Fan |
| Motor Type | DC External Motor |
| Feature | High Efficiency |
| Selling Units | Single item |
| Single Package Size | 19X16X11 cm |
| Single Gross Weight | 2.0 kg |
Product Details

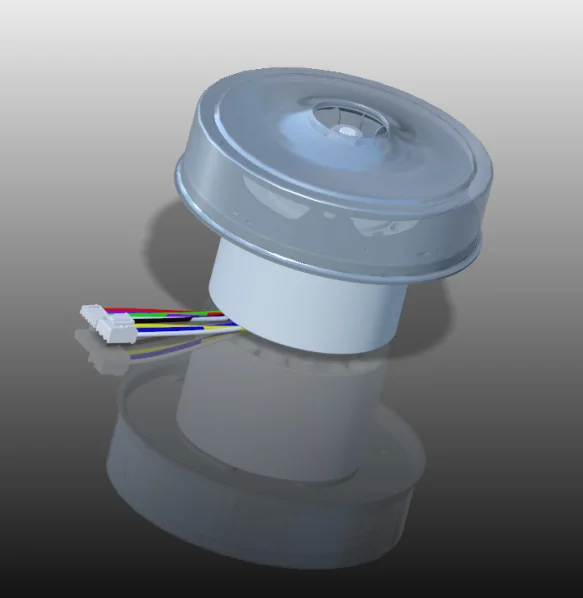

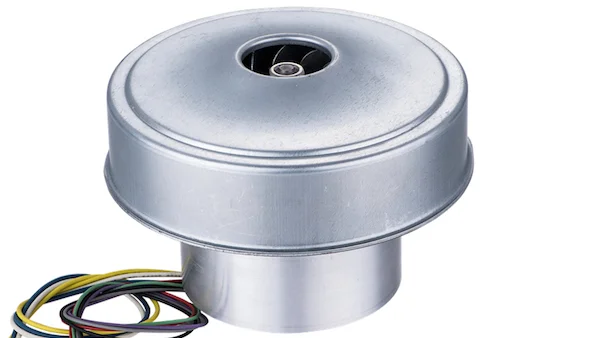

Part Name | DC Brushless centrifugal blower |
Part No | WS130120S2-24-220-S200 |
Vlotage | 24 VDC |
Current Level | 10A-18A |
Life time (MTTF) | >10000hours |
Unit Weight | 886g |
Bearing | NMB Ball bearing |
Insulation class | Class F |

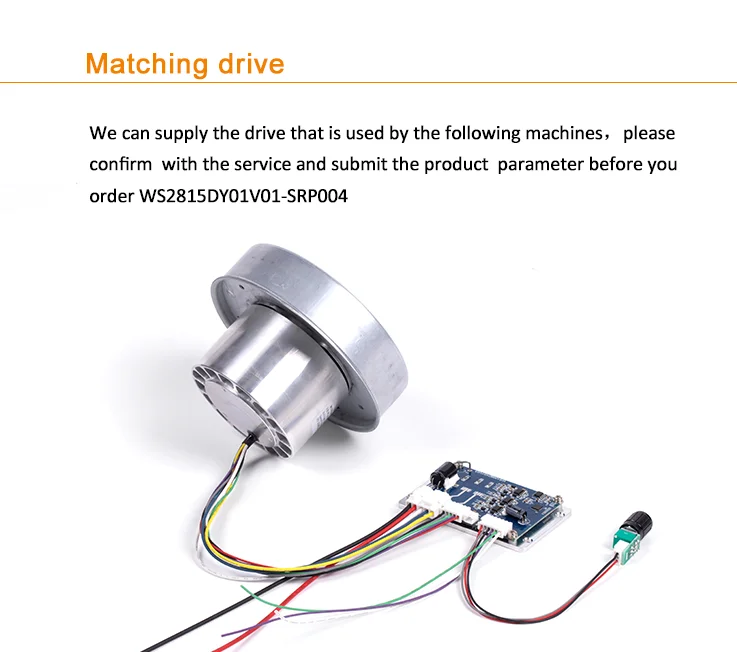

Driver board | External |
Speed control | PWM or 0~5V |
@Free blowing | @Working point | @Staic pressure | ||||||||||||
Speed | Current | Air flow | Current | Airflow | Pressure | Speed | Current | Pressure | ||||||
[rpm] | [A] | [m3/h] | [A] | [m3/h] | [kpa] | [rpm] | [A] | [kpa] | ||||||
21,000 | 18A | 110 | 12 | 45 | 10 | 26,000 | 10 | 12 | ||||||
refer to below P-Q curve：
inlet can make the blower run longer time
sized brushless dc motors and brushless dc blowers. Our blower's max airflow reaches 200 cubic meter per hour and a max pressure of60 kpa.
Wonsmart production and inspection equipment include auto winding machines, balancing machines, and CNC machines. All products are100% inspected before delivery to guarantee all the products arrive at the customers with satisfied quality.
Q1:Are you factory or trading company?
Q2:Can you design a new blower fan if we give you target performance?
Q3:Can we connect this centrifugal air blower directly onto power source?
Q4:What kind of power source shall we use to drive this blower fan?
Q5:How to change impeller speed if we use your controller board?
Q6: Can we use this centrifugal air blower to suct water?
Q7: What can do if the working condition is dirty?
Q8: How to decrease the noise of the blower?
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–10 piece: US $64.9 / piece
- 11–49 piece: US $51.3 / piece
- 50–99 piece: US $42.6 / piece
- 100+ piece: US $37.6 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 24vdc. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Wonsmart Motor Fan Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Ningbo Wonsmart Motor Fan Co., Ltd. range on HVACR Nexus.
