Centrifugal blower — voltage 5/12V, power source type Battery Powered. The complete factory specification follows. Made by ACTIVA INC. (15 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Blower
- Model Number: DB3507-TK
- Power Source Type: Battery Powered
- Voltage: 5/12V
- Material: Plastic, Stainless Steel
- Blade Material: Plastic
- Noise Level: 32.3db
Technical Specifications
| Mounting | Industrial Equipment |
|---|---|
| Voltage | 5/12V |
| Motor Type | DC Motor, Brushless Motor |
| Speed | 7500RPM |
| Material | Plastic, Stainless Steel |
| Blade Material | Plastic |
| Power Source Type | Battery Powered |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Noise Level | 32.3db |
| Place Of Origin | Taiwan, China |
| Brand Name | SYMBANG |
| Model Number | DB3507-TK |
| Size | 35x35x7mm |
| Type | Centrifugal Fan |
| Applicable Industries | Manufacturing Plant/Machinery Repair Shops |
| Selling Units | Single item |
| Single Package Size | 4X4X1 cm |
| Single Gross Weight | 0.1 kg |
Product Details
DB3507-TK 5V dc blower apply to anti-dust mask air purifier 12V dc mini blower fan
Information:
| HOUSING | Fiber Glass UL94V-0 |
| Cover is stainless steel | |
| IMPELLER | Fiber Glass UL94V-0 |
| BEARING | Sleeve |
| OPERATING TEMPERATURE | -10°C to +60° |
| DIELECTRIC STRENGTH | 5mA Max. at 500 VAC for 1 second |
| INSULATION RESISTANCE | 10M Ω min. @500 VDC |
| WEIGHT | 8.5 g |
| ROHS COMPLIANCE | Yes |
| IP LEVEL | IP21 (Special IP Rating On Request) |
Spec:
| MODEL NO. | RATED VOLTAGE (V) | RATED CURRENT (A) | INPUT POWER (W) | SPEED | MAX. AIR PRESSURE | MAX. AIR FLOW | NOISE dB(A) @1M | ||
| (RPM) | inchH2O | mmH2O | CFM | m3/min | |||||
| DB3507V5H-TK | 5 | 0.18 | 0.9 | 7500 | 0.287 | 9.84 | 1.39 | 0.039 | 32.3 |
| DB3507V5M-TK | 5 | 0.12 | 0.6 | 6000 | 0.233 | 5.92 | 1.11 | 0.031 | 27.5 |
| DB3507V5L-TK | 5 | 0.08 | 0.4 | 5000 | 0.161 | 4.08 | 0.84 | 0.024 | 23.9 |
| DB3507V12H-TK | 12 | 0.075 | 0.9 | 7500 | 0.387 | 9.84 | 1.39 | 0.039 | 32.3 |
| DB3507V12M-TK | 12 | 0.05 | 0.6 | 6000 | 0.233 | 5.92 | 1.11 | 0.031 | 27.5 |
| DB3507V12L-TK | 12 | 0.033 | 0.4 | 5000 | 0.161 | 4.08 | 0.84 | 0.024 | 23.9 |
DIMENSION:

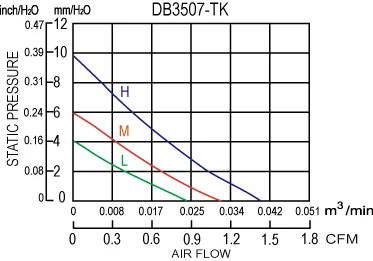

Air Performance :
Company profile:
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:
| AC Axial Fans & Blower | DC Axial Fans & Blowers | AC Cross Flow Fans |
| DC Cross Flow Fans | AC Sirocco Blowers | AC Centrifugal Fans & Blowers |
| DC Centrifugal Fans & Blowers | EC Centrifugal Fans & Blowers | Air Curtain |
| EC Axial Fans | Fan Accessories | EC Stand Fan |
| Blade | Misting Fan |
|
Our factory :
Our Certificate :
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $18.51 / piece
- 100–999 piece: US $13.42 / piece
- 1000+ piece: US $11.57 / piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
