The centrifugal exhaust fan listed here carries 220V, power source Electric, documented exactly as the manufacturer publishes it. Made by Ruian Chuangbo Machinery Co., Ltd. (14 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Exhaust Fan
- Power Source: Electric
- Voltage: 220V
- Blade Material: Plastic
- Warranty: Unavailable
- Certification: CE
- Place Of Origin: Zhejiang, China
Technical Specifications
| Voltage | 220V |
|---|---|
| Type | ac axial fan |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | Unavailable |
| After-Sales Service Provided | No after-sales service |
| Place Of Origin | Zhejiang, China |
| Brand Name | Feiya |
| Certification | CE |
| Applicable Industries | other |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

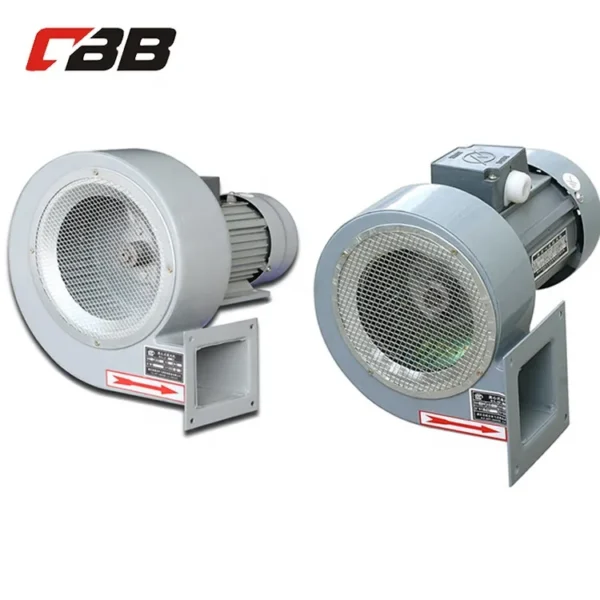

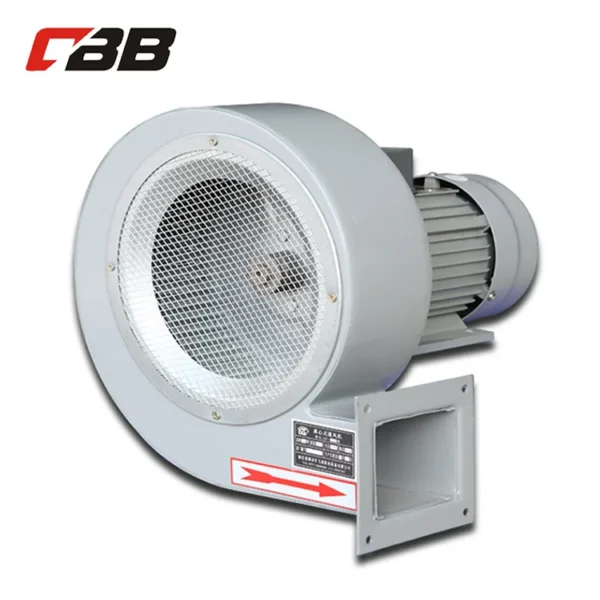

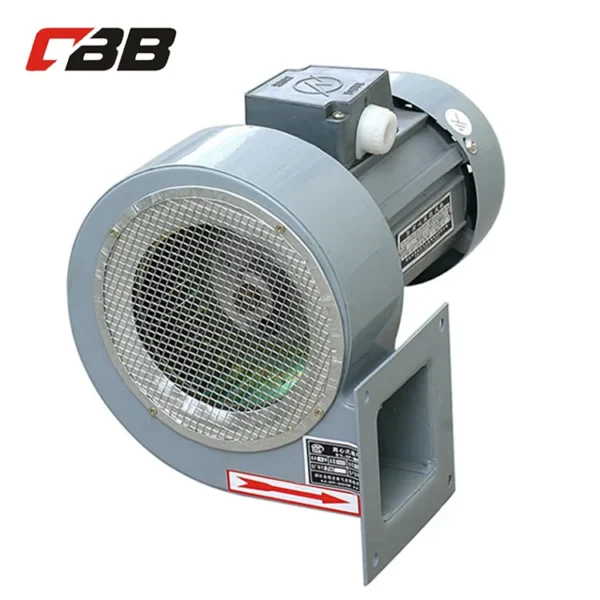

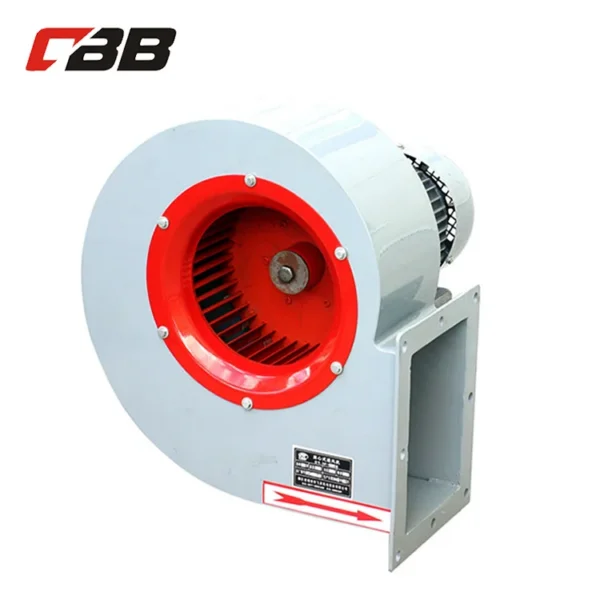

2019 Chinese new technology large wind low noise AC small exhaust centrifugal fan with best price
The Axial-flow Fan consists of aluminum alloy shell, plastic blade and electrical machine. It has such advantages of small size, installation conveniencet, large wind, small vibration and low noise.
The fan is mainly used in ground automatic control device which needs big air flow, and ventilation and heat dispersion of large-scale electric equipment, cabinet and electric welder. It can also be applied for ventilation, breathing and purify in building and workshop.
Environment temperature: -40°C–+55°C
Height about sea level:55Kpa (2500m)
Relative humidity: 90%–95%
| Type | rated voltage | power rating | phase number | input power | electric current | rotete speed |
| 150FZY2-D | 220V | 50HZ | 1 | 30W | 0.15A | 2600r/min |
| 200FZY2-D | 220V | 50HZ | 1 | 65W | 0.30A | 2600r/min |
| 200FZY4-D | 380V | 50HZ | 3 | 65W | 0.18A | 2600r/min |
| Type | Blastvolume | Noise | Weight | Electric power | Insulate | Environmental conditions |
| 150FZY2-D | 5.5m³/min | 65 | 0.9kg | 1.0/400μF/V | E | 2 |
| 200FZY2-D | 13m³/min | 70 | 1.5kg | 1.0/400μF/V | E | 2 |
| 200FZY4-D | 13m³/min | 70 | 1.5kg |
| E | 2 |
Question:
Can you customized the rolls for me if I provide the size or drawing?
Answer:
Yes! All the rolls and shafts are customized for every customer.
Question:
I need the roll which diameter not included in your list, can you produce?
Answer:
Yes! We can produce all sizes of rolls.
Question:
What is the minimum order of the rolls?
Answer:
The minimum order is only 1 piece.
Question:
What is the delivery time of the roll?
Answer:
According to the quantity you order, mostly is within 30 working days.
Question:
Can you provide any sample for checking?
Answer:
Yes! We can supply the sample, you pay for the cost of shipment.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $50.22 / set
- 10+ set: US $48.55 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal exhaust fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a Unavailable warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal exhaust fan carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal exhaust fan be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ruian Chuangbo Machinery Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Ruian Chuangbo Machinery Co., Ltd. range on HVACR Nexus.
