This centrifugal fan is published with the manufacturer’s full specification — 380V, power 180-4000w. Made by Ruian Chuangbo Machinery Co., Ltd. (14 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Model Number: DF series
- Power: 180-4000w
- Voltage: 380V
- Material: Steel
- Blade Material: Stainless Steel
- Noise Level: 40 dB and above
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 380V |
| Motor Type | AC Motor |
| Speed | 2840r/min |
| Material | Steel |
| Blade Material | Stainless Steel |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Noise Level | 40 dB and above |
| Place Of Origin | Zhejiang, China |
| Brand Name | feiya |
| Model Number | DF series |
| Certification | CCC |
| Stall | Mounted or outlet |
| Power | 180-4000w |
| Flow Of Air | 405-4000m3/h |
| Frequency | 50HZ |
| Current | 0.50-8.80A |
| Weight | 5-70kg |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

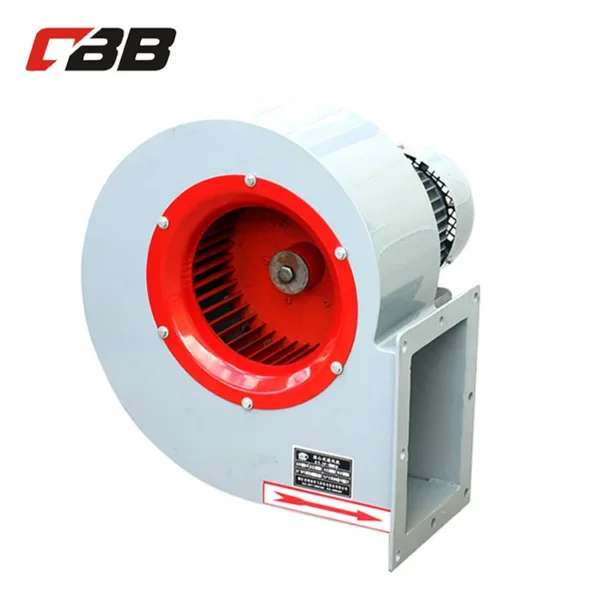

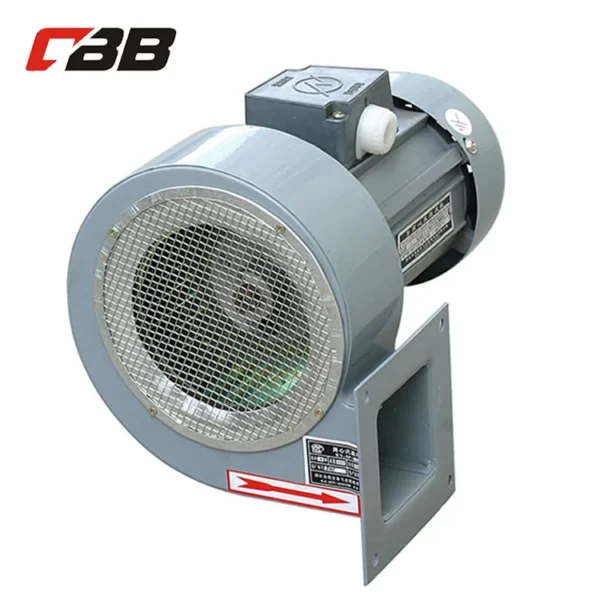

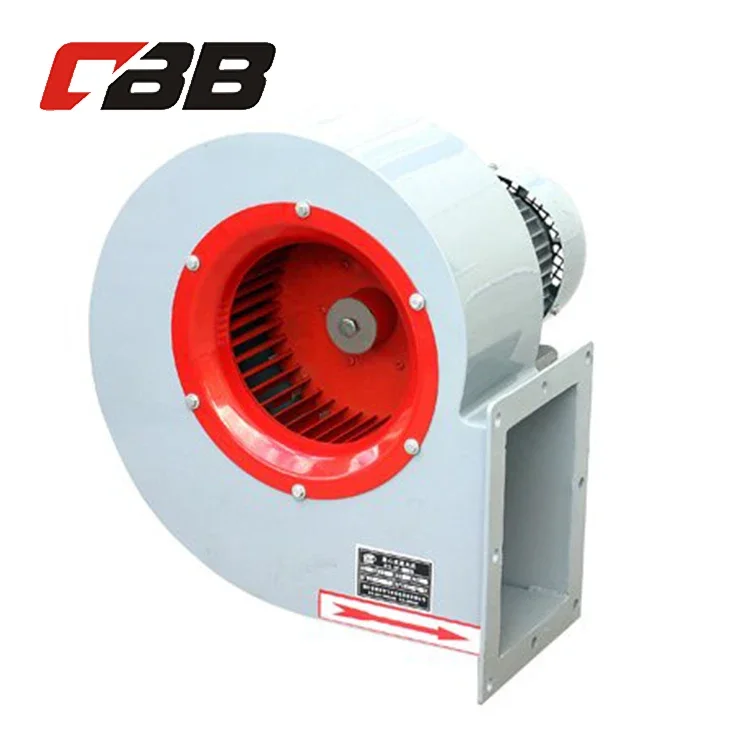

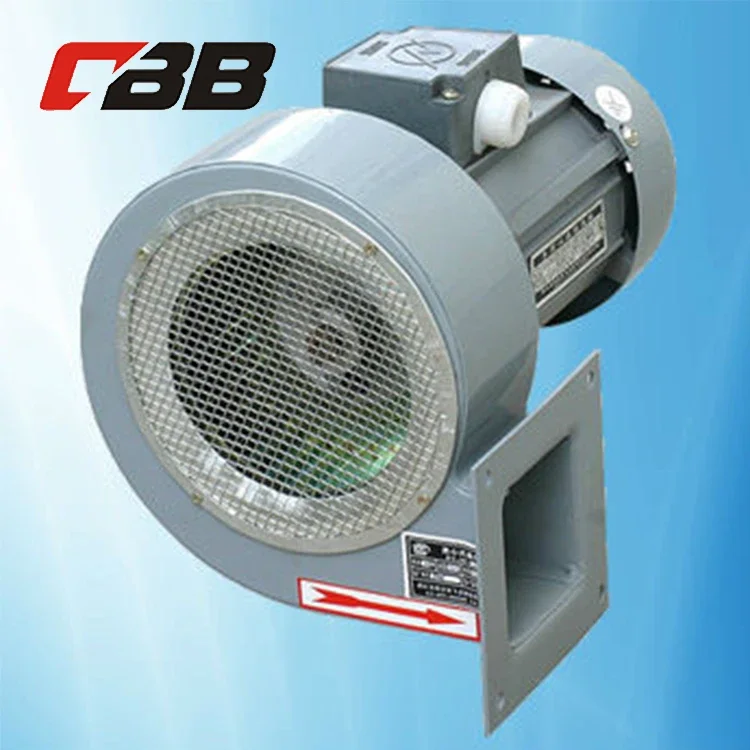

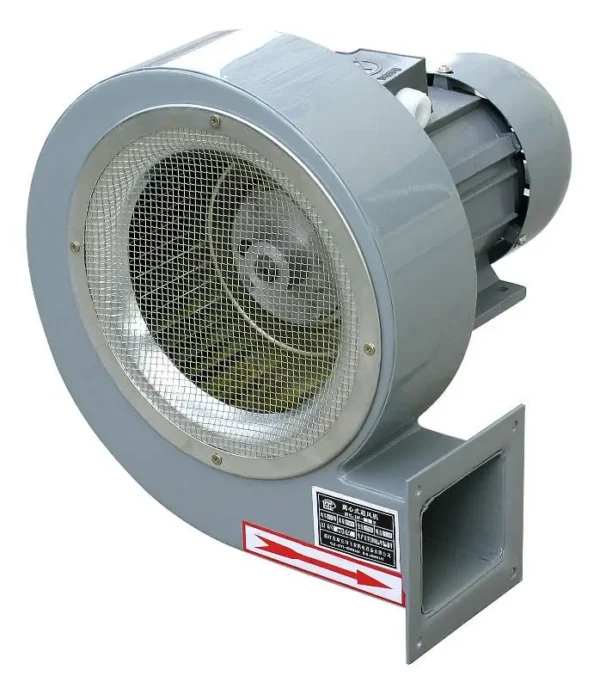

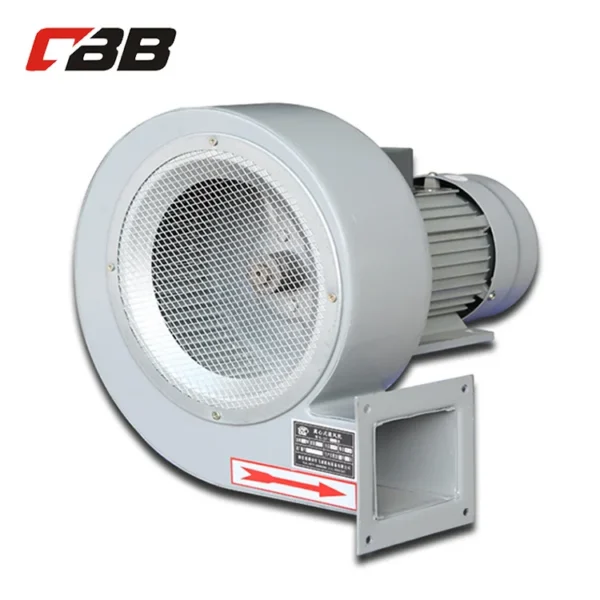

Customize small centrifugal fan impeller
DF series centrifugal fan is the form of impeller as follows:leafy, forward direction, narrow wheel, it has a series character of big flow zone, accelerate circulation of fluid flow in type, and when Convection cell strong pressure, it produce small eddy. It has advantages of large Air flow, high air pressure, low noise etc. It is widely used in the machinery industry of printing, packing, plastic, blueprint etc, it also can be used in every occasion, such as food, temperature-controlled and aeration.

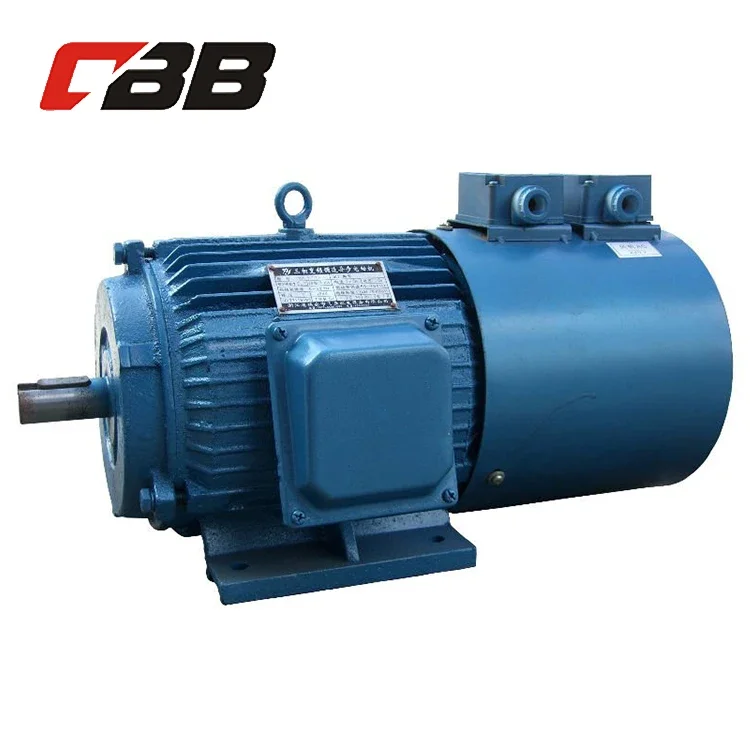

The motor of this fan has passed the national mandatory product certification (hereinafter referred to as CCC), and we own Chinese Country Compulsory Product Authentication Certificate, which is issued by China Quality Certification Center.
DF series centrifugal fan performance parameters
| Type | Power KW | Flow Rate M3/h | Total Pressure Pa | Noise≤DB(A) | Rorate Speed r/min | Voltage V |
| DF-2 | 0.18 | 406 | 450 | 72 | 2840 | 380 |
| DF-3 | 0.25 | 504 | 860 | 75 | 2840 | 380 |
| DF-4 | 0.37 | 660 | 850 | 76 | 2840 | 380 |
| DF-5 | 0.55 | 850 | 1020 | 76 | 2840 | 380 |
| DF-6 | 0.75 | 1200 | 1210 | 78 | 2840 | 380 |
| DF-7 | 1.1 | 1650 | 1260 | 80 | 2840 | 380 |
| DF-8 | 1.5 | 2300 | 1400 | 82 | 2840 | 380 |
| DF-9 | 2.2 | 2800 | 1650 | 82 | 2840 | 380 |
| DF-10 | 3 | 3000 | 1700 | 82 | 2840 | 380 |
| DF-11 | 4 | 3200 | 1750 | 85 | 2840 | 380 |
| DF-12 | 5.5 | 3500 | 1800 | 85 | 2840 | 380 |
Question:
Can you customized the rolls for me if I provide the size or drawing?
Answer:
Yes! All the rolls and shafts are customized for every customer.
Question:
I need the roll which diameter not included in your list, can you produce?
Answer:
Yes! We can produce all sizes of rolls.
Question:
What is the minimum order of the rolls?
Answer:
The minimum order is only 1 piece.
Question:
What is the delivery time of the roll?
Answer:
According to the quantity you order, mostly is within 30 working days.
Question:
Can you provide any sample for checking?
Answer:
Yes! We can supply the sample, you pay for the cost of shipment.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $60 / set
- 5+ set: US $58.55 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
