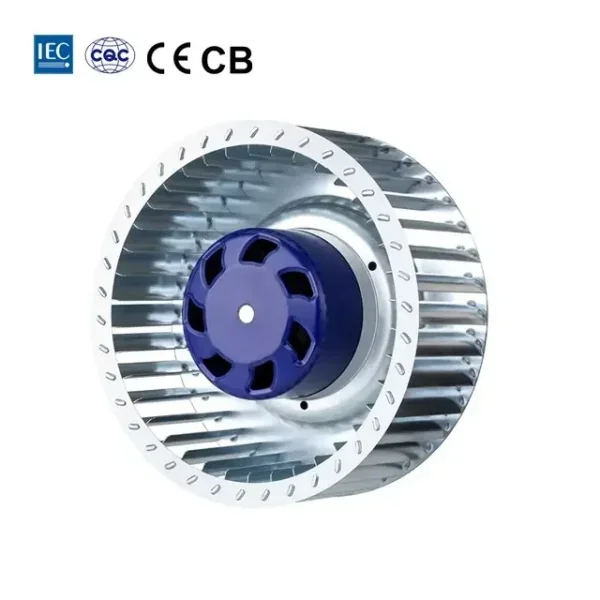

Centrifugal Fan, 108mm, Plastic, 220V, IP55

Key specification for this centrifugal fan: 220V/230V/240V/110V/115V, blade material Plastic. Everything below is reproduced from the factory data sheet. Made by Suzhou Blauberg Motoren Technology Co., Ltd. (7 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Centrifugal Fan

• Model Number: BL-F108A-EC-00
• Voltage: 220V/230V/240V/110V/115V
• Blade Material: Plastic
• Warranty: 2 Years
• Place Of Origin: Jiangsu, China
• Type: Forward Curved Blade Radial Fan

Technical Specifications

Product Details

BLAUBERG MOTOREN

Blauberg Motoren , established in 2014 as part of Blauberg Group Germany, focuses on EC motor and fan technology with localized manufacturing in China.

By 2025, the company operates a modern production facility of over 10,000㎡ with 120+ employees and holds 29 patents, driving continuous innovation in ventilation solutions for global markets.

Product Information

Type	BL-F108A-EC-00	Nominal Speed	1500±5%RPM
Motor	EC072AC230V085W	Max. Input Power	50W
Phase	1~	Max. Input Current	0.4A
Nominal Voltage	230VAC	Sound level	57dB(A)
Nominal Voltage Range	184~276VAC	Min.Ambient Temperature	-25℃
Frequency	50/60 Hz	Max.Ambient Temperature	60℃
Method of Obtaining Data	FA	ML=Max. load ME=Max, effciency FA=Free Air

Related products

Model	Voltage  Range[V]	Frequency [Hz]	Rated Power[W]	Rated Current[A]	Rated Speed[RPM]	Noise Level[dB(A)]
BL-F097A-EC-03	1~200-277	50/60	30	0.25	4000	57
BL-F120B-EC-00	1~200-277	50/60	70	0.5	2600	67
BL-F140B-EC-00	1~200-277	50/60	85	0.6	1700	69
BL-F160B-EC-01	1~200-277	50/60	170	1.1	2200	68
BL-F180A-EC-07	1~200-277	50/60	225	1.6	1800	72
BL-F200E-EC-05	1~200-277	50/60	520	2.3	1700	76
BY-F200E-EC-05	1~380-480	50/60	800	1.3	1900	79
BL-F225E-EC-05	1~200-277	50/60	700	3.1	1800	78
BY-F225E-EC-05	1~380-480	50/60	750	1.2	1850	80
BL-F250E-EC-05	1~200-277	50/60	700	1.1	1400	80
BY-F250E-EC-05	1~380-480	50/60	700	1.1	1400	80

Application

Ventilation & Air Conditioning

–Building ventilation –Residential/Commercial AC –Fresh air systems

–Central AC

Industrial Applications

–Electronics cooling –Equipment cooling –Material conveying

–Dust & cleaning systems

–Combustion systems

Transportation

–Vehicle AC –Rail transit

Industrial ApplicationsSpecial Applications

–Agriculture –Medical –Data centers

Why Choose Us

Certificate

Product Certification

Blauberg Group has achieved more than 30 global mainstream safety and energy efficiency certifications such as CCC, UL, ETL, ROHS, CE, TUV with strict standards.

The product meets the strict global market access requirements, and is a strong proof of product reliability and excellent performance.

Company Profile

THE BIRTH OF THE BLABUERG BRAND

In 1900, Karl August Blauberg founded Blauberg in the Bavarian region of Munich, Germany. The company was born in the bavarian state at the foot of the majestic carpathian mountains. At the same time, BLAUBERG also means blue mountains.

Company Profile

Blauberg Motoren , established in 2014 as part of Blauberg Group Germany, focuses on EC motor and fan technology with localized manufacturing in China.
By 2025, the company operates a modern production facility of over 10,000㎡ with 120+ employees and holds 29 patents, driving continuous innovation in ventilation solutions for global markets.

Exhibition

ISH IN BEIJING

CRH IN SHANGHAI

CRH IN BEIJING

HARFQ IN KOREA

HVACR IN VIETNAM

MARVEX HVAC IN MALAYSIA

CANTON FAIR IN GUANGZHOU

RHVAC IN INDONESIA

FAQ

Q: Who are we?

A: Blauberg Motoren, part of Germany's Blauberg Group, manufactures fans and motors. The Group offers a wide range
of ventilation products—from domestic to industrial—and specializes in providing customized solutions and parts to meet diverse client needs with an optimal balance of price and quality.

Q: Why choose us？

A: Large-scale producer of fans with modern facilities, high annual capacity, and a strong focus on customized solutions and customer support.

Q: Wonder if you accept small orders?

A: Do not worry. Feel free to contact us .In order to get more orders and give our clients more convener ,we accept small
order.

Q: Can you do OEM for me?
A: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you.

Q: What's your payment terms ?
A: By T/T,LC AT SIGHT,30% deposit in advance, balance 70% before shipment.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–99 piece: US $39.25 / piece
  • 100–999 piece: US $31.27 / piece
  • 1000+ piece: US $27.79 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the centrifugal fan be supplied for my local voltage?

The standard configuration is 220V/230V/240V/110V/115V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
