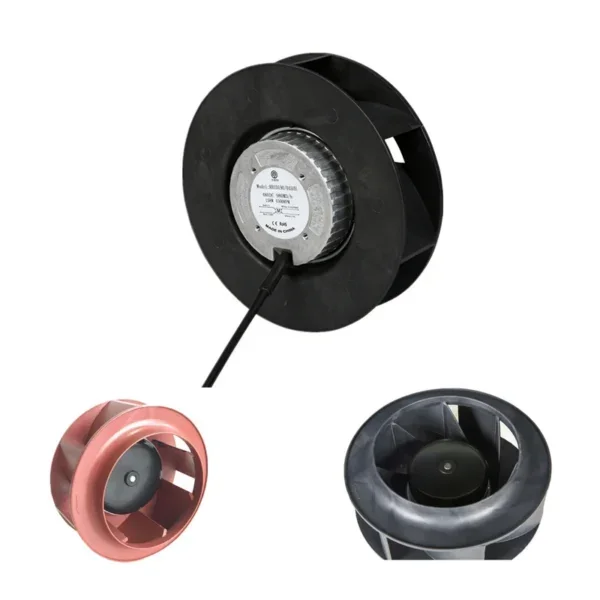

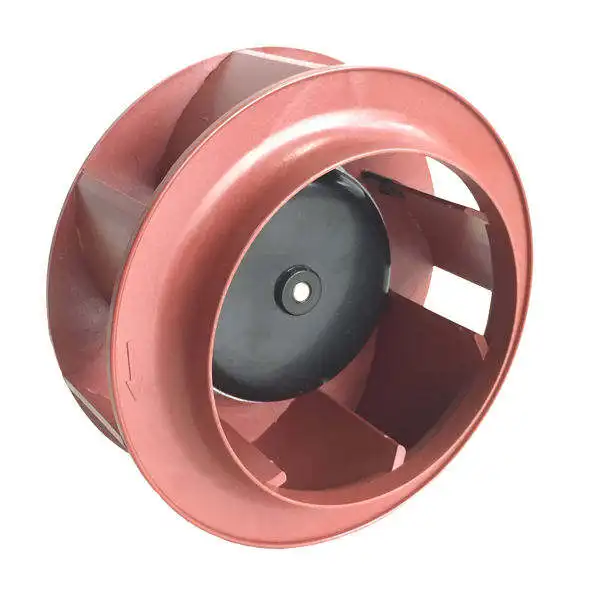

Key specification for this centrifugal fan: voltage 115/230V, blade material Plastic. Everything below is reproduced from the factory data sheet. Made by Ningbo Jigu Motor Technology Co., Ltd. (12 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Voltage: 115/230V
- Blade Material: Plastic
- Speed Control: 0-10v or PWM signal
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
- Electric Current Type: AC/DC/EC
Technical Specifications
| Mounting | Wall Fan |
|---|---|
| Voltage | 115/230V |
| Blade Material | Plastic |
| Electric Current Type | AC/DC/EC |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Zhejiang, China |
| Brand Name | GP MOTOR |
| Motor | Brushless External Rotor Motor |
| Rotor | Black Paint |
| Bearing | NMB maintenance-free ball bearing |
| Impeller | PA66 Propylene with Fibreglass reinforce |
| Type Of Protection | IP44 |
| Insulation Class | Class "B" or "F" |
| Speed Control | 0-10v or PWM signal |
| Life Time | 50000 hours (L10) at 40°C room |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
High Efficiency 10 Mm 300Mm 400Mm Ec Axial Fan Centrifugal Fan Ac 115/230V Centrifugal Vane Blades Fan Impeller
| Centrifugal Blower Sizes | 133mm~400mm (or Customized) |
| Centrifugal Fan Sizes | 133mm~630mm (or Customized) |
| Gas Blower Sizes | 85mm~150mm (or Customized) |
| Voltage | AC Input: 210V,220V,230V,380V,400V DC Input: 12V,24V,48V EC input: 210V,220V,230V,380V,400V |
| Power | Up to 2300W (or Customized) |
| Air Flow | Up to 7000m3/h (or Customized) |
| Speed control | Speed controller (AC) or PWM/0-10V Input (DC EC) |
| Specification | |||||||||
| Item Code: RB3E355/096 | |||||||||
| Rated | Frequency | Rated | Input | Speed | Air Flow | Air Flow | Static Pressure | Noise | Net Weight (Kg) |
| 230V | 50/60 | ≤1.65 | 386 | 2050 | 1912 | 3250 | 830 | 76 | 5.7 |
| Item Code: RB3E355/120 | |||||||||
| 230V | 50/60 | ≤2.03 | 466 | 1920 | 2188 | 3720 | 740 | 73 | 5.8 |
| Item Code: RB1D355096 | |||||||||
| 48V | / | ≤3.14 | 165 | 1580 | 1529 | 2600 | 480 | 69 | 4.6 |
| Item Code: RB1D355120 | |||||||||
| 48V | / | ≤3.66 | 174 | 1440 | 1694 | 2880 | 410 | 66 | 4.8 |
| Outline Drawing | |||||||||
|
|
| Characteristic Curves | Wire Diagran | |
 | Cable Color | Function |
| Brown | L | |
| Blue | N | |
| Yellow/Green | PE | |
| Red | +10V output | |
| Yellow | 0-10VDC / PWM | |
| Blue | GND | |
| White | Tach output | |
| Customized Motor and Fan Solutions All of the designs in the GP Motors portfolio of OEM electric motors, custom fans and blowers, custom controllers, custom electromechanical motor assemblies and components are fully and easily customized (see some of the many customization options listed below) offering OEMs high quality, cost effective options that meet their OEM application specific demands. Choosing to customize one of the motors or fans in our portfolio, enables OEMs to meet their custom motor or fan requirements while allowing for faster development times. |
Since 1991, GP Motors has designed and manufactured the highest quality, OEM electric motors, custom fans and
blowers, custom controllers, custom electromechanical motor assemblies and components in the industry. All of
our custom electric motors, fans and blowers, electromechanical motor assemblies and components are engineered
and manufactured in our 120,000 square foot state-of-the-art manufacturing facility located in Ningbo, Zhejiang.
High Efficiency 10 Mm 300Mm 400Mm Ec Axial Fan Centrifugal Fan Ac 115/230V Centrifugal Vane Blades Fan Impeller
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $80 / piece
- 50+ piece: US $40 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 115/230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Jigu Motor Technology Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, Trading Company. Browse the full Ningbo Jigu Motor Technology Co., Ltd. range on HVACR Nexus.
