Key specification for this centrifugal fan: 380 V, power source type Battery Powered. Everything below is reproduced from the factory data sheet. Made by Ruian Chuangbo Machinery Co., Ltd. (14 years on the platform, typical reply ≤11h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Power Source Type: Battery Powered
- Power: AC
- Voltage: 380 V
- Blade Material: Carbon Steel
- Noise Level: 40 dB and above
- Speed: 960r/min 1400r/min
Technical Specifications
| Voltage | 380 V |
|---|---|
| Motor Type | AC Motor |
| Blade Material | Carbon Steel |
| Power Source Type | Battery Powered |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Noise Level | 40 dB and above |
| Certification | CCC |
| Packing | wooden case |
| Usage | Universal |
| Protect Feature | Enclosed |
| Function | Driving |
| Structure | Asynchronous Motor |
| Phase | Three Phase |
| Power | AC |
| Speed | 960r/min 1400r/min |
| Product Name | Ac Centrifugal Fan |
| Selling Units | Single item |
Product Details
Low cost high quality cooling electric motor blowers centrifugal fan
Torque motor rated voltage: 380V
Rated frequency: 50Hz
Altitude: no more than 1000m
Environmental temperature: no more than 40 ° C
Protective level: H80 ~ H180 for IP21
H63 ~ H160 for IP44

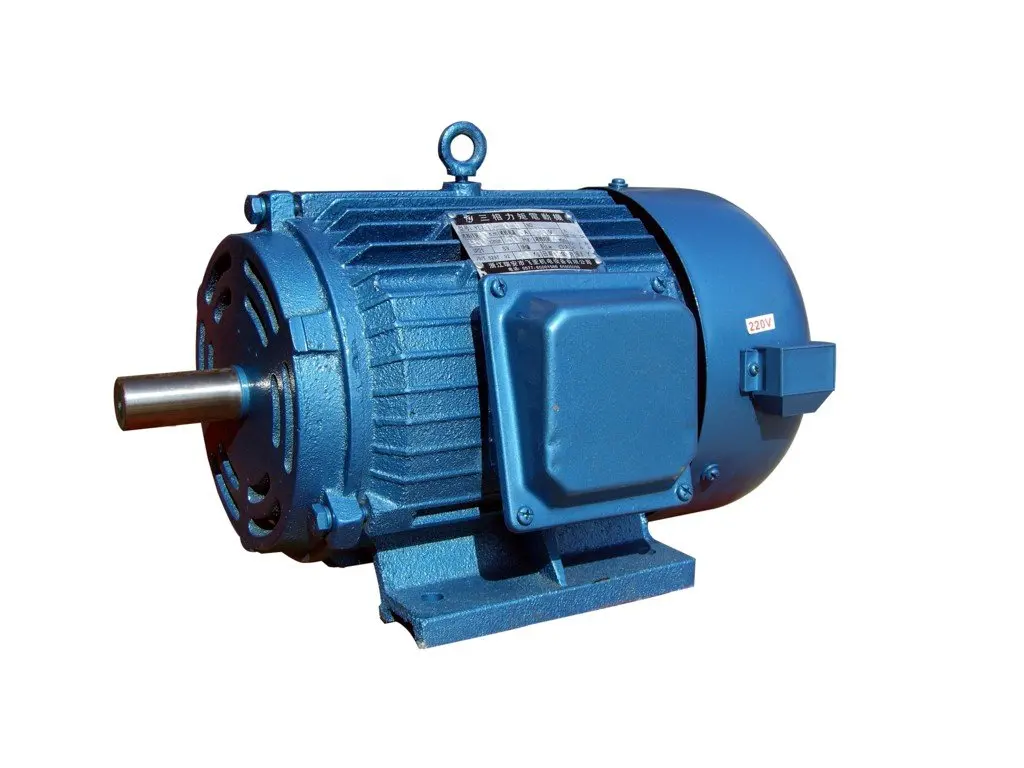

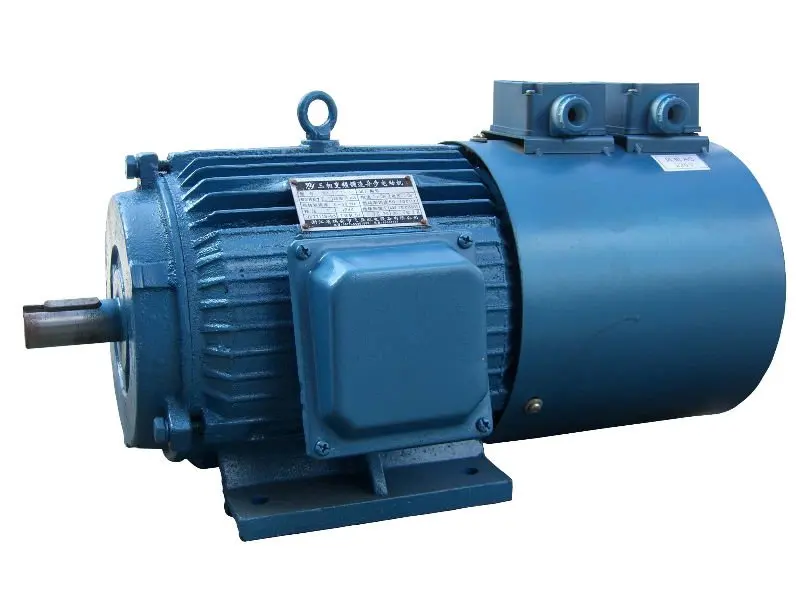

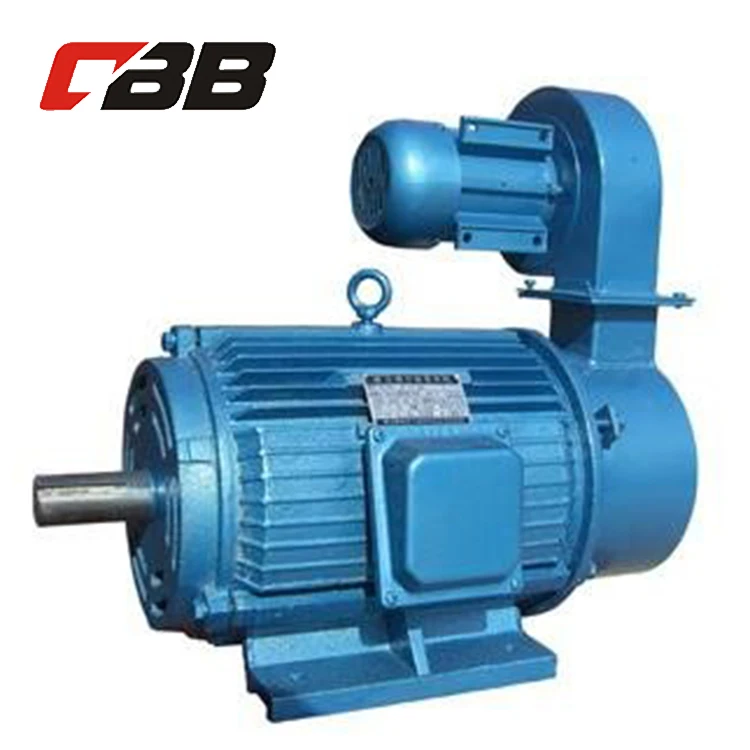

YLJ series three-phase asynchronous motor torque applicable papermaking, wires and cables, rubber, plastic, textile and metal materials processing departments for winding, uncoiling, stall and speed-varying units. Also can use its characters of stall, reverse, and is used for frequently, reverse device or other similar action of all kinds of machines. Like extrusion, clamping, opening, pull, screw rotation speed, torque etc randomly occasion.
| Type | Locked-rotor Torque | Locked-rotor Current | Rotate Time
| Range of Speed Regulation | Controller |
| YLJ8026 | 2 N.m | 1.2 A | 20 min | 0-960 Rpm | YLJ8A |
| YLJ9046 | 4 N.m | 1.8 A | 20min | 0-960 Rpm | YLJ8A |
| YLJ10066 | 6 N.m | 3 A | 15 min | 0-960 Rpm | YLJ8A |
| YLJ112106 | 10 N.m | 6 A | 10 min | 0-960 Rpm | YLJ8A |
| YLJ132166 | 16 N.m | 8 A | 10 min | 0-960 Rpm | YLJ32A |
| YLJ132256 | 25 N.m | 13 A | 5 min | 0-960 Rpm | YLJ32A |
| YLJ132406 | 40 N.m | 20 A | 5 min | 0-960 Rpm | YLJ32A |
| YLJ160606 | 60 N.m | 30 A | 3 min | 0-960 Rpm | YLJ60A |
| YLJ160806 | 80 N.m | 40 A | 3 min | 0-960 Rpm | YLJ60A |
| YLJ1601006 | 100 N.m | 50 A | 2 min | 0-960 Rpm | YLJ100A |
| YLJ1802006 | 200 N.m | 100 A | 1 min | 0-960 Rpm | YLJ120A |
| YLJ8024 | 2 N.m | 1.2 A | 20 min | 0-1400 Rpm | YLJ8A |
| YLJ9044 | 4 N.m | 1.8 A | 20min | 0-1400 Rpm | YLJ8A |
| YLJ10064 | 6 N.m | 3 A | 15 min | 0-1400 Rpm | YLJ8A |
| YLJ112104 | 10 N.m | 6 A | 10 min | 0-1400 Rpm | YLJ8A |
| YLJ132164 | 16 N.m | 8 A | 10 min | 0-1400 Rpm | YLJ32A |
| YLJ132254 | 25 N.m | 13 A | 5 min | 0-1400 Rpm | YLJ32A |
| YLJ132404 | 40 N.m | 20 A | 5 min | 0-1400 Rpm | YLJ32A |
| YLJ160604 | 60 N.m | 30 A | 3 min | 0-1400 Rpm | YLJ60A |
| YLJ160804 | 80 N.m | 40 A | 3 min | 0-1400 Rpm | YLJ60A |
| YLJ1601004 | 100 N.m | 50 A | 2 min | 0-1400 Rpm | YLJ100A |
| YLJ1802004 | 200 N.m | 100 A | 1 min | 0-1400 Rpm | YLJ120A |
Question:
Can you customized the rolls for me if I provide the size or drawing?
Answer:
Yes! All the rolls and shafts are customized for every customer.
Question:
I need the roll which diameter not included in your list, can you produce?
Answer:
Yes! We can produce all sizes of rolls.
Question:
What is the minimum order of the rolls?
Answer:
The minimum order is only 1 piece.
Question:
What is the delivery time of the roll?
Answer:
According to the quantity you order, mostly is within 30 working days.
Question:
Can you provide any sample for checking?
Answer:
Yes! We can supply the sample, you pay for the cost of shipment.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $120 / piece
- 5+ piece: US $118 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
