Centrifugal Fan, FLW220, 220V, 220mm Diameter, Duct Fan

This centrifugal fan is published with the manufacturer’s full specification — 220 V, blade material Plastic. Made by Zhejiang Hongke Electromechanical Co., Ltd. (6 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Centrifugal Fan

• Model Number: FLW220
• Voltage: 220 V
• Blade Material: Plastic
• Speed: 2500RPM
• Warranty: 1 Year
• Place Of Origin: Zhejiang, China

Technical Specifications

Product Details

Product Description

The fan is composed of an external rotor asynchronous motor, plastic/aluminum impeller, etc. The low temperature rise of the motorhas the best advantage of ventilation, heat dissipation and self-cooling. Thereby extending the reliability of fan life.

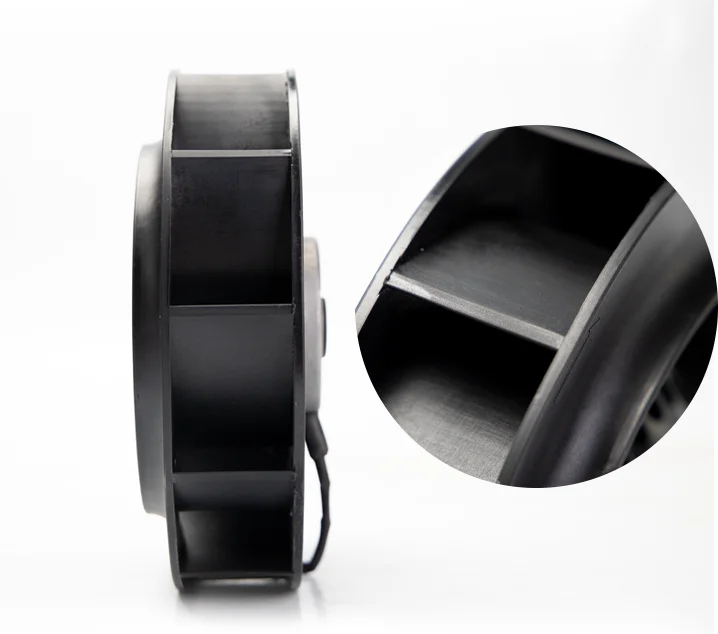

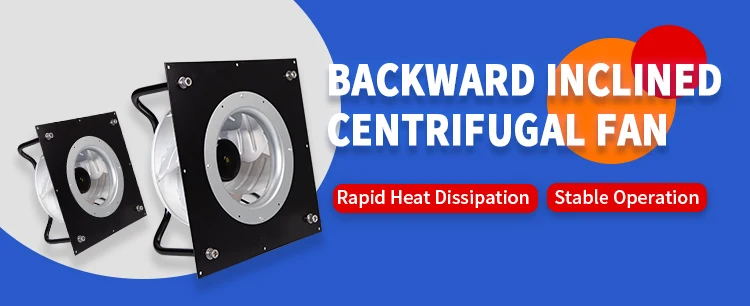

The fanis a backward-curved impeller, which has the characteristics of compact structure, large air volume, high static pressure, low vibration, low noise, and convenient installation.

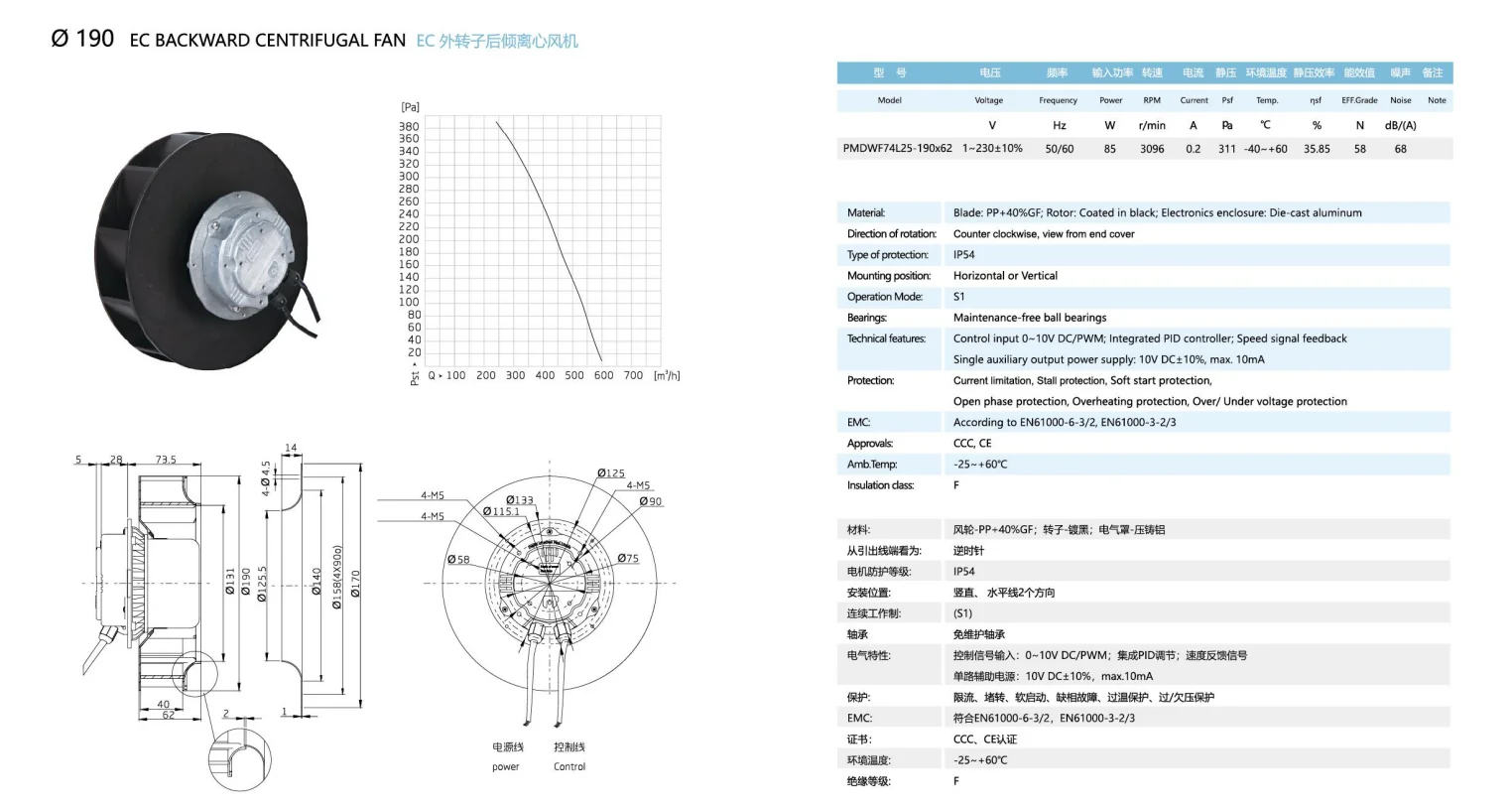

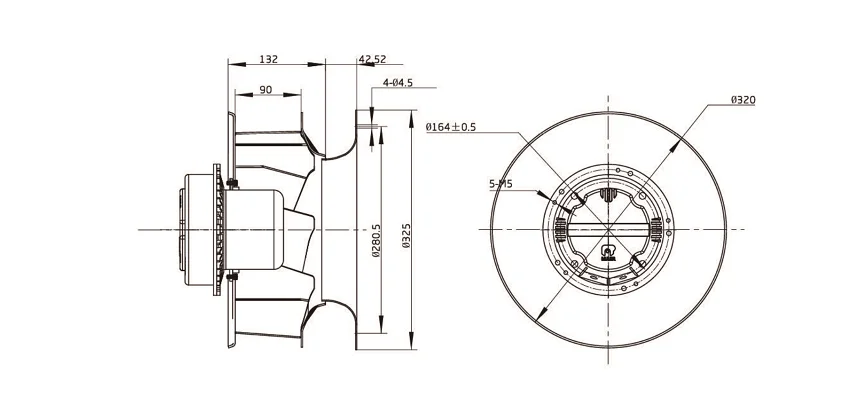

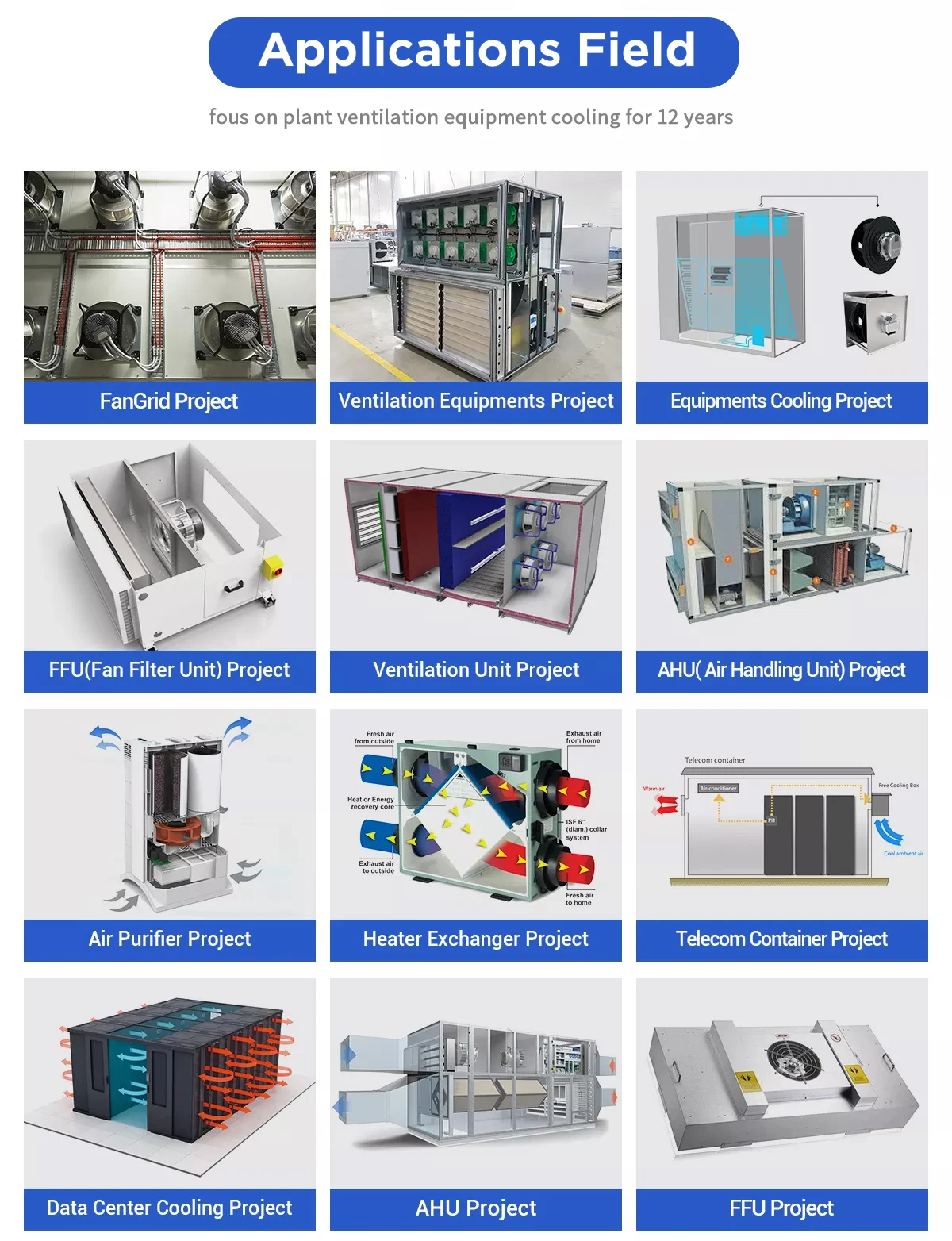

325mm EC motor 115v 220v 170W EC backward curved centrifugal fan with Bracket for AHU ,FFU ,air exchanger

Material:	Impeller:ABS; Rotor: Coatedin black ; Electronics enclosure; Die-cast aluminum
Direction of rotation:	Counter clockwise,view from end cover
Tye of protection:	IP54
Mounting position:	Horizontal or Vertical
Operation Mode:	S1

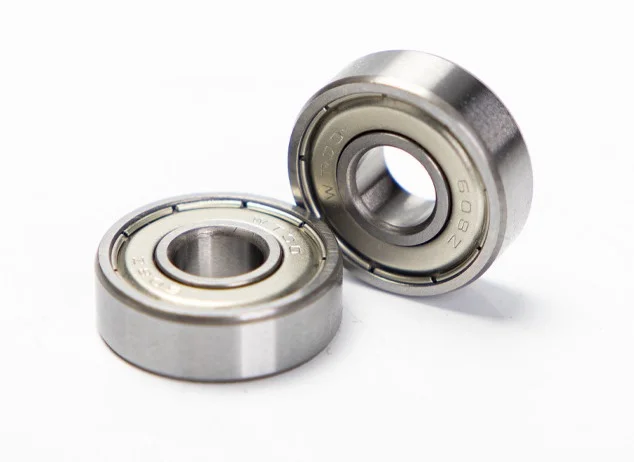

Beanings:	Maintenance-free ball bearings
Technical features:	Control input 0~10v DC/PWM;(active); Integrated PID controller; Speed signal feedfack; Relay Single auxiliary output power supply: 10V DC±10%，max 10 mA
Protection:	Open plase protection, Overheating porectiong, Over / /Under voltage protection
EMC:	According to EN61000-6-3/2, EN61000-3-2/3
Approvals:	CCC, CE
Amb Temp:	-25~+60℃
Insulation dass:	F

Model	Rated Voltage	Frequency	Power	Current	Rotating speed	Air Volume	Noise	Weight
		(V)	(Hz)	(W)	(AMP)	(r/min)	(m3/h)	(dBA)	(Kg)
FHCB133	220	50/60	55	0.425	4500	420	68	1.5
FHCB155	220	50/60	40	0.3	3570	430	63	1.7
FHCB175	220	50/60	80	0.65	3570	660	74	2
FHCB190	220	50/60	95	0.73	3570	750	78	2
FHCB190	220	50/60	180	1.4	4500	950	76	2
FHCB220	220	50/60	70	0.6	2500	860	71	3
FHCB220	220	50/60	145	1	3310	1036	75	3
FHCB225	220	50/60	100	0.8	2250	1230	63	3
FHCB225	220	50/60	170	1.16	3000	1465	79	3
FHCB225	220	50/60	160	1.1	3000	1500	69	3
FHCB250	220	50/60	90	0.8	2150	1220	68	3
FHCB250	220	50/60	130	0.87	2850	1415	75	3
FHCB250	220	50/60	170	1.1	2600	1360	69	3
FHCB250	220	50/60	145	1	2500	1700	74	3
FHCB250	220	50/60	270	1.2	3170	1925	84	5.8
FHCB280	220	50/60	135	1	2325	1550	75	3.5
FHCB280	220	50/60	105	0.75	2000	1915	69	3.5
FHCB280	220	50/60	370	1.75	2750	2450	68	6
FHCB280	220	50/60	700	3.3	2950	3110	84	4.5
FHCB310	220	50/60	175	1.3	1925	2200	74	4
FHCB310	220	50/60	175	1.3	1770	2430	175	4
FHCB310	220	50/60	300	1.4	2250	2550	68	6
FHCB310	220	50/60	320	1.45	2200	2810	68	6
FHCB310	220	50/60	730	3.4	2600	4350	85	7
FHCB355	220	50/60	330	1.5	1400	2400	77	6.5
FHCB355	220	50/60	220	1	1900	3100	72	6.5
FHCB355	220	50/60	220	1.4	1700	3100	73	6.5
FHCB355	220	50/60	900	4.2	2100	5700	94	7.5
FHCB400	220	50/60	330	1.5	1430	3450	69	7.5
FHCB400	220	50/60	725	3.4	1700	5700	80	8.5
FHCB400	220	50/60	330	1	1400	3450	69	7.5
FHCB450	220	50/60	260	1.2	1100	4600	70	13.8
FHCB450	220	50/60	700	3.3	1450	7000	84	14.5
FHCB470	220	50/60	220	1	1260	3800	69	14.5
FHCB280-EC137-100	3~380	50/60	780	1.1	2850	2940	82	4
FHCB280-EC137-900	3~380	50/60	1100	1.9	3500	3680	89	4.5
FHCB310-EC137-100	3~380	50/60	980	1.64	2600	4270	74	25.5
FHCB310-EC137-900	3~380	50/60	1400	2.4	3300	5430	92	7
FHCB355-EC137-100	3~380	50/60	990	1.63	2100	5150	79	11
FHCB355-EC137-900	3~380	50/60	1700	2.8	2700	6840	81	7.5
FHCB355-EC188-001	3~380	50/60	2500	4.2	3200	7800	96	13
FHCB400-EC137-100	3~380	50/60	725	1.22	1550	5420	73	17
FHCB400-EC137-900	3~380	50/60	2500	4.2	2650	9700	90	19
FHCB450-EC137-100	3~380	50/60	1000	1.67	1450	7340	73	14
FHCB450-EC137-900	3~380	50/60	1200	2.2	1700	8540	93	7.5
FHCB500-EC137-100	3~380	50/60	870	1.46	1100	7900	71	13.36
FHCB500-EC188-001	3~380	50/60	3000	4.95	1800	13800	89	15.5
FHCB560-EC137-100	3~380	50/60	770	1.3	850	9100	69	14.66
FHCB560-EC188-001	3~380	50/60	2770	4.4	1520	16000	81	18.66
FHCB630-EC188-001	3~380	50/60	2700	4.4	1250	18600	85	17.5

Company Profile

Zhejiang Hongke Electric

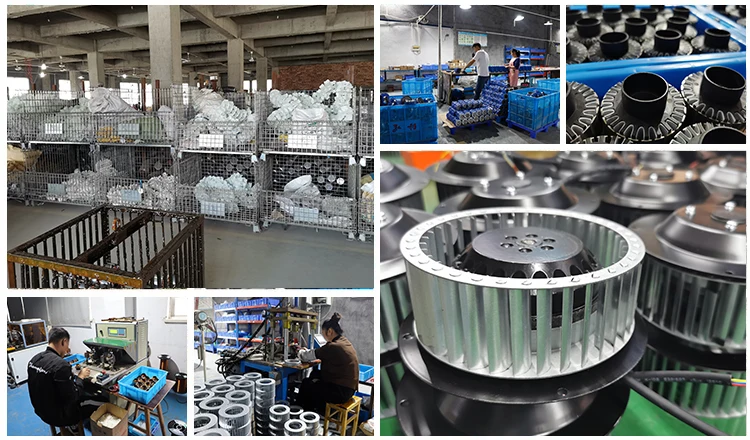

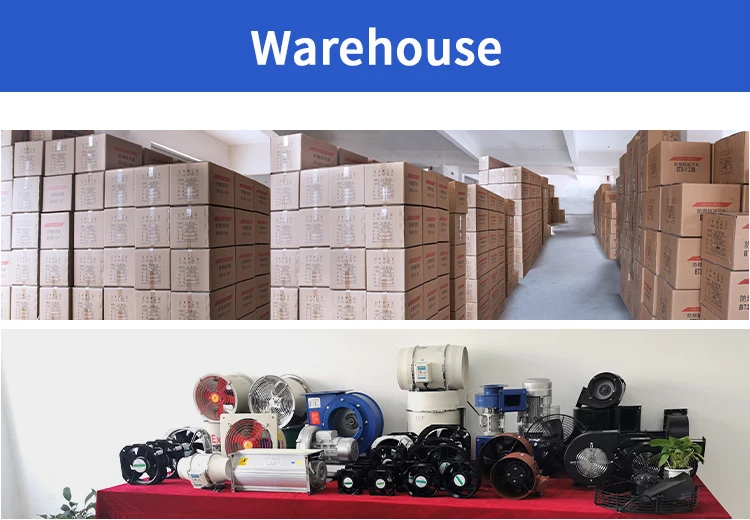

founded in 2010, is a professional manufacturer of fans and supporting products. Committed to providing small and medium-sized enterprises with plant ventilation and equipment cooling solutions, we have enabled closed factories and equipment to “breathe” the natural outdoor air freely. With 10 years of development, we currently have a production workshop of 4,000 square meters, a warehouse center of 2,000 square meters, and 50 pieces of production and inspection equipment, and we employ over 100 professional production workers. Our presence has been expanded across China, serving over 300,000 clients.
Our products include axial flow fans, centrifugal fans, explosion-proof fans, external rotor axial flow fans, VF motor cooling fans, dry-type transformer fans, small blowers, cabinet cooling fans, boiler induced-draft fans, and high-pressure centrifugal fans. Factory ventilation and equipment cooling solutions are our two main product categories, and we also provide supporting services such as dedusting, boiler air inducing, and material transportation.
Quality is the cornerstone of Hongke. We are well aware that high quality is essential to solve clients’ problems and also thereason why our clients choose us. We will continue to improve our pre-sales and after-sales service systems and integrate the demand and expectations of clients into our value chain to improve product quality, develop and upgrade our products and services. In this way, our clients can be provided with more efficient solutions.

HONGKE EMC Technology is giving more energy saving to our world .
the advantages are :
1.Our ECM motorized fans’effiency are 30%-60% higher than the traditional motors .
2.the build-in PCBA achieved stepless speed control,and communication with customers products .
3.longer life span up to 600,000hours .
4.IP55,IP68 can be customized .
5.Sine wave ,three phase eliminate electromagnetic-acoustic and lots of other protection functions like soft start ,overload,motor block … .

Hongke Fans unleash the full potential of wind!
