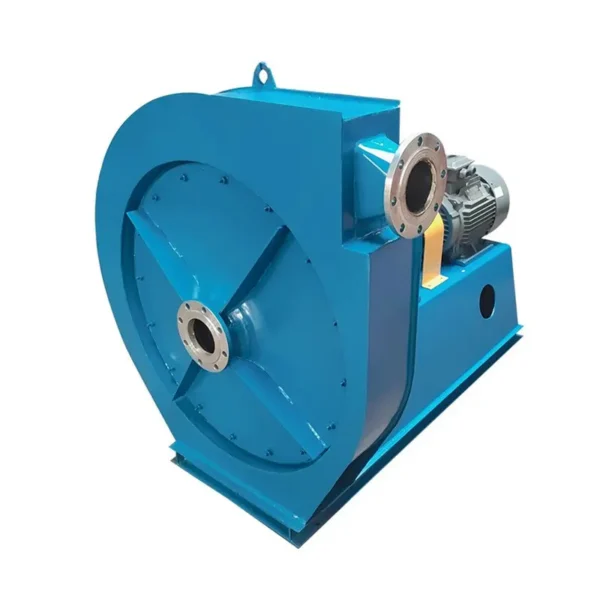

Centrifugal Fan, Stainless, Steel, 380V/220V

Key specification for this centrifugal fan: 380V/220V, blade material Stainless Steel. Everything below is reproduced from the factory data sheet. Made by Shandong Huabo Fan Co., Ltd. (2 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Centrifugal Fan

• Model Number: Centrifugal Fan
• Voltage: 380V/220V
• Blade Material: Stainless Steel
• Speed: consult
• Warranty: 1 Year
• Place Of Origin: Shandong, China

Technical Specifications

Product Details

                                                         Production area

Centrifugal ventilation fans: MJG type gas pressure centrifugal blower,high pressure centrifugal fan, high temperature exhaust fans, industrial boiler centrifugal fan, power station centrifugal blower, High temperature fan, hot air circulation fan,Glass fiber reinforced plastic fans, PP plastic anti-corrosion fan,Rubber lining, plastic lining,stainless steel anti corrosion fan,material conveying fan.

Use on-site

Transmission box spindle

Fan shaft disc

Material: Stainless steel, titanium alloy, carbon steel, etc

Impeller

Material: Stainless steel, titanium alloy, carbon steel, etc

Fan type	Rpm(r/min)	Pressure(Pa)	Air Volume(m³/h)	Motor power(Kw)
2.8A	2900	994-606	1131-2356	1.5
3.2A	2900	1300-792	1688-3517	2.2
3.2A	1450	324-198	844-1758	1.1
3.6A	2900	1758-989	2664-5268	3
3.6A	1450	393-247	1332-2634	1.1
4A	2900	2014-1320	4012-7419	5.5
4A	1450	501-329	2006-3709	1.1
4.5A	2900	2554-1673	5712-10562	7.5
4.5A	1450	634-416	2856-5281	1.1
5A	2900	3187-2019	7728-15455	15
5A	1450	790-502	3864-7728	2.2
6A	1450	1139-724	6677-13353	4
6A	960	498-317	4420-8841	1.5
6D	1450	1139-724	6677-13353	4
6D	960	498-317	4420-8841	1.5
8D	1450	2032-1490	15826-29344	18.5
8D	960	887-651	10478-19428	5.5
8D	730	512-376	7968-14773	3
10D	1450	3202-2532	40441-56605	55
10D	960	1395-1104	26775-37476	18.5
10D	730	805-637	20360-28497	7.5
12D	960	2013-1593	46267-64759	45
12D	730	1160-919	35182-49244	18.5
6C	2240	2734-1733	10314-20628	15
6C	2000	2176-1380	9205-18418	11
6C	1800	1760-1116	8288-16576	7.5
6C	1600	1389-881	7367-14734	5.5
6C	1250	846-537	5756-11511	3
6C	1120	679-431	5157-10314	2.2
6C	1000	541-344	4144-9209	2.2
6C	900	438-278	4144-8288	1.5
6C	800	346-220	3684-7367	1.1
8C	1800	3032-3143	19646-25240	30
8C	1800	2302-2920	28105-36427	37
8C	1600	2390-2478	17463-22435	22
8C	1600	2303-1816	24982-32380	30
8C	1250	1507-1106	13643-25297	11
8C	1120	1209-1166	12224-15705	7.5
8C	1120	1124-887	17487-22666	11
8C	1000	963-929	10914-14022	5.5
8C	1000	895-707	15614-20237	7.5
8C	900	779-752	9823-12620	4
8C	900	725-572	14052-18213	5.5
8C	800	615-452	8732-16190	3
8C	710	485-468	749-9956	2.2
8C	710	450-356	11085-14368	3
8C	630	381-280	6876-12749	2.2
10C	1250	2373-1877	34863-48797	37
10C	1120	1902-1505	31237-43722	30
10C	1000	1514-1199	27890-39038	18.5
10C	900	1225-970	25101-35134	15
10C	800	967-766	22312-31230	11
10C	710	761-603	19082-27717	7.5
10C	630	599-475	17571-24594	5.5
10C	560	473-375	15618-21861	4
10C	500	377-299	13945-19519	3
12C	1120	2746-2172	53978-75552	75
12C	1000	2185-1969	48195-60397	45
12C	1000	1859-1729	63953-67457	55
12C	900	1767-1399	43375-60712	37
12C	800	1395-1376	38556-41973	22
12C	800	1321-1104	45391-53966	30
12C	710	1097-869	34218-47895	18.5
12C	630	883-684	30362-42498	15
12C	560	682-673	26989-29381	7.5

Company Profile

Shandong Huabo Fan Co., Ltd

Shandong Huabo Fan Co., Ltd. is a strong enterprise specializing in the production of industrial fansWe specialize in producing tunnel fans, high-temperature fans, centrifugal fans, mining fans, axial flow fans, anti-corrosion fans and other products. Our products are widely used in tunnel construction, mechanical equipment, laboratories, power plants, steel mills, etc., mainly for ventilation, exhaust, intake, and air circulation.

Customer Photos

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Certifications

CLICK HERE TO RETURN TO THE HOMEPAGE

FAQ

Q. How does your factory control product quality? A. We have a quality inspection department, and we run for more than 3 hours when delivering to inspect the quality. If there are oil quality issues, we produce new ones.

Q. What is your payment method? A. TT30% as advance payment, TT70% to be paid after pre shipment inspection.

Q. What products do you produce? A. Centrifugal fan, tunnel fan, axial flow fan, jet fan, mining fan, explosion-proof fan, motor, fan accessories, etc., welcome to consult.

Q. How long does it take to ship after placing an order A. A container takes 20-30 days.

Q. Where is your factory located? Can I visit your factory? A. Our factory is located in Zibo, Shandong. Welcome to visit our factory.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $1600 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the centrifugal fan be supplied for my local voltage?

The standard configuration is 380V/220V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
