Key specification for this axial flow fan: voltage 380/660/1140V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Yuncheng Anjie Fan Electric Co., Ltd. (2 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

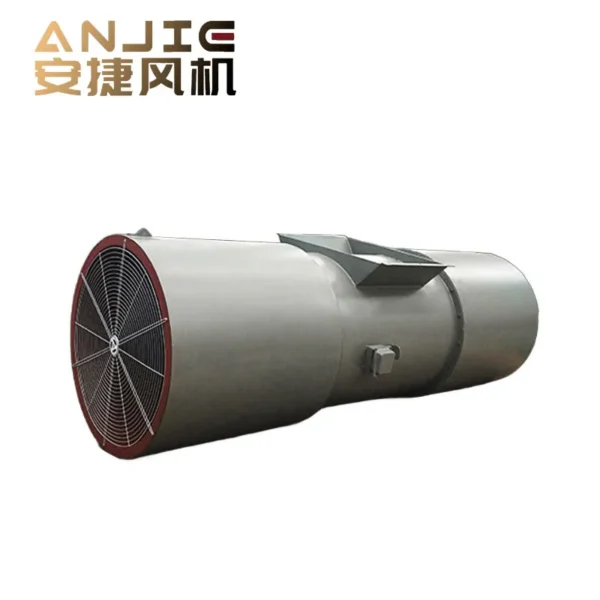

Key Features of This Axial Flow Fan
- Model Number: SDS-No8.0-7.5KW
- Power Source: Electric
- Power Of Motor: 7.5KW
- Thrust/Power: 37.6N/KW
- Voltage: 380/660/1140V
- Material: Carbon Steel
Technical Specifications
| Blade Diameter | 800mm(31.50in) |
|---|---|
| Voltage | 380/660/1140V |
| Speed | 19.1m/s(62.66ft/s) |
| Type | Explosion-Proof Axial Fan |
| Material | Carbon Steel |
| Blade Material | Carbon Steel |
| Mounting Type | Ceiling Fan |
| Bearing Type | Oil Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Shanxi, China |
| Brand Name | AnJieXiaoLei |
| Model Number | SDS-No8.0-7.5KW |
| Flow | 9.6m³/s |
| Outlet Air Speed | 19.1m/s |
| Axial Thrust | 219.4N |
| Power Of Motor | 7.5KW |
| Thrust/Power | 37.6N/KW |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Model number | Power of motor (kw) | Flow(m³/s) | Outlet air speed(m/s) | Axial thrust (N) |
SDS-No8.0-7.5KW | 7.5 | 9.6 | 19.1 | 219.4 |

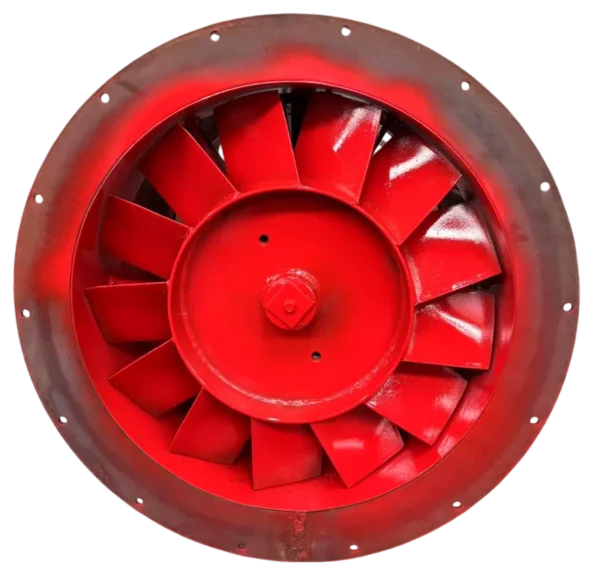

Impeller
the key component that converts the mechanical energy of the motor into wind energy.

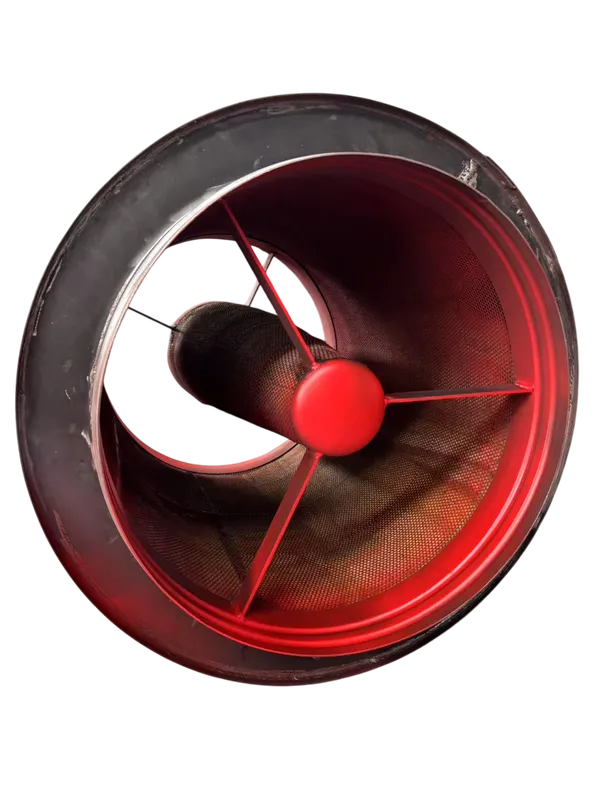

Bird net
Prevents birds from nesting inside the fan.
Motor
the core power source, usually squirrel-cage three-phase asynchronous motor, special environments need to use explosion-proof motor.
一、Introduction
1.Core Function: Provide the longitudinal airflow required during tunnel operation (normal ventilation, blocking conditions, smoke exhaust in fire accidents), dilute pollutants (such as vehicle exhaust, dust), exhaust smoke, control wind speed, and ensure air quality and traffic safety in the tunnel.
2.Working Principle: The fan inhales air from one end, accelerates it through the impeller, and then jets it out from the other end at a very high speed (usually above 30-40 m/s). This high-speed jet will strongly suck and drive the surrounding static or low-speed air to move forward together, thus forming a strong one-way induced airflow in the tunnel.

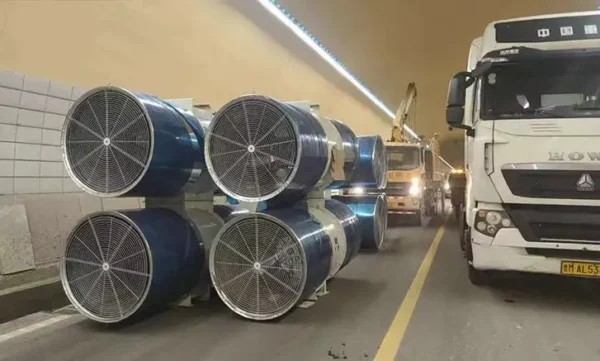

3.Installation: usually in groups (more than one) along the tunnel top or side wall hanging installation. By controlling the
starting and stopping and turning of the fans at different positions, the two-way control of airflow in the tunnel can be realised.
4.Application Scenario: Mainly used for one-way or two-way traffic tunnel ventilation, as the core power source of the
longitudinal ventilation system. It is especially suitable for tunnels with a length of about 1-3 kilometres, where large
ventilation shafts are not suitable.
1.Core Function: Provide the longitudinal airflow required during tunnel operation (normal ventilation, blocking conditions, smoke exhaust in fire accidents), dilute pollutants (such as vehicle exhaust, dust), exhaust smoke, control wind speed, and ensure air quality and traffic safety in the tunnel.
2.Working Principle: The fan inhales air from one end, accelerates it through the impeller, and then jets it out from the other end at a very high speed (usually above 30-40 m/s). This high-speed jet will strongly suck and drive the surrounding static or low-speed air to move forward together, thus forming a strong one-way induced airflow in the tunnel.
3.Installation: usually in groups (more than one) along the tunnel top or side wall hanging installation. By controlling the
starting and stopping and turning of the fans at different positions, the two-way control of airflow in the tunnel can be realised.
4.Application Scenario: Mainly used for one-way or two-way traffic tunnel ventilation, as the core power source of the
longitudinal ventilation system. It is especially suitable for tunnels with a length of about 1-3 kilometres, where large
ventilation shafts are not suitable.
二、Features
1. High induction ratio: the core feature. A single fan can induce air flow in the tunnel equivalent to several times its air
volume (usually 3-8 times or more), with high efficiency and a relatively small number of fans required.
2. Large air volume and high air pressure: the ability to provide large air volumes and medium to high pressure heads (to
overcome tunnel resistance along the tunnel) to meet the requirements of tunnel ventilation in a relatively compact size.
3. Reversible operation: The vast majority of SDS fans are designed for forward and reverse operation. By changing the direction of motor rotation, the direction of airflow can be changed, allowing flexible control of the airflow in the tunnel (e.g. to cope with two-way traffic or to control the direction of smoke evacuation in case of fire).
4. High efficiency and energy saving: Adopting the aerodynamic design of high efficiency backward tilting or wing-type blade,together with the high efficiency motor, the operation efficiency is high in the common working conditions. The induced draught feature itself reduces the energy consumption required to directly push all the air.
5. Low noise: Through optimising the impeller aerodynamic design (e.g. swept blade, unequal pitch blade), setting muffler (built-in or external), adopting sound insulation shell and other measures, the operating noise is effectively controlled to meet the environmental protection requirements.
6. High reliability: specially designed for the harsh environment of the tunnel (high temperature, high humidity, corrosive
gases, dust, vibration), the key components (motors, bearings) have high protection level, long service life, and low maintenance requirements.
7. Explosion-proof options: For environments where flammable gases may be present (e.g. natural gas pipeline tunnels, coal mine tunnels), special designs that comply with explosion-proof standards (e.g. Ex d IIC T4 Gb) are available.
8. Compact structure: Compact structural design and relatively light weight, easy to install and hang in the limited space of the tunnel.
1. High induction ratio: the core feature. A single fan can induce air flow in the tunnel equivalent to several times its air
volume (usually 3-8 times or more), with high efficiency and a relatively small number of fans required.
2. Large air volume and high air pressure: the ability to provide large air volumes and medium to high pressure heads (to
overcome tunnel resistance along the tunnel) to meet the requirements of tunnel ventilation in a relatively compact size.
3. Reversible operation: The vast majority of SDS fans are designed for forward and reverse operation. By changing the direction of motor rotation, the direction of airflow can be changed, allowing flexible control of the airflow in the tunnel (e.g. to cope with two-way traffic or to control the direction of smoke evacuation in case of fire).
4. High efficiency and energy saving: Adopting the aerodynamic design of high efficiency backward tilting or wing-type blade,together with the high efficiency motor, the operation efficiency is high in the common working conditions. The induced draught feature itself reduces the energy consumption required to directly push all the air.
5. Low noise: Through optimising the impeller aerodynamic design (e.g. swept blade, unequal pitch blade), setting muffler (built-in or external), adopting sound insulation shell and other measures, the operating noise is effectively controlled to meet the environmental protection requirements.
6. High reliability: specially designed for the harsh environment of the tunnel (high temperature, high humidity, corrosive
gases, dust, vibration), the key components (motors, bearings) have high protection level, long service life, and low maintenance requirements.
7. Explosion-proof options: For environments where flammable gases may be present (e.g. natural gas pipeline tunnels, coal mine tunnels), special designs that comply with explosion-proof standards (e.g. Ex d IIC T4 Gb) are available.
8. Compact structure: Compact structural design and relatively light weight, easy to install and hang in the limited space of the tunnel.
三、the structure (the main components)
1. Motor: the core power source, usually squirrel-cage three-phase asynchronous motor, special environments need to use explosion-proof motor.
2. Key requirements: high protection level (usually IP55/IP65, dustproof and waterproof), high insulation level (F or H class),high temperature resistance (the ambient temperature inside the tunnel may be higher), long life maintenance-free bearings,reversible design.
3. Impeller: the key component that converts the mechanical energy of the motor into wind energy.Material: High-strength aluminium alloy casting or steel plate welding/stamping.Blades: Usually high-efficiency backward inclined or wing-type twisted blades, the number of 4-8 pieces varies. Precise dynamic balancing ensures smooth operation and low vibration.
Hub: Connects the blades to the motor shaft.
4. Shell / Ducting: To accommodate the impeller and motor, and to guide the airflow.Material: Usually high quality carbon steel (Q235B) with anti-corrosion treatment (such as hot dip galvanised, sprayed), or stainless steel (304, 316L) for better corrosion resistance.Structure: Streamlined design to reduce resistance, with flanges at both ends for easy connection to the mounting bracket and muffler, usually with an access door for easy maintenance.
5. Muffler: Installed in the air inlet and/or outlet of the fan, it can effectively reduce the aerodynamic noise generated by
the fan operation.Structure: internal filling of sound-absorbing materials (such as centrifugal glass wool), perforated plate protection. Available in cylindrical or square shape.Mounting bracket/suspension device: to securely suspend the fan on the tunnel vault or sidewall.Contains vibration dampers (rubber or spring dampers) to effectively isolate the fan from vibration transmission to the tunnel structure and reduce structural noise.Safety net/shield: installed at the inlet and outlet of the fan to prevent foreign objects from entering or people from coming into contact with the rotating parts.
6. Accessories (optional):
Guide vanes/rectifier cones: Optimise airflow in and out of the fan to reduce eddy current losses and improve efficiency.
Reversing guide vanes (partial design): Improve airflow and reduce pressure loss when the fan is reversed.
Vibration/temperature sensors: Real-time monitoring of the fan's operating status and access to the monitoring system for alarms.
Bird net: Prevents birds from nesting inside the fan.
1. Motor: the core power source, usually squirrel-cage three-phase asynchronous motor, special environments need to use explosion-proof motor.
2. Key requirements: high protection level (usually IP55/IP65, dustproof and waterproof), high insulation level (F or H class),high temperature resistance (the ambient temperature inside the tunnel may be higher), long life maintenance-free bearings,reversible design.
3. Impeller: the key component that converts the mechanical energy of the motor into wind energy.Material: High-strength aluminium alloy casting or steel plate welding/stamping.Blades: Usually high-efficiency backward inclined or wing-type twisted blades, the number of 4-8 pieces varies. Precise dynamic balancing ensures smooth operation and low vibration.
Hub: Connects the blades to the motor shaft.
4. Shell / Ducting: To accommodate the impeller and motor, and to guide the airflow.Material: Usually high quality carbon steel (Q235B) with anti-corrosion treatment (such as hot dip galvanised, sprayed), or stainless steel (304, 316L) for better corrosion resistance.Structure: Streamlined design to reduce resistance, with flanges at both ends for easy connection to the mounting bracket and muffler, usually with an access door for easy maintenance.
5. Muffler: Installed in the air inlet and/or outlet of the fan, it can effectively reduce the aerodynamic noise generated by
the fan operation.Structure: internal filling of sound-absorbing materials (such as centrifugal glass wool), perforated plate protection. Available in cylindrical or square shape.Mounting bracket/suspension device: to securely suspend the fan on the tunnel vault or sidewall.Contains vibration dampers (rubber or spring dampers) to effectively isolate the fan from vibration transmission to the tunnel structure and reduce structural noise.Safety net/shield: installed at the inlet and outlet of the fan to prevent foreign objects from entering or people from coming into contact with the rotating parts.
6. Accessories (optional):
Guide vanes/rectifier cones: Optimise airflow in and out of the fan to reduce eddy current losses and improve efficiency.
Reversing guide vanes (partial design): Improve airflow and reduce pressure loss when the fan is reversed.
Vibration/temperature sensors: Real-time monitoring of the fan's operating status and access to the monitoring system for alarms.
Bird net: Prevents birds from nesting inside the fan.
四、Advantages
1. High ventilation efficiency: high induction ratio, with less equipment can achieve long-distance, wide range of ventilation effect, the overall efficiency of the system is high.
2. Low operation cost:
3. Energy saving: the fan itself has high efficiency, together with the induced effect, the energy consumption per unit of
ventilation is low.
4. Simple maintenance: reliable structure, long maintenance-free cycle of key parts such as bearings (up to 50,000 hours or more), long maintenance interval and small maintenance workload.
5. Reduce civil construction: Compared with the shaft air supply and exhaust system, it can significantly reduce or even
eliminate the need to set up large air towers and ducts, saving huge investment in civil construction.
6. Flexible and convenient installation: hanging installation, does not occupy the tunnel space. Modular design, short
installation period, small impact on tunnel construction. The number and position of fans can be flexibly arranged according to the length of the tunnel and ventilation requirements.
7. Flexible and reliable control: reversible operation, simple and rapid wind direction control. It is easy to realise
centralized automatic control and respond to environmental changes in the tunnel. It can be controlled in groups and areas to adapt to different traffic conditions.
8. High safety: it can quickly change the wind direction in case of fire, effectively control the spread of smoke, and create
favourable conditions for personnel evacuation and fire rescue. Explosion-proof design meets special safety requirements.Robust and durable structure ensures long-term reliable operation.
9. Low environmental impact: low noise design reduces noise pollution to the environment inside and outside the tunnel.
Efficient ventilation ensures air quality inside the tunnel and reduces pollutant emissions.
10. Wide applicability: Suitable for various lengths and cross-sections of highways, railways, subways and underwater tunnels.
1. High ventilation efficiency: high induction ratio, with less equipment can achieve long-distance, wide range of ventilation effect, the overall efficiency of the system is high.
2. Low operation cost:
3. Energy saving: the fan itself has high efficiency, together with the induced effect, the energy consumption per unit of
ventilation is low.
4. Simple maintenance: reliable structure, long maintenance-free cycle of key parts such as bearings (up to 50,000 hours or more), long maintenance interval and small maintenance workload.
5. Reduce civil construction: Compared with the shaft air supply and exhaust system, it can significantly reduce or even
eliminate the need to set up large air towers and ducts, saving huge investment in civil construction.
6. Flexible and convenient installation: hanging installation, does not occupy the tunnel space. Modular design, short
installation period, small impact on tunnel construction. The number and position of fans can be flexibly arranged according to the length of the tunnel and ventilation requirements.
7. Flexible and reliable control: reversible operation, simple and rapid wind direction control. It is easy to realise
centralized automatic control and respond to environmental changes in the tunnel. It can be controlled in groups and areas to adapt to different traffic conditions.
8. High safety: it can quickly change the wind direction in case of fire, effectively control the spread of smoke, and create
favourable conditions for personnel evacuation and fire rescue. Explosion-proof design meets special safety requirements.Robust and durable structure ensures long-term reliable operation.
9. Low environmental impact: low noise design reduces noise pollution to the environment inside and outside the tunnel.
Efficient ventilation ensures air quality inside the tunnel and reduces pollutant emissions.
10. Wide applicability: Suitable for various lengths and cross-sections of highways, railways, subways and underwater tunnels.
1. who are we?
We are based in Shanxi, China, start from 2019,sell to Southeast Asia(35.00%),South Asia(35.00%),South America(30.00%). There are
total about 11-50 people in our office.
We are based in Shanxi, China, start from 2019,sell to Southeast Asia(35.00%),South Asia(35.00%),South America(30.00%). There are
total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Local ventilation fan for mining,Electric motors,Main Fan Machine,Tunnel fan,Electric machinery
4. why should you buy from us not from other suppliers?
With 10 years of design and development experience, 0 returns, first-class quality and service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Local ventilation fan for mining,Electric motors,Main Fan Machine,Tunnel fan,Electric machinery
4. why should you buy from us not from other suppliers?
With 10 years of design and development experience, 0 returns, first-class quality and service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 380/660/1140V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Yuncheng Anjie Fan Electric Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Yuncheng Anjie Fan Electric Co., Ltd. range on HVACR Nexus.
See more in Explosion Proof Fans on HVACR Nexus.
