The centrifugal fan listed here carries 220V/380V/other, blade material Cast Iron, documented exactly as the manufacturer publishes it. Made by ZHEJIANG LARISSA MECHANICAL ELECTRIC TECHNOLOGY CO., LTD. (9 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Model Number: 9-19-5.6A
- Voltage: 220V/380V/other
- Blade Material: Cast Iron
- Material: cast iron/stainless steel/glass fiber reinforced plastics
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
Technical Specifications
| Voltage | 220V/380V/other |
|---|---|
| Blade Material | Cast Iron |
| Electric Current Type | AC |
| Mounting Type | Free Standing |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Zhejiang, China |
| Brand Name | Larissa |
| Model Number | 9-19-5.6A |
| Color | blue or customized |
| Pressure | 7182~6400Pa |
| Material | cast iron/stainless steel/glass fiber reinforced plastics |
| Application | Industry, kitchen, Chemical machinery |
| Selling Units | Single item |
| Single Package Size | 70X75X80 cm |
| Single Gross Weight | 80.000 kg |

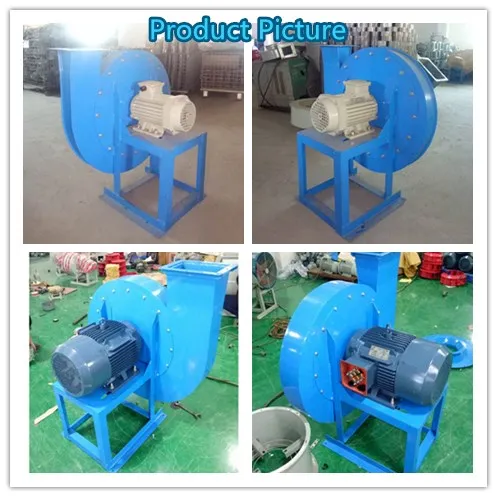

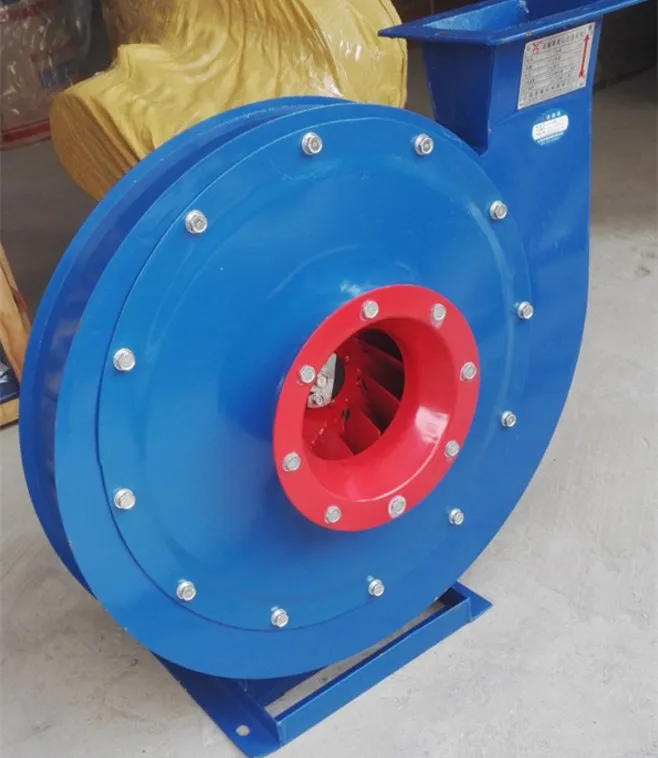

Product Details
The high pressure centrifugal ventilators of Type 9-19 and 9-26 can be widely used for material transportation such as air or non-corrosive and non-self-ignitable gases free of stickum. The medium temperature during transportation shall be lower than 80°C; Meanwhile its dust and hard particles must be less than 150mg/m3. These equipments can be used for the high-pressure forced ventilation in the production fields such as metallurgy, glass, pottery, radio equipment, plating, storage battery, etc, as well as the material transportation in the processing industries such as forage, breeze and plastics and so on.
Advantages: 9-19,9-26 series centrifugal fan have the advantages of high pressure,
high efficiency, wide efficient region, compact structure and reliable operation.
Application: Widely used for high-pressure forced ventilation, such as smelting
furnace and other occasions.
Technical Parameters
| Model
| Speed | Power | Air Flow | Pressure (Pa) |
| rpm | kW | m3/h | Pa | |
| 3.15A
| 2900 | 0.75 | 390~810 | 1919~1953 |
| 2900 | 1.1-2 | 390~810 | 1919~1745 | |
| 3.55A
| 2900 | 1.5-2 | 560~760 | 2545~2590 |
| 2900 | 2.2-2 | 560~1160 | 2545~2310 | |
| 4A
| 2900 | 2.2-2 | 824~1264 | 3584~3597 |
| 2900 | 3-2 | 824~1704 | 3584~3253 | |
| 4.5A
| 2900 | 4-2 | 1174~2064 | 4603~4447 |
| 2900 | 5.5-2 | 1174~2504 | 4603~4112 | |
| 5A
| 2900 | 7.5-2 | 1610~3166 | 5697~5323 |
| 2900 | 11-2 | 1610~3488 | 5697~5080 | |
| 5.6A
| 2900 | 11-2 | 2262~3619 | 7182~7109 |
| 2900 | 18.5-2 | 2262~4901 | 7182~6400 | |
| 6.3A
| 2900 | 18.5-2 | 3220~5153 | 9149~9055 |
| 2900 | 30-2 | 3220~6978 | 9149~8148 |
· Customizing the fans according to customers' requirements.
· Delivery time for sample order: 1-5 days, for pallets order 7-20 days after receiving clear payment
· Warranty: 1 year for repairing or replacment of fans, customs duty & freight not included
Q: What is the MOQ?
R: 100 pieces, accept sample.
Q: When you ship my order
R: Normally continer need 25-40days, sample
Q: How about the quality guarantee period?
R: One year.
Q: Do you have the certificates?
R: Yes, we have passed the CE and CCC certifacation.
Q: Do you offer ODM & OEM service.
R: Yes, we can custom design for specific application.
Q: When can I get the quotation?
R:We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management or call us directly.
Q: How can I get a sample to check your quality?
R:After price confirmed, you can requiry for samples to check quality.
If you need the samples, we will charge for the sample cost. But the sample cost can be refundable when your quantity of first order is above the MOQ
Q: What is your main market?
R:Southeast Asia, South America,Middle East.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $650 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 220V/380V/other. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by ZHEJIANG LARISSA MECHANICAL ELECTRIC TECHNOLOGY CO., LTD., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full ZHEJIANG LARISSA MECHANICAL ELECTRIC TECHNOLOGY CO., LTD. range on HVACR Nexus.
