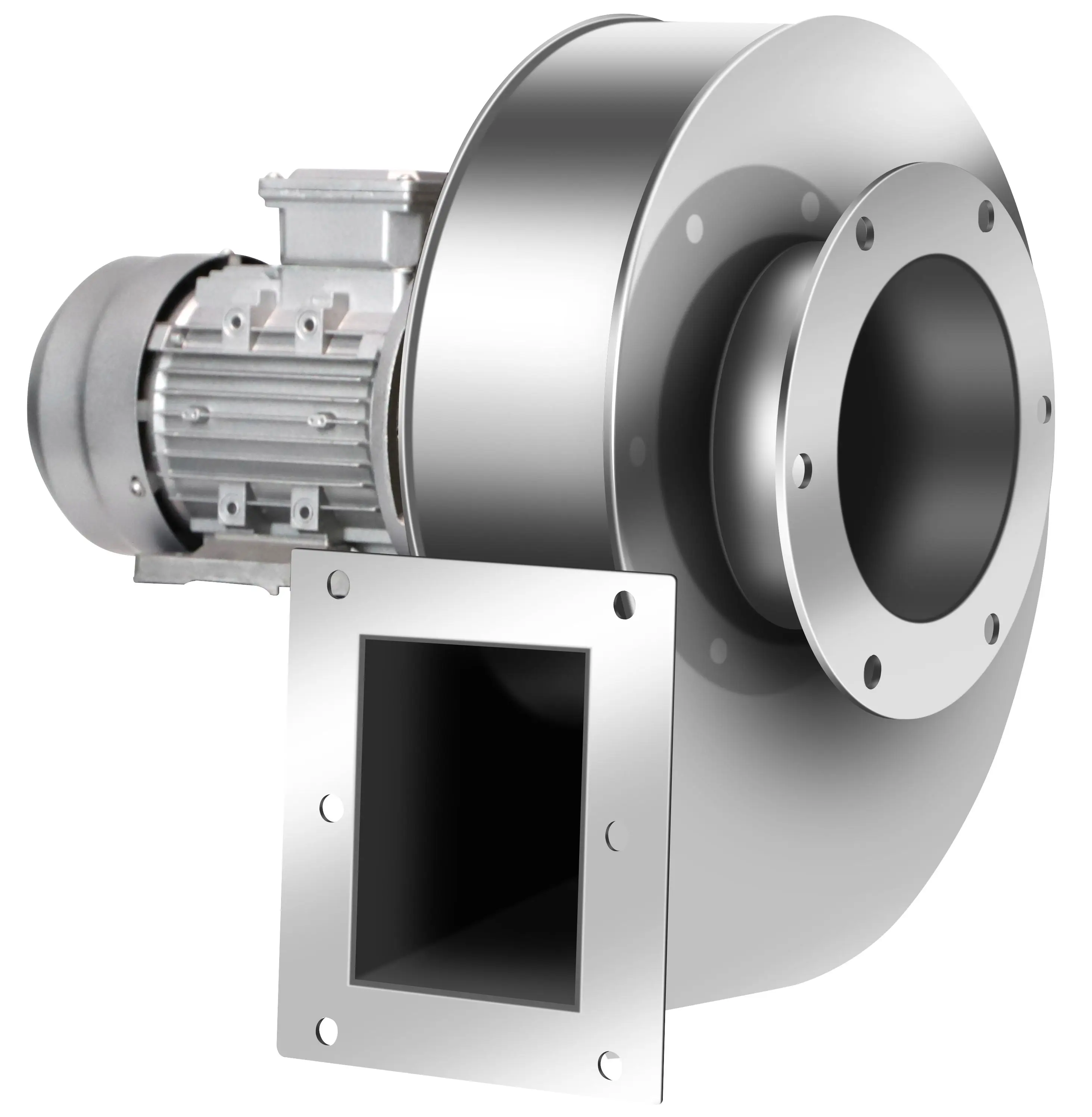

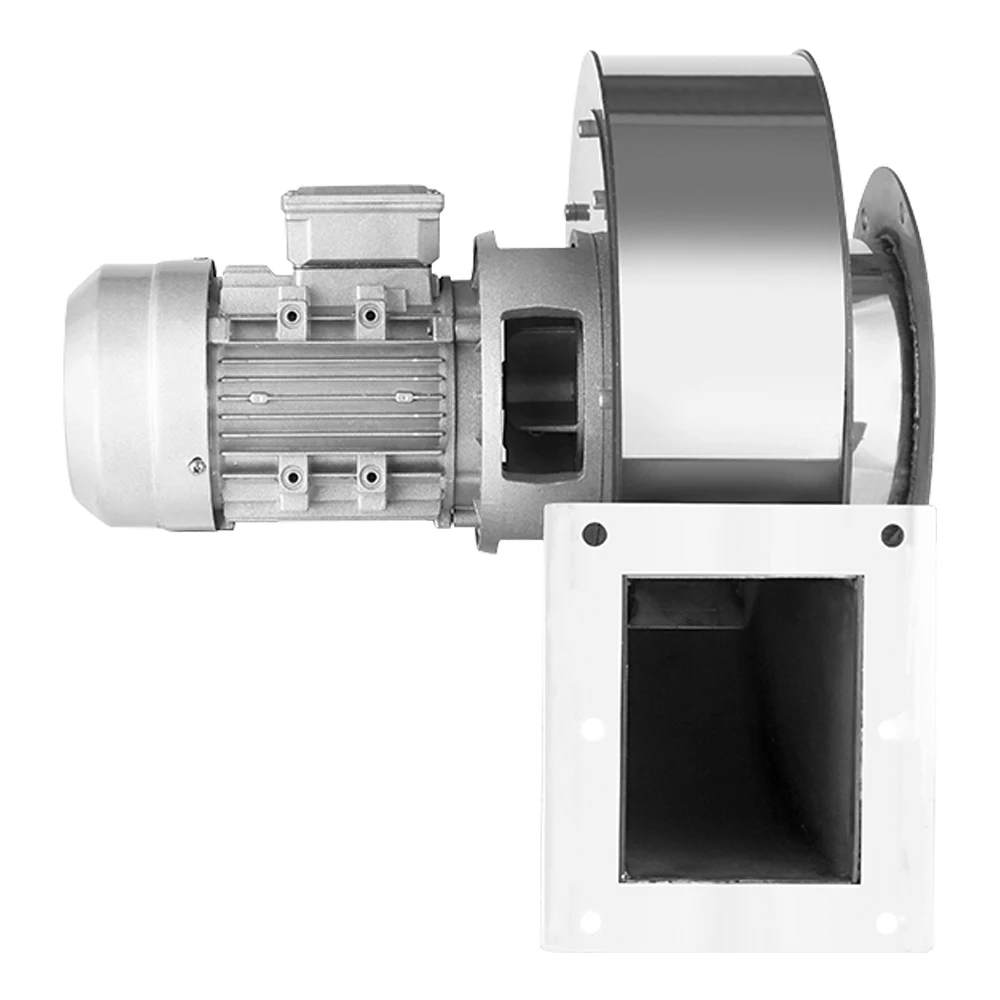

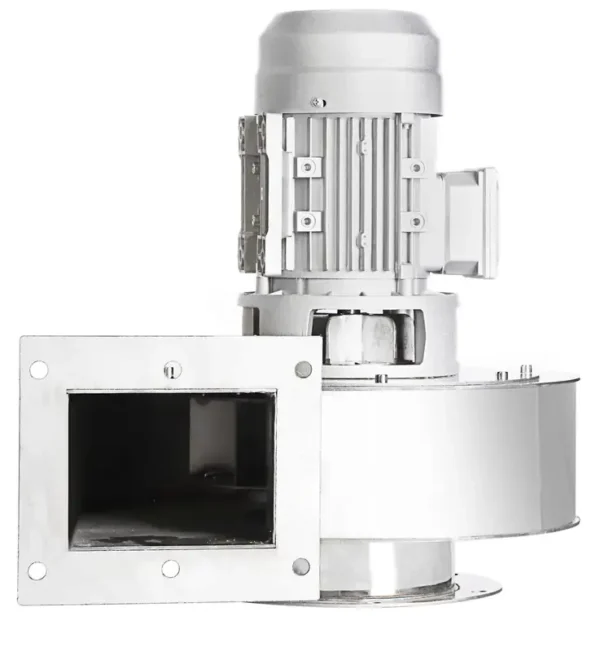

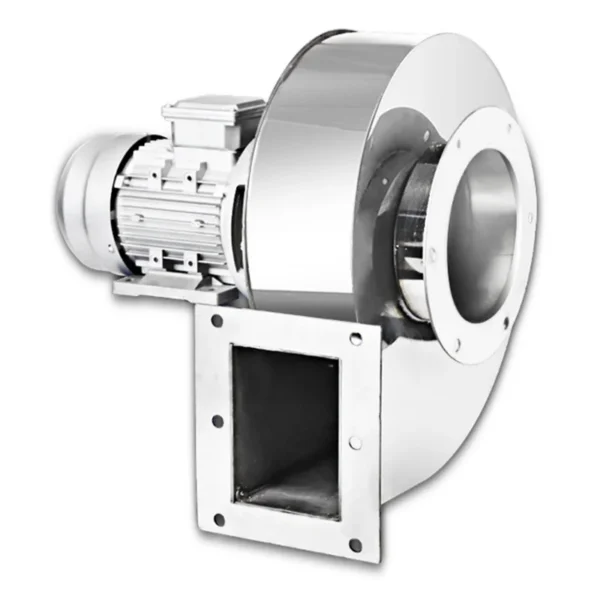

Centrifugal Fan, Y5-47, stainless, steel

Centrifugal fan — 220V/380V, 90W. The complete factory specification follows. Made by Zhejiang Hongke Electromechanical Co., Ltd. (6 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Centrifugal Fan

• Model Number: Y5-47-90
• Power: 90W
• Voltage: 220V/380V
• Blade Material: Stainless Steel
• Warranty: 1 Year
• Certification: CCC

Technical Specifications

Product Details

Product Description

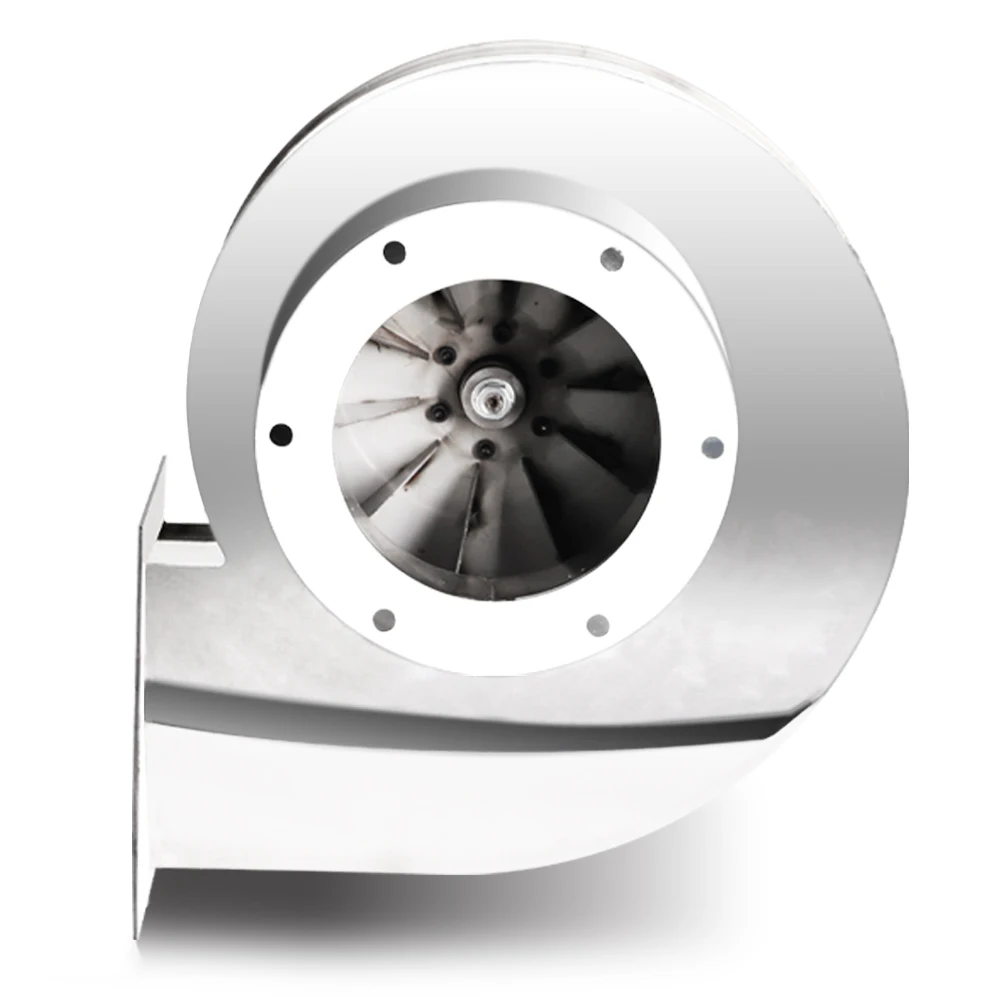

Y5-47 Boiler induced draft stainless steel fan

High temperature resistance, strong wind, wind cooling

Large diameter tuyere

High hardness, high wind pressure, wide angle suction

Carbon steel shell

Advanced cutting, precise forming, beautiful appearance, wear resistance, shock resistance, longer life

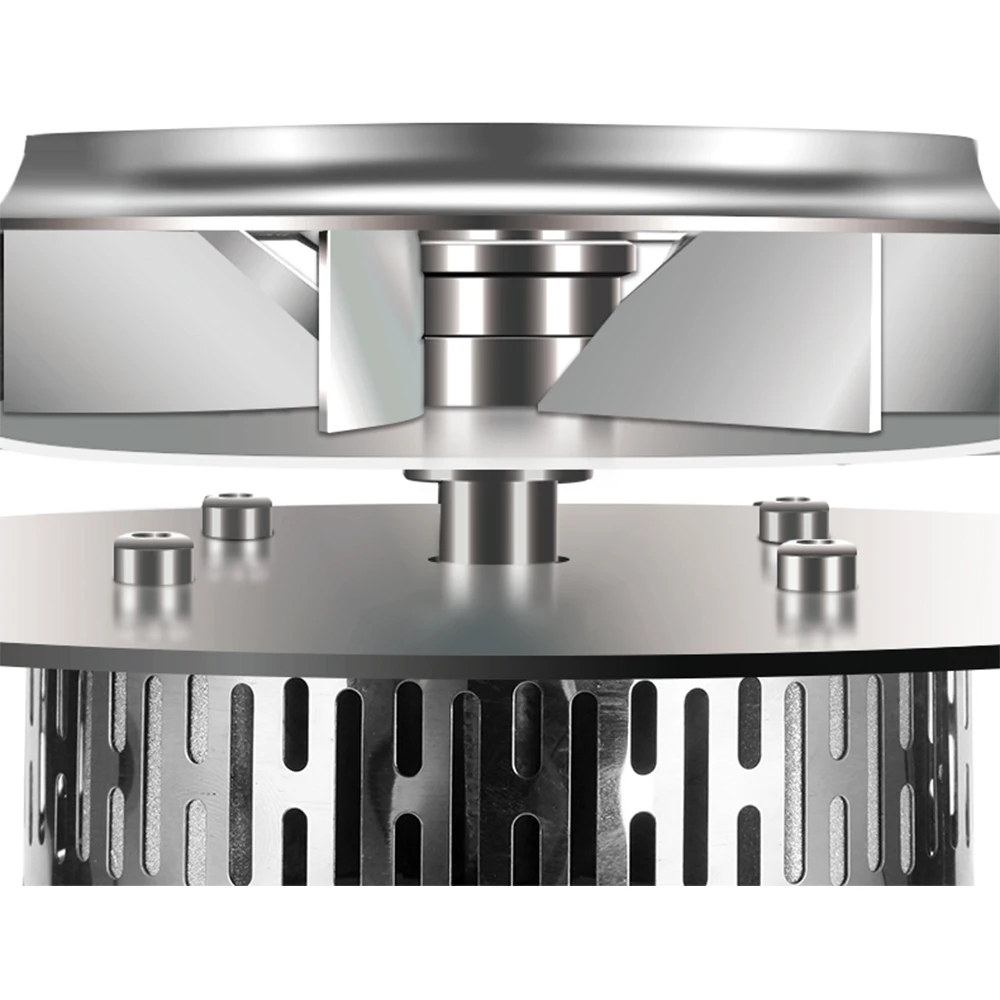

Straight wing impeller

Straight-wing impeller, stable structure, more powerful wind

2800r/min high speed 5 wind turbine blades 65dv (A) low noise

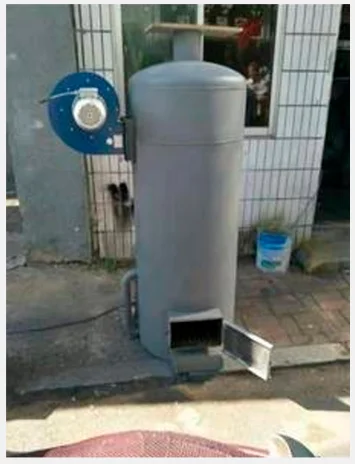

scenes to be used

Y5-47 Boiler induced draft fan is beautiful in appearance and easy to install

USAGE

SCENARIOS

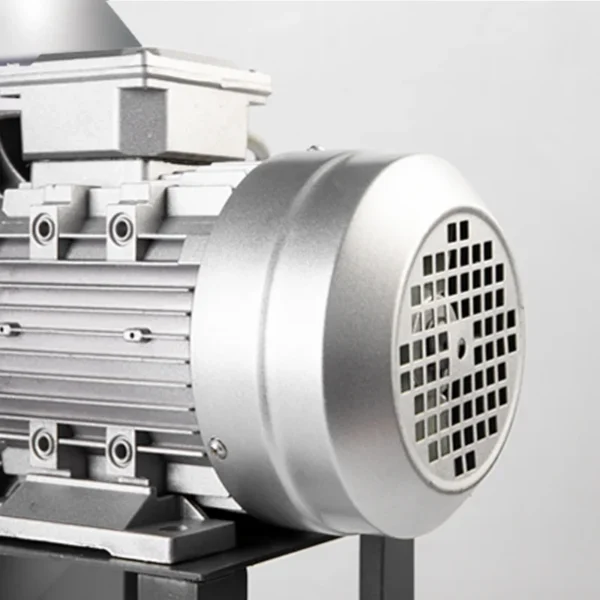

Y5-47 air-cooled high temperature resistant small boiler induced draft fan is specially developed according to the requirements of the boiler industry. This series of fans use aluminum alloy die-casting motor shell, the fan shell is phosphated and then sprayed or electrophoresed. The rotor and fan blades are double-sided and double-sided moving flat-street correction, high-temperature resistant high-quality bearings, detachable feet, flexible and changeable installation . It has the advantages of low noise, high efficiency, light weight, beautiful appearance, fast heat dissipation, high temperature resistance, low vibration and long life.

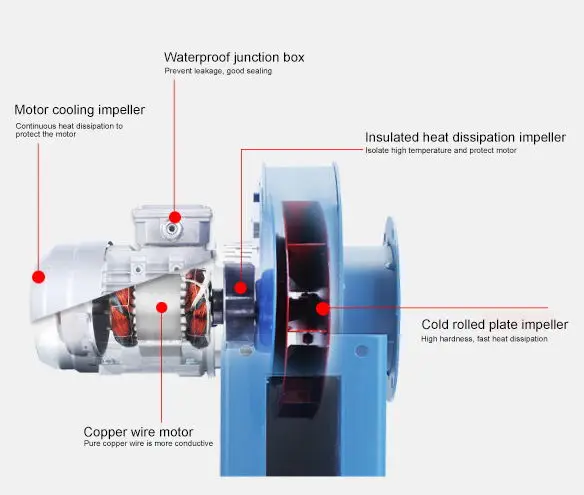

Internal analysis

Aluminum alloy fan, cut off the heat between the impeller and the motor, good heat dissipation effect

Technique parameters

Machine number	Power(kW)	Voltage(V)	Rotating speed(r/min)	Flow(m鲁/h)	Full pressure(Pa)
Y5-47	0.06	220/380	2800	240	310
Y5-47	0.09	220/380	2800	350	360
Y5-47	0.12	220/380	2800	480	450
Y5-47	0.18	220/380	2800	650	510
Y5-47	0.25	220/380	2800	860	580
Y5-47	0.37	220/380	2800	1100	650
Y5-47	0.55	220/380	2800	1450	680
Y5-47	0.75	220/380	2800	1810	790
Y5-47	1.1	220/380	2800	2250	940
Y5-47	1.5	380	2800	2800	1140
Y5-47	2.2	380	2800	3100	1280
Y5-47	3	220/380	2800	3800	1580

Mode l	Powe r	Outlet flange size									Flange size of air inlet
		(W)	A1	A3	B1	B3	Φb*n	Φ1	Φ3	Φa*n
Y5-47	60	61	118	60	118	8*4	100	156	10*6
Y5-47	90	59	122	85	141	10*4	100	156	10*6
Y5-47	120	60	138	110	176	10*4	108	166	10*6
Y5-47	180	60	138	110	176	10*4	108	166	10*6
Y5-47	250	62	139	121	186	11*4	128	207	11*6
Y5-47	370	78	155	121	186	11*4	128	207	11*6
Y5-47	550	85	165	136	202	11*4	150	224	11*6
Y5-47	750	102	179	36	202	11*6	150	224	11*6
Y5-47	1100	120	197	156	222	11*6	160	228	11*6
Y5-47	1500	131	208	176	242	11*6	160	228	11*6
Y5-47	2200	130	206	206	272	11*6	186	254	11*6
Y5-47	3000	150	220	230	298	11*6	248	325	11*6

Model	Power	Size
		(W)	C1	C2	L1	L3	L	M	N	E
Y5-47	60	70	90	192	41	298	221	193	72
Y5-47	90	70	90	192	41	295	259	223	85
Y5-47	120	70	90	192	41	297	325	281	107
Y5-47	180	70	90	192	41	297	325	281	107
Y5-47	250	80	100	220	47	334	370	320	127
Y5-47	370	80	100	220	47	350	370	320	127
Y5-47	550	90	112	275	43	408	420	364	148
Y5-47	750	90	112	275	43	426	420	364	148
Y5-47	1100	100	125	300	44	467	470	408	166
Y5-47	1500	100	140	325	42	502	506	438	176
Y5-47	2200	125	140	345	45	525	549	478	186
Y5-47	3000	140	160	385	45	605	535	470	195

installation method

Y5-47 boiler induced draft fan is easy to install and self-tapping screws are provided

Self-tapping screw (gift) Connecting to PVC pipe (self-prepared) Glass glue fixing (self-prepared)

Packing & Delivery

cartons

Company Profile

Zhejiang Hongke Electric, founded in 2010, is a professional manufacturer of fans and supporting products. Committed to providing small and medium-sized enterprises with plant ventilation and equipment cooling solutions, we have enabled closed factories and equipment to “breathe” the natural outdoor air freely. With 10 years of development, we currently have a production workshop of 4,000 square meters, a warehouse center of 2,000 square meters, and 50 pieces of production and inspection equipment, and we employ over 100 professional production workers. Our presence has been expanded across China, serving over 300,000 clients. Our products include axial flow fans, centrifugal fans, explosion-proof fans, external rotor axial flow fans, VF motor cooling fans, dry-type transformer fans, small blowers, cabinet cooling fans, boiler induced-draft fans, and high-pressure centrifugal fans. Factory ventilation and equipment cooling solutions are our two main product categories, and we also provide supporting services such as dedusting, boiler air inducing, and material transportation. Quality is the cornerstone of Hongke. We are well aware that high quality is essential to solve clients’ problems and also the reason why our clients choose us. We will continue to improve our pre-sales and after-sales service systems and integrate the demand and expectations of clients into our value chain to improve product quality, develop and upgrade our products and services. In this way, our clients can be provided with more efficient solutions. Hongke Fans unleash the full potential of wind!

FAQ

Q: Can your product label, packaging and design be customized?

A: Yes, we offer customized services about these.

Q:What is your monthly production capacity?

A: The capacity of our factory is 8000 units per month

Q:What is your minimum order quantity?

A: There is no limit. Customers are big or small.No matter how many you order We will provide high quality products and perfect service.

Q:Can l obtain samples for quality inspection?

A:Yes, we provide samples.

Q:How long is the lead time?

A: Conventional products are delivered in small quantities on the same day.Bulk order 3-5 days.

Q:How long is the fan's service life?

A: Normal use 5-10 years.For quality problems, we provide one-year replacement. Q:How to guarantee the quality?

A: Strict process control and professional product quality inspection team to ensure the product Percent of pass;in addition, we improve the after-sales support system for the products Take full responsibility for quality problems in use

Ordering and Pricing

• Minimum order quantity: 10 box
• Volume pricing:
  • 10–499 box: US $86.25 / box
  • 500–999 box: US $79.35 / box
  • 1000+ box: US $73.83 / box
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal fan?

The standard minimum order quantity is 10 box. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this centrifugal fan carry?

It is supplied with CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the centrifugal fan be supplied for my local voltage?

The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
