The centrifugal fan listed here carries 220 V, material Aluminum Alloy, documented exactly as the manufacturer publishes it. Made by Zhejiang Fengdeng Electric Co., Ltd. (14 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Fan
- Model Number: YWF2E-220HJ
- Voltage: 220 V
- Material: Aluminum Alloy
- Blade Material: Plastic
- Noise Level: 40 dB and above
- Speed: 2400rpm
Technical Specifications
| Duct Diameter | 8 in |
|---|---|
| Mounting | Wall Fan |
| Voltage | 220 V |
| Motor Type | Induction Motor |
| Speed | 2400rpm |
| Material | Aluminum Alloy |
| Blade Material | Plastic |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Noise Level | 40 dB and above |
| Place Of Origin | Zhejiang, China |
| Brand Name | DOSSY |
| Model Number | YWF2E-220HJ |
| Color | Black |
| Type | Centrifugal Blower |
| Application | Industrial Equipment |
| Ampere | 220V/380V AC |
| Motor Phase | 1 phase |
| Working Temp. | -30C~+65C |
| Air Volume | 807 m3/h |
| After-Sales Service | Online service |
| Selling Units | Single item |
| Single Package Size | 25X25X10 cm |
| Single Gross Weight | 2.6 kg |
Product Details
YWF220HJ

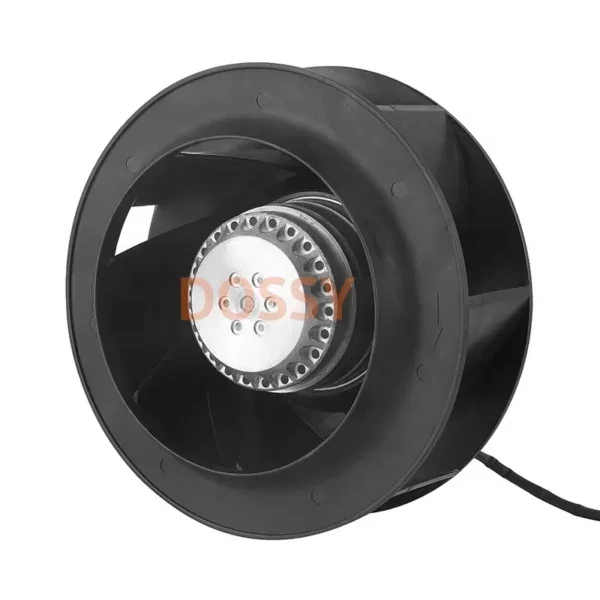

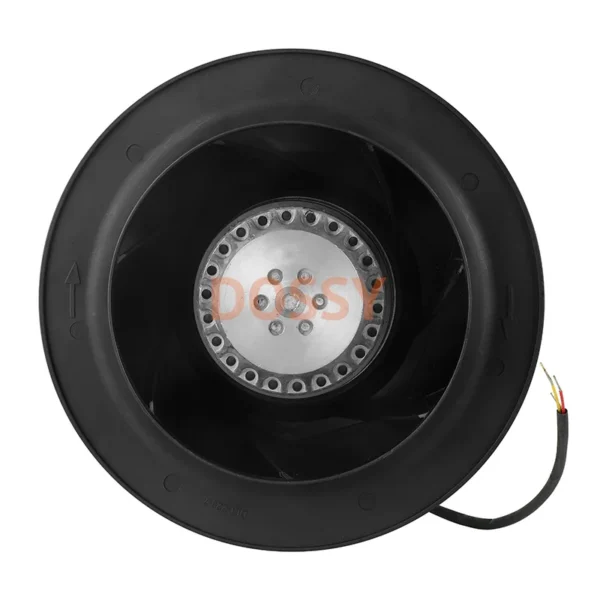

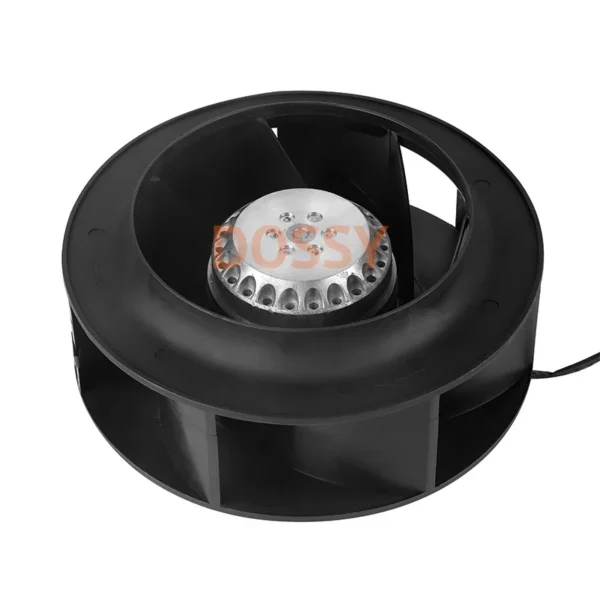

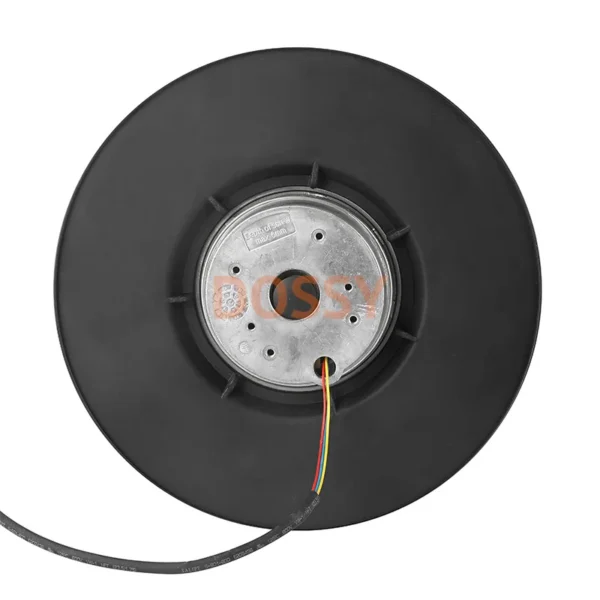

HJ Series External Rotor Centrifugal Fan
Size:Φ220×64mm
Airflow: 807m3/h Impeller: PA66
477CFM Steel Ring: GF 25% V0
Weight : 2500g Motor: Shaded Pole and External Rotor Induction motor
Noise: 69dB Operation Temperature : –10℃~+65℃
Type of protection: IP44 Insulation class: F
|
|
|
|
|
|
|
| Air Volume | Static Pressure | Capacitor | Packing | |||||
| P/N | Model | Voltage (V) | Current (A) | Freq (Hz) | Noise (Db) | Power (W) | Speed (RPM) | m3/h | CFM | Pa
| mmH2O | μF
| Pcs/ctn | Weight
| Dimension
|
| AF2E220HJ22 | YWF2E–220HJ | 220 | 0.41 | 50 | 69 | 92 | 2400 | 807 | 477 | 467 | 47.5 | 3 | 6 | 15kgs | 53*29*37 |
| AF2D220HJ38 | YWF2D–220HJ | 380 | 0.2 | 50 | 69 | 92 | 2400 | 807 | 477 | 467 | 47.5 | / | 6 | 15kgs | 53*29*37 |
Q1: Are you a factory or trading company ?
A1: Yes,We are the factory which have 15 years manufacture history.
Q2: What is DC Fan and AC fan?
A2: DC fan is power by DC voltage,always is 5V 12V 24V 48V 60V and72V.
AC fan is power by AC voltage,always is 110V,220V and 380V.
Q3: How to choose Fan?
A3: To choose a Fan, you should consider the points below:
a. Fan size b. Fan voltage c. Fan speed
d. Fan bearing type ? ( Sleeve-bearing or Ball-bearing type?)
e. Fan power ( Wattage) f. Fan airflow.
Q4: How long is the warranty?
A4: We Guarantee 1 years warranty.
Q5: What is the delivery time?
A5: Sample lead time:3-5 days
Mass production Delivery lead time: 1 -3 weeks(Depend on the quantity)
Q6: Can you tell me the normal DC fan Model?
A6:
15*15*04mm/ 20*20*06mm / 20*20*10mm/ 25*25*07mm/ 25*25*10mm / 30*30*07mm/ 30*30*10mm / 35*35*10mm/40*40*07mm/ 40*40*10mm /40*40*15mm/ 40*40*20mm / 40*40*28mm /45*45*10mm/ 50*50*10mm /50*50*12mm/ 50*50*15mm/ 50*50*20mm/ 50*50*25mm/ 60*60*10mm/ 60*60*15/ 60*60*20mm/ 60*60*25mm/ 60*60*38mm/70*70*10mm/ 70*70*15mm / 70*70*25mm / 80*80*10mm/ 80*80*15mm / 80*80*20mm/ 80*80*25mm / 80*80*38mm / 92*92*20mm/ 92*92*25mm/ 92*92*38mm/ 120*120*25mm/ 120*120*32mm/ 120*120*38mm/ 127*127*38mm/140*140*25mm/ 150*150*51mm / 172*150*51mm/ 172*172*51mm/ 200*200*20mm/ 200*200*60mm
Q7: Can you tell me the normal AC fan Model?
A7: 80*80*25mm, 80*80*38mm, 92*92*25mm, 92*92*38mm,
110*110*25mm, 120*120*25mm, 120*120*38mm, 135*135*32mm
172*150*38mm, 172*150*51mm, 150*150*51mm, 172*172*51mm,
180*180*61mm, 200*200*60mm, 223*223*61mm, 230*200*65mm,
107*100*30mm, 150*160*60mm, 210*210*70mm 172*150*51mm 225*225*80mm,280*280*80mm, 250*410*90mm, 300*460*100mm,
200mm-600mm External Rotor fan, 130FLJ1 blower
Back to Homepage
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $26 / piece
- 50–99 piece: US $25.9 / piece
- 100–999 piece: US $25.8 / piece
- 1000+ piece: US $25.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
