Key specification for this centrifugal fans: 220V/380V, material Carbon Steel or stainless steel. Everything below is reproduced from the factory data sheet. Made by Zhengzhou Leizhan Technology Paper Machinery Co., Ltd. (15 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Centrifugal Fans
- Voltage: 220V/380V
- Production Capacity: 800L/Min
- Single Equipment Rate Passing Capacity: 800L/Min
- Material: Carbon Steel or stainless steel
- Warranty: 1 Year
- Place Of Origin: Henan, China
Technical Specifications
| Type | Pulping Equipment |
|---|---|
| Working Width | Custom design |
| Production Capacity | 800L/Min |
| Voltage | 220V/380V |
| Plc Brand | Siemens, ABB |
| Computerized | Yes |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Centricleaners, centrifugal cleaner, paper pulp machine, low density cleaner |
| Warranty | 1 Year |
| Key Selling Points | Long Service Life |
| Place Of Origin | Henan, China |
| Weight (Kg) | 120 |
| Brand Name | leizhan |
| Dimension(L*W*H) | Configuration |
| Product Name | Sand removing centricleaners |
| Material | Carbon Steel or stainless steel |
| Machine Type | Remove slag |
| Single Equipment Rate Passing Capacity | 800L/Min |
| Inlet Consistency | 0.4-1.2% |
| Pressure Of Inflow Pulp | 0.3-0.4 mpa |
| Diameter Of Deslagging Outlet | 6-14mm |
| Experience | Since 1980 |
| Keyword | Low Density Cleaner |
| Usage | Paper Mil Machinery |
| Selling Units | Single item |
Product Details

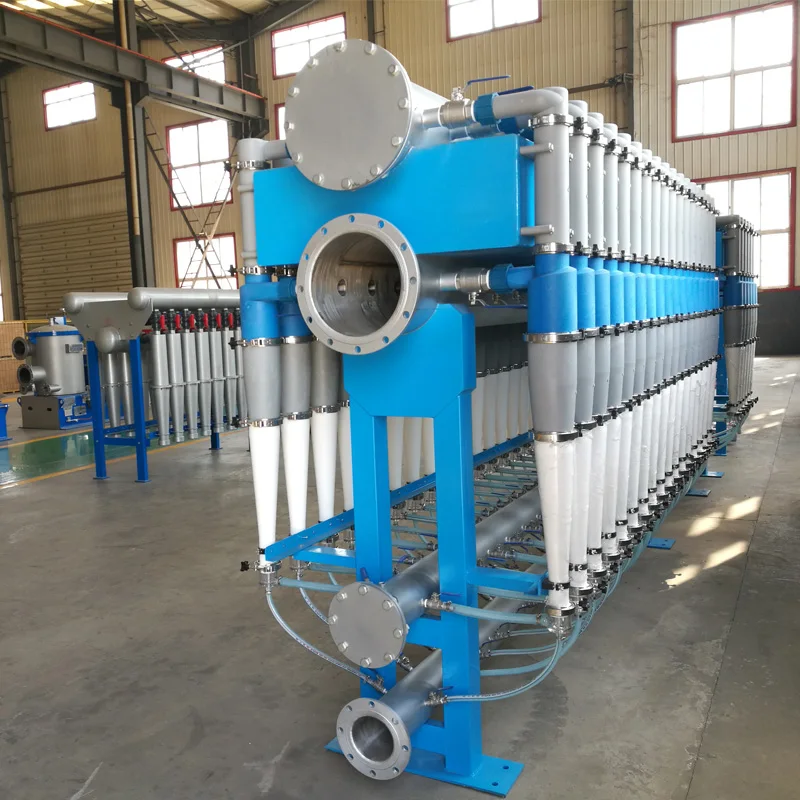

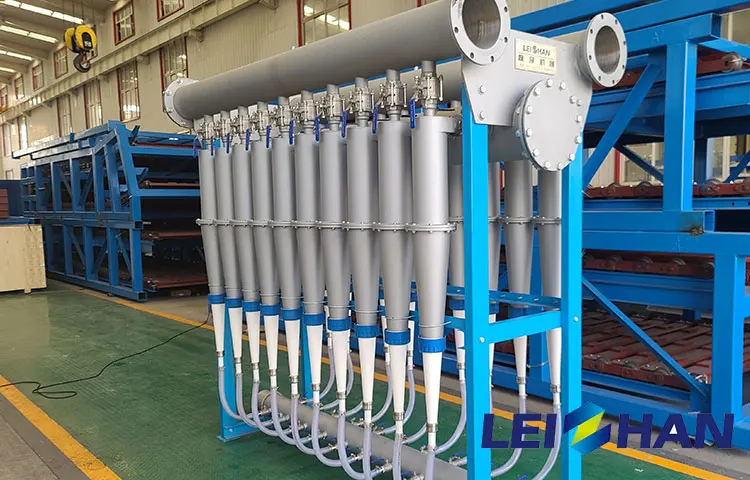

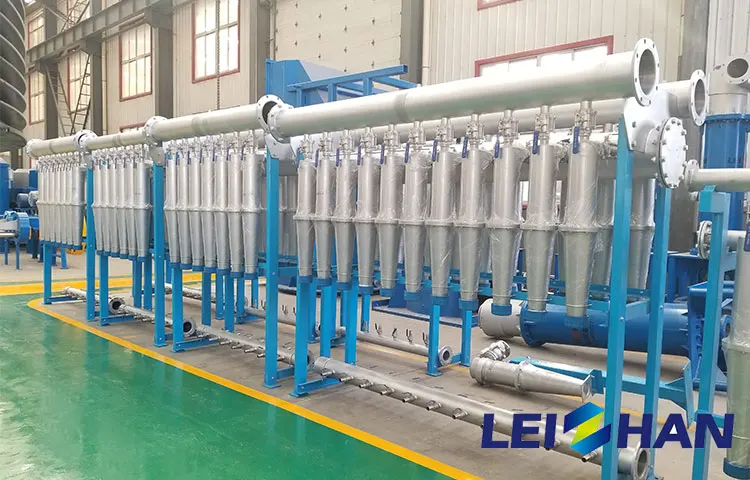

Leizhan Low Density Paper Pulp Centrifugal Cleaner Centricleaners in Paper Mill
Low density cleaner application
This Investors best choice cardboard pulp paper machine, cardboard pulp cleaner is a type of pulping equipment which is used to remove minute rough granules, foams, plastic and so on in the paper pulp manufacturing process. It is widely used for recycled pulp making and egg tray production line.
Low density cleaner main features
1. A stainless steel body, ceramic slag under the cone and mouth, long life.
2. Modular design, easy installation and maintenance.
3. Cleaner efficiency.
Low density cleaner main specification
| Type | KH-400 | KH-600 | KH-800 | KH-1000 | KH-1500 |
| Rate passing capacity of single equipment(l/min) | 400 | 600 | 800 | 1000 | 1500 |
| Inlet consistency(%) | 0.3-1 | 0.3-1.2 | 0.4-1.2 | 0.4-1.5 | 0.4-1.5 |
| Pressure of inflow pulp(mpa) | 0.2-0.4 | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| Diameter of deslagging outlet(mm) | 4-10 | 6-12 | 6-14 | 6-18 | 6-18 |

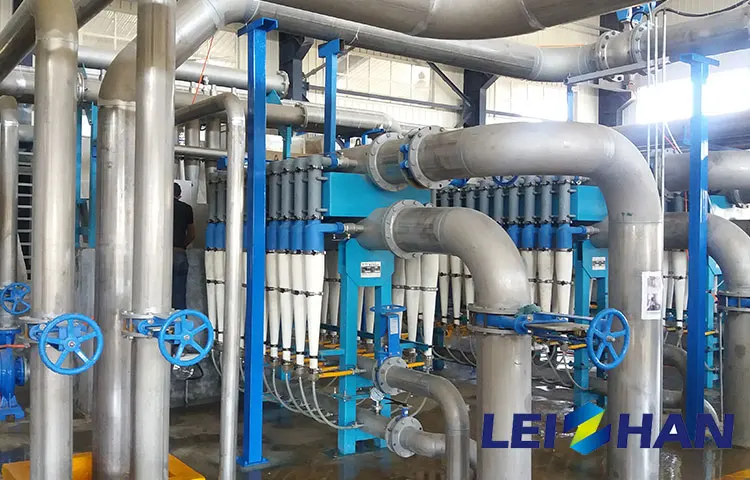

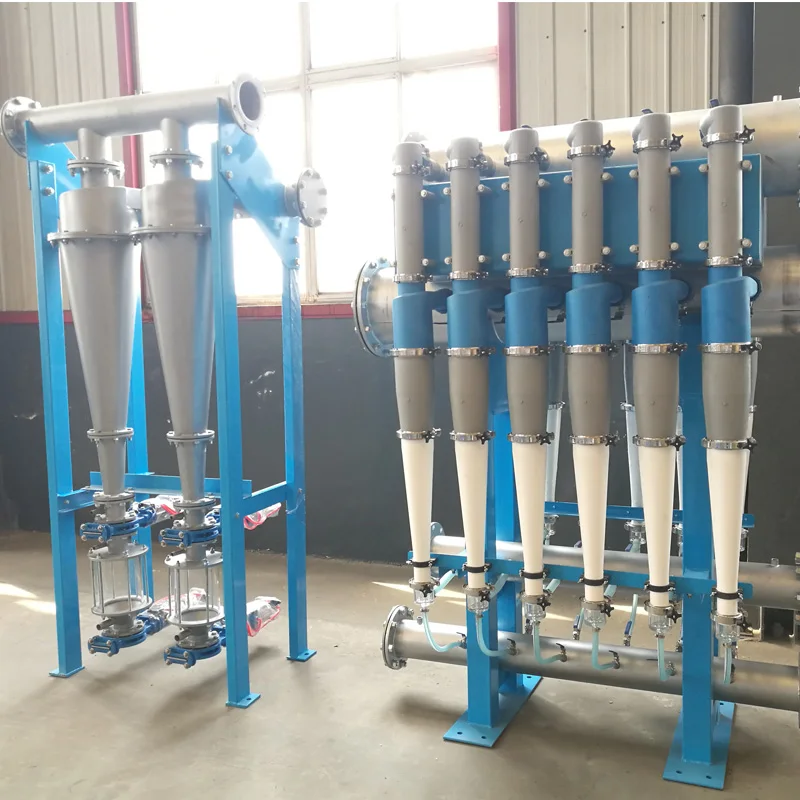

Low density cleaner working site

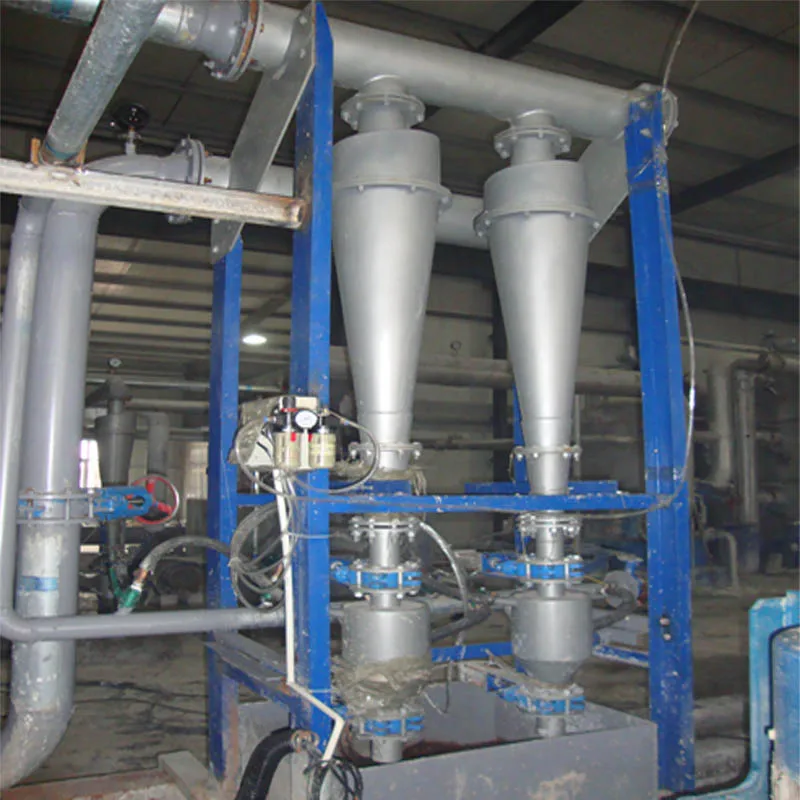

New type heavy impurity cleaner
The Heavy Impurity Cleaner is mainly used for removing heavy impurities like gravel,scrap iron,dust and large ink particles from different kind of pulp.The highested running consistency can reach 2%,reduce fiber loss,improve production capacity,decrease the needed segments and numbers of cleaner.High cleaning efficiency,which avoid the accumulation of ash content in latter sections. High reliability of operation, would not be blocked.
| Type | LZ450 |
| Passing capacity of single equipment(l/min) | 450 |
| Max operating temperature(℃) | 70 |
| Max operating pressure(Mpa) | 0.4 |
| Inlet consistency(%) | ≤2% |
| Washing water flow | 20-60l/min |
Our Customers
We have many customers in Egypt, Middle East, Argentina, Uzbekistan, Turkmenistan, Malaysia, Vietnam, Pakistan , Russia,etc. And we are looking forward to establish cooperation relationship with friends all around the world.We warmly welcome you on-the-spot investigation!
Why Choose us?
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $30000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fans?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fans be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
