Key specification for this circulator projector cooling fan: 1.5w, material quality PBT. Everything below is reproduced from the factory data sheet. Made by Shenzhen Weilishun Technology Limited (16 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Circulator Projector Cooling Fan
- Model Number: FD06010
- Power: 1.5w
- Power Interface: 2PIN
- Electric Voltage: 5V/12V/24V
- Heatsink Material: Plastic
- Material Quality: PBT
Technical Specifications
| Type | Fan |
|---|---|
| Application | Computer Case |
| Fan Size | 60x60x10mm |
| Air Volume | 20 CFM |
| Fan Speed Control | 3500rpm |
| Heatsink Material | Plastic |
| Noise | 16dBA |
| Fan Life | 30000 Hrs |
| Bearing | Oil Bearing |
| Power | 1.5w |
| Power Interface | 2PIN |
| Brand Name | wellsunfan |
| Place Of Origin | Guangdong, China |
| Model Number | FD06010 |
| Size | 60x60x10mm |
| Bearig Type | S/B/C |
| Electric Voltage | 5V/12V/24V |
| Material Quality | PBT |
| Color | Black |
| Connector | 2P/3P/4P |
| CE Certification No | TB11112100 |
| Product Name | Dc Cooling Fan |
| Name | PC Case Fan |
| Selling Units | Single item |
| Single Package Size | 6X6X1 cm |
| Single Gross Weight | 15.000 kg |
Product Details

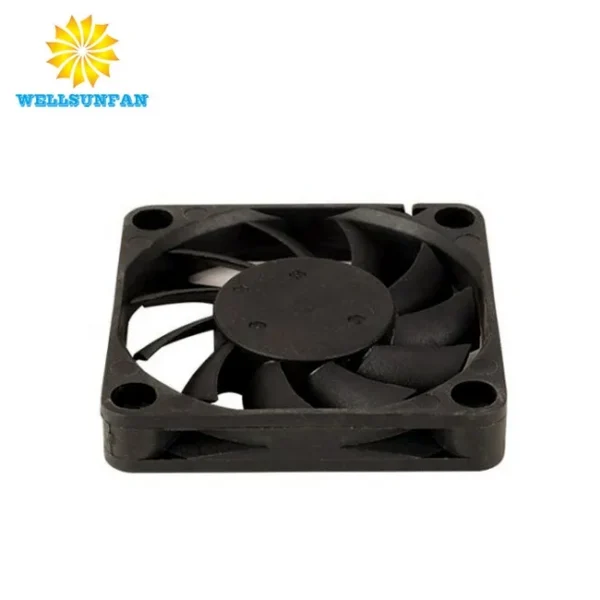

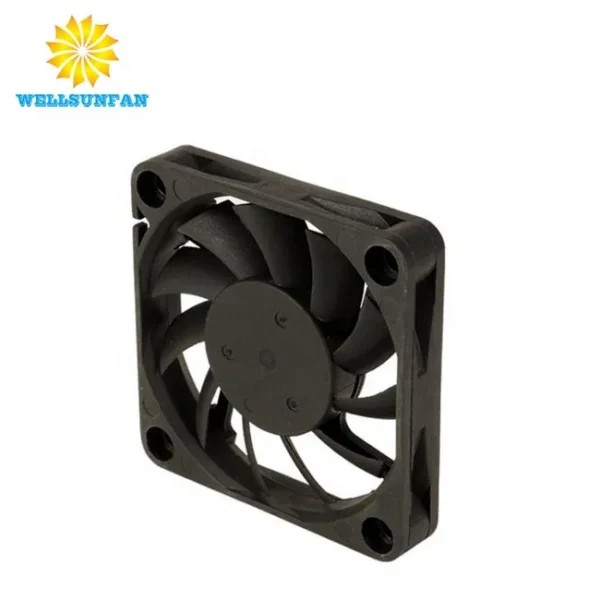

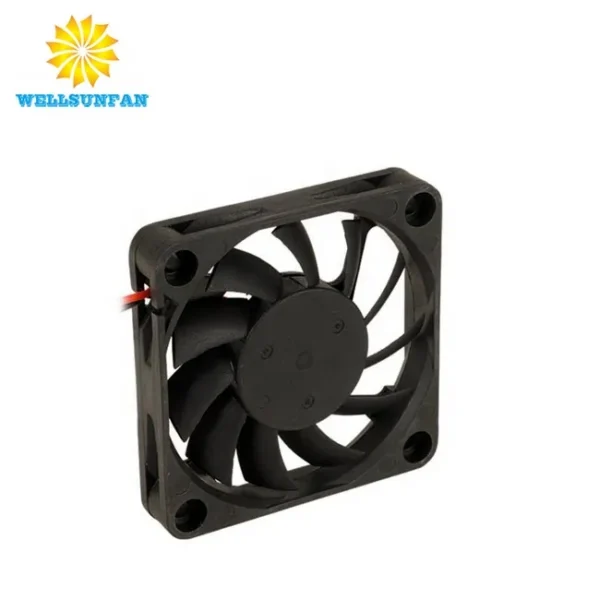

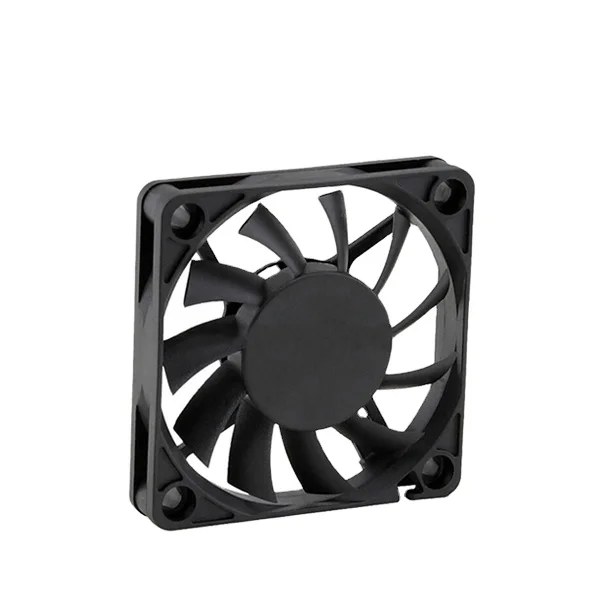

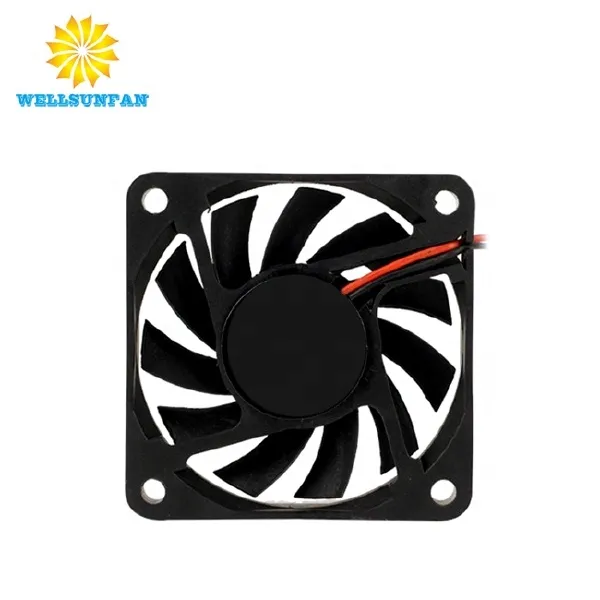

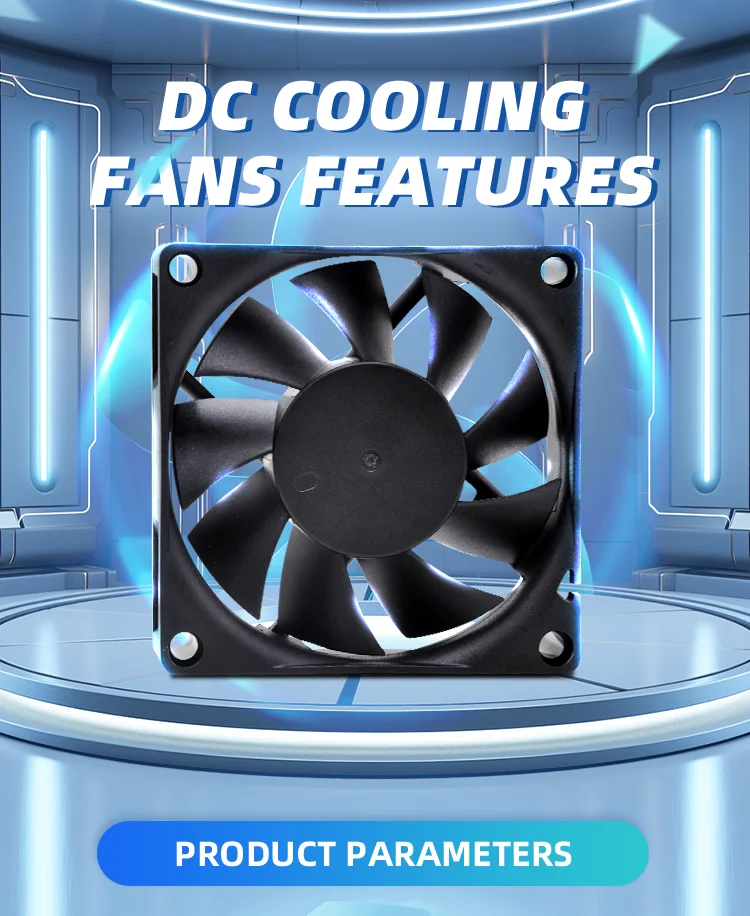

DC FAN 6010 60x60x10mm Features
| Size | 60x60x10mm(2.4×2.4×0.4 inch) |
| Frame | Plastic UL94V0 |
| Impeller | Plastic UL94V0 |
| Lead Wire | UL1571AWG#28 or Equivalent (+) Red, (-) Black |
| Bearings | C=Ball Bearing&S=Sleeve Bearing |
| Life Expectancy | 70,000Hours at 20℃-Ball. 30,000Hours at 20℃-Sleeve |
| Temperature Range | Temperature Range…Operating Temperature -10*C~70'C(Non-condensing) |
| Storage Temperature -40'C~70'C(Non-condensing) | |
| Approvals | UL ETL TUV CE RoHS |
| DC FAN Specials | RD,FG, IP54, PWM |
Cooling Fans Specification
| Model | Bearing System | Rated Voltage | Operating Voltage | Current | Input Power | Rated Speed | Air Flow | Air Pressure | Noise | Weight | |||
| Part No. | S | C | VDC | VDC | A | Watt | R.P.M | CFM | inch-H20 | mm-H20 | dBA | g | |
| FD06010#5H | √ | √ | 5 | 3.5~5.5 | 0.30 | 1.50 | 4000 | 16.63 | 0.10 | 2.54 | 31.8 | 26.0 | |
| FD06010#5M | √ | √ | 5 | 3.5~5.5 | 0.17 | 0.85 | 3000 | 12.34 | 0.06 | 1.52 | 26.4 | 26.0 | |
| FD06010#5L | √ | √ | 5 | 3.5~5.5 | 0.10 | 0.50 | 2000 | 7.96 | 0.03 | 0.76 | 21.5 | 26.0 | |
| FD06010#12E | √ | √ | 12 | 7.0~13.8 | 0.28 | 3.36 | 5000 | 20.95 | 0.16 | 4.06 | 37.5 | 26.0 | |
| FD06010#12H | √ | √ | 12 | 7.0~13.8 | 0.15 | 1.80 | 4000 | 16.63 | 0.10 | 2.54 | 31.8 | 26.0 | |
| FD06010#12M | √ | √ | 12 | 7.0~13.8 | 0.08 | 0.96 | 3000 | 12.34 | 0.06 | 1.52 | 26.4 | 26.0 | |
| FD06010#12L | √ | √ | 12 | 7.0~13.8 | 0.05 | 0.60 | 2000 | 7.96 | 0.03 | 0.76 | 21.5 | 26.0 | |
| FD06010#24H | √ | √ | 24 | 14~27.6 | 0.15 | 3.60 | 5000 | 20.95 | 0.16 | 4.06 | 37.5 | 26.0 | |
| FD06010#24M | √ | √ | 24 | 14~27.6 | 0.10 | 2.40 | 4000 | 16.63 | 0.10 | 2.54 | 31.8 | 26.0 | |
| FD06010#24L | √ | √ | 24 | 14~27.6 | 0.05 | 1.20 | 3000 | 12.34 | 0.06 | 1.52 | 26.4 | 26.0 | |
| All models could be customized on voltage or any other requirements to fit your need. | |||||||||||||
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–999 piece: US $1.89 / piece
- 1000–4999 piece: US $1.05 / piece
- 5000+ piece: US $0.68 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this circulator projector cooling fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this circulator projector cooling fan carry?
It is supplied with TB11112100 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the circulator projector cooling fan be supplied for my local voltage?
The standard configuration is 5V/12V/24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Weilishun Technology Limited, based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Weilishun Technology Limited range on HVACR Nexus.
