Key specification for this cold room refrigeration unit: 220v, cooling capacity -22. Everything below is reproduced from the factory data sheet. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cold Room Refrigeration Unit
- Model Number: SY2S
- Power(W): 1400w(1.88hp)
- Horse Power: 2HP
- Voltage: 220v
- Cooling Capacity: -22
- Tube Material: CopperTube
Technical Specifications
| Cooling Capacity | -22 |
|---|---|
| Voltage | 220v |
| Refrigerant | R404a |
| Compressor Brand | Sanyo |
| Core Components | Motor |
| Warranty | 1 Year |
| Key Selling Points | Easy To Operate, Competitive Price, Long Service Life, Energy Saving, Digital |
| Video Outgoing-Inspection | Not Available |
| Place Of Origin | Jiangsu, China |
| Power(W) | 1400w(1.88hp) |
| Model Number | SY2S |
| Condition | New |
| Weight | 88kg |
| Sale | compressor condenser units |
| Name | freezer condensering units |
| Horse Power | 2HP |
| Model | SH2S |
| Tube Material | CopperTube |
| Selling Units | Single item |
| Single Package Size | 106X120X170 cm |
| Single Gross Weight | 68.0 kg |
Product Details

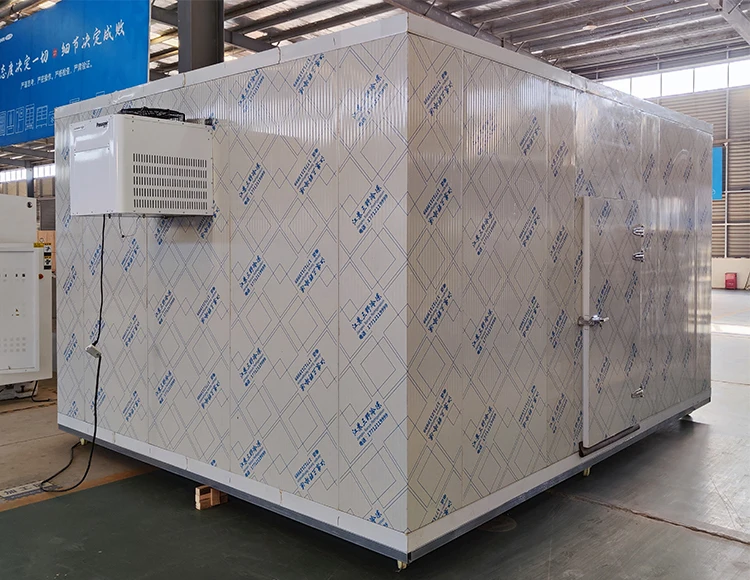

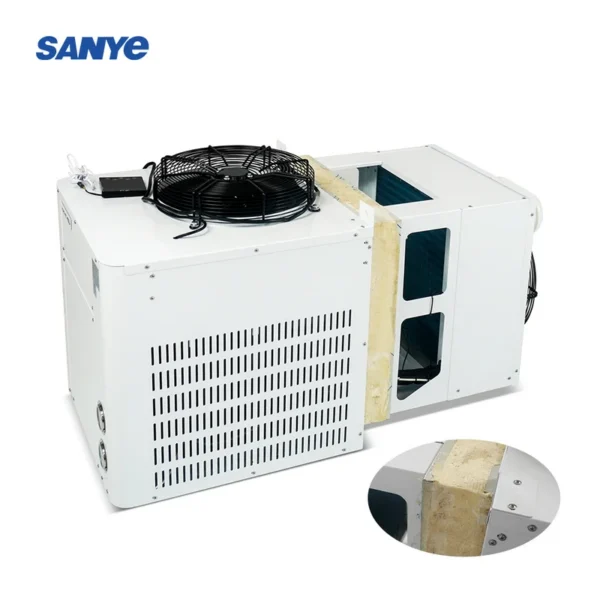

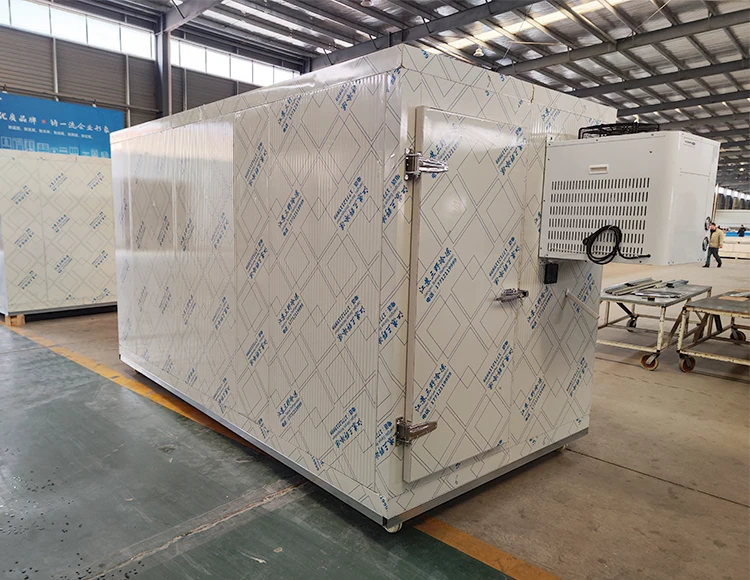

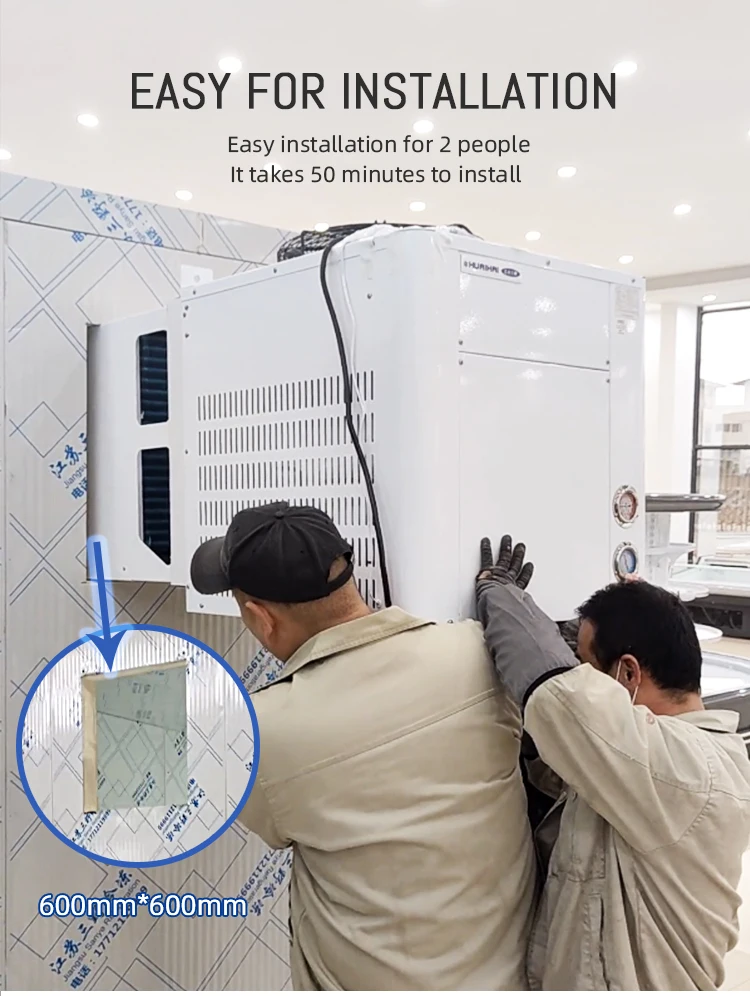

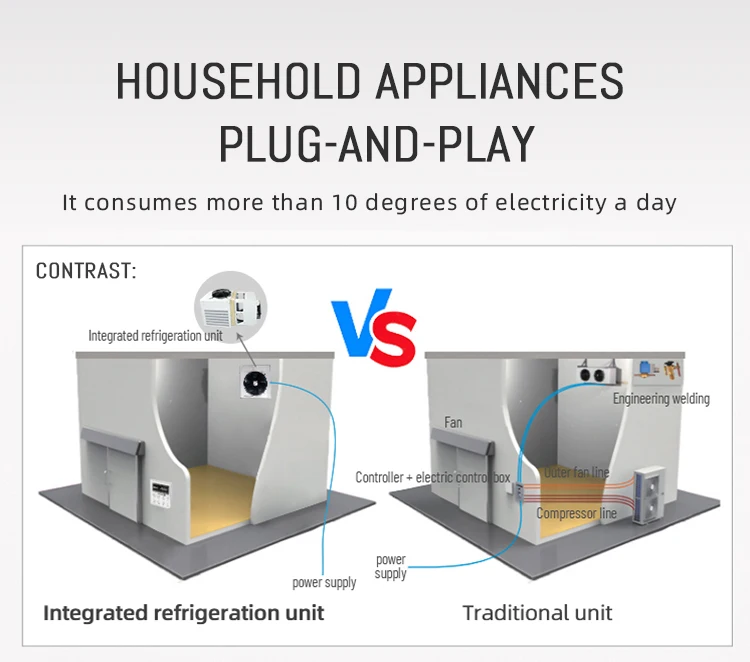

Installation method: When installing, you only need to open a hole in the library body, insert the unit, and connect the power supply. No debugging is required, which greatly reduces the installation time and labor cost
2. Each part is tested by our engineer before shipment.
3. Provide video installation technology.
Model | SH2S(2PH) | SH3S(3PH) | ||||
Cooling condition | Cooling capacity | KW | 3.5 | 5.75 | ||
Power input | KW | 1.4 | 2.3 | |||
Maximum operating current | A | 10 | 18 | |||
Compressor | Type | / | rotor | rotor | ||
Starting current | A | 13.9 | 25 | |||
Qty | EA | 1 | 1 | |||
Refrigerating fluid | Type | / | R22/ R404a | R22/ R404a | ||
Refrigerant throttling device | / | Electronic expansion valve | ||||
Power supply | / | 220V/50HZ | 220V/50HZ | |||

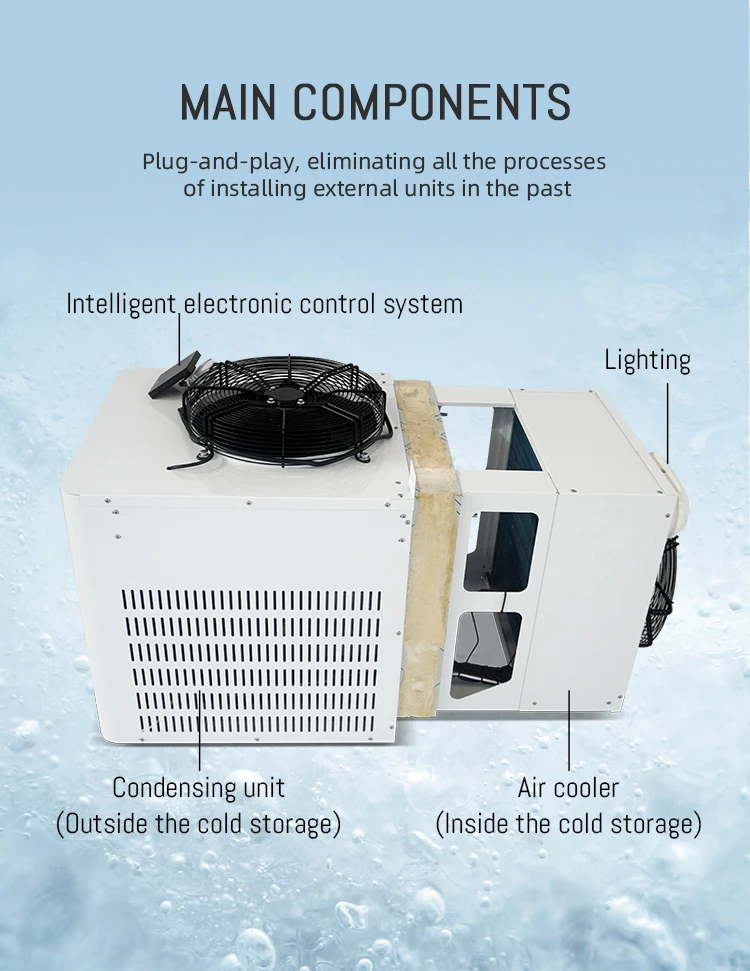

Inside room evaporator | Modality | / | External rotor fan motor | 560*560*450 | ||
Boundary dimension | mm | 560*560*450 | 560*560*450 | |||
Size of fan | mm | ∅400 | ∅400 | |||
Heat exchange area | m² | 16 | 24 | |||
Electric power | W | 180 | 180 | |||
Condenser | Boundary dimension | mm | 690*690*650 | 690*690*650 | ||
Size of fan | mm | ∅400 | ∅400 | |||
Heat exchange area | m² | 20 | 30 | |||
Electric power | W | 180 | 180 | |||
Size | Length | mm | 1390 | 1390 | ||
Wide | mm | 690 | 690 | |||
High | mm | 650 | 650 | |||
Hole size of coldroom board | Length*wide | 600*600 | ||||
Cold storage | SH2S(2PH) | 22cube | ||||
SH3S(3PH) | 30cube | |||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $899 / set
- 10+ set: US $699 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cold room refrigeration unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cold room refrigeration unit be supplied for my local voltage?
The standard configuration is 220v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Sanye Freezer Equipment Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangsu Sanye Freezer Equipment Co., Ltd. range on HVACR Nexus.
