Key specification for this cold room storage: material PVC+polyurethane insulation material, model number cold storage door. Everything below is reproduced from the factory data sheet. Made by Hubei Huanshan Intelligent Technology Co., Ltd. (6 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cold Room Storage
- Model Number: cold storage door
- Motor Power: 0.75KW-2.2KW
- Door Material: PVC
- Main Material: PVC
- Material: PVC+polyurethane insulation material
- Opening Speed: 0.8-2.5M/s, adjustable.
Technical Specifications
| Application | Supermarket, Freezing plant |
|---|---|
| Feature | Thermal Insulation |
| Door Material | PVC |
| Opening Method | Electric Side Opening |
| Design Style | Modern |
| Main Material | PVC |
| Surface Finishing | Finished |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support |
| Project Solution Capability | total solution for projects |
| Door Type | Polymer |
| Place Of Origin | China |
| Brand Name | HS |
| Model Number | cold storage door |
| Product Name | Low cold storage door |
| Color | Customized Color |
| Material | PVC+polyurethane insulation material |
| Lifting Method | Single drum lifting method |
| Opening Speed | 0.8-2.5M/s, adjustable. |
| Closing Speed | not be less than 1.2M/s, adjustable |
| Motor Power | 0.75KW-2.2KW |
| Track Thickness | 3mm |
| Applicable Temperature | +20 ° C~-35 ° C |
| Selling Units | Single item |
| Single Package Size | 360X80X80 cm |
| Single Gross Weight | 350.000 kg |
Product Details
Products Description

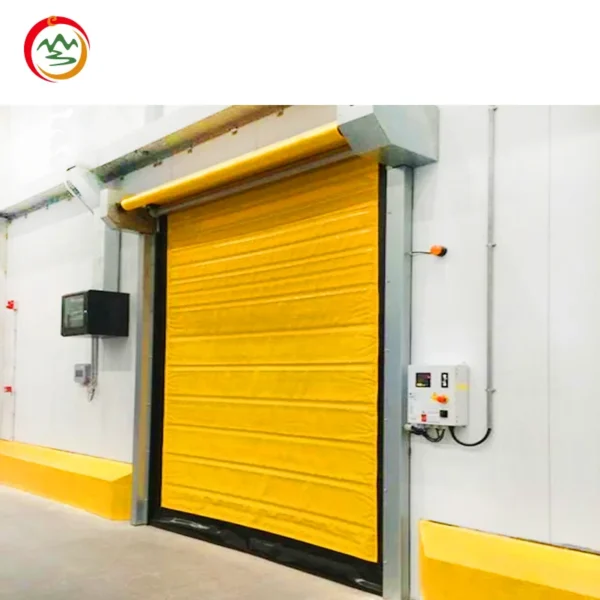

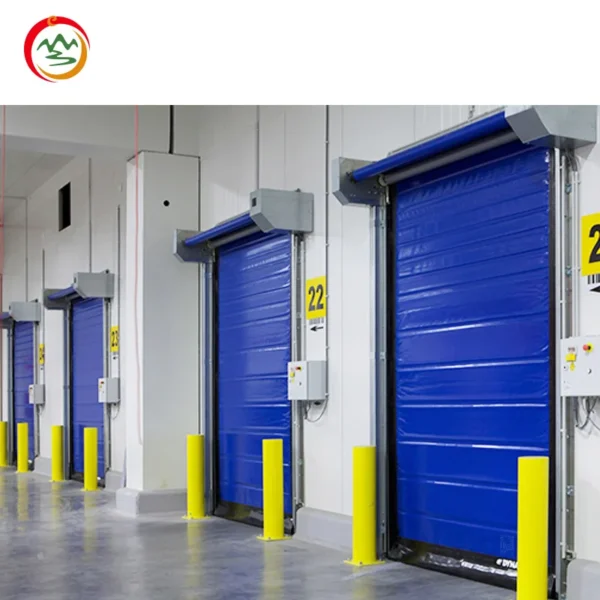

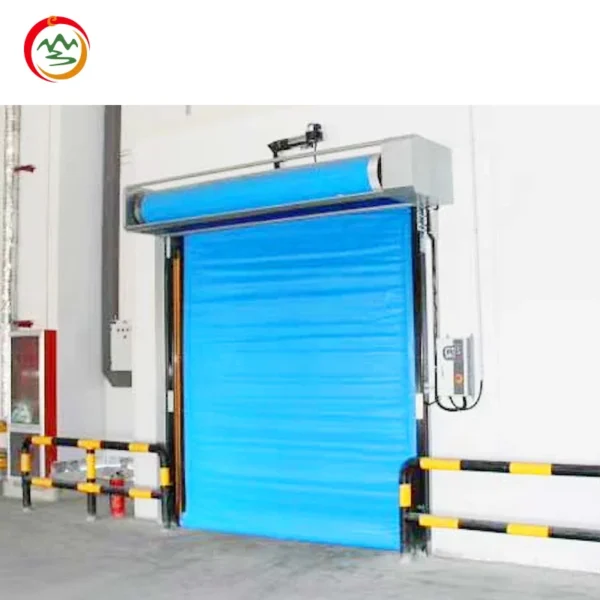

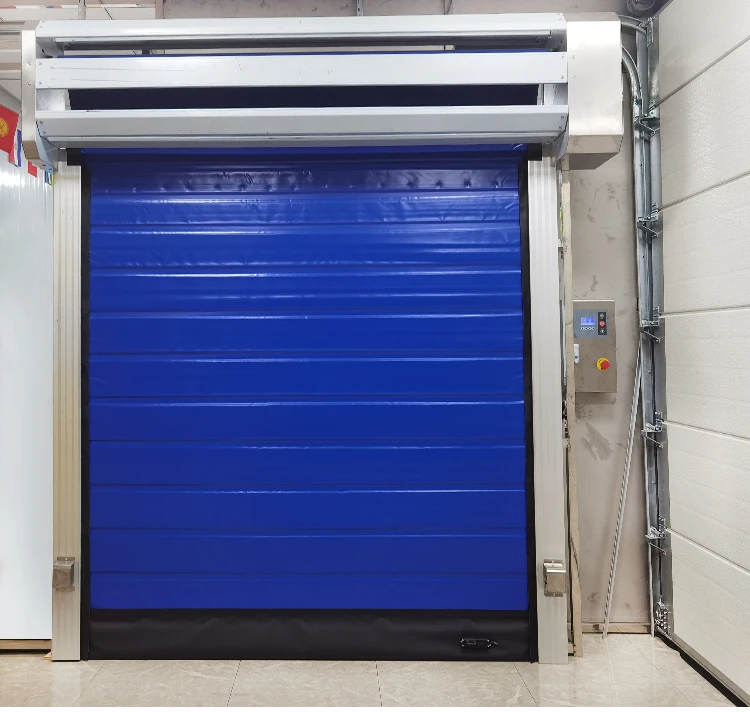

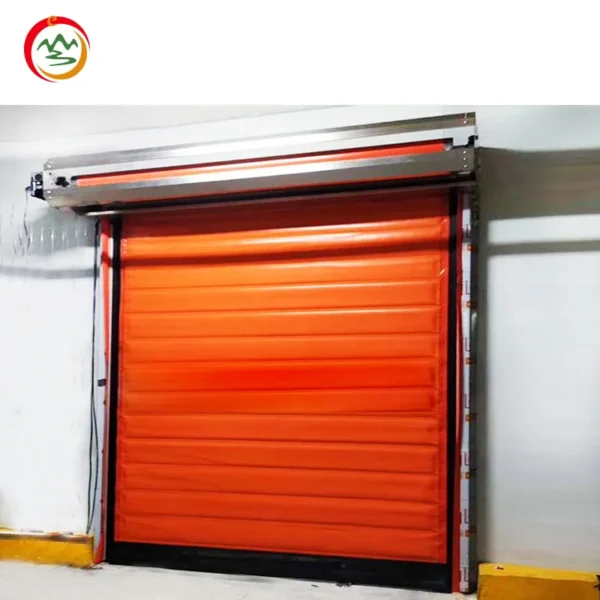

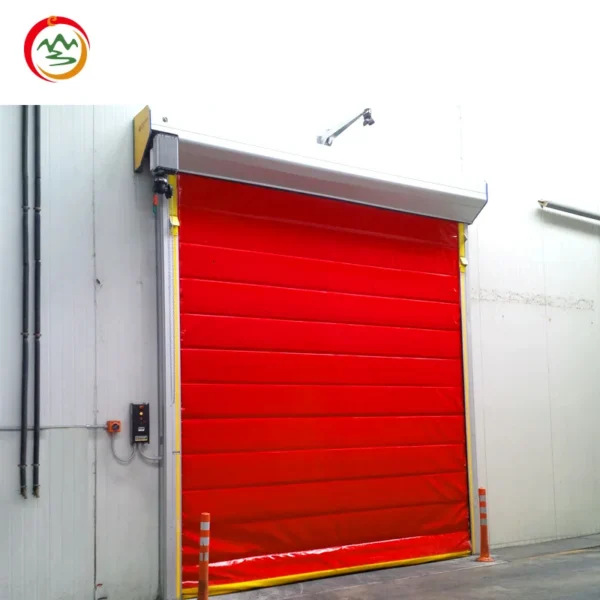

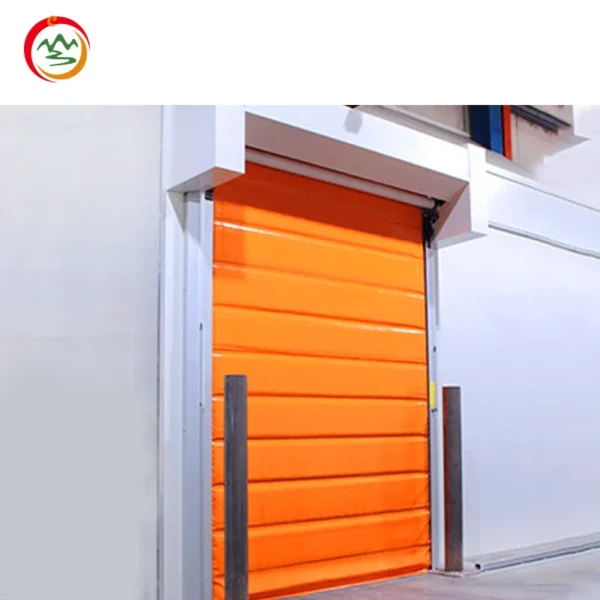

Room temperature quick cold storage door
Low temperature cold storage fast doors are mainly used in smart livelihood engineering projects. The company combines servo technology, sensing technology, and communication technology to make cold storage door products intelligent, technological, digital, modular, and user-friendly. While ensuring safe and stable operation, it focuses on providing energy-saving solutions for fresh storage, refrigeration, and refrigeration logistics channels. Committed to assisting cold chain logistics enterprises in improving work efficiency in cold storage areas and saving energy operating costs.

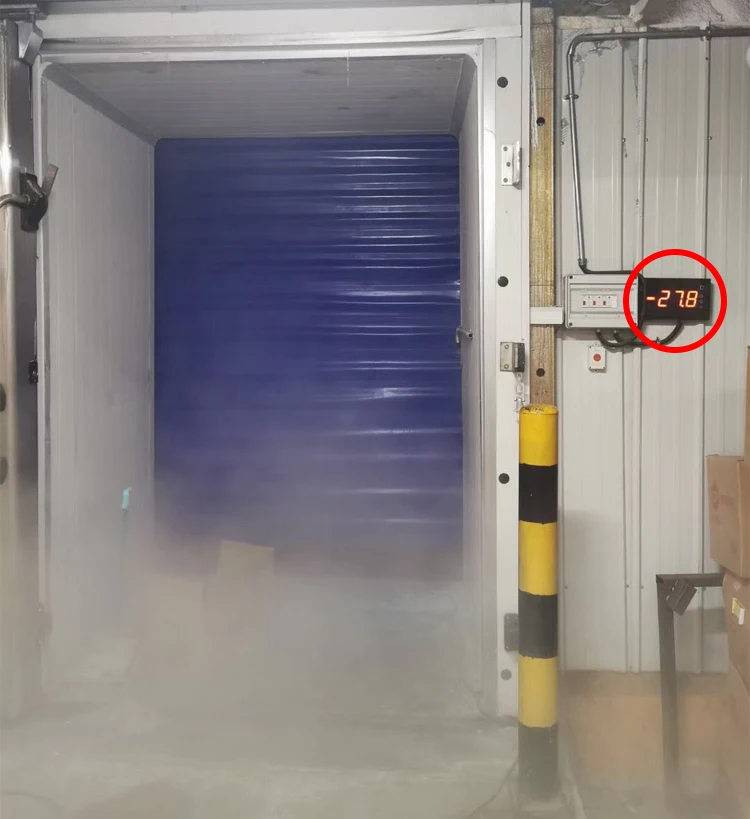

Heating and antifreeze device | The design and application of the heating mechanism avoids the freezing of the guide rail caused by the frequent operation of the door body, further ensuring the stable operation and efficiency of the door body in a low-temperature environment, with a working temperature ranging from -40 ° C to ~ 0 ° C. Imported heating line. |
Lifting method | Double drum lifting method |
Opening speed | The maximum opening speed is 0.8-1.5M/s, adjustable. |
Closing speed | The closing speed shall not be less than 0.6M/s and can be adjusted. |

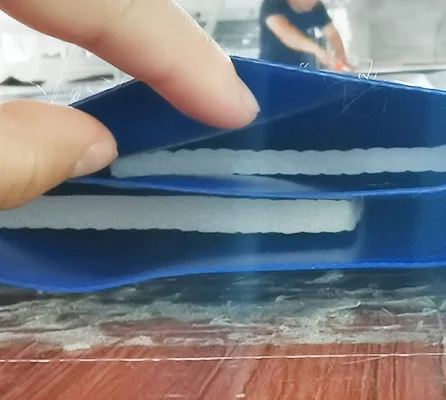

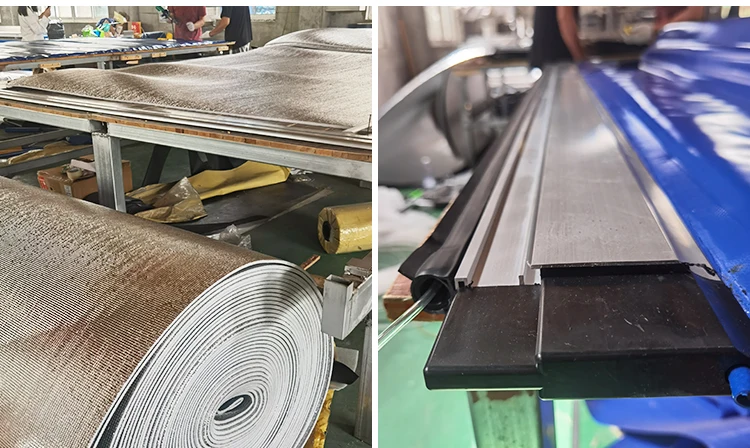

Door curtain | The entire door curtain has 5-6 layers, with thickened PVC insulation inside and outside. The sandwich is made of special insulation materials, with a total thickness of 15mm-25mm; Special PVC sealing is used on both sides, with good sealing performance to prevent the leakage of cold air and the entry of hot air. There are various colors available for customers to choose from. |

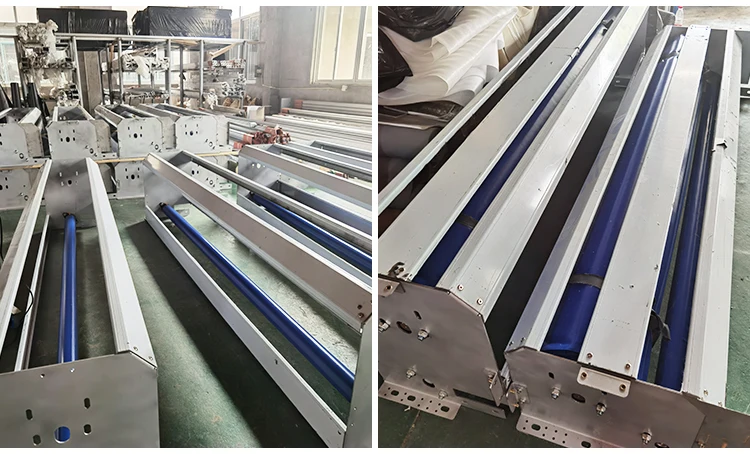

Track | The track is made of aluminum alloy material, with a thickness of 3.0mm; The cover box frame is made of 304 stainless steel material. |
Insulation protection of door components | The control box (stainless steel) and other components must meet IP64 or above and comply with various national electrical safety standards, and can be waterproof and dustproof even when used in harsh environments. |
Control system | Baojiu low-temperature resistant special stainless steel control box |
Motor | Baojiu low-temperature resistant stainless steel control motor with a power of 1.5 kW |
Limit mode | Electronic limit mode, which can be directly set in the control box; At the same time, the main accessories of the electronic limit switch use a multi turn absolute encoder to ensure stability and reliability. |
Wind resistance strength | In the door operation guidance system, the door curtain guide components, door curtains, and guide rails are closely matched, and the material has strong wear resistance, ensuring the overall wind resistance. It can meet the national standard wind resistance level of 6-8 |
Sealing performance | The structural design and application of the top and bottom seals of the door body can effectively isolate the air pressure convection on both sides of the door body, further enhancing the airtightness performance. |

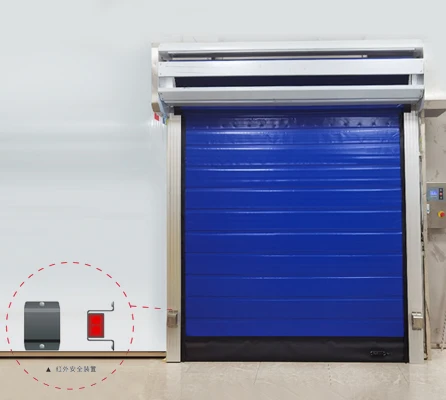

Safety devices | 1. Infrared safety protection: There are radio eyes on both sides of the door frame, and there are objects below the quick door to keep it open; When an object passes through the lower part of the door when it descends, the door will open to its full open position, and the descent will be delayed when there are no obstacles below. 2. Bottom safety protection edge: When the door body is descending and the object is in the blind area of infrared safety protection, when the door body is pressed against the obstacle below, the door body's signal speed rebounds at the most open door, effectively protecting the object or pedestrian below the door from accidents. (Standard configuration) |
Product details
Details Images
Company Profile
Why Choose Us
packing shipping and payment
FAQ
1. How can I buy the doors?
If you want buy Cold storage fast door, we need know your door open size, than contact us for doors drawing and price.
2. What's our payment terms?
T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
3. What's the delivery time?
Within 15-35 days after we confirm you requirement.
4.I can't install the doors.
No worries, it's very easy, we have installation vedio, manual books and technician on line supports. If need we go to the work site to installation, please contact sales for the service.
5. I never imported from China.
No worries. Our sales are rich experience, they will help you with imported step by step.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–29 set: US $2799 / set
- 30–49 set: US $2699 / set
- 50+ set: US $2550 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cold room storage?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
