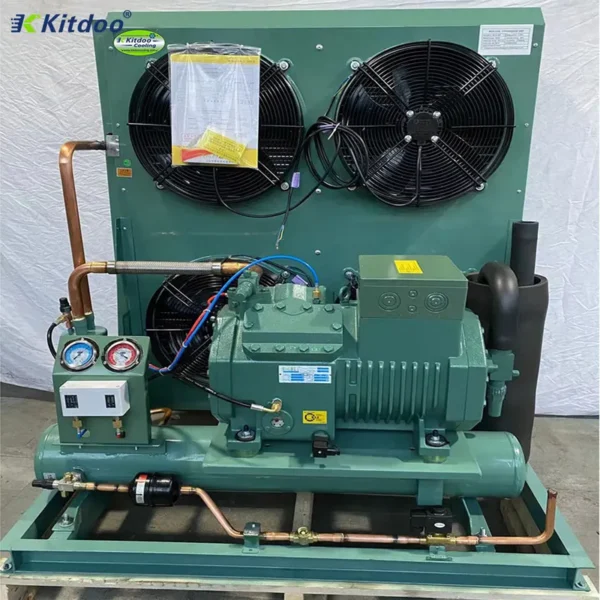

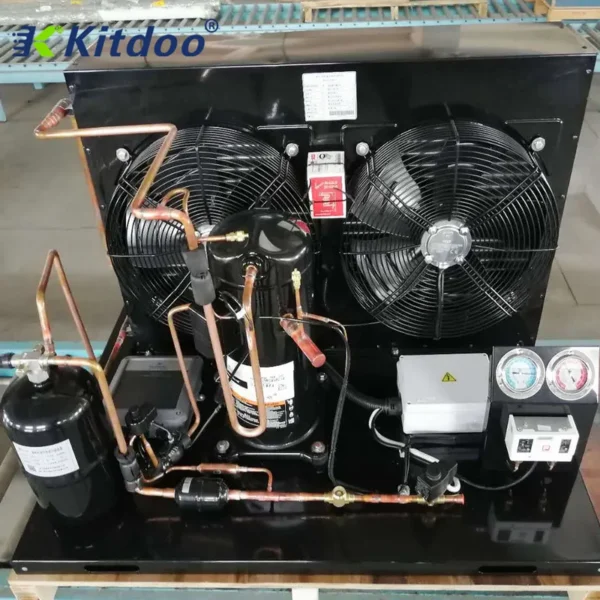

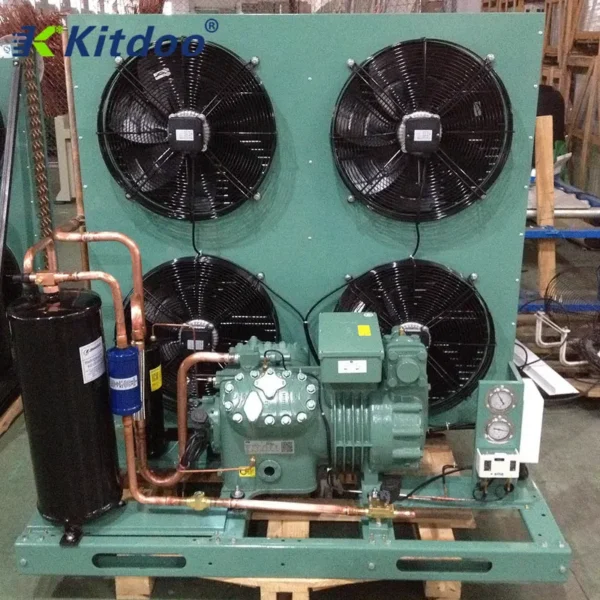

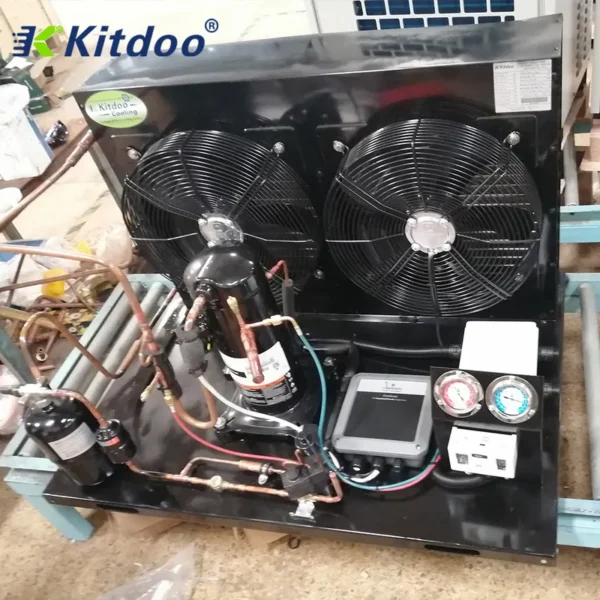

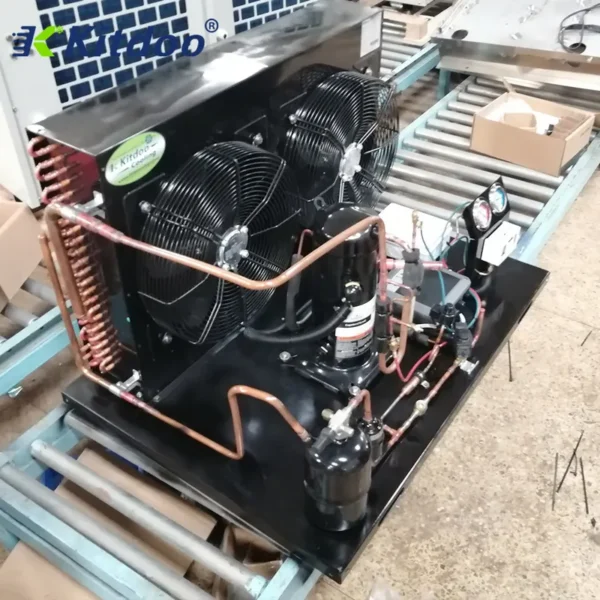

Condensing unit — 220 V, 380 V, 10KW. The complete factory specification follows. Made by Foshan Kitdoo Refrigeration Equipment Co., Ltd. (2 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Condensing Unit
- Model Number: 2hp-30hp
- Voltage: 220 V, 380 V
- Cooling Capacity: 10KW
- Refrigerant: R22/R410/R404A/R454B
- Application Refrigerant: R22/R404A/R410/R454B
- Warranty: 1 Year
Technical Specifications
| Cooling Capacity | 10KW |
|---|---|
| Temperature | -20-8c |
| Voltage | 220 V, 380 V |
| Compressor Type | semi-hermetic |
| Refrigerant | R22/R410/R404A/R454B |
| Compressor Brand | Bitzer |
| Core Components | compressor, condenser |
| Warranty | 1 Year |
| Key Selling Points | High-Accuracy, High Productivity |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 100 |
| Model Number | 2hp-30hp |
| Product Name | Condensing unit |
| Color | blue/black/green |
| Function | Cooling Refrigeration Unit |
| After-Sales Service Provided | Online Support |
| Shipping Port | Guangzhou/Foshan/Shenzhen |
| Application | Cold Storage Room Freezer Room |
| Application Refrigerant | R22/R404A/R410/R454B |
| Cold Room Temperature | +5 to -25 degree |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description
The Condenser Unit has undergone continuous design optimization, and the unit has a high energy efficiency ratio. The Air
Condenser Unit adopts high-quality large-brand motors with low noise during operation. The product panel is easy to disassembleand assemble, convenient for maintenance.
1.Condensing Unit Suitable for hotel kitchen, electronic chemicals, agriculture and other industries.
2.Design appearance, easy installation, high efficiency, low noise, more suitable for residential needs a more quiet place to use.
3.Using copper tubes and aluminum condenser, heat transfer efficiency, long life.
4.Products can choose common refrigerant R22, or choose environmentally friendly refrigerant R404A.
Technical parameters of Semi-Hermetic medium and high temperature compressor condensing unit | ||||||||||||||||||
Matching compressor model | 2CC-4.2M | 4FC-5.2/Y | 4EC-6.2/Y | 4DC-7.2/Y | 4CC-9.2M | 4VCS-10.2M | 4TCS-12.2N | 4PCS-15.2N | 4NCS-202N | |||||||||
Nominal cooling capacity of unit | 8700/9520 | 9900/10520 | 12200/13300 | 14900/15770 | 18000/19140 | 19800/20500 | 23900/24800 | 28500/29800 | 33000/34400 | |||||||||
Unit in put power (KW) | 3.6/4.21 | 4.2/4.7 | 5.1/5.9 | 6.4/7.1 | 7.6/8.6 | 7.9/8.9 | 9.4/10.6 | 11/12.3 | 13/14.4 | |||||||||
Power Supply | 3PH-380V-50Hz | |||||||||||||||||
Cryogen | R22/R404A | |||||||||||||||||
Air volume(m³/h) | 5350 | 8860 | 8390 | 11500 | 11200 | 14400 | 14200 | 21000 | 20500 | |||||||||
Fan diameter *number | 450*2 | 450*2 | 450*2 | 500*2 | 500*2 | 500*2 | 500*2 | 630*2 | 630*2 | |||||||||
Reservoir volume (L) | 6 | 8 | 8 | 12 | 12 | 14 | ||||||||||||
Diameter of liquid connecting pipe of unit (mm) | 12 | 12 | 12 | 16 | 16 | 16 | 22 | 22 | ||||||||||
Diameter of air return connecting pipe of unit (mm) | 22 | 22 | 22 | 28 | 28 | 28 | 28 | 35 | 35 | |||||||||
Unit size (L*D ·h)mm | 260680700 | 1260680Y900 | 260680900 | 5608801000 | 560881000 | 56080105 | 5608801105 | 19109601205 | 9109601205 | |||||||||
Operating temperature range of unit | Evaporation temperature range:7~-15℃,Inlet air temperature<43℃ | |||||||||||||||||
Technical parameters of Semi-Hermetic medium and low temperature compressor condensing unit | ||||||||||||||||||
Matching compressor model | 4EC-4.2/Y | 4DC-5.2/Y | 4VCS-6.2/MY | 4TCS-8.2M | 4PCS-10.2/MY | 4NCS-122N | 4J-13.2N | 4H-15.2/Y | 4G-20.2M | |||||||||
Nominal cooling capacity of unit | 5700/5840 | 6700/7170 | 9000/9090 | 1090/1330 | 12700/2940 | 15000/14990 | 16300/17670 | 18800/20900 | 22000/24100 | |||||||||
Unit in put power kw | 3.9/4.2 | 4.5/5.1 | 5.3/6.0 | 6.7/7.4 | 7.6/8.5 | 9.2/10.2 | 9.4/12.1 | 12.2/14.5 | 14.2/16.5 | |||||||||
Power Supply | 3PH-380V-50Hz | |||||||||||||||||
Cryogen | R22/R404A | |||||||||||||||||
Air volumem m³/h | 3780 | 5655 | 5535 | 8813 | 8549 | 11861 | 11640 | 114400 | 14200 | |||||||||
Fan diameter *number | 350*2 | 450*2 | 450*2 | 450*2 | 450*2 | 500*2 | 500*2 | 550*2 | 550*2 | |||||||||
Reservoir volume (L) | 6 | 8 | 8 | 14 | 14 | 14 | 14 | 23 | 23 | |||||||||
Diameter of liquid connecting pipe of unit (mm) | 12 | 12 | 12 | 16 | 16 | 16 | 16 | 22 | 22 | |||||||||
Diameter of air return conneting pipe of unit (mm) | 22 | 28 | 28 | 35 | 35 | 35 | 35 | 42 | 42 | |||||||||
Unit size (L*D*h)mm | 1060'680'600 | 1260'680700 | 1260680'700 | 1260680'900 | 1260'680'900 | 560880000 | 15608801000 | 56080′1005 | 1560801005 | |||||||||
Operating temperature range of unit | Evaporation temperature range:-10~-40℃,Inlet air temperature<43℃ | |||||||||||||||||
Ordering and Pricing
- Minimum order quantity: 1 unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condensing unit?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the condensing unit be supplied for my local voltage?
The standard configuration is 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Foshan Kitdoo Refrigeration Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, Trading Company. Browse the full Foshan Kitdoo Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
