Key specification for this condensing unit: 380V/3PH/50HZ, 1.5KW-120KW(2.01hp-160.92hp). Everything below is reproduced from the factory data sheet. Made by Shengzhou Lanco Refrigeration Equipment Co., Ltd. (10 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Condensing Unit
- Model Number: LK-AW
- Power(W): 2-50HP
- Voltage: 380V/3PH/50HZ
- Cooling Capacity: 1.5KW-120KW(2.01hp-160.92hp)
- Material: Galvanized Steel
- Refrigerant: R404A/R134A etc
Technical Specifications
| Cooling Capacity | 1.5KW-120KW(2.01hp-160.92hp) |
|---|---|
| Voltage | 380V/3PH/50HZ |
| Refrigerant | R404A/R134A etc |
| Compressor Brand | Copeland |
| Core Components | Motor |
| Warranty | 1 Year |
| Key Selling Points | Eco-Friendly, High-Accuracy, Easy To Operate, Competitive Price, High Productivity, Other |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Zhejiang, China |
| Power(W) | 2-50HP |
| Model Number | LK-AW |
| Name | Wall Mounted Type Copeland Cold Room Condensing Unit Made In China |
| Color | White/Black |
| Compressor | Copeland Compressor |
| Frame | Stainless Steel /GI steel |
| Cooing Tpe | Air Cooled Type |
| Material | Galvanized Steel |
| Test Pressure | 2.8Mpa |
| Applicable Industries | hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Condition | New |
| Warranty Of Core Components | 1 Year |
| Weight | 160 |
| Year | 2024 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

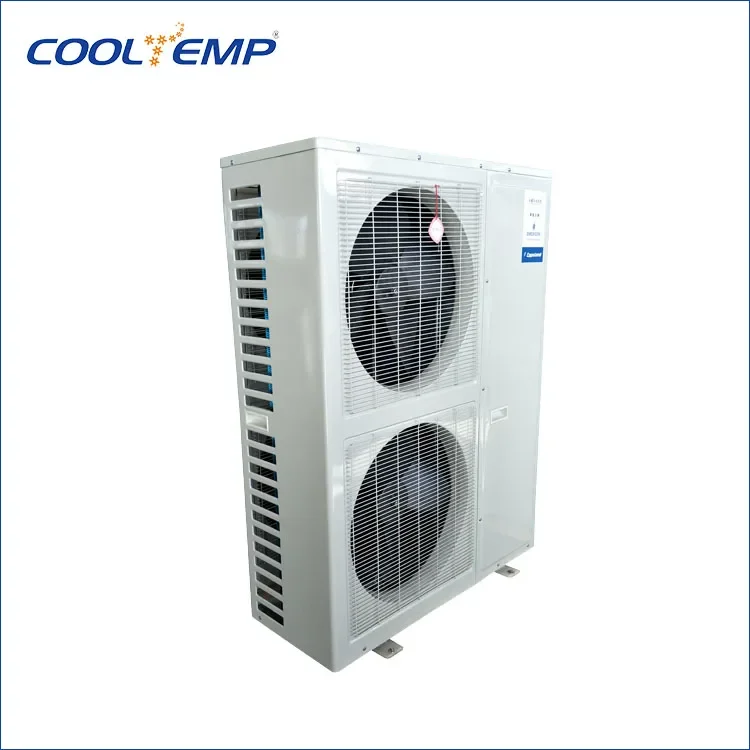

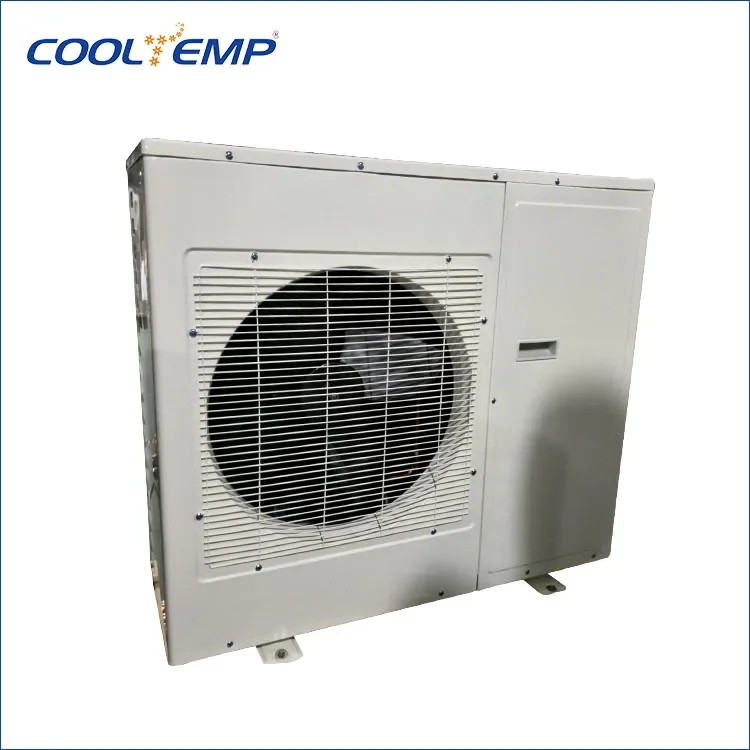

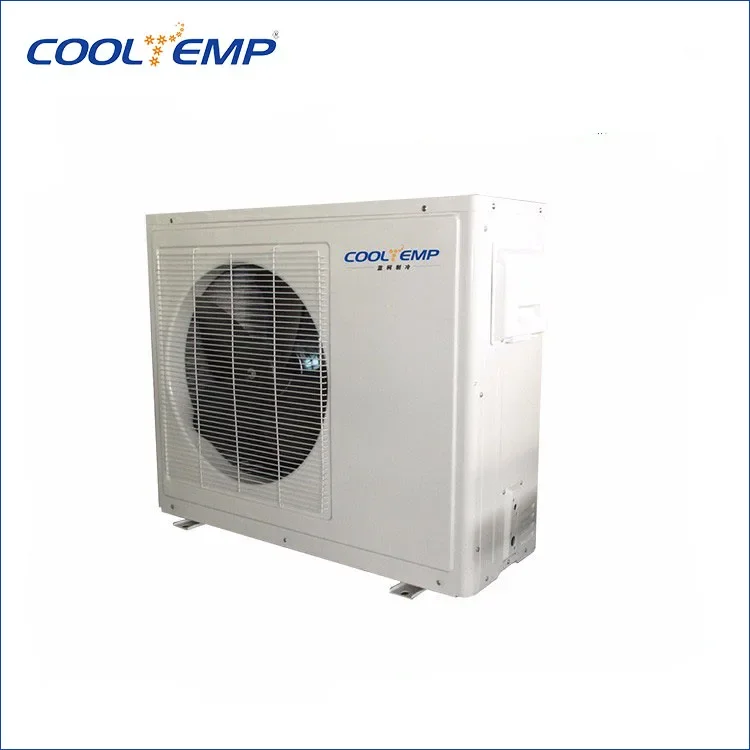

Wall Mounted Type Copeland Cold Room Condensing Unit Made In China
LK-AW Wall Mounted type Condensing Unit is specially designed for meeting the demand of the market ; using relable copper tube and aluminum heat exchanger and build in premium refrigeration fittings ;
It's compact in structure ,original in design ,elegant in style,long in life,easy for installation;
It's widely applied to refrigeration equipment for cold storage and food showcase etc area.
Main Technical Parameters:
| Model | Compressor | Power Supply | Fan | Specification Of Connection Tube | |||||
| Model | Nominal Power(HP) | Cooling Capacity(W) | 3PH 380V 50HZ | Dia(mm) | Air Flow(m3/h) | Power(W) | Gas Return(mm) | Outlet(mm) | |
| LK-AW02H | ZB15KQ | 2HP | 5500 | 420 | 3200 | 60 | 16 | 10 | |
| LK-AW03H | ZB21KQ | 3HP | 7900 | 450 | 5800 | 60 | 16 | 10 | |
| LK-AW04H | ZB29KQ | 4HP | 10620 | 450 | 2*5800 | 2*60 | 22 | 12 | |
| LK-AW05H | ZB38KQ | 5HP | 13100 | 450 | 2*5800 | 2*60 | 22 | 12 | |
| LK-AW06H | ZB45KQ | 6HP | 16000 | 450 | 2*5800 | 2*60 | 28 | 16 | |
Installing Size:
| Model | Dimension(mm) | Installation Size(mm) | Installation Hole | |||
| L | W | H | L | W | ||
| LK-AW02H | 860 | 310 | 650 | 630 | 350 | Φ13 |
| LK-AW03H | 950 | 340 | 850 | 625 | 380 | Φ13 |
| LK-AW04H | 950 | 340 | 1260 | 625 | 380 | Φ13 |
| LK-AW05H | 950 | 340 | 1260 | 625 | 380 | Φ13 |
| LK-AW06H | 950 | 340 | 1260 | 625 | 380 | Φ13 |
Click here to get more details
♣.We Offer many types packages to meet customers' requirements according to different products,and we design reasonable loading way to arrange containers to be fill with all goods as order.
♣.We and our professional shipping agents work together for many years ,we always can get a competitive price and best service for many shipping lines.
Why We Say We Should Be Your Preferred Supplier ?
Service:
We put our Customer first no matter Big or Small,Your Business is most important to us We are here to support you.
Technology
With the support of a Competent R & D team giving strong technical support to help you make your job more easy.

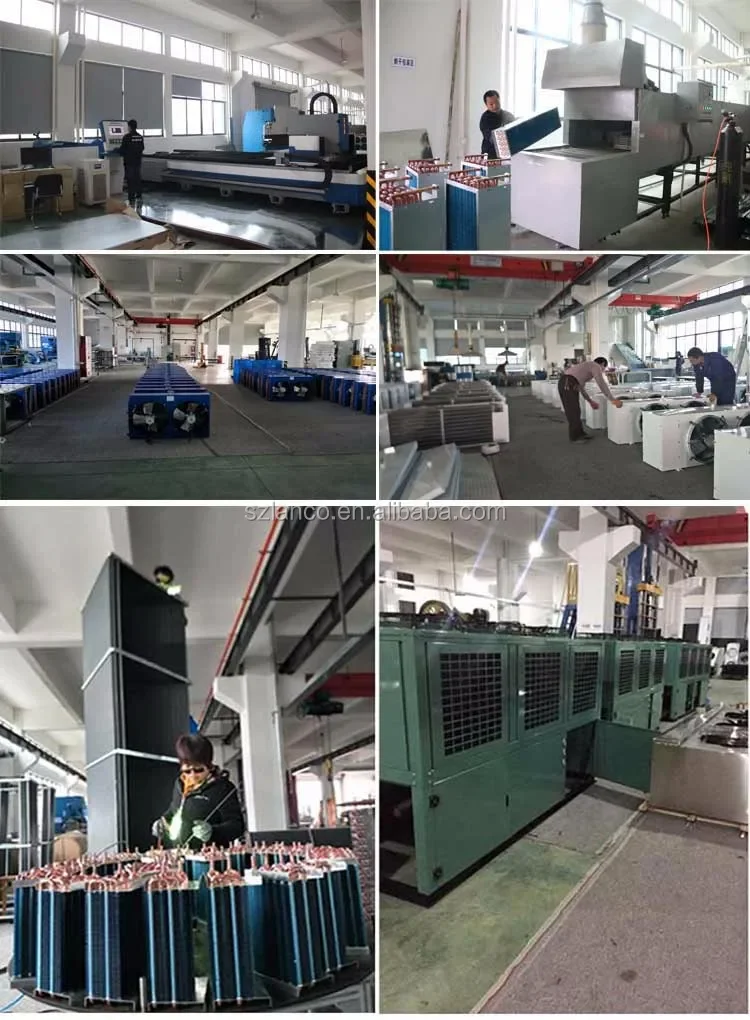

Factory Equipment
we have a fully fitted factory for sheet metal processing offering a range of materials to suit the what the Customer demands are.
Coil heat exchanges manufacturing offering rang fin profiles and material required from flat type to hydrophilic fin coil where corrosion control is required.Fully painting service either our standard choice Blue ,Green,Black,White or Customized to your Choice.
Sales Marketing
Are Customer Focused Solve purpose of bringing you an easy pleasant company to deal with.
Factory Location Advantage
We are Closed to Shanghai, Ningbo,Hangzhou,Yiwu etc City ,it takes around 1.5 – 3 hours to our factory from one of those cities by car, and it takes 2 hours from Guangzhou/Shenzhen to our airport(Hangzhou xiaoshan airport),Welcome to visit Us When you are avaliable.
♣.We Manufacture Work of Arts for HVAC System in our Standard Workshop.
Back To Homepage
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condensing unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the condensing unit be supplied for my local voltage?
The standard configuration is 380V/3PH/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shengzhou Lanco Refrigeration Equipment Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shengzhou Lanco Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
