The condensing unit listed here carries 380V/3PH/50HZ, cooling capacity 2~40HP, documented exactly as the manufacturer publishes it. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Condensing Unit
- Voltage: 380V/3PH/50HZ
- Cooling Capacity: 2~40HP
- Tube Material: Copper
- Refrigerant: R404A/R507/R22
- Warranty: 1 Year
- Certification: ce
Technical Specifications
| Warranty | 1 Year |
|---|---|
| Place Of Origin | Zhejiang, China |
| Applicable Industries | hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Condition | New, New |
| Type | Compressor |
| Certification | ce |
| After-Sales Service Provided | Online support |
| Color | White/Blue/Black/Green Opotional |
| Cooling Capacity | 2~40HP |
| Fan | Axial Fan |
| Refrigerant | R404A/R507/R22 |
| Voltage | 380V/3PH/50HZ |
| Compressor Brand | Bitzer Brand |
| Tube Material | Copper |
| Item 1 | Bitzer Cold Room Condensing Unit |
| Item 2 | Bitzer Condensing Unit |
| Brand Name | COOL TEMP |
| Packaging Details | Condensing Unit Is Packaged in Wooden Case/Plywood Case. |
| Port Of Dispatch | Ningbo/Shanghai China |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 300 pieces per Week OEM,ODM,AGENTS WELCOME |
Product Details

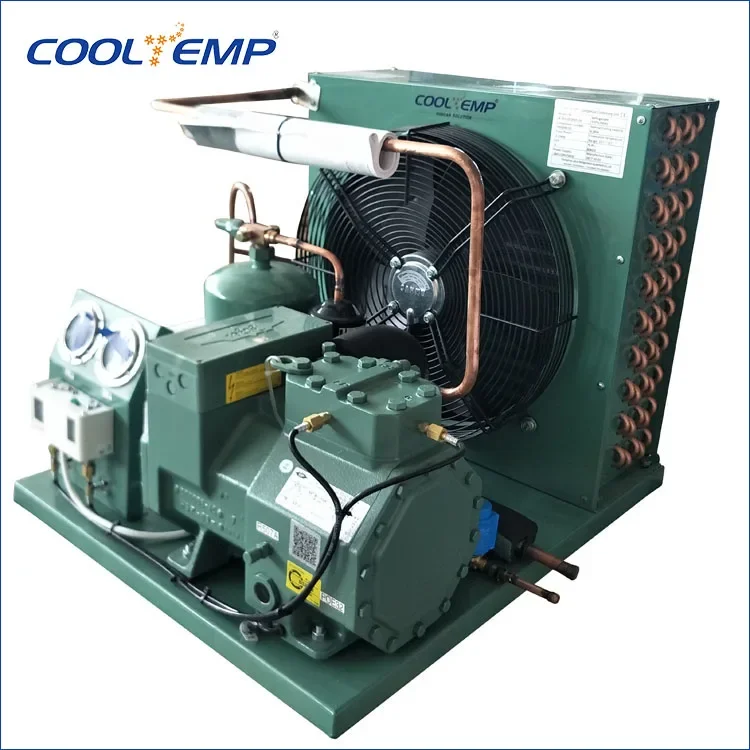

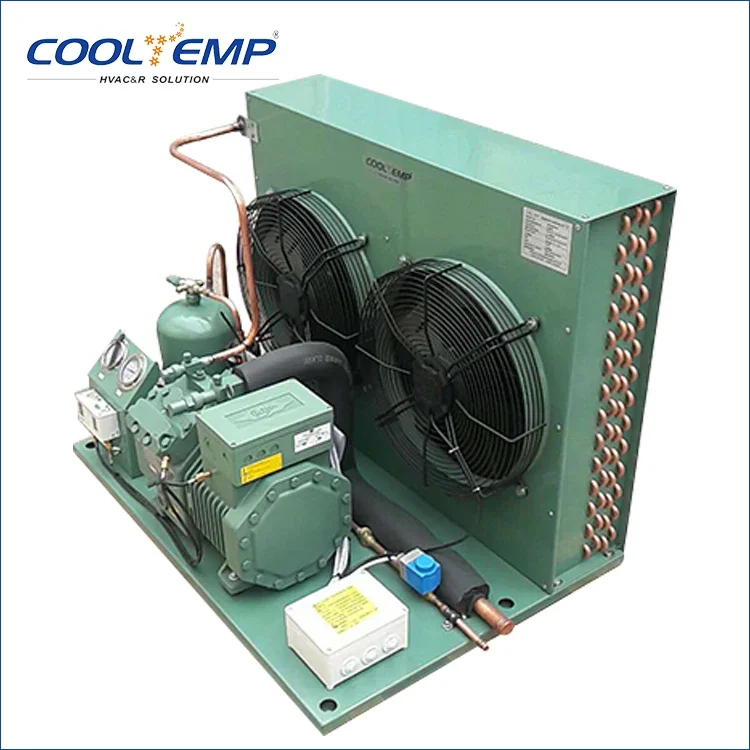

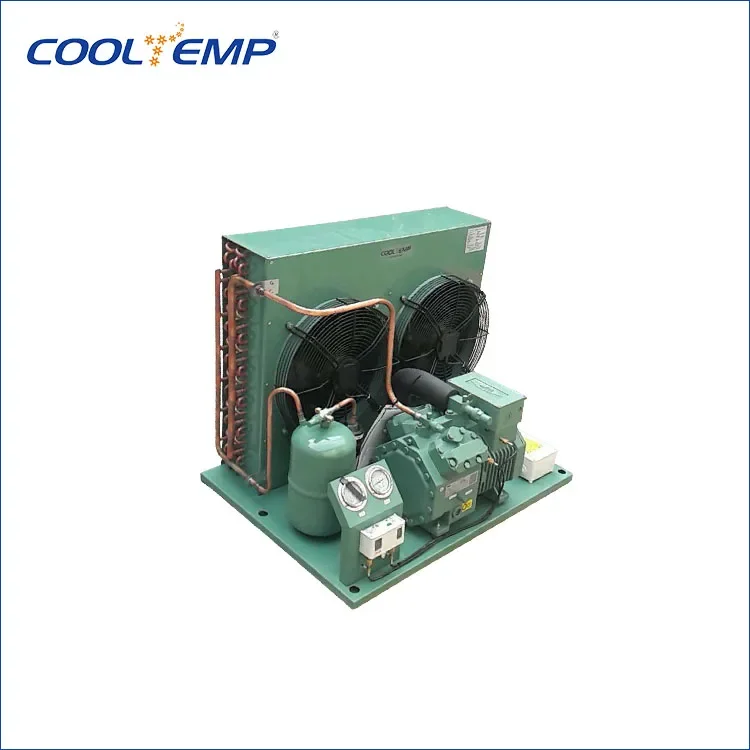

Refrigeration Parts Application R404a Bitzer Cold Room Condensing Unit For Cold Room
1.With Original Bitzer Compressor ,Design for Middle & Low Temperature Cold Room by our Professional Engineer.
2. Main Parts are Used Famous Brand ,such Like :Compressor (Bitzer ),air Cooled Condenser(COOL TEMP),Dry Filter(Danfoss),high pressure gauge,high pressure gauge,pressure controller(Danfoss),Sight glass(Danfoss),solenoid valve(Danfoss),liquid receiver,Oil Separator(ALCO) etc
3.OEM & ODM also welcome.
High&Media temperature Unit:
| Model | LK-ACH35/ 2EC3.2 | LK-ACH40/ 2CC4.2 | LK-ACH45/ 4FC5.2 | LK-ACH55/ 4EC6.2 | LK-ACH65/ 4DC7.2 | LK-ACH90/ 4VCS10.2 | LK-ACH130/ 4VCS15.2 | ||
| Cold Room Temp | -5~5℃ | ||||||||
| Refrigeration | R22 | ||||||||
| Power supply | 380V/3P/50HZ | ||||||||
| Condenser | Fan QTY | 1 | 1 | 1 | 1 | 1 | 2 | 2 | |
| Dia Of Fan | 450 | 500 | 560 | 560 | 560 | 560 | 610 | ||
| Fan Voltage(V) | 220 | ||||||||
| Fan POWER(W) | 180 | 320 | 280 | 280 | 280 | 280*2 | 380*2 | ||
| Pole | 6-8 | 6-8 | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 | ||
| Cooling capacity and power | evaporation -5℃ | Cooling Capacity | 5.78 | 8.52 | 9.83 | 12.08 | 14.76 | 19.58 | 28.3 |
| power | 2.61 | 3.67 | 4.12 | 5.12 | 6.14 | 7.43 | 10.45 | ||
| evaporation -7℃ | Cooling | 5.26 | 7.77 | 8.95 | 11.02 | 13.47 | 17.95 | 25.9 | |
| Capacity | |||||||||
| Power | 2.52 | 3.53 | 3.98 | 4.93 | 5.95 | 7.19 | 10.12 | ||
| evaporation -10℃ | Cooling Capacity | 4.55 | 6.73 | 7.74 | 9.54 | 11.67 | 15.69 | 22.6 | |
| Power | 2.37 | 3.33 | 3.76 | 4.65 | 5.65 | 6.82 | 9.6 | ||
| Connector | Suction | Φ22 | Φ22 | Φ22 | Φ28 | Φ28 | Φ28 | Φ42 | |
| Liquid | Φ10 | Φ10 | Φ12 | Φ12 | Φ12 | Φ16 | Φ16 | ||
Condition:evaporation temperature -7℃,ambient temperature 35℃,syction superheat 10℃
Midium&low temperature condensing unit:
| Model | LK-ACH25/ 2CC3.2 | LK-ACH35/ 4EC4.2 | LK-ACH45/ 4DC5.2 | LK-ACH65/ 4TC8.2 | LK-ACH90/ 4NC12.2 | LK-ACH110/ 4H15.2 | LK-ACH130/ 4G20.2 | ||
| Cold Room Temp | -20 ~ -18℃ | ||||||||
| Refrigeration | R22 | ||||||||
| Power supply | 380V/3P/50HZ | ||||||||
| Condenser | Fan QTY | 1 | 1 | 1 | 1 | 2 | 2 | 2 | |
| Dia Of Fan | 450 | 500 | 560 | 560 | 560 | 560 | 610 | ||
| Fan Voltage(V) | 220 | ||||||||
| Fan POWER(W) | 180 | 180 | 280 | 280 | 280*2 | 280*2 | 380*2 | ||
| Pole | 6-8 | 6-8 | 8-10 | 8-10 | 8-10 | 8-10 | 8-10 | ||
| Cooling capacity and power | evaporation -5℃ | Cooling Capacity | 4.44 | 6.14 | 7.26 | 11.87 | 16.25 | 20.7 | 24.1 |
| power | 2.79 | 4.01 | 4.67 | 6.87 | 9.2 | 12.5 | 14.83 | ||
| evaporation -7℃ | Cooling | 3.73 | 5.21 | 6.18 | 10.06 | 13.66 | 17.6 | 20.4 | |
| Capacity | |||||||||
| Power | 2.58 | 3.76 | 4.4 | 6.42 | 8.56 | 11.5 | 13.86 | ||
| evaporation -10℃ | Cooling Capacity | 3.31 | 4.65 | 5.52 | 8.97 | 12.17 | 15.64 | 18.17 | |
| Power | 2.46 | 3.57 | 4.23 | 6.09 | 8.09 | 10.85 | 13.14 | ||
| Connector | Suction | Φ22 | Φ28 | Φ28 | Φ35 | Φ35 | Φ42 | Φ54 | |
| Liquid | Φ10 | Φ12 | Φ12 | Φ16 | Φ16 | Φ22 | Φ22 | ||
Condition:evaporation temperature -7℃,ambient temperature 35℃,syction superheat 10℃
♣.We Offer many types packages to meet customers' requirements according to different products,and we design reasonable loading way to arrange containers to be fill with all goods as order.
♣.We and our professional shipping agents work together for many years ,we always can get a competitive price and best service for many shipping lines.
We have exported our goods to many countries with our own Brand "COOL TEMP" ,our Products' Warranty is 1 Year,any Manufacturing defect ,you can contact us by Email /Call,we will try to solve first time till you are satified.
Also OEM and ODM Welcome , Distributors and Agents welcome !
Why We Say We Should Be Your Preferred Supplier ?
Service:
We put our Customer first no matter Big or Small,Your Business is most important to us We are here to support you.
Technology
With the support of a Competent R & D team giving strong technical support to help you make your job more easy.

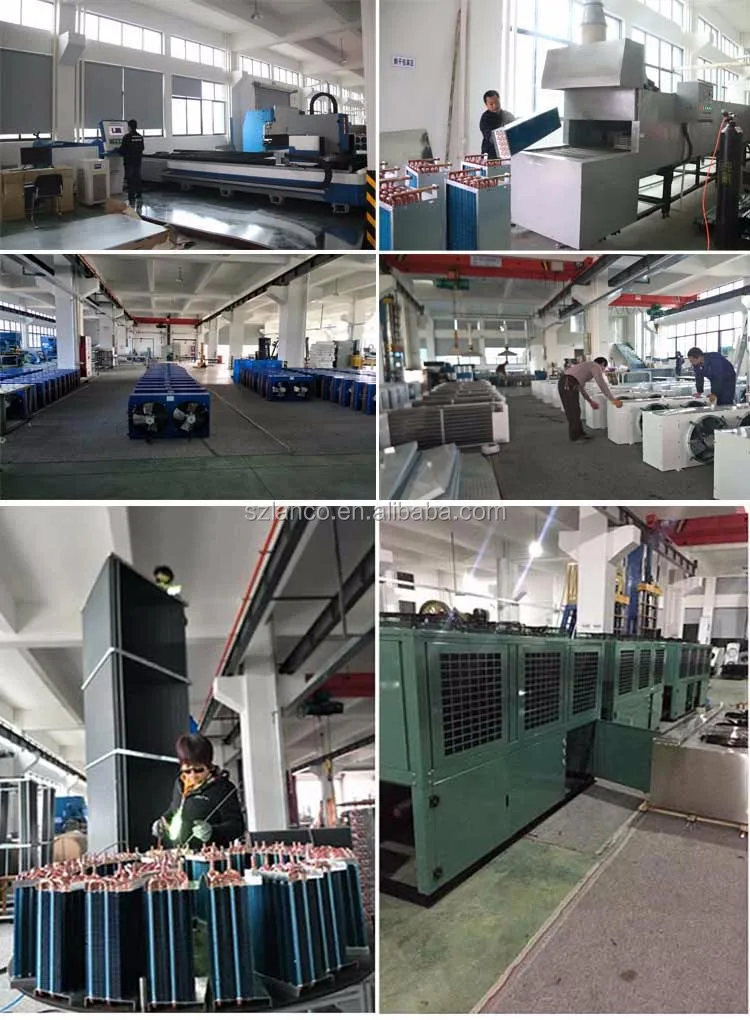

Factory Equipment
we have a fully fitted factory for sheet metal processing offering a range of materials to suit the what the Customer demands are.
Coil heat exchanges manufacturing offering rang fin profiles and material required from flat type to hydrophilic fin coil where corrosion control is required.Fully painting service either our standard choice Blue ,Green,Black,White or Customized to your Choice.
Sales Marketing
Are Customer Focused Solve purpose of bringing you an easy pleasant company to deal with.
Factory Location Advantage
We are Closed to Shanghai, Ningbo,Hangzhou,Yiwu etc City ,it takes around 1.5 – 3 hours to our factory from one of those cities by car, and it takes 2 hours from Guangzhou/Shenzhen to our airport(Hangzhou xiaoshan airport),Welcome to visit Us When you are avaliable.
♣.We Manufacture Work of Arts for HVAC System in our Standard Workshop.
Back to Home
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condensing unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this condensing unit carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the condensing unit be supplied for my local voltage?
The standard configuration is 380V/3PH/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

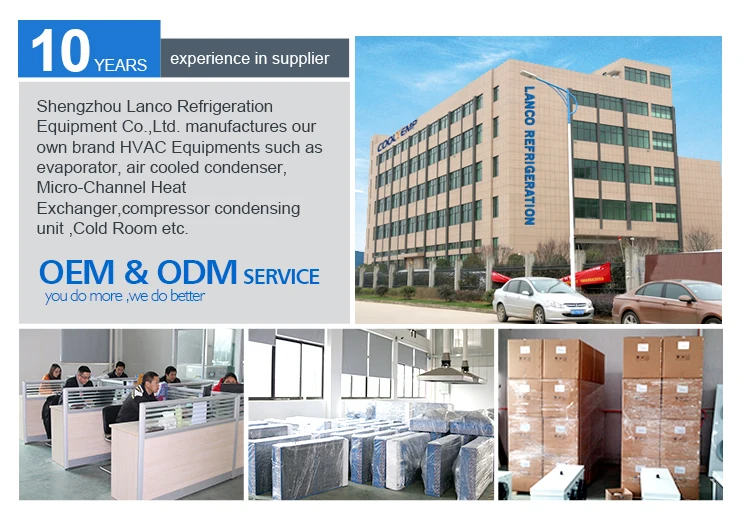

About the Manufacturer
This product is produced by Shengzhou Lanco Refrigeration Equipment Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shengzhou Lanco Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
