The unit cooler listed here carries type ceiling, certification ce, documented exactly as the manufacturer publishes it. Made by Shengzhou Lanco Refrigeration Equipment Co., Ltd. (10 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Unit Cooler
- Casing Material: Aluminum/ Galvanized sheet with Plastic Spray
- Warranty: 1 Year
- Certification: ce
- Place Of Origin: Zhejiang, China
- Type: ceiling
- Fan Type: axial fan/inner rotor fan
Technical Specifications
| Core Components | Motor |
|---|---|
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 30 |
| Place Of Origin | Zhejiang, China |
| Brand Name | COOLTEMP |
| Applicable Industries | Cold room |
| Condition | New |
| Type | ceiling |
| Certification | ce |
| After-Sales Service Provided | Online support |
| Copper Tube | smooth/ inner grooved copper tube |
| Casing Material | Aluminum/ Galvanized sheet with Plastic Spray |
| Fan Type | axial fan/inner rotor fan |
| Product Name | Evaporator /Air cooler /unit cooler |
| Fin Type | bare fin/ blue fin/ golden fin |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

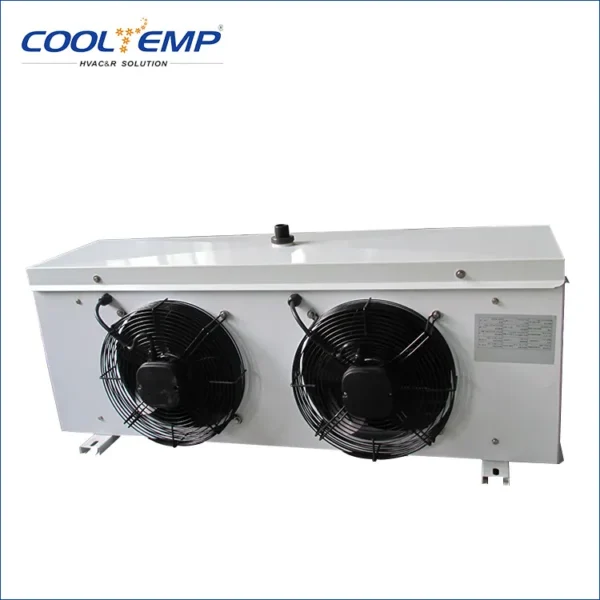

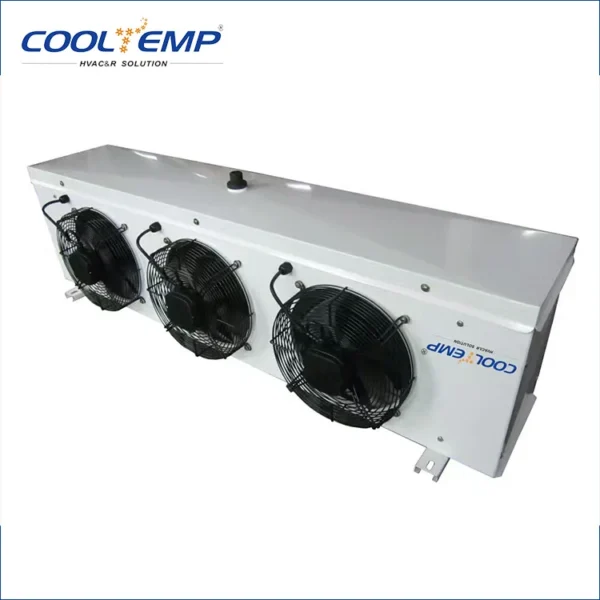

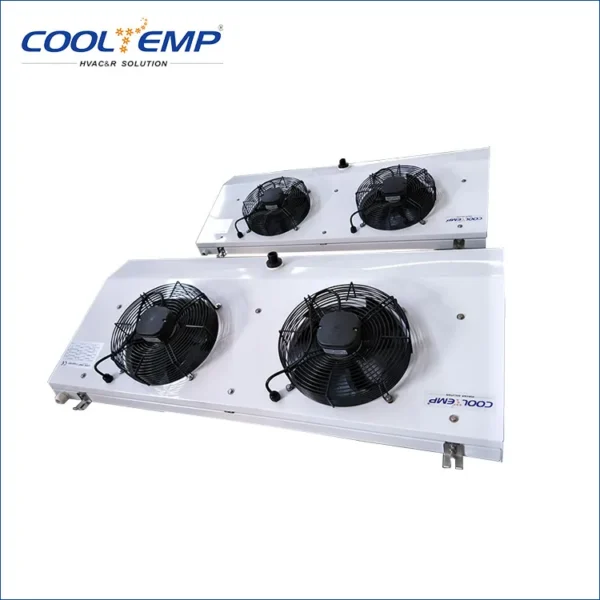

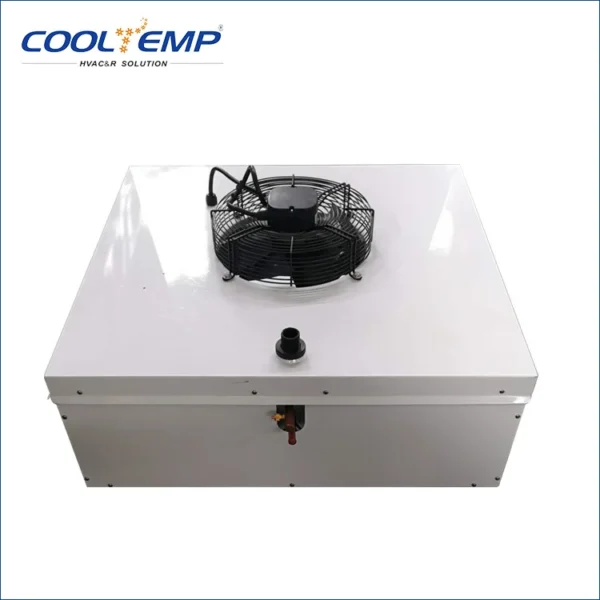

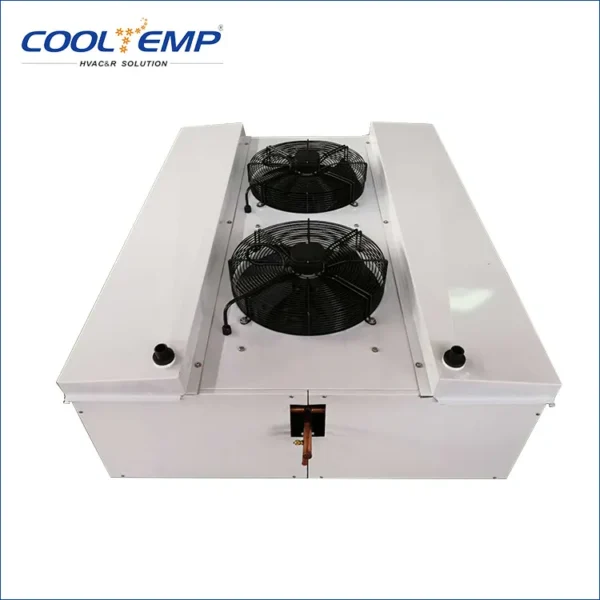

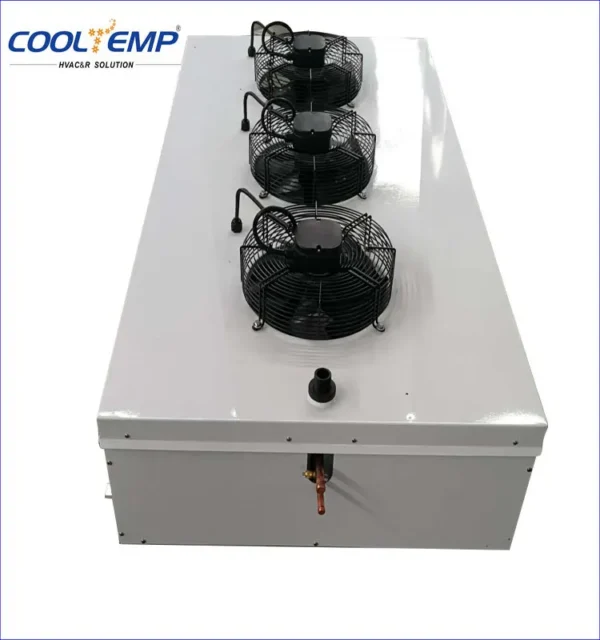

Model LK-DD series Evaporator can be used as cooling device in varies cold storages, like simple cold storage or combined cold storage. There are type LK-H,LK-M and LK-L unit coolers, which are ideal for different refrigerating purposes. It's compact in structure, light in weight, no space occupation,high in efficiency to balance and lower refrigerating temperature.
Application:
Working with compressor condensing units of different refrigerating capacity,LK series unit cooler is applied to different purposes of cold storage.LK-H type can be used at about 0°C for saving eggs and vegetables;LK-M type can be used at-18°C for saving meats and fishes; LK-L type can be used at-25°C or below for quick-freezing to preserve fresh meat and live fish.
Feature:
1. The housing is in plastic-sprayed coat or rolled from aluminum plate,best corrosion protection, beautiful in shape.
2. Original coil arrangement to reduce the side resistance. The aluminum fins are fasten ed to the steel tubes by hydraulic expanding way, which is effective to reduce thermal contact resistance and improve thermal transfer.
3. After pressure test, wash with trichloroethylene to clean the oily dirt,moisture, oxide and other impurities inside. As such, no blocking trouble after filling with refrigerant in use.
4.Special fan motor, which is low in power consumption, large in air volume, low in noise, send far in air throw, guarantees good performance in humidity and low temperature.
5.Equipped with U-shaped electro-thermal tube that's good in insulation inside the coil,rational gap arrangement and power capacity to achieve desirable defrosting performance.
6.Groove-type channel clip, easy to install.
7.Filled with nitrogen before leaving factory.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $105 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this unit cooler?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this unit cooler carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shengzhou Lanco Refrigeration Equipment Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shengzhou Lanco Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
