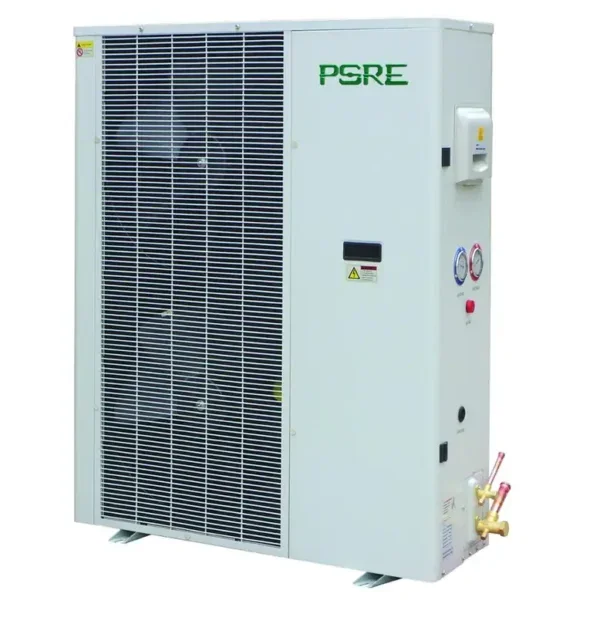

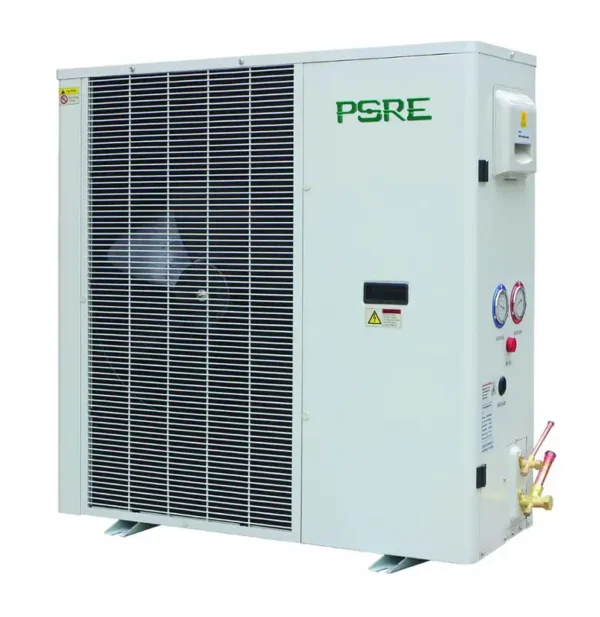

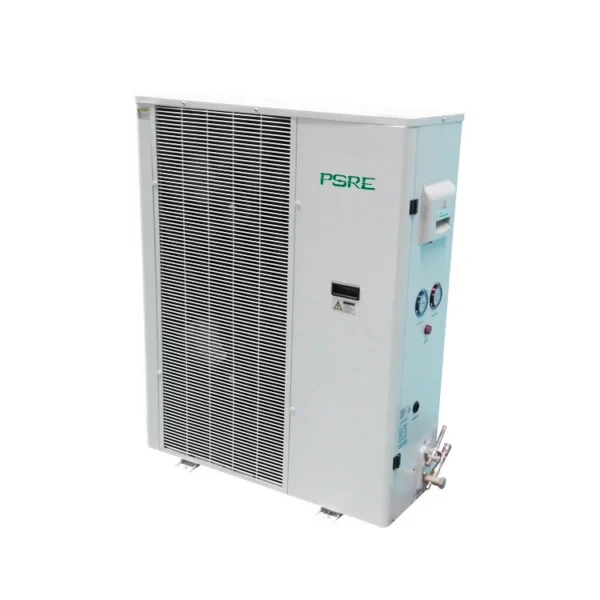

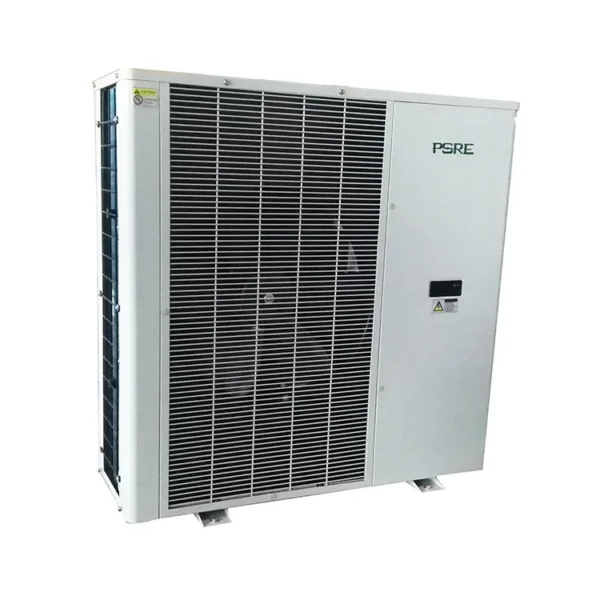

Condensing Unit, single, R404a

This condensing unit is published with the manufacturer’s full specification — voltage single/three phase, refrigerant R404a,R407A,R407F. Made by Taizhou Nanfeng Cold-Chain Co., Ltd. (18 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Condensing Unit

• Model Number: NF
• Horse Power: 2~10Hp
• Voltage: single/three phase
• Refrigerant: R404a,R407A,R407F
• Warranty: 1 Year
• Certification: RoHS/ce/ISO9001:2008 CB

Technical Specifications

Product Details

 Tecumseh refrigeration condensing unit

for frozen food made in china







Product Description

– Danfoss spare parts:dual pressure switch, sight glass,drier filter,

– ABB electrical:isolator switch,contactor,time relay,MCB,overload,fault indicator light,

– Fan speed control,Liquid receiver with fusible plug for 2-4HP,with Castel safety release valve for 6HP,

– 1mm galvanized case, Condenser with axial fan motor,Oil separator and accumulator

– Service valve, Low side / high side gauge, Compressor jacket, Suction filter,Acoustic lining



Main components			Electrical control
Case	1mm galvanized		Isolator Switch	ABB
Compressor	Tecumseh reciprocating type		AC contactor	ABB
Voltage	Single phase or three phase		MCB	ABB
Condenser fan	Axial fan		Time relay	ABB
Oil seperator	Optional		Overload	ABB
Accumulator	Optional		Fault light	ABB
Sight glass	Famous brand		Terminal blocks	ABB
Filter drier	Famous brand
Condenser	Hydrophilic aluminum fins
Pressure switch	Famous brand  Dual control KP19
Liquied receiver	with fusible plug or Castel safety valve
Pressure gauge	High side(red),low side(blue)
Shut off valve	On liquid line and suction line
Door with Hinged	Optional,make the repairing more convinient
Muffler	On discharge line to reduce the compressor noise







TECHNICAL DATA

Tecumseh piston compressor

Danfoss refrigeration components

Fan speed controler



DC fan-cooled condensing unit(Tecumseh piston compressor)
Medium High Temperature
Model	Compressor model	Nom.Hp	Noise Rating**	Duty Watts R404a   Evaporating @*			Dimensions	Pipe Size  inch	Nett  kg	Electrical Data
				-5°C	-10°C	-15°C				Supply	FLA/ph
NF200SGM	TFH4524Z	2	32	3415	2642	1948	1104*578*844	1/2  3/4	79	380v/3ph/50hz	4.3
NF300SGM	TFH4540Z	3	36	5707	4551	3507	1104*578*844	1/2  3/4	86	380v/3ph/50hz	7.5
NF400SGM	TFH4553Z	4	38	6957	5306	3868	1104*578*844	1/2  7/8	86	380v/3ph/50hz	7.8
NF500SGM	TFH4561Z	5	39	7914	6133	4560	1104*578*1244	1/2  7/8	118	380v/3ph/50hz	9
NF600SGM	TFH4568Z	6	40	9463	7429	5639	1104*578*1244	1/2  7/8	118	380v/3ph/50hz	10.2
Low Temperature
Model	Compressor model	Nom.Hp	Noise Rating**	Duty Watts R404a   Evaporating @*			Dimensions	Pipe Size  inch	Nett  kg	Electrical Data
				-20°C	-25°C	-30°C				Supply	FLA/ph
NF200SGL	TFH2480Z	2	32	2134	1622	1165	1104*578*844	1/2  3/4	79	380v/3ph/50hz	2.8
NF300SGL	TFH2511Z	3	36	2931	2188	1565	1104*578*844	1/2  3/4	86	380v/3ph/50hz	3.7
NF400SGL	TFH2516Z	4	38	5668	4207	3010	1104*578*844	1/2  7/8	86	380v/3ph/50hz	4.6
NF600SGL	TFH2522Z	6	40	7096	5363	3938	1104*578*1244	1/2  7/8	118	380v/3ph/50hz	6.4
* Duty at 38°C ambient temp.**Dba@10M in free field conditions



Packaging & Shipping



Certifications

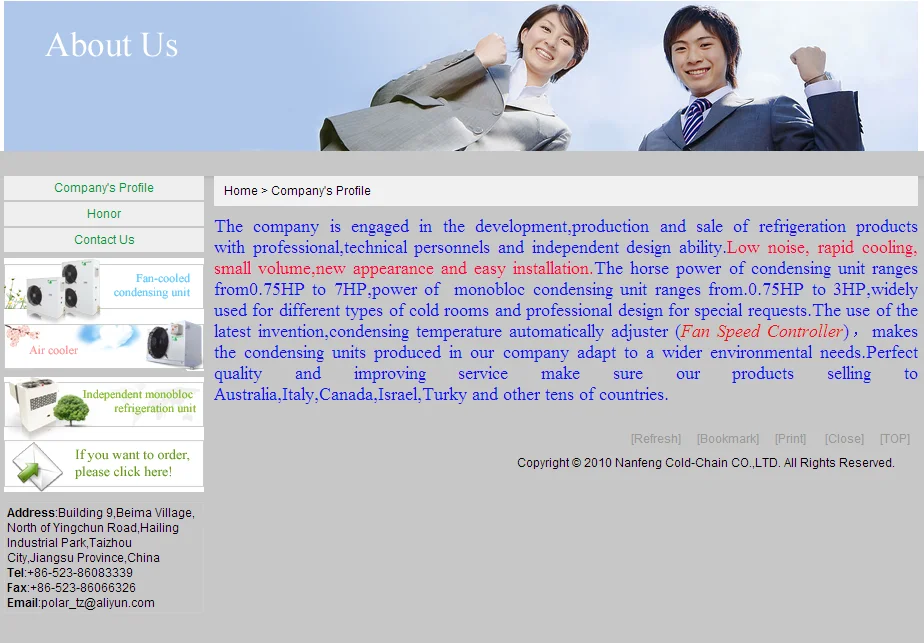

Company Information

 Nanfeng Cold Chain was founded in 1996,engaged in exploitation,production and sale of refrigeration products.We have technical personnel with professional ability and nice cooperation with many universities.Since 2005,our products have been sold to international markest,the perfect quality and improving services make sure that our products are sold to Europe,Australia,South America and other tens of countries.We also provide OEM,ODM services.We have our own brand"PSRE"&"polar",gained many quality certification such as ISO9001:2000,CE,CB,RoHS and so on.

Warehouse



Welcome



Our Services

  If you have any question about the products ,please contact us.

Providing better service for you is our pleasure!

Ordering and Pricing

• Minimum order quantity: 5 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this condensing unit?

The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this condensing unit carry?

It is supplied with RoHS/ce/ISO9001:2008 CB documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the condensing unit be supplied for my local voltage?

The standard configuration is single/three phase. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Taizhou Nanfeng Cold-Chain Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Taizhou Nanfeng Cold-Chain Co., Ltd. range on HVACR Nexus.
