Key specification for this cooled screw water chiller: voltage 3PH~220V/380/415V~50HZ/60HZ, power 28~182kw. Everything below is reproduced from the factory data sheet. Made by Shandong Mgreenbelt Machinery Co., Ltd. (15 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cooled Screw Water Chiller
- Power: 28~182kw
- Voltage: 3PH~220V/380/415V~50HZ/60HZ
- Refrigerant Available: R22,R407C,R134A,R404a
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Application: Industrial cooling
Technical Specifications
| Voltage | 3PH~220V/380/415V~50HZ/60HZ |
|---|---|
| Power | 28~182kw |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price and Easy Operation |
| Core Components | PLC, Motor, Pressure Vessel, Pump, Compressor |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 600 |
| Brand Name | MGREENBELT |
| Dimension(L*W*H) | 3870*2010*2000mm |
| Working Temperature Range | -25C~ + 50C |
| Product Name | screw chiller price |
| Compressor Type | Semi-hermetic Screw type |
| Condenser | Aluminum Finned copper tubes |
| Cold Water Temperature Cotrol | 5 degrees C to 30 degrees C |
| Evaporator Type | Shell and tube Type |
| Refrigerant Available | R22,R407C,R134A,R404a |
| Application | Industrial cooling |
| Compressor Brand | Bitzer/Hanbell/Fusheng |
| Start Mode | soft starter or Y-delta |
| Process Cooling | Supply cold water |
| Selling Units | Single item |
| Single Package Size | 100X90X120 cm |
| Single Gross Weight | 600.0 kg |
Product Details

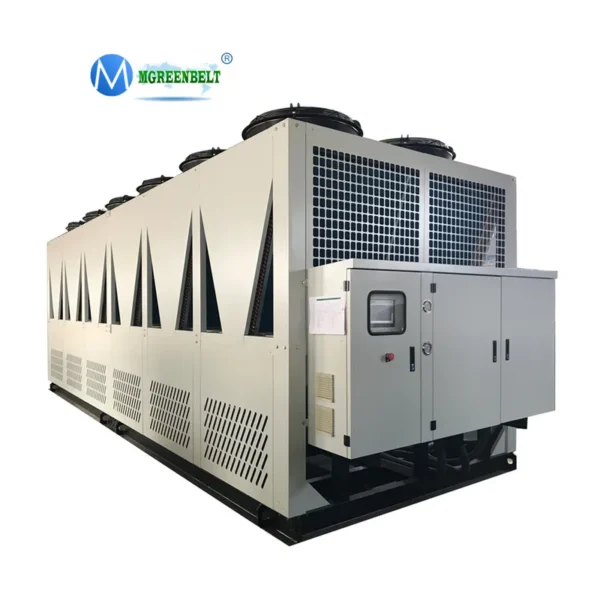

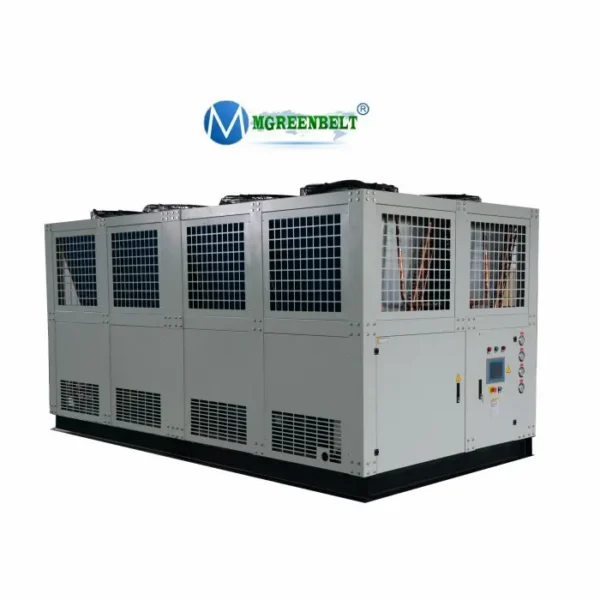

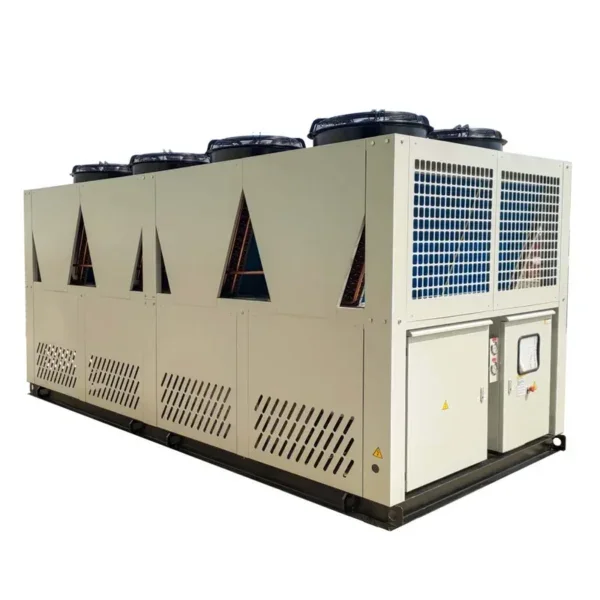

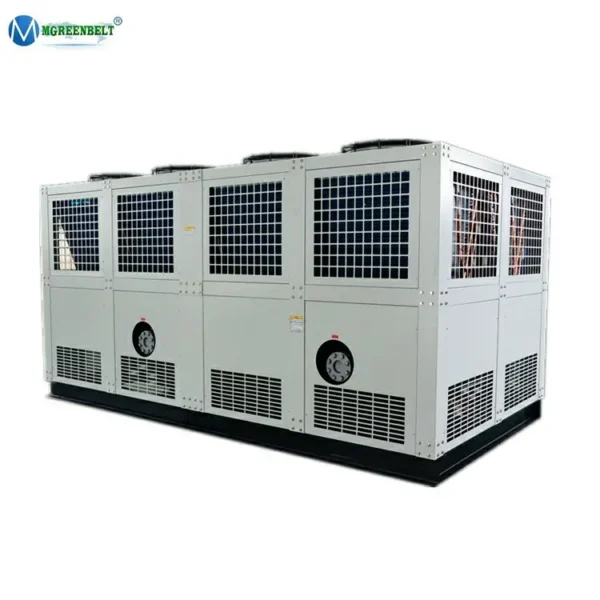

200Kw 300Kw 400kW Water Cooling system chilling Equipment Air Cooled Screw Water Chiller
As a leading air cooled screw chiller supplier,MGREENBELT provides a complete range of air-cooled screw chiller, with cooling capacity from 20Ton to 150Ton/80KW to 530KW and the chiller temperature control range is +30ºC to -30ºC.
Besides the standard air-cooled screw chiller control temperature of 7ºC to 25ºC, MGREENBELT also has air-cooled glycol screw chiller control temperature below zero from 0ºC to -30ºC.

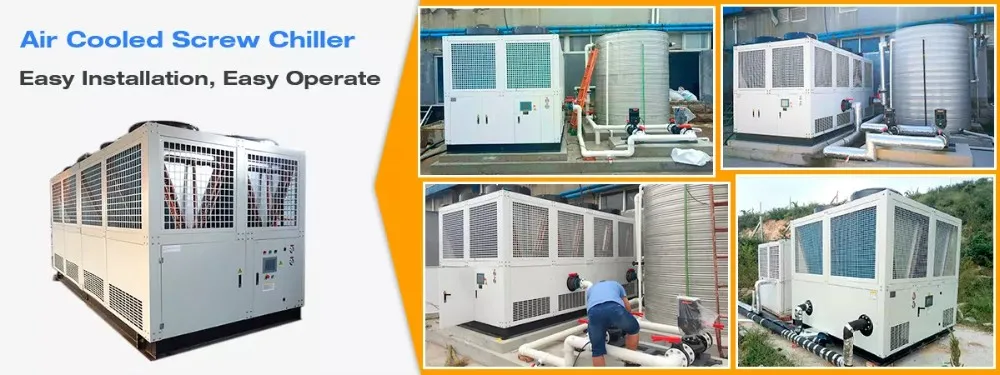

1) Air cooled condenser make this chiller easy installation
2) Four core part: compressor, evaporator, condenser and expansion valve
3) Chiller filled in refrigerant in our factory and tested well, customer get it and can use directly
4) Design can use both outdoor and indoor
Protection devices
1)Phase sequence protection, 2)Phase lack protection, 3)Overload & overheat protection, 4)Exhuast air temp. protection, 5)Low & High pressure protection, 6)Ultra Low temp. protection, 7)Water flow protection
MGREENBELT Chiller Working System
2). Chilled pump for chiller and tank circulation
3). Water tank S/S with insulations to storage cold water for the whole system
4). Cold water pump for process
Industrial Water Cooling Screw Type 70TR 100HP Air Cooled Chiller Unit Refrigeration Equipment
Compressor features:
New screw type compressor with 20%-30% higher in efficiency.
Cooling capacity control available at four steps (100%-75%-50%-25%), three steps (100%-66%-33%) or no steps control system.
High efficiency, low noise and vibration, easy to install.
Environmental protection refrigerant R134a, R407c, R404a available.

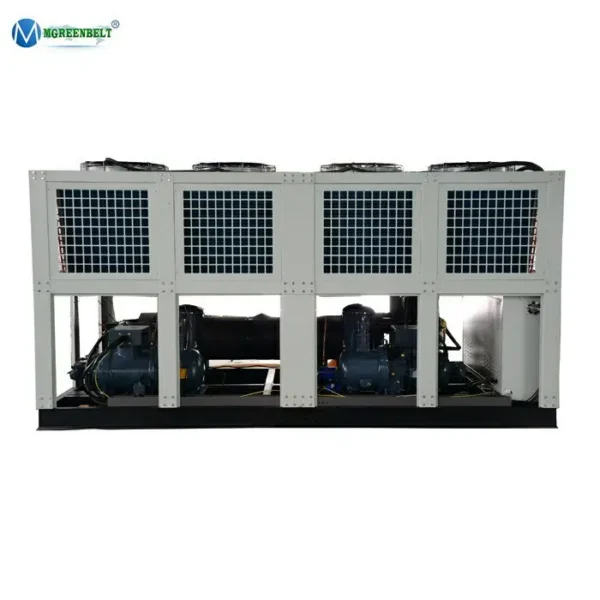

Two sets screw compressor for one air cooled screw chiller, each can work independently , to save energy and safety production.
Adopt oil separator , to ensure compressor oil has good lubrication on the low outlet temperature -10C.
Control operation system:
SIEMENS PLC program control system, human-computer interface with big LED touch panel, running state displaying in multi-language, and self-diagnosis for easy operation and supervision.
Extended industrial interface, convenient for being computer monitor via network.
Completely safety protection function:
Multi-safety protection by high and low pressure, compressor overheating, overloading, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating and anti-freezing.
Compressor
Semi-hermetic screw type compressor, famous brand Bitzer,/Fusheng/Hanbell available
Fan
Large volume air fans, internal rotor 6 stages
More different size air cooled water chiller from 20 tr to 200tons
1. Different brand screew type compressor available , Hanbell, Bitzer, Daikin, Fusheng, RefComp;
2. Air cooled condenser make this chiller more easy and convenient installation, no need cooling tower;
3. PLC or Microcomputer control;
4. Single compressor or Doule compressor available, each circuit is independent;
5. Multiple protections;
6. High efficiency, environmental friendly with low running noise
Model | MG-155C | MG-200C | MG-260C | MG-300C | MG-420C | MG-520C | |||||||||
Cooling Capacity | +7℃ | RT/tons | 44.4 | 62 | 81 | 86.7 | 116.3 | 144.7 | |||||||
Kcal/h | 134160 | 187480 | 245100 | 262300 | 351740 | 437740 | |||||||||
KW | 156 | 218 | 285 | 305 | 409 | 509 | |||||||||
Power supply | 3PH-220V/380V/415V/460V-50Hz/60Hz | ||||||||||||||
Refrigerant | Type | R22/r134a/r407c | |||||||||||||
Control | Thermostatic expansion valve | ||||||||||||||
Compressor | Type | Semi-hermetic | |||||||||||||
Power(kw) | 56 | 75 | 94 | 103 | 135 | 166 | |||||||||
Start | Y-△ | ||||||||||||||
Capacity control | 25%-50%-75%-100% | ||||||||||||||
Evaporator | Type | Shell and tube | |||||||||||||
Water flow(m³/h) | 27 | 37 | 49 | 52 | 70 | 87 | |||||||||
Dia.of inlet/outlet | DN80 | DN80 | DN100 | DN100 | DN100 | DN125 | |||||||||
Condenser | Type | Inner screw red copper tube covered in aluminum fins | |||||||||||||
Air cooling flow(m³/h) | 60000 | 80000 | 100000 | 120000 | 160000 | 200000 | |||||||||
Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection,flow rate protection, anti-frozen protection. | ||||||||||||||
Dimension | L | 3300 | 3300 | 4400 | 5200 | 6600 | 8800 | ||||||||
W | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | |||||||||
H | 2400 | 2400 | 2400 | 2500 | 2500 | 2500 | |||||||||
Weight(kg) | 2480 | 3200 | 3800 | 5250 | 6200 | 7800 | |||||||||
Industrial Water chiller for Plastic Industry
MGreenbelt water chillers are apply widely in the Plastic industry, Electrons, Plating, Chemical Industry,Food and beverage, Pharmaceutical Industry , Printing and other industrial production. It can precisely control the exactly temperature , which requested by the modernized machinery production, and greatly improved the production efficiency and product quality. MGREENBELT Industrial chiller is a good partner for the modernized industry , which operate with reasonable design, high quality and complete range of specifications.
Automobile and Mechanical Engineering – machine tool, induction hardening and heating, welding machines, rolling mills, presses,
cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component
cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc
spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc; Food and Beverages –
Microbreweries, confectionary, bakeries, distilleries, wineries, bottling, corbonation, vegetable, meat and fish processing, etc
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $6900 / set
- 3+ set: US $4699 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooled screw water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooled screw water chiller be supplied for my local voltage?
The standard configuration is 3PH~220V/380/415V~50HZ/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
