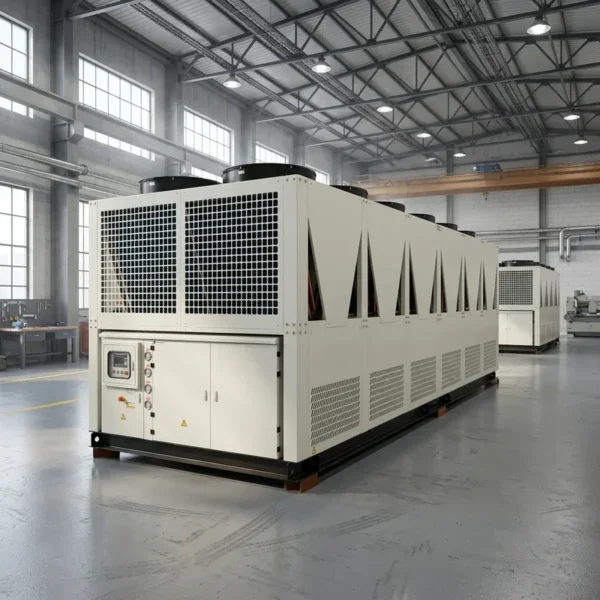

This cooled screw water chiller is published with the manufacturer’s full specification — 380V/3P/50HZ & others, 200kw. Made by Shandong Mgreenbelt Machinery Co., Ltd. (15 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cooled Screw Water Chiller
- Power: 200kw
- Voltage: 380V/3P/50HZ & others
- Refrigerant: R134a, R407C
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Plug Type: Us Plug
Technical Specifications
| Voltage | 380V/3P/50HZ & others |
|---|---|
| Power | 200kw |
| Refrigerant | R134a, R407C |
| Compressor Brand | Fusheng, Bitzer |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Precise Temperature Control |
| Plug Type | Us Plug |
| Core Components | PLC, Motor, Pressure Vessel, Pump, Compressor |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 2500 |
| Brand Name | Mgreenbelt |
| Dimension(L*W*H) | 6680*2250*2460 |
| Working Temperature Range | 0-35C |
| Product Name | Air Cooled Chiller |
| Compressor Type | Semi-closed Screw Type |
| Evaporator Type | Shell-and-Tube |
| Control System | Programmed intelligent control |
| Protection | overload, flow, freeze, pressure protection |
| Expansion Valve | Danfoss Electronic type |
| Dry Filter | Danfoss |
| Pressure Controller | Danfoss |
| Selling Units | Single item |
| Single Package Size | 220X200X200 cm |
| Single Gross Weight | 900.0 kg |
Product Details
Products Description
Air Cooled Water Chiller——-Screw Type | ||||||||

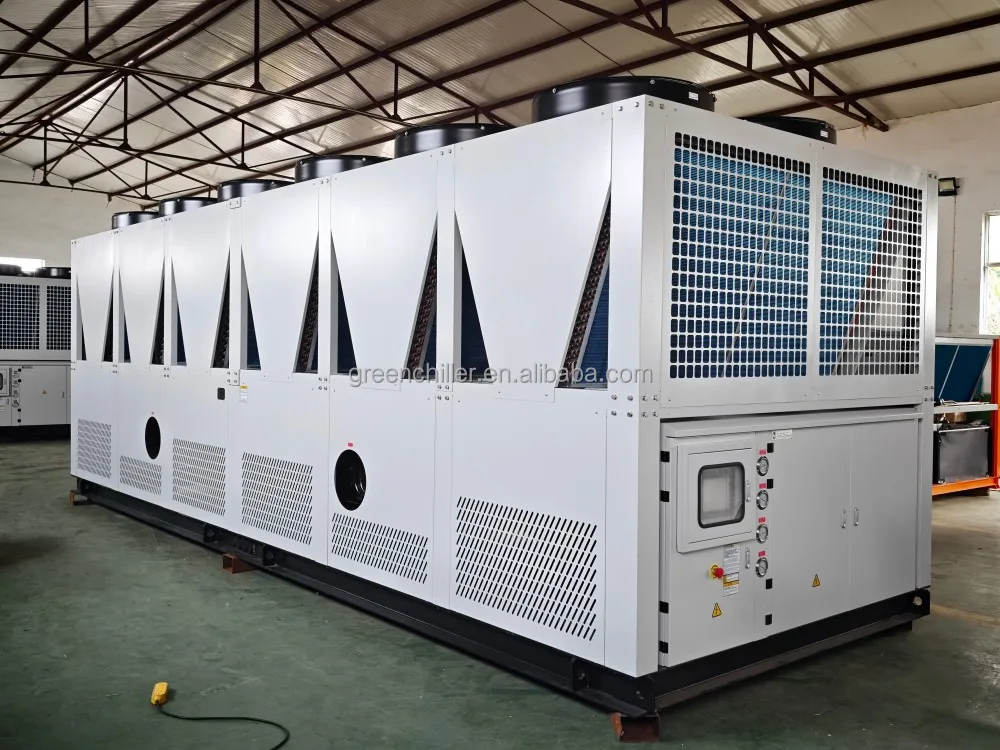

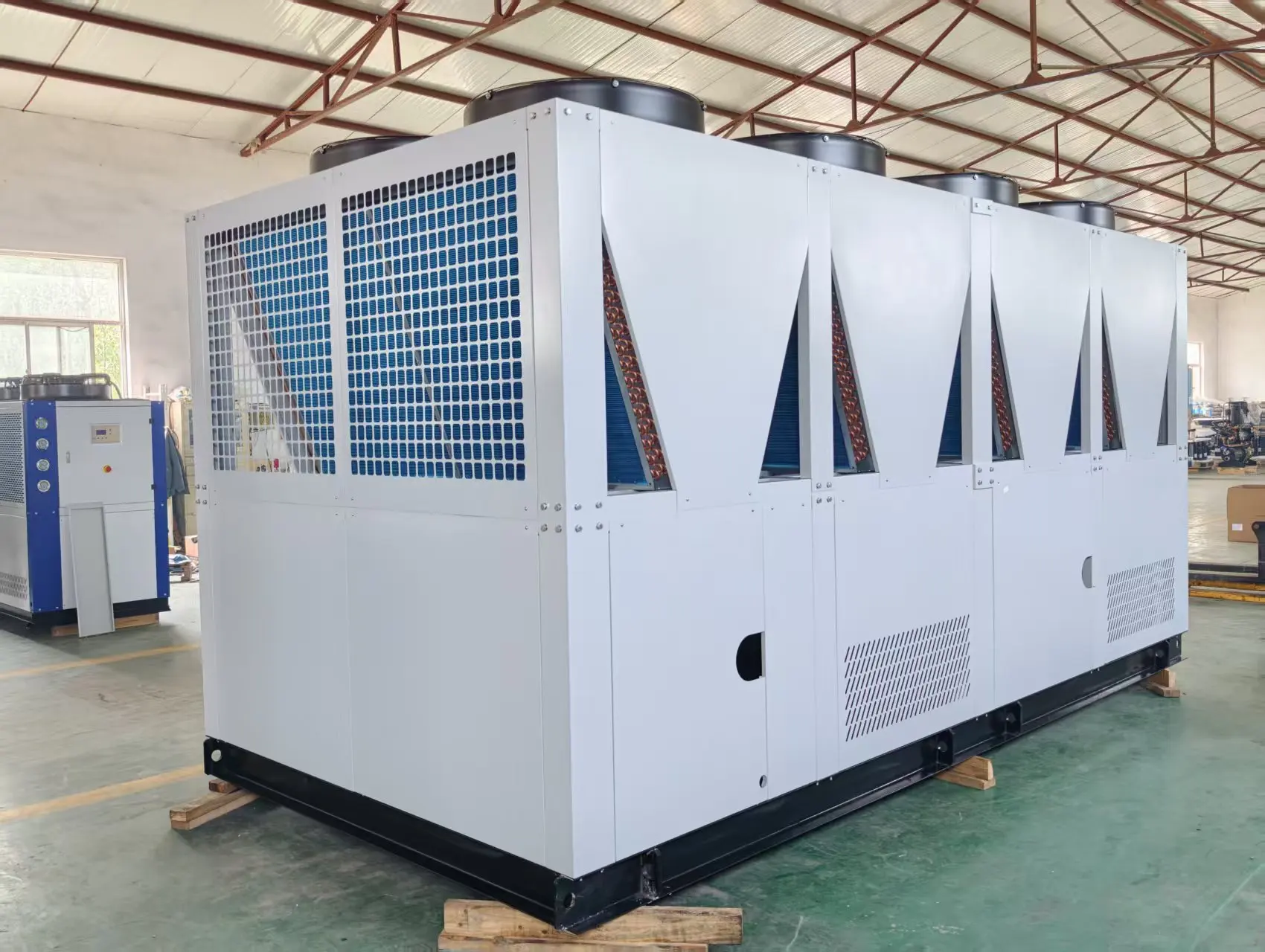

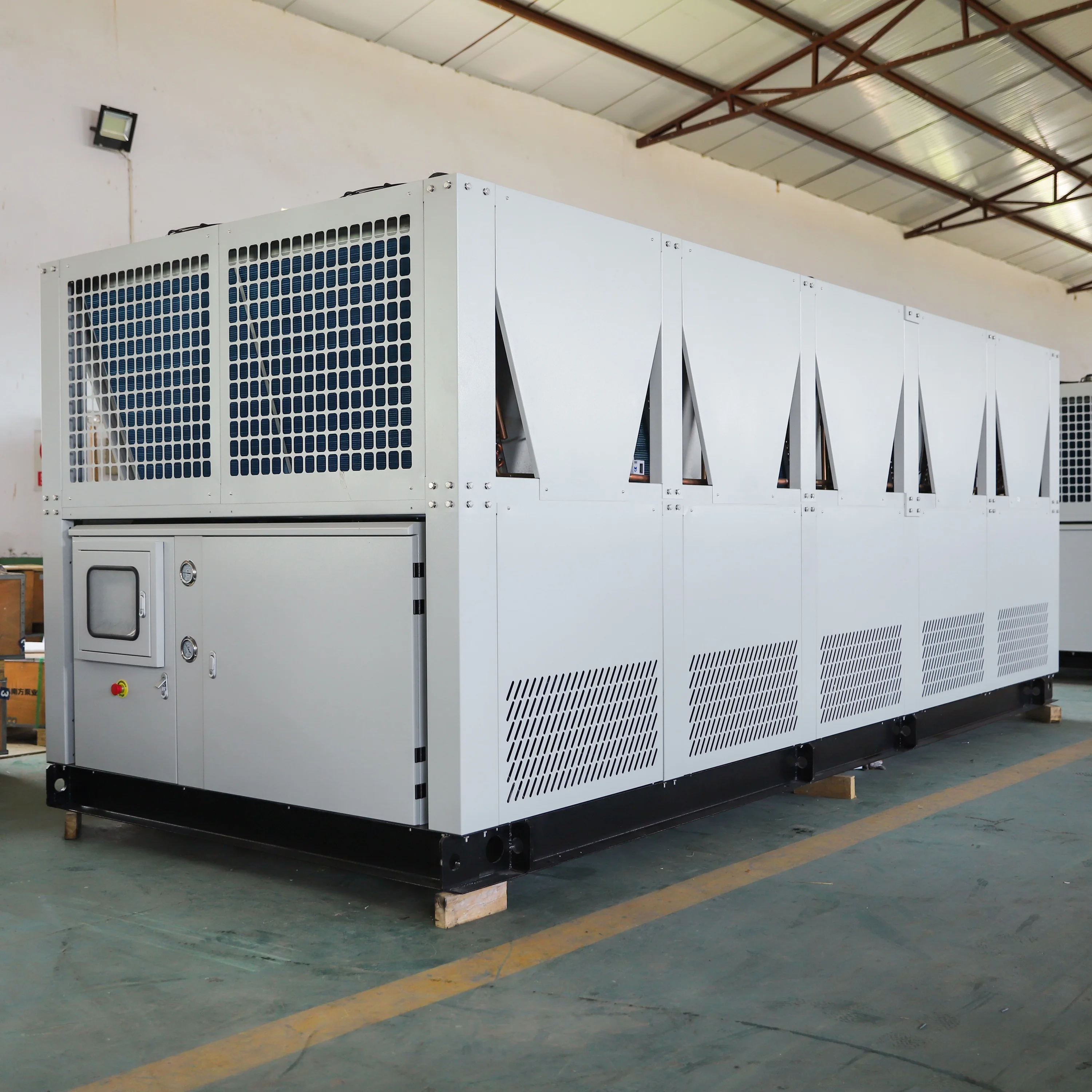

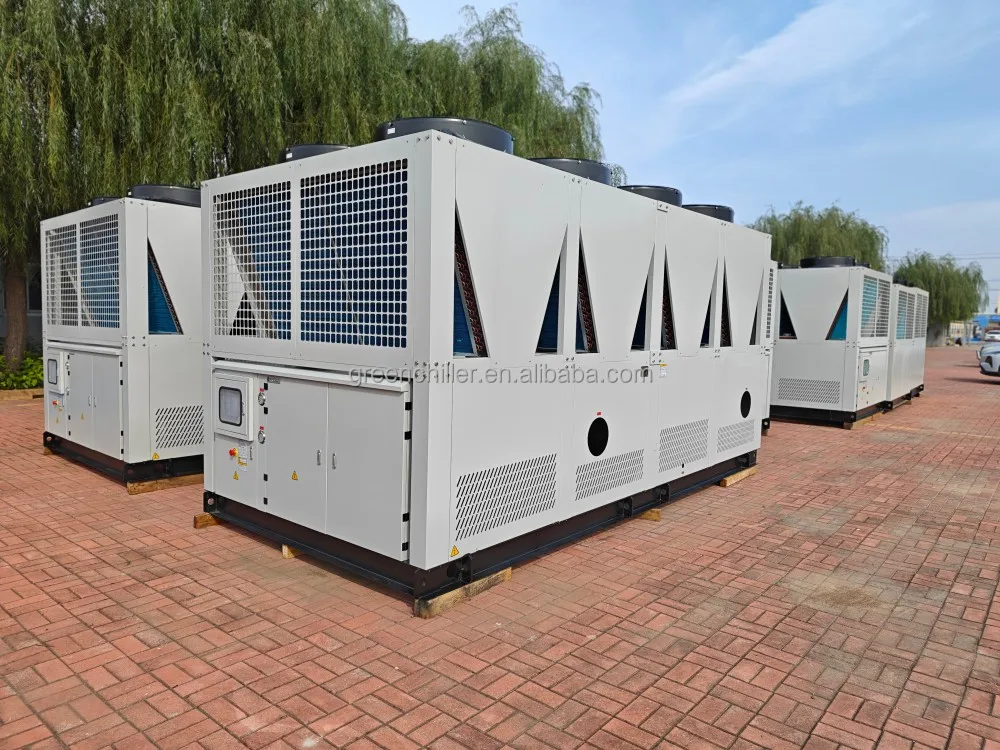

Air Cooled Water Chiller
Air-cooled water chillers adopt an air-cooled heat dissipation design. The built-in fan draws air into the device to dissipate heat from the condenser and lower the system temperature. No additional water cooling system is required, and installation and maintenance are relatively simple. Air-cooled water chiller is suitable for situations where space is limited or where sufficient cooling water cannot be provided. Since cooling efficiency is affected by ambient temperature and humidity, they are typically used in applications with lower heat loads. Each model is equipped with a range of protective measures, including refrigerant high and low pressure protection, motor overload protection, and voltage phase loss and reversal alarms. These chiller units offer excellent performance and a long service life. They are particularly suitable for industries that require precise control and adjustment of chilled water temperatures, capable of accurately controlling temperatures within the range of 0°C to 40°C.
Application Scope in the Industry
Air-cooled chillers are suitable for a wide range of industrial applications and can accurately control temperatures from 0°C to 35°C, meeting the needs of various industries such as beer brewing, food processing, plastics (injection molding, extrusion), plastic packaging, automobile manufacturing, electronic manufacturing, electroplating, chemicals, ultrasonic cooling, printing, etc. For example, the role of the chiller in the injection molding industry: 1. Mold cooling: During the injection molding process, after the molten plastic is injected into the mold, it needs to be quickly solidified and formed by cooling. The chiller provides cooling water to the mold, helping the mold to cool down quickly and finalize the plastic product. By maintaining the stability of the mold temperature, the quality of the product can be improved and deformation, shrinkage and other problems can be avoided. 2.Improve production efficiency: The chiller accelerates the cooling process of the product, thereby shortening the time of each production cycle. Faster cooling means that injection molding, demolding and production of the next product can be completed faster, which directly improves the efficiency of the production line. 3. Improve product quality: The uniformity and constancy of mold temperature are crucial to the quality of injection molded products. The chiller can provide precise temperature control to avoid defects caused by overheating or overcooling of the mold, such as dimensional instability, warping, stress concentration, etc. 4. Protect equipment: Injection molding machines and molds running for too long in a high temperature environment may cause damage or wear to the equipment. The chiller prevents the equipment from overheating through effective cooling, thereby extending the service life of the equipment and reducing failure rates and maintenance costs.
Product Details

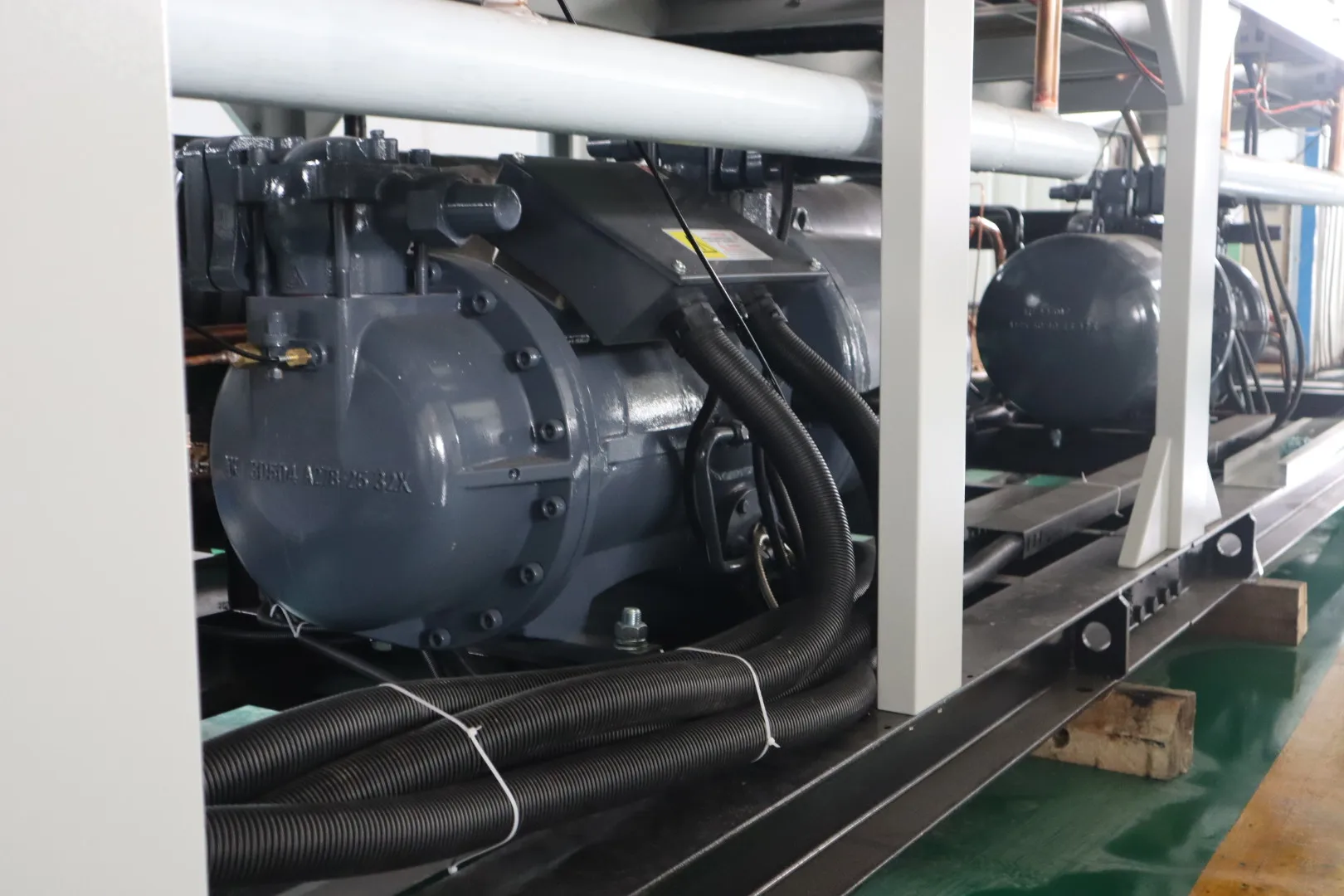

Compressor
High Efficiency and Energy Saving: Adopting advanced screw compressor technology, it provides higher compression efficiency and energy efficiency ratio, effectively utilizes energy and reduces operating costs.

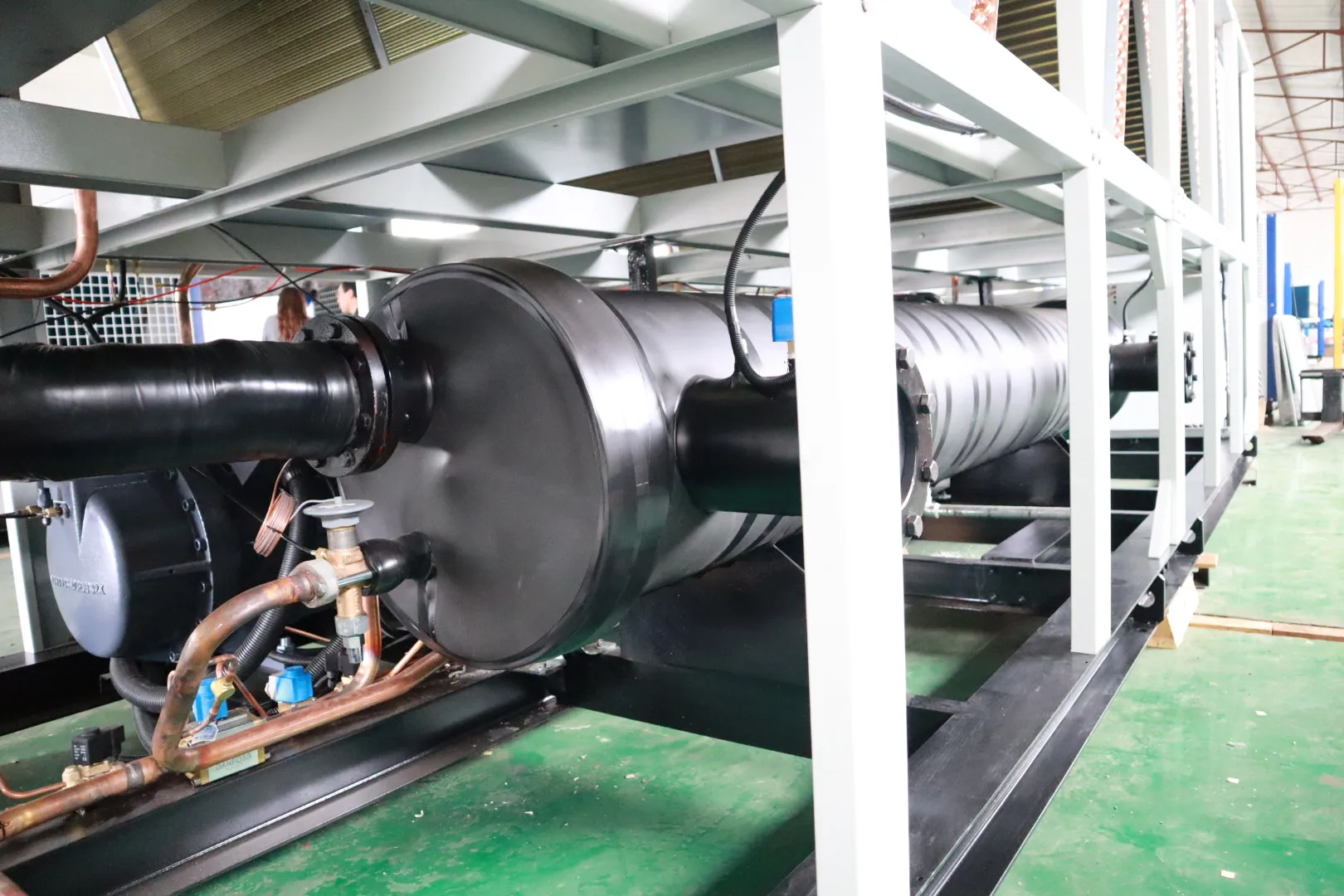

Evaporator
Optional Evaporator: We offer a range of evaporator options to meet specific cooling requirements for different applications. This allows us to tailor the chiller to specific processes and ensure optimal cooling performance.

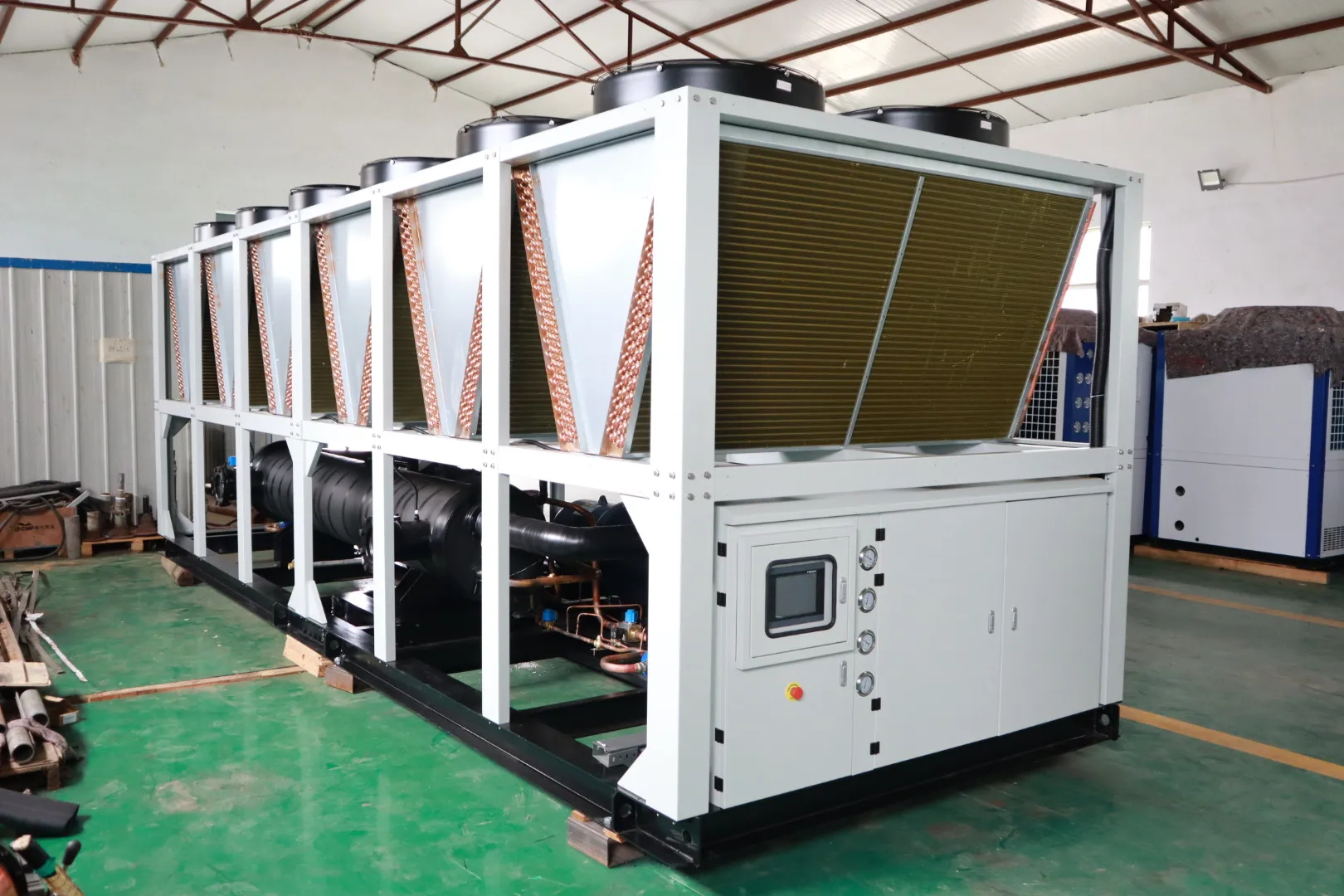

Fin Type Condenser
The finned structure increases the heat exchange surface area between the condenser and the surrounding environment, improving the heat dissipation efficiency.
The excellent thermal conductivity of copper tubes, combined with the efficient heat dissipation characteristics of aluminum fins, ensures high efficiency during the cooling process.

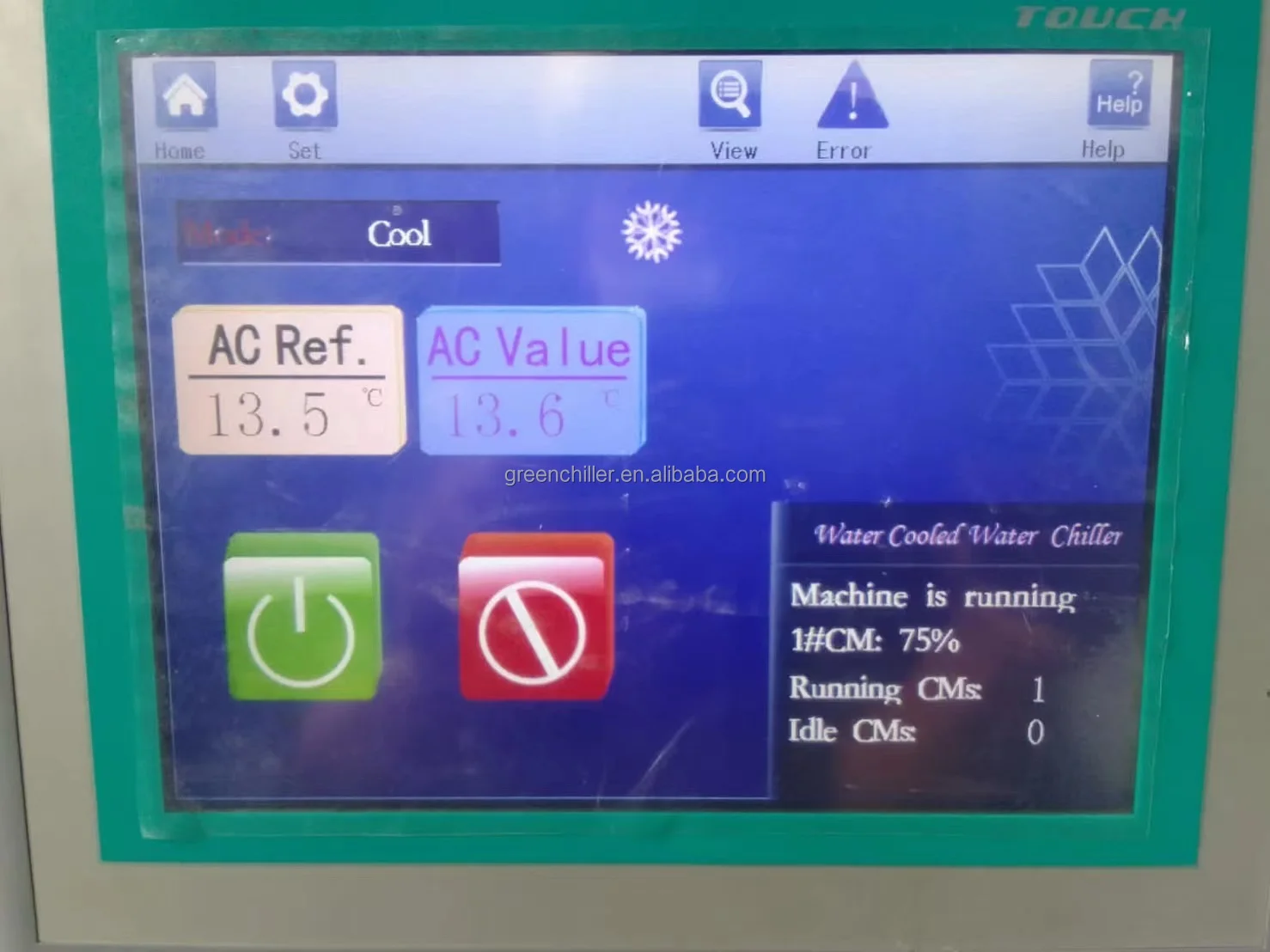

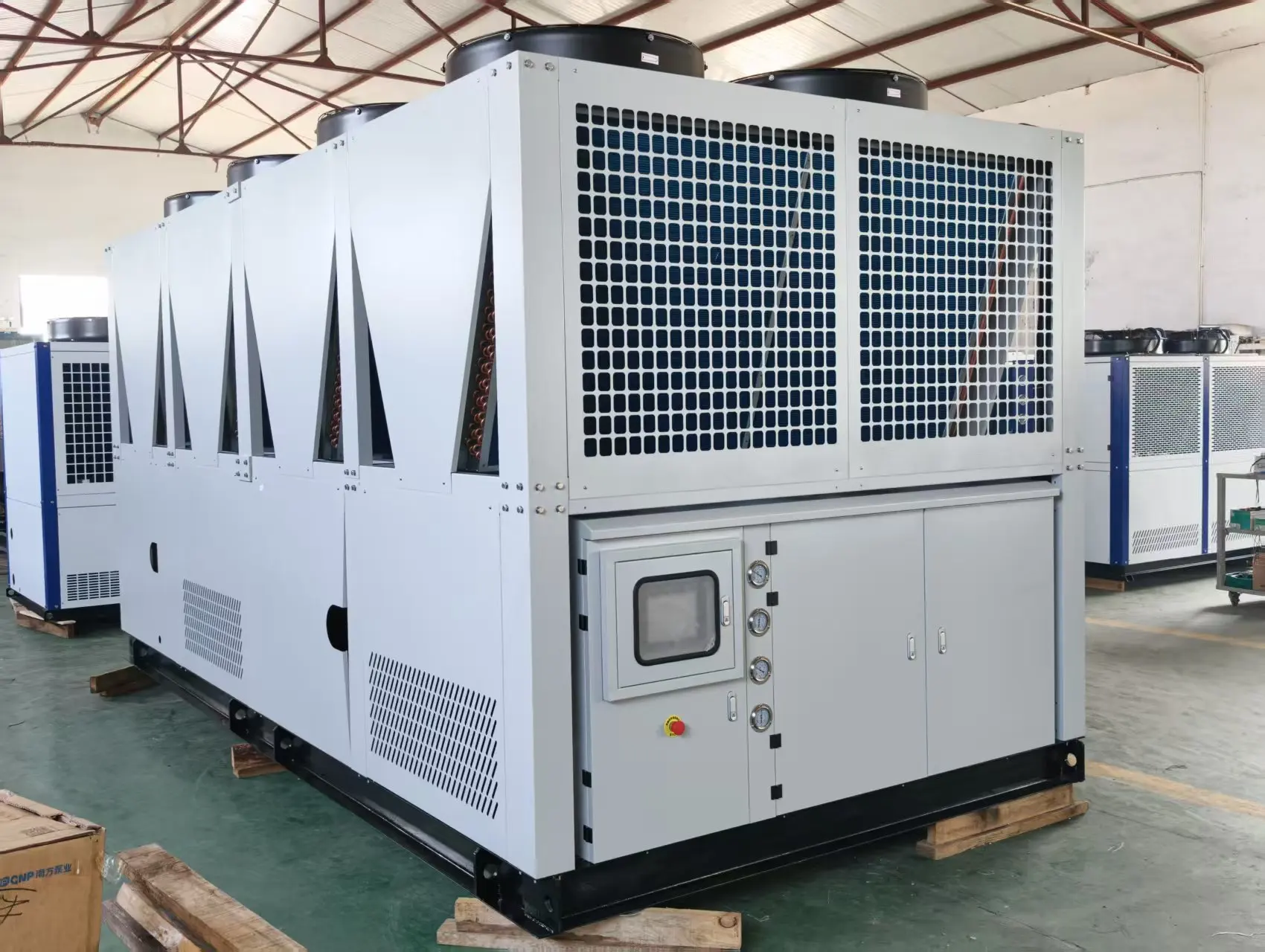

Control Panel
Advanced industrial control: The latest generation of PLC controller is used to ensure accurate control of the unit and efficient and optimized operation. Accurate temperature control: The temperature control accuracy of the chilled water outlet is within ±1 degrees, meeting the requirements of high-precision temperature control.

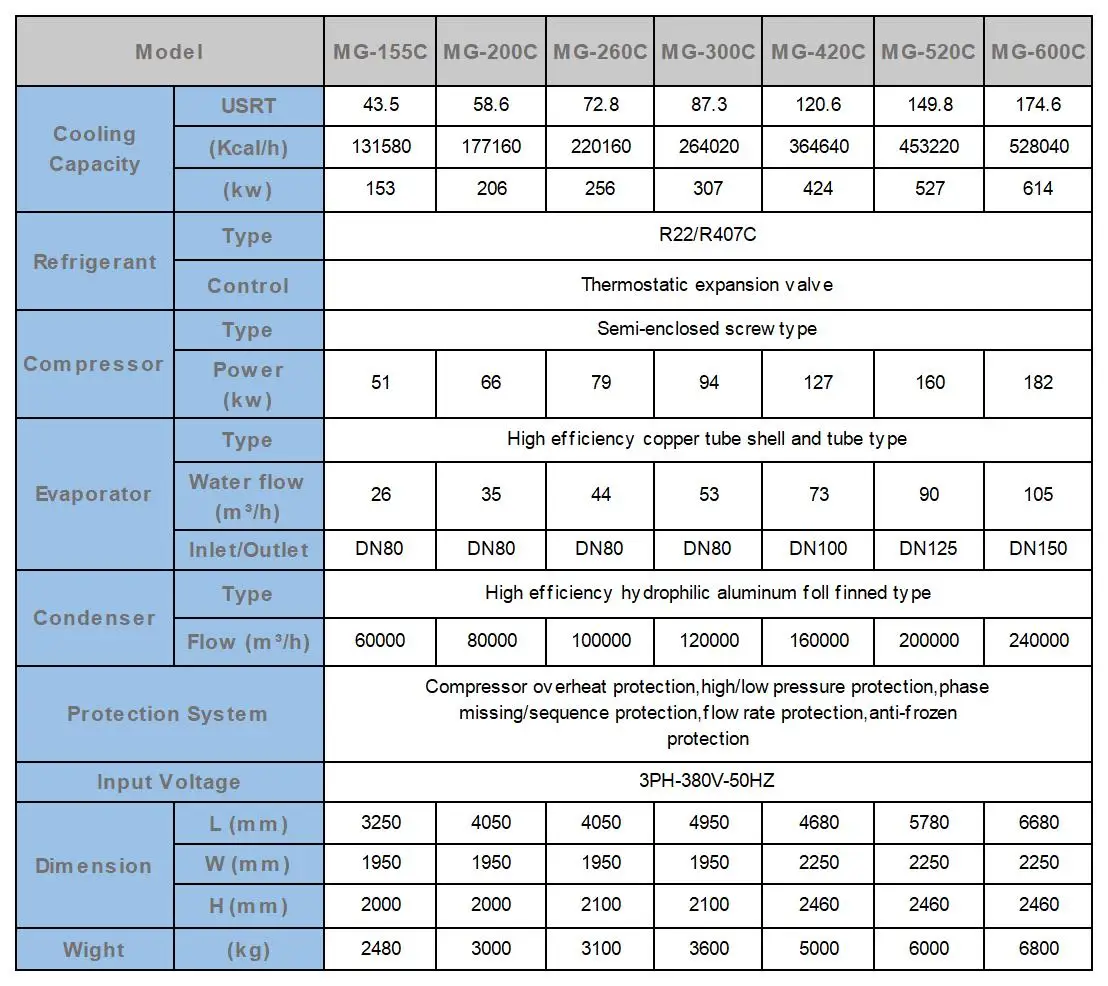

Product Paramenters

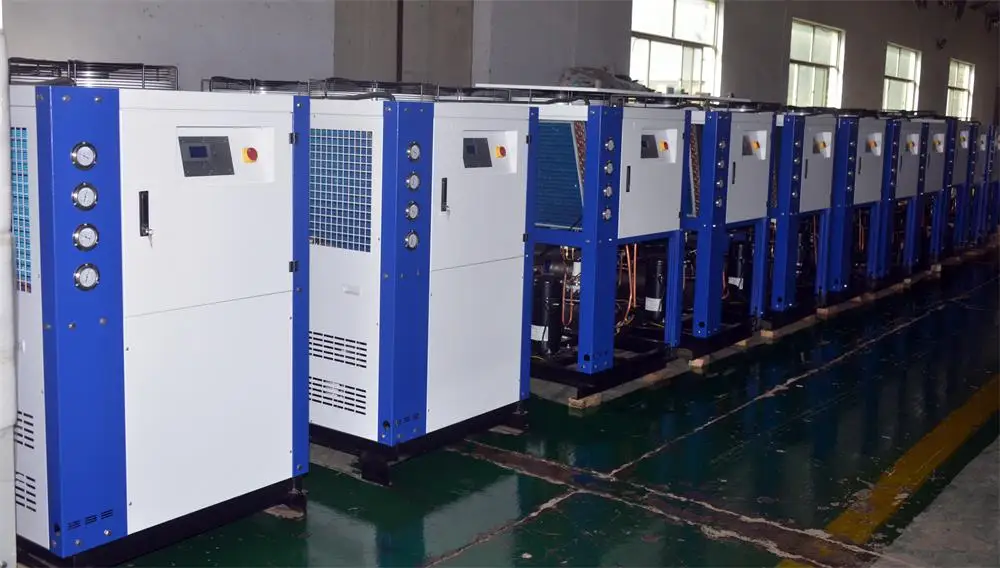

Our Company
Jinan Mgreenbelt Machinery Co., Ltd., established in 2000, is a supplier of Industrial Chiller, Glycol Chiller, Cold Room, Cold room Panel, and Air compressor etc. We have exported more than 100 countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, Australia etc. Mgreenbelt water chiller has wide variety cooling capacity and controlled water temperature. Both water cooled type and air cooled type chiller can extremely offer precise water temperature for any applications, such as plastic rubber, electroplating chemical, food&drinks, beverage, machinery medical and so on.
Certifications

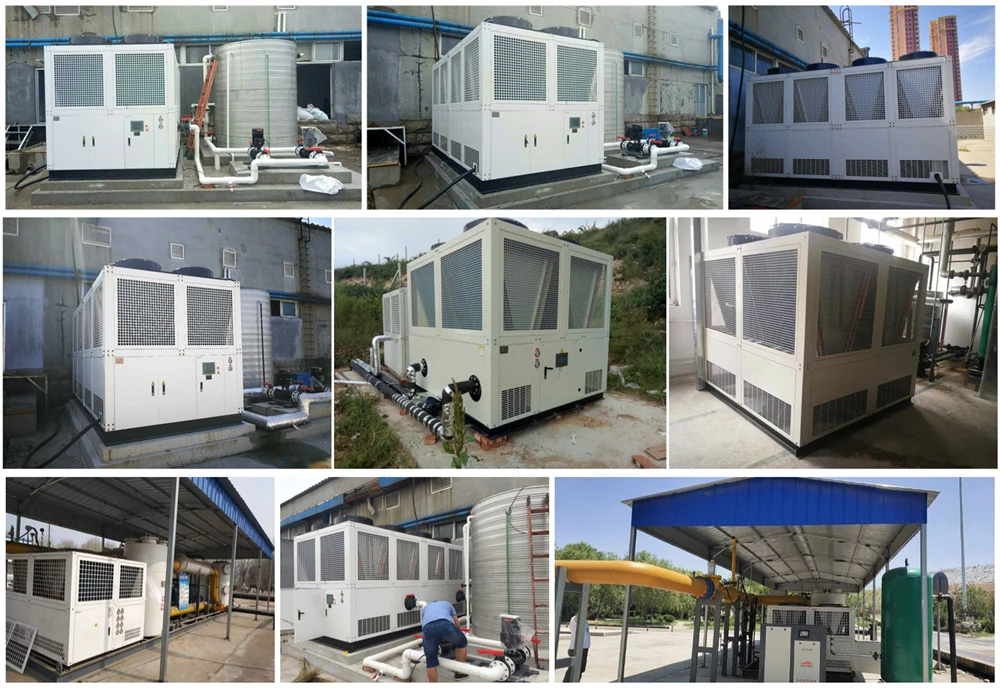

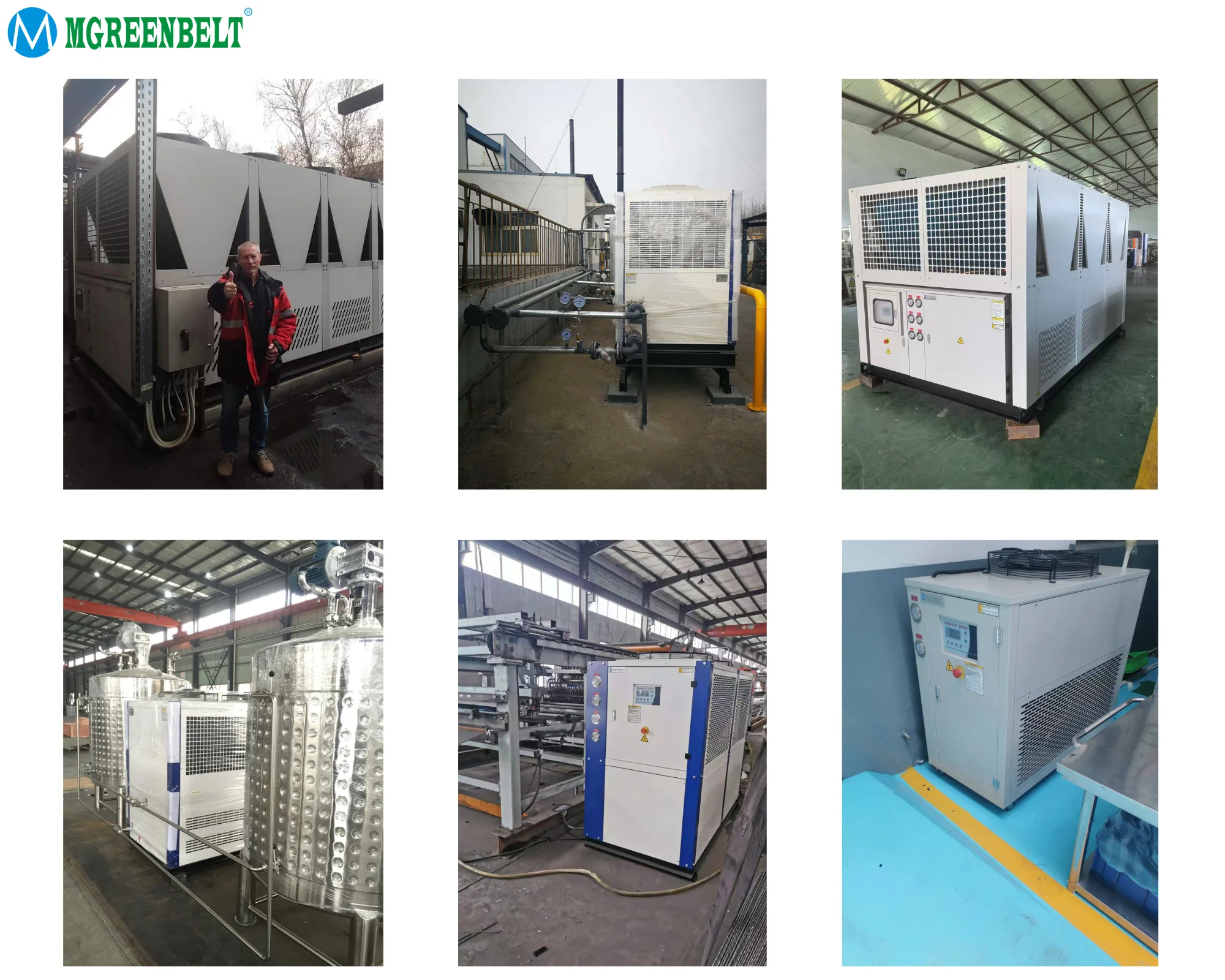

Customer Phono
Packing & Delivery
PACKAGE
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough package with 20"or 40" container ,will use plastic foam package and wooden pallet.
FCL: If the equipment enough package with 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them when machine arrive if you choose the air ship. 2. FOB,CNF,CIF,DDU can be accepted. 3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
FAQ
Q1: Are you trading company or manufacturer ? A1: Our company is an integrated set of industry and trade company Q2: How long is your delivery time? A2: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q3: What is your terms of payment ? A3: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance ,balance before shipment. Q4: How to choose a suitable machine? And how to get a prompt quotation? A4: Please let us know the machine usage, we have professional design team who will make a reasonable scheme. When you send the inquiry to us, please kindly provide the below technical information: a) Chiller type: Air cooled or water cooled b) Cooling capacity: Kcal/hr or KW c) Refrigerant: R410A or others d) Voltages and Frequency : V/PH/HZ
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $3999 / set
- 3+ set: US $3099 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooled screw water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooled screw water chiller be supplied for my local voltage?
The standard configuration is 380V/3P/50HZ & others. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong Mgreenbelt Machinery Co., Ltd., based in China. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shandong Mgreenbelt Machinery Co., Ltd. range on HVACR Nexus.
