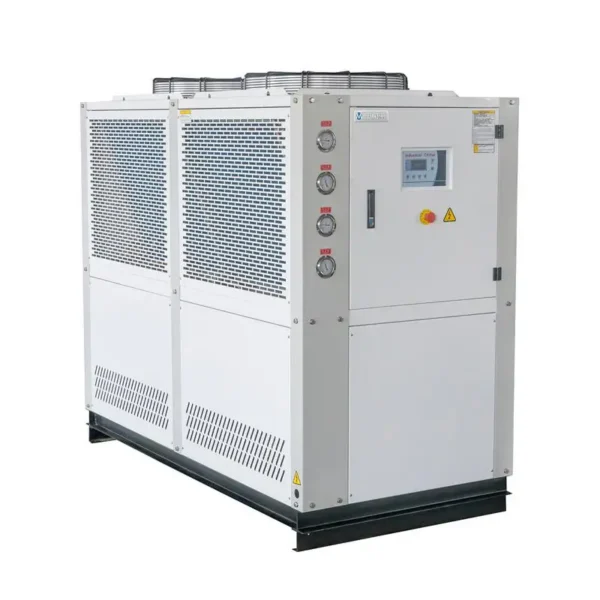

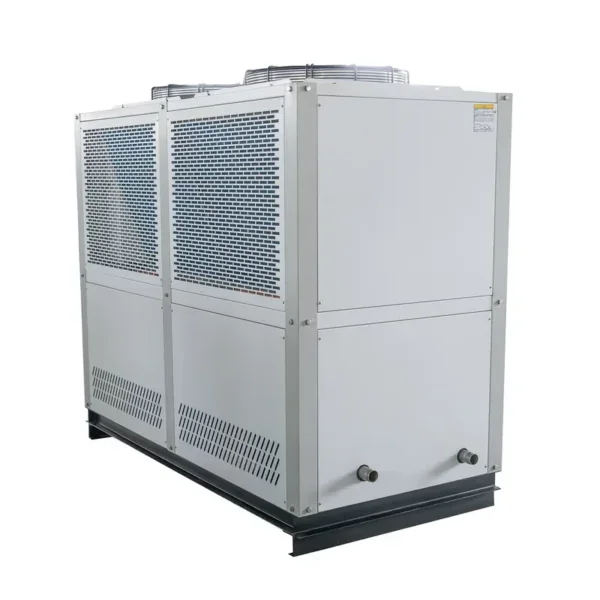

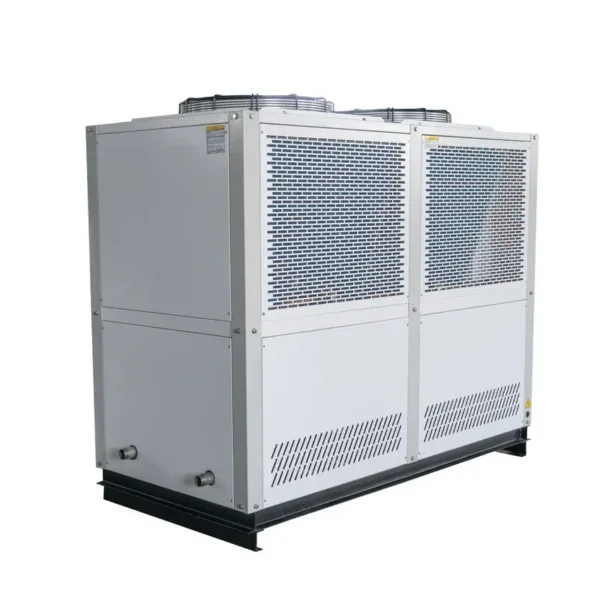

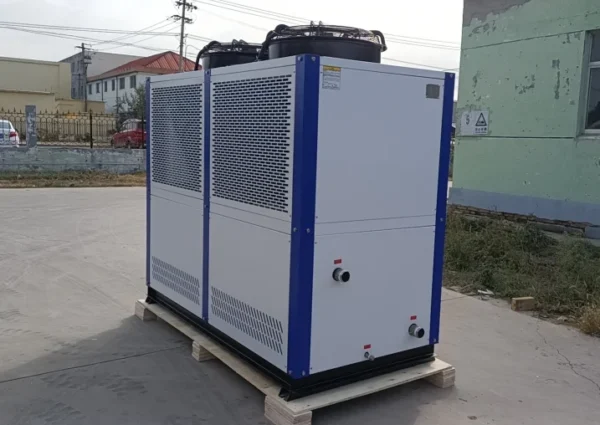

Hydraulic Oil Tank Chiller, 30KW, 50KW, 80KW, 110KW

This hydraulic oil tank chiller is published with the manufacturer’s full specification — voltage 220-480 V, power 5-49.8kW(6.71-66.78hp). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Hydraulic Oil Tank Chiller

• Power: 5-49.8kW(6.71-66.78hp)
• Pump Power: 2.2 kw
• Power Supply: 220-480V
• Voltage: 220-480 V
• Refrigerant: R407c/R134a/R407c/R410a
• Warranty: 1 Year

Technical Specifications

Product Details

Product Description

How the oil chiller to cool the oil?

It can be direct and indirect cooling for the oil.

1. direct cooling, the coil will goes into the chiller to be cooled, in this way the chiller heat exchanger and pipeline , pump must be suitable for oil process.

2. Indirect cooling, there will be an oil cooler( heat exchanger), the water from chiller and the oil from oil tank will go to this the oil cooler and make heat exchange.

Model			MG-20C(D)	MG-30C(D)	MG-40C(F)
Cooling capacity	Kcal/h	47558	71896	94256
		Kw	55.3	83.6	109.6
		Ton	15.8	23.8	32.3
Temperature range	5 deg C ~35 degree C ( if need lower price , such as munus 5, minus 10 ..can send us)
Compressor	Refrigerant	R22, R407c, R410A, R404A
		Refrigerant control	Thermostatic expansion valve
		Type	Hermetic scroll compressor
		Brand	Panasonic / Copeland / Danfoss			Copeland	Danfoss
		Power	9.05*2	9.05*3	9.05*4
		Quantity	2	3	4
Evaporator	Type	Tank with coil:  if user side is a closed loop, choose this ype
				Shell and tube: if user side is open loop, choose this type
				SS Heat exchange plate: brewery industry use more
		Dia Inlet/Outlet	1 1/2"	2 1/2"	2 1/2"
		Flow rate (m3/h)	9.48	10.83	14.33
Pump	Power(kw)	1.5	1.5	1.5
		Pressure (bar)	2	2	2
Condenser	Type	Air cooling fan and finned
	Fan power(kw)	0.75*2	0.75*3	1.5*2
Protect system	High/Low Pressure protection, Phase-sequencing Protection, Overload Protection, Overheat Protection, Water flow protection, Anti-frozen protection.
Dimension	cm	210*100*170	220*116*190	250*146*200
N.Weight	kg	850	1150	1350

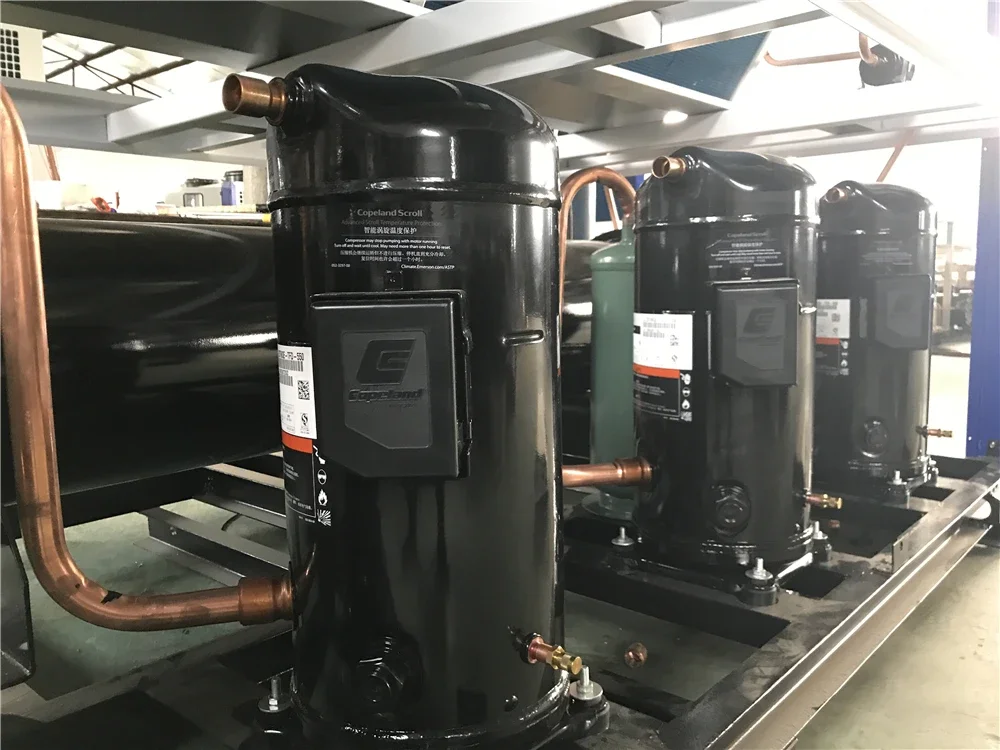

Panasonic,Copeland, Danfoss Compressor

Panasonic,Copeland, Danfoss fully enclosed scroll compressor, more efficient than reciprocating compressor 20~30%. It has the
advantages of smooth and reliable operation, low efficiency and lower fault, low vibration noise, convenient maintenance and long
life. High-quality compressor as the heart of the chiller, we choose Europe, the United States, Japan High-quality import brand
original compressor, built-in safety protection, low noise, power saving and durable, in order to increase the service life of the
equipment.

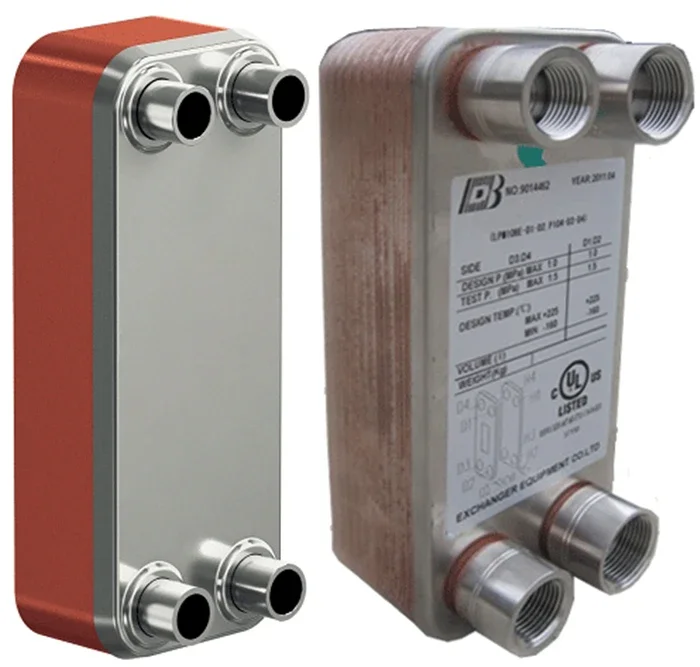

Plate heat exchanger

Stainless steel material, smart space and high efficienct

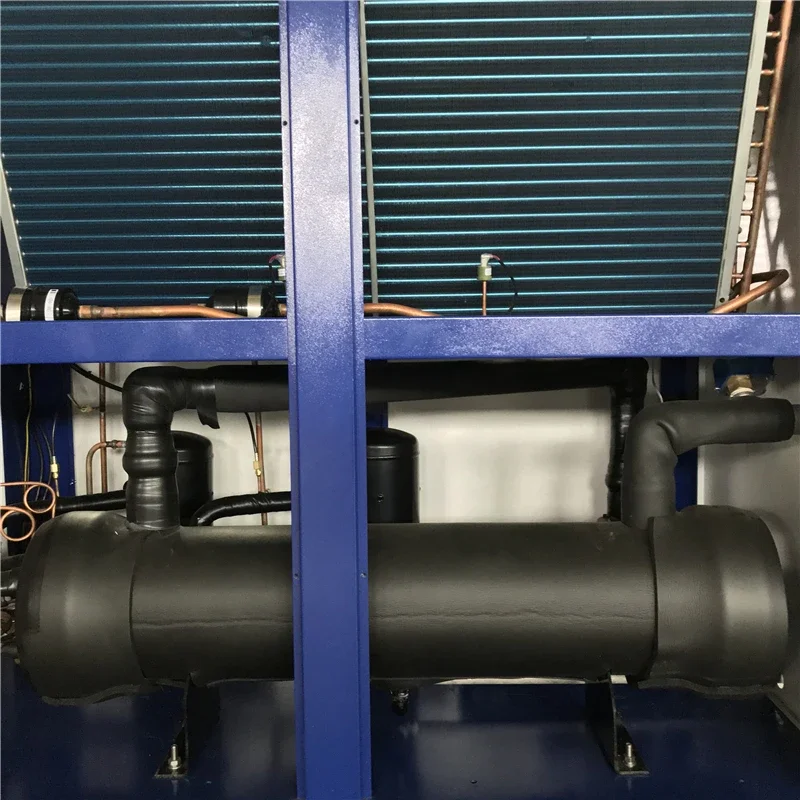

Shell and tube

Shell and tube heat exchanger are also available

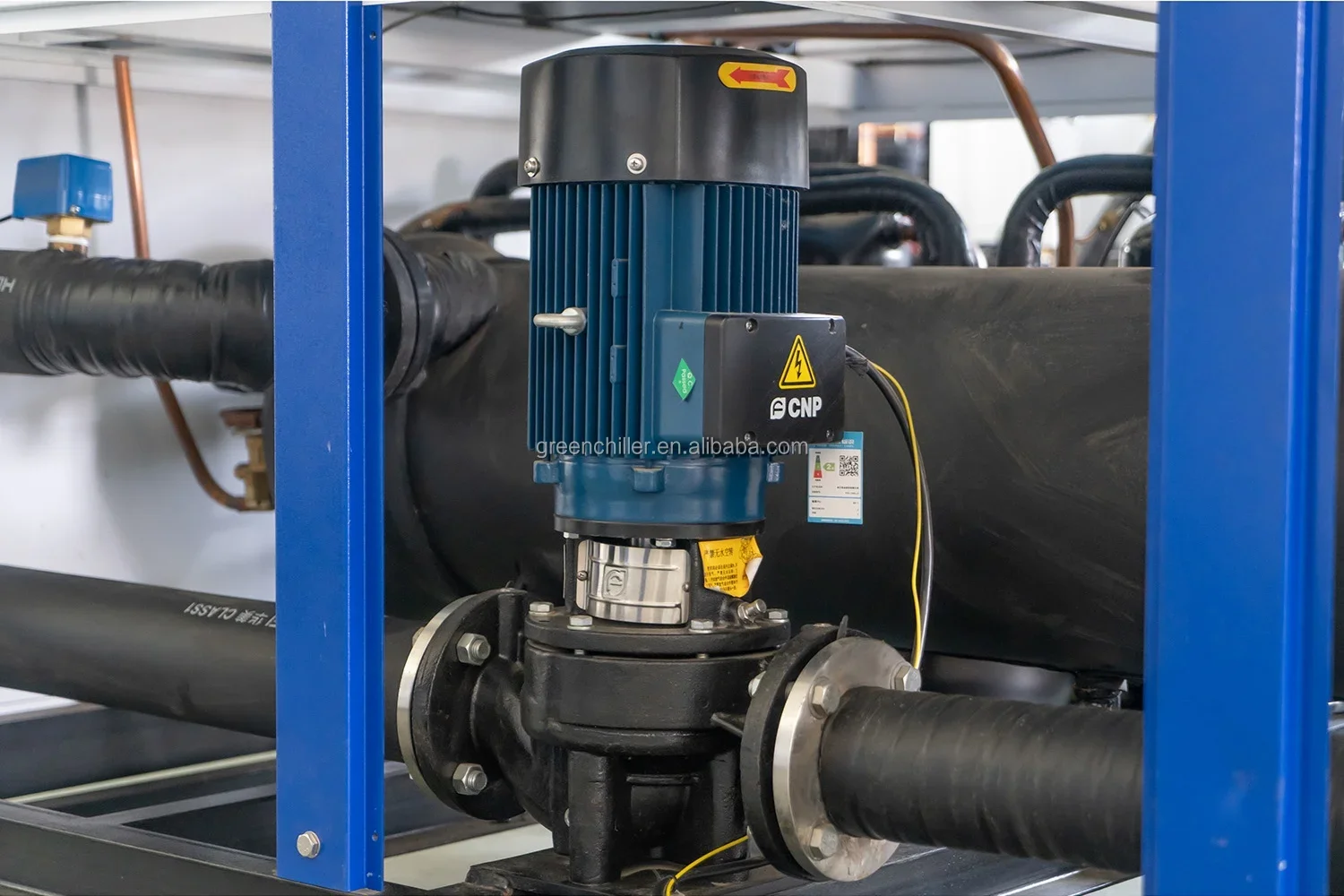

Pump

CNP Stainless steel pump. With high lift, large flow, low energy consumption, smooth and reliable operation, high efficiency and lower fault, low vibration noise, long life and other advantages, to ensure that water quality away from corrosion. Some merchants in order to save costs, will be equipped with poor performance of the water pump, will cause the machine cooling effect is not good, operation is unstable, the chance of repair is high and so on. We use FCNP stainless steel pumps to make the machine more durable and better.

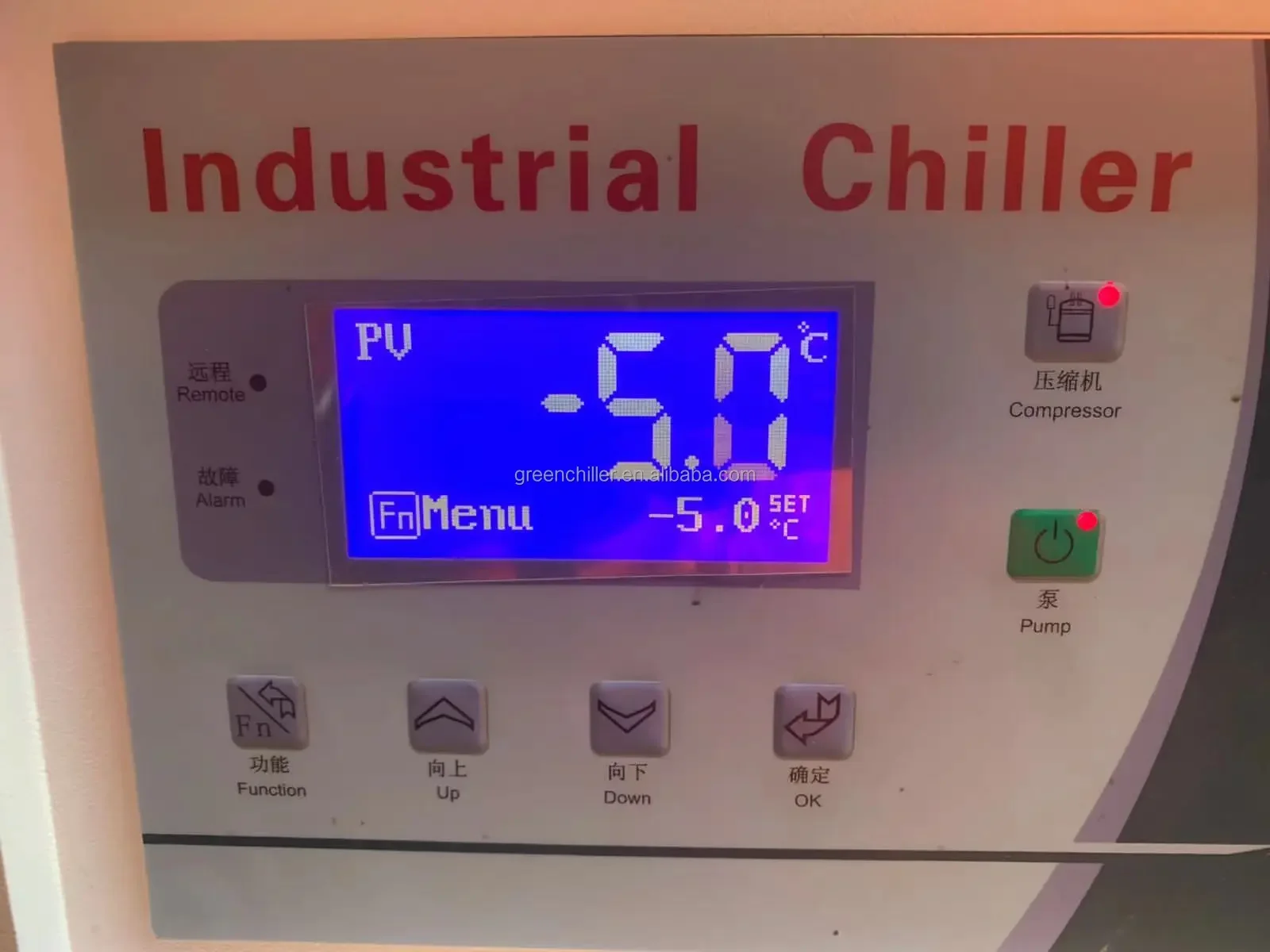

1.Punp Microcomputer Control System

The intelligent control system of microcomputer is precisely controlled, Simple operation, intelligent start and stop, Precision temperature control within 5 to 45 degrees of arbitrary adjustment, LCD display, all kinds of faults at a glance, Monitor ingends in real time, Multiple protection features, The Chinese and English interface sits to switch, To meet the needs of different users, Easy to operate.

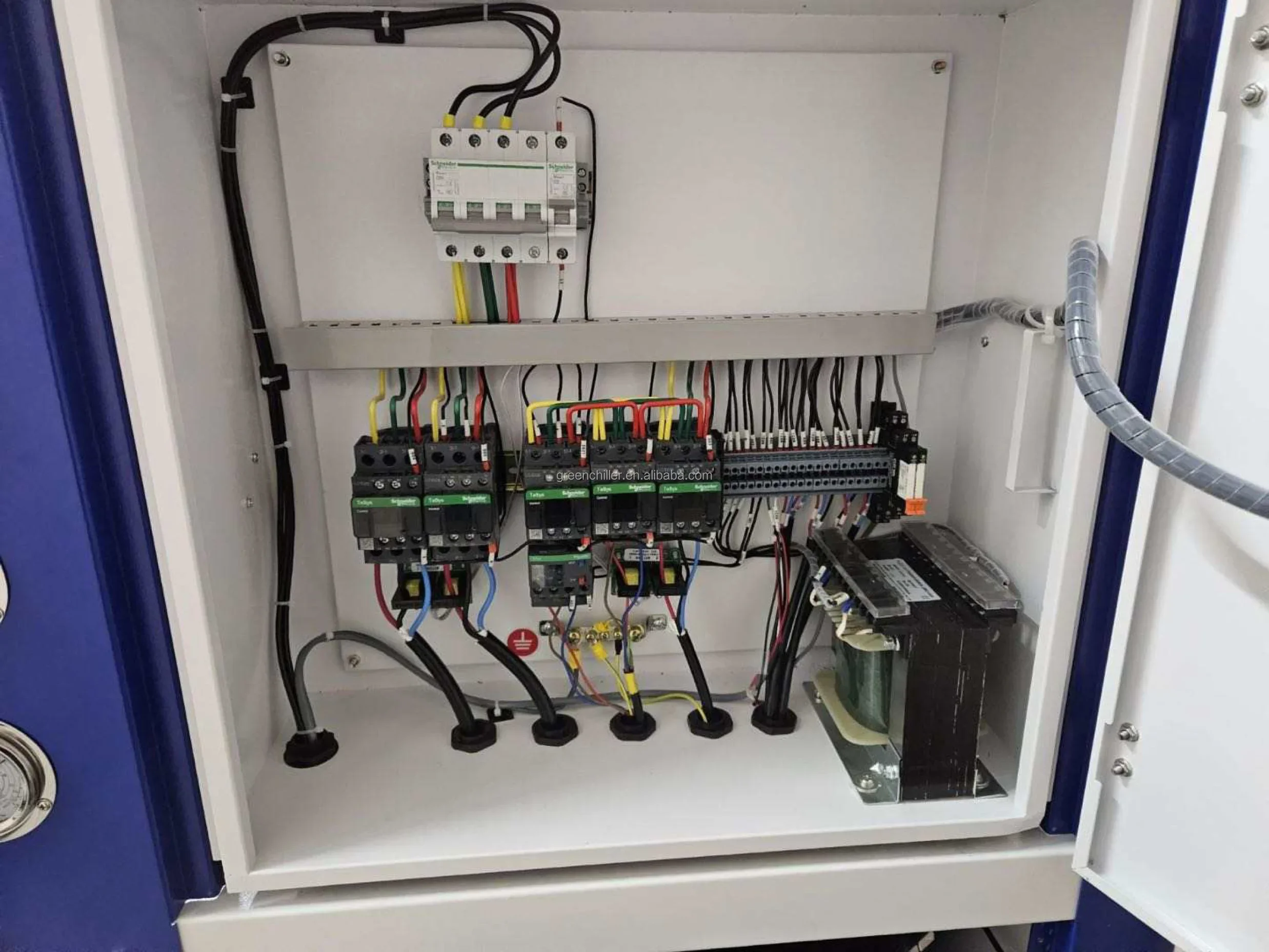

2.SIEMENS PLC Systems

Protection system built-in compressor superload protector, circulating water pump superload, system high and low pressure protector, compressor start electronic time delay, German SIEMENS electronic products, with a sound electrical protection system.

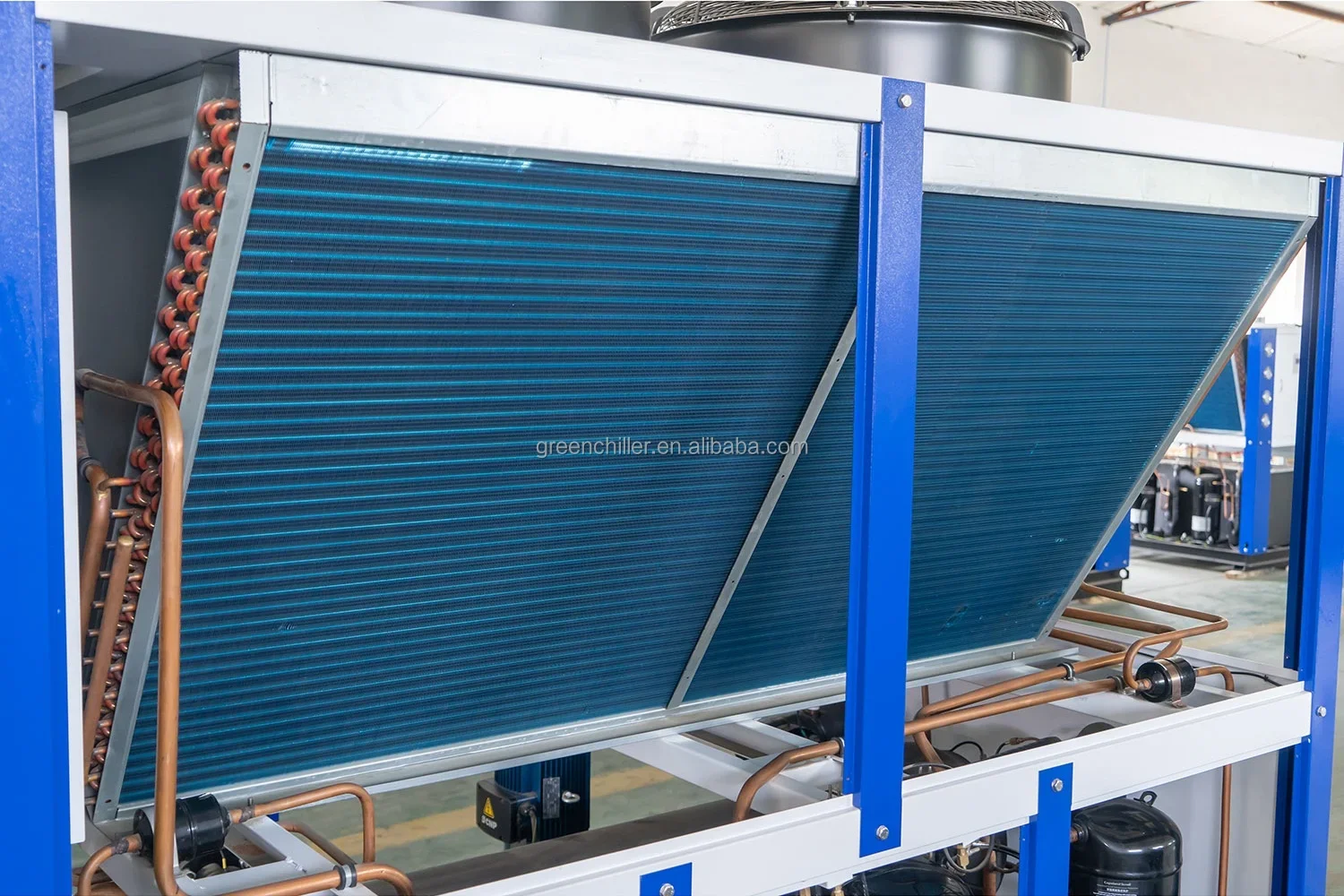

Air Cooling Condenser

High wind volume axial flow design, imported heat-changing fan, heat exchange efficiency is significant. Low noise fan and high efficiency motor, with large air volume, small vibration, external protection fence, to achieve a good heat dissipation effect, its fan using high-strength hard aluminum alloy production, blade stamping molding, and by strict movement of the two balance test, quality is better than peers.

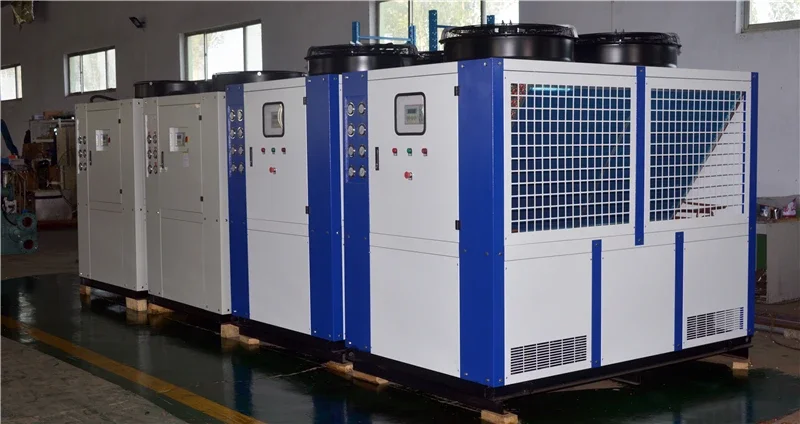

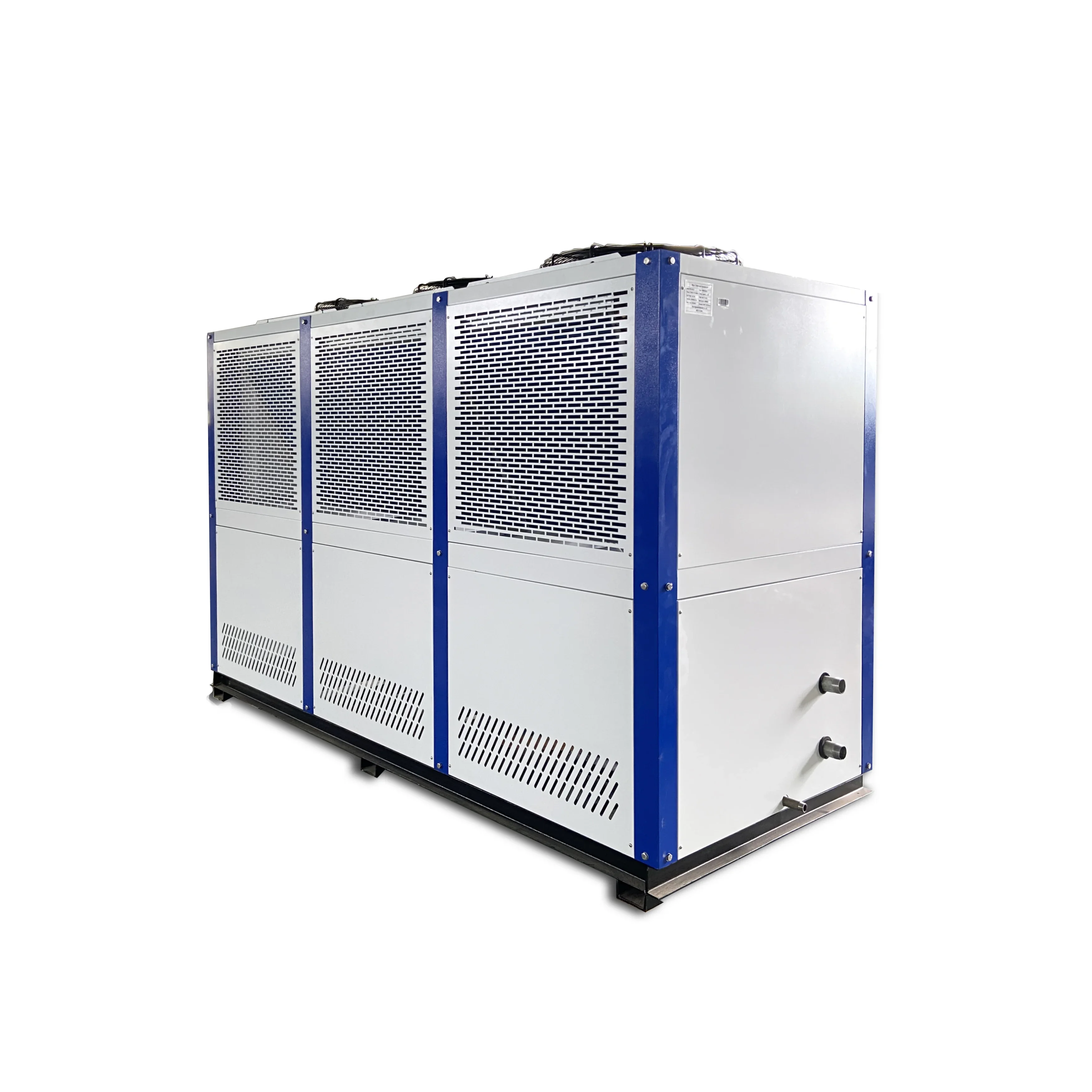

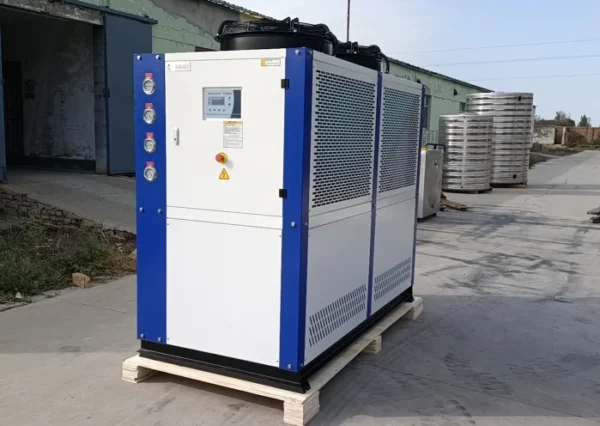

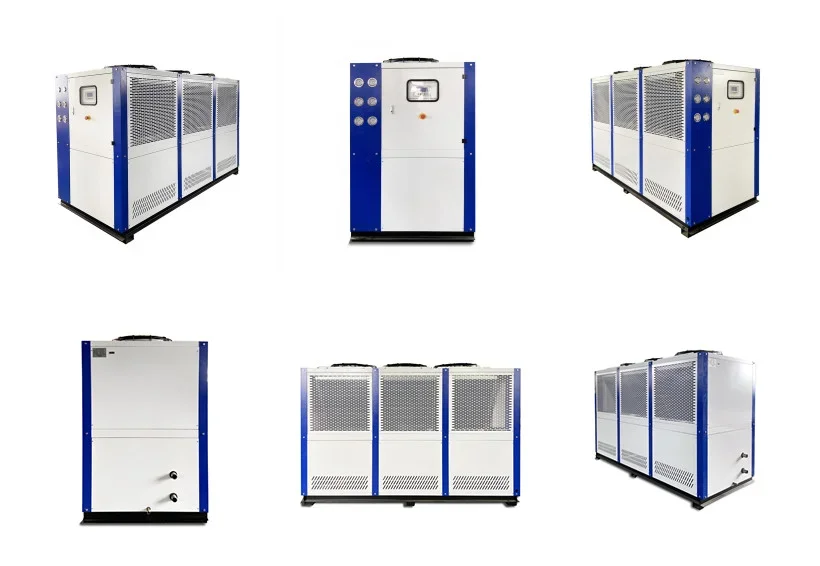

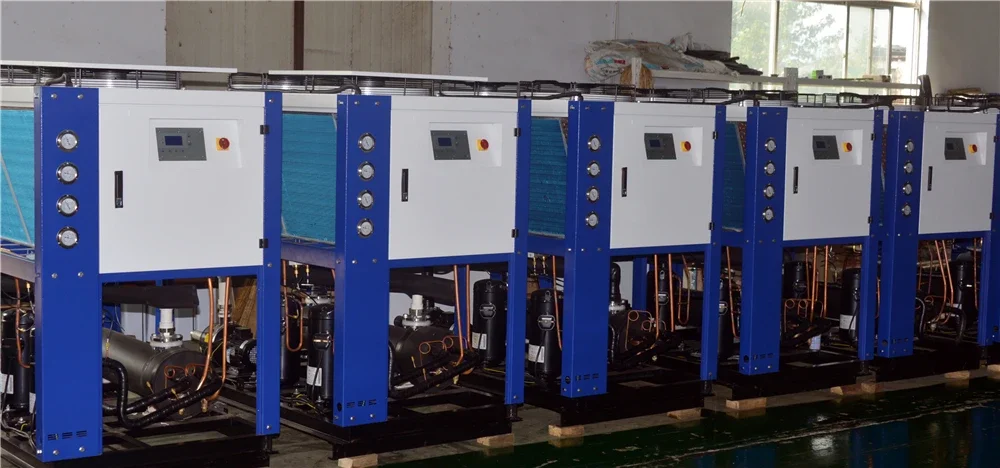

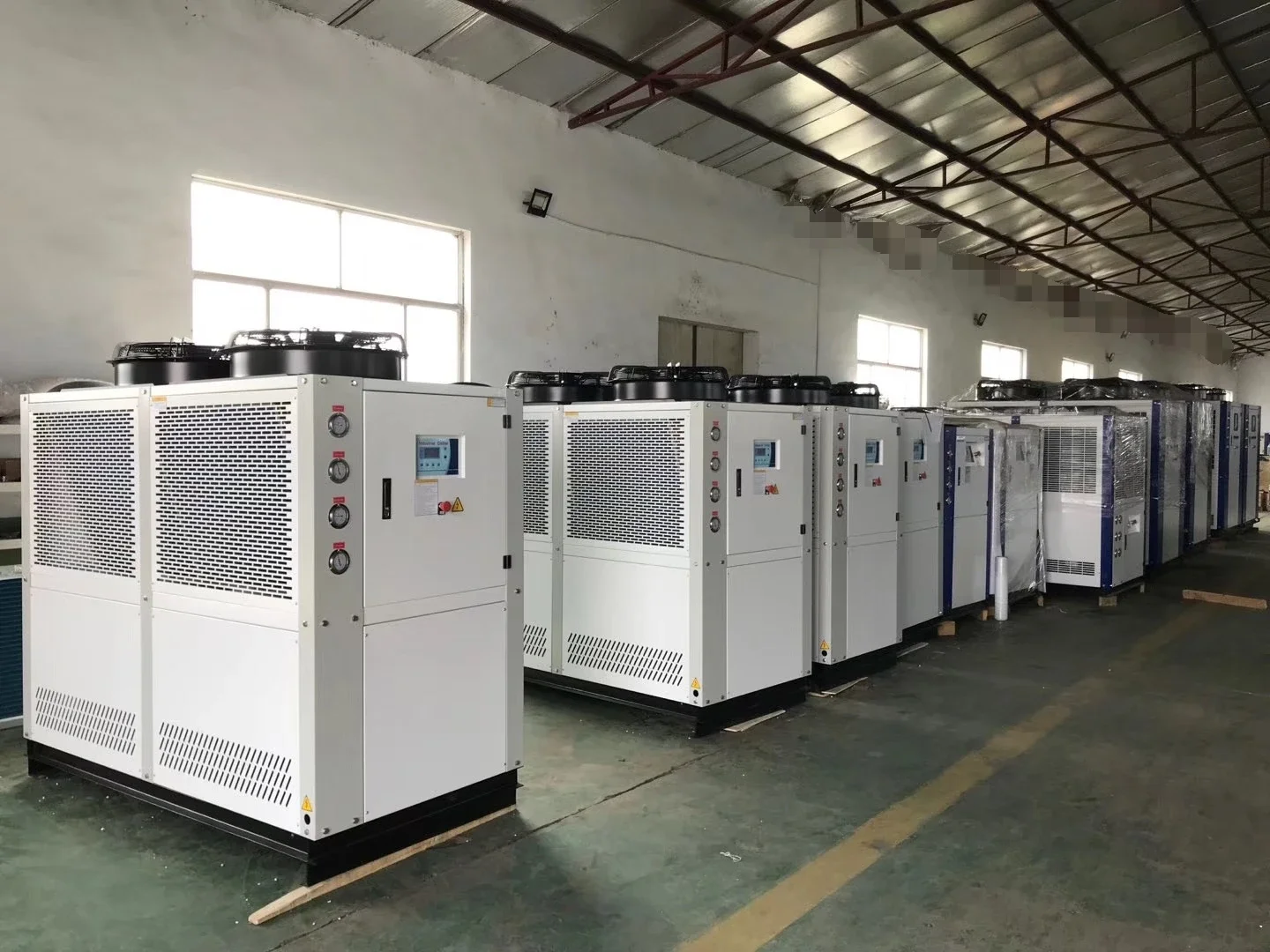

Details Image

Packing&Shipping

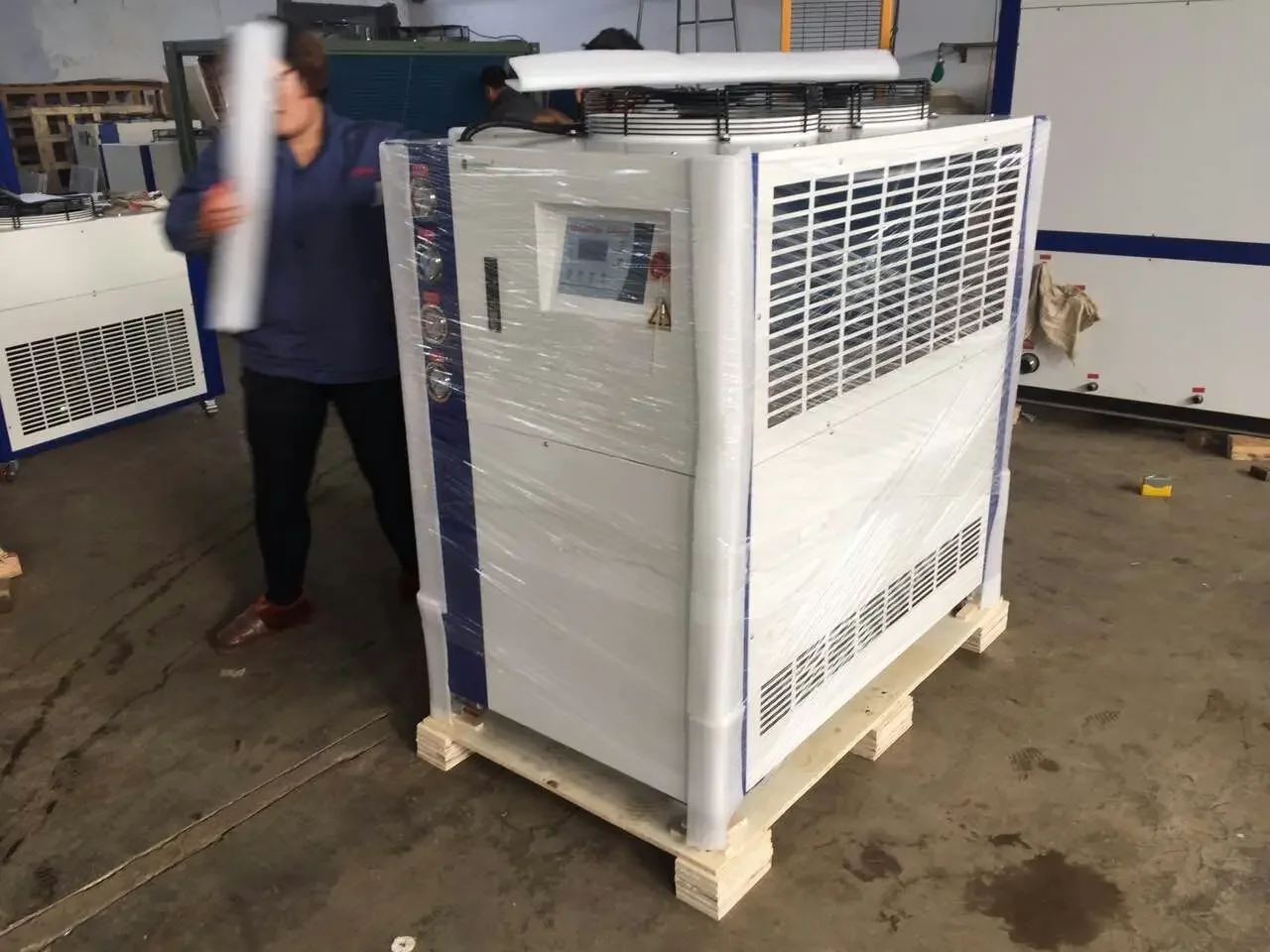

Plastic flim packaging

Plywooden case

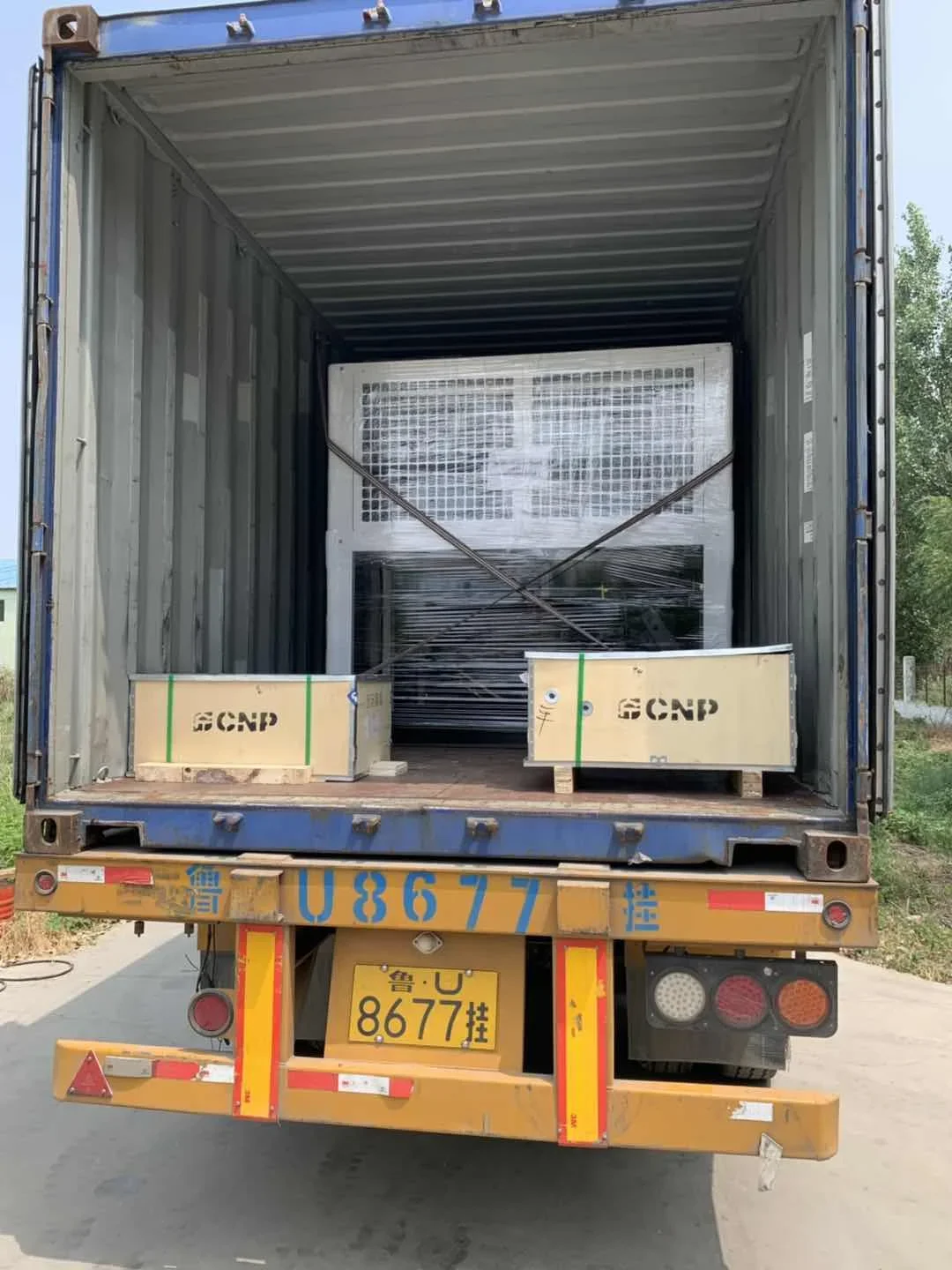

Container

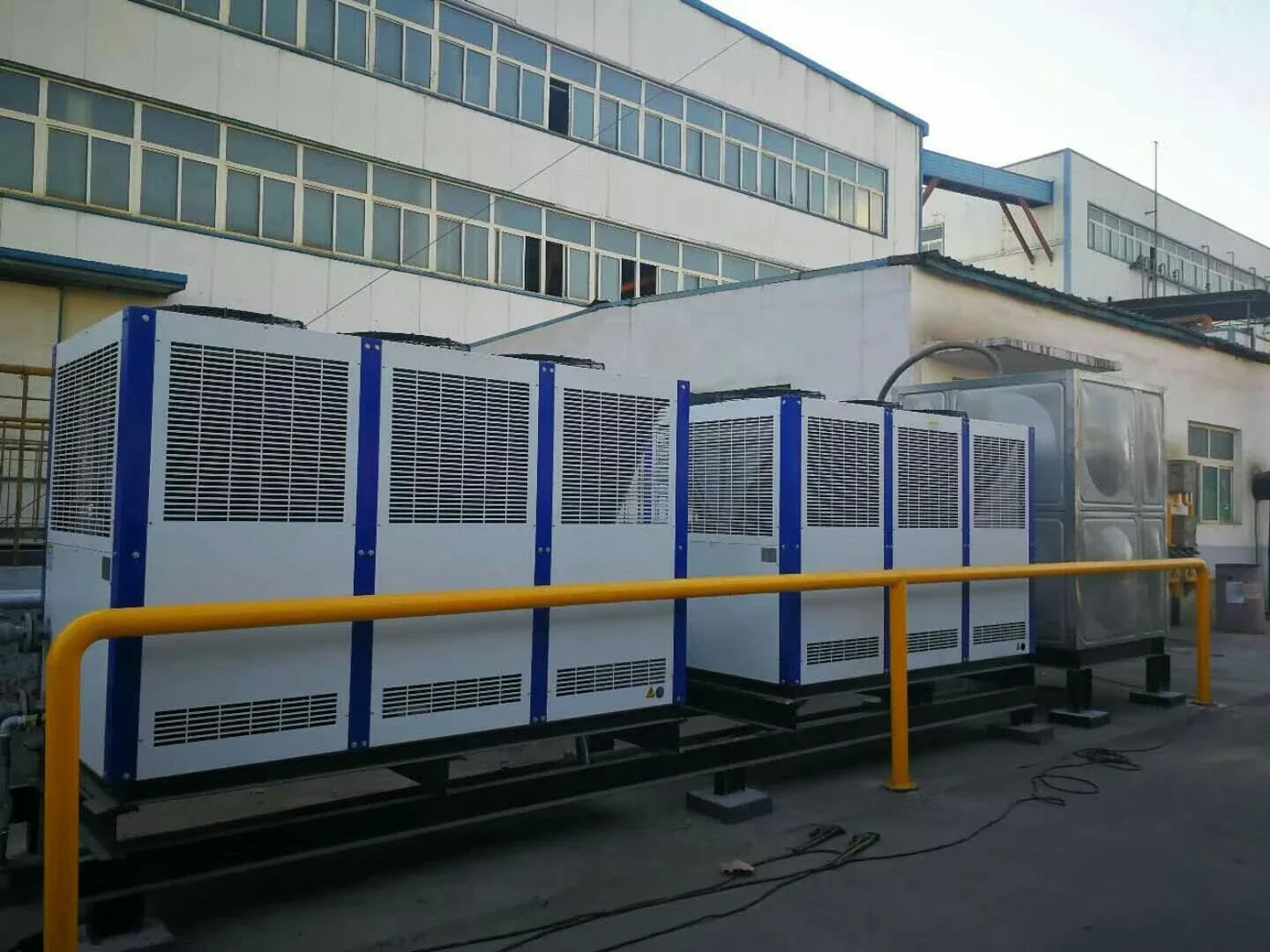

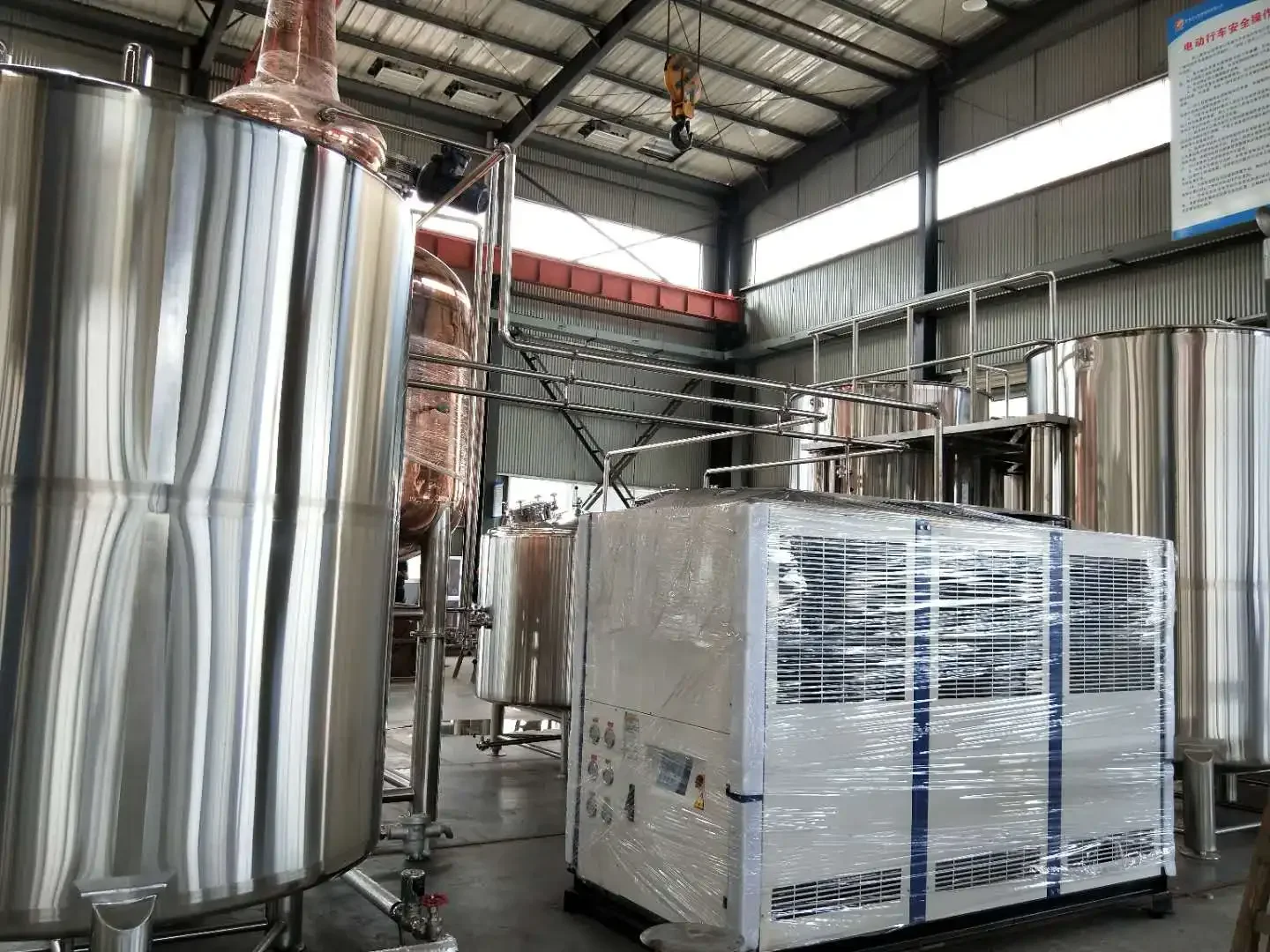

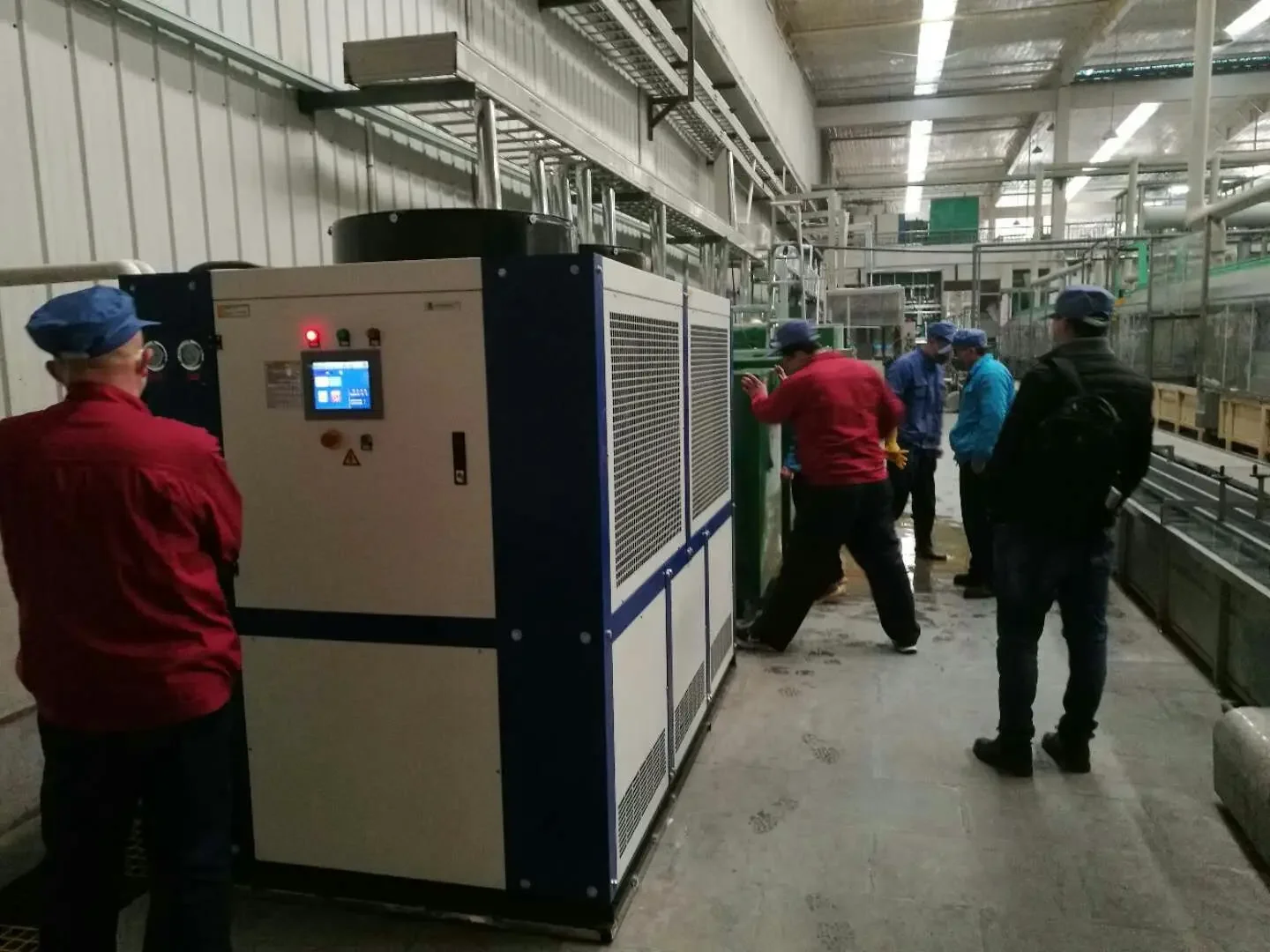

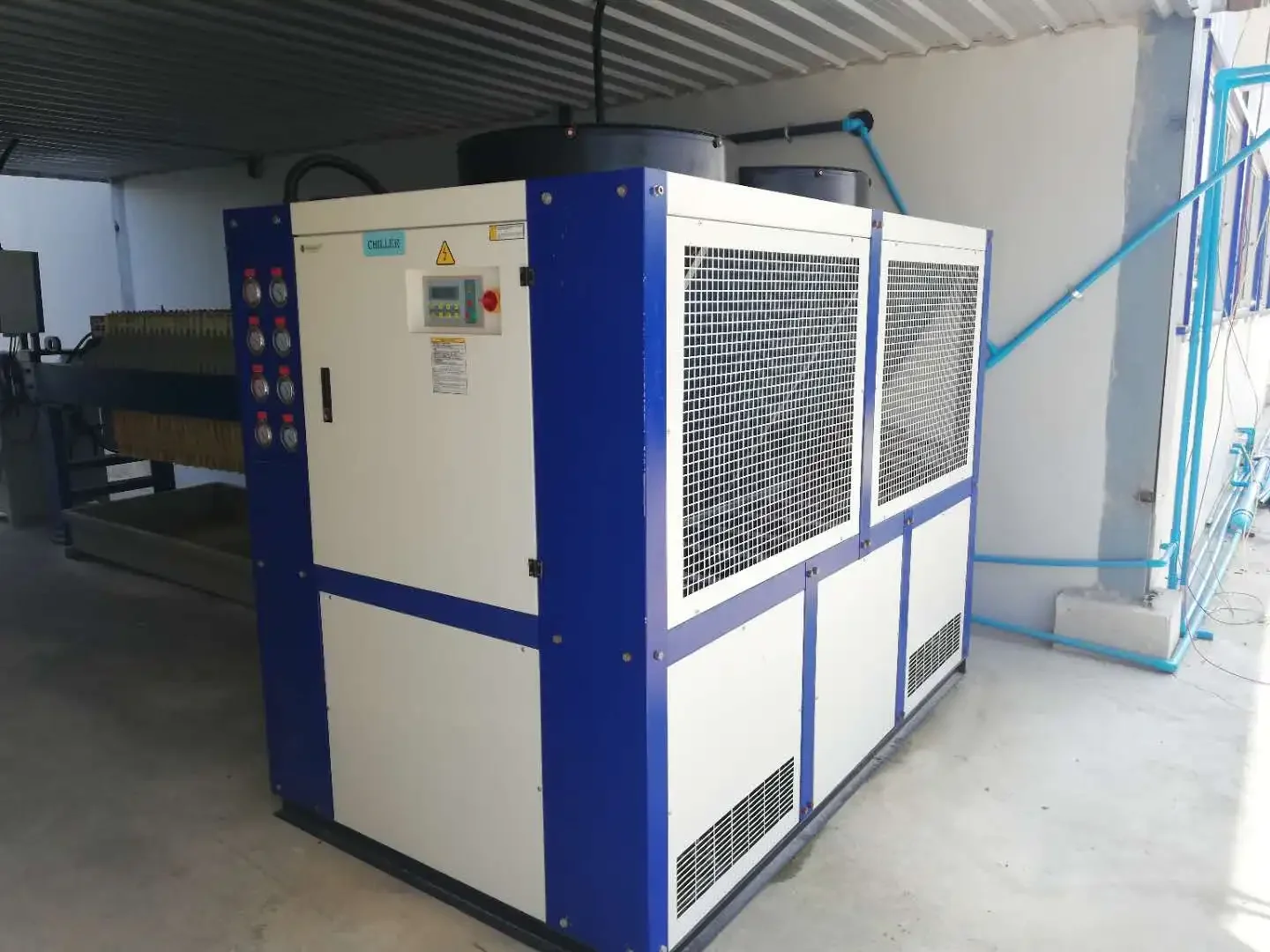

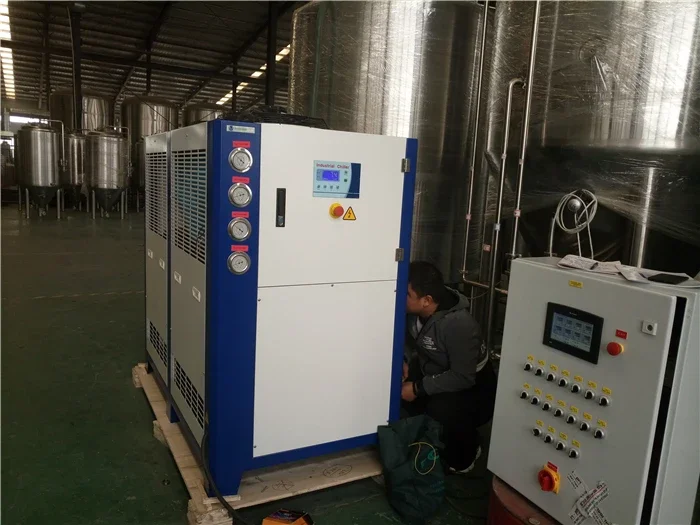

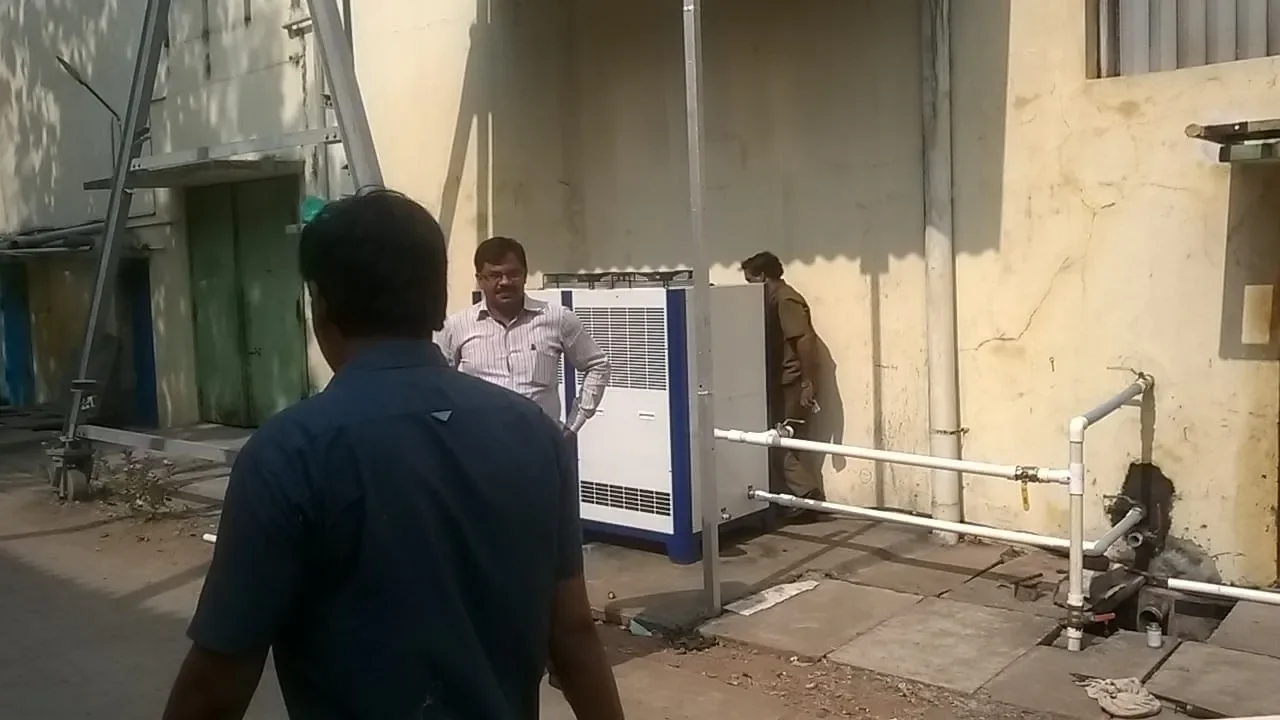

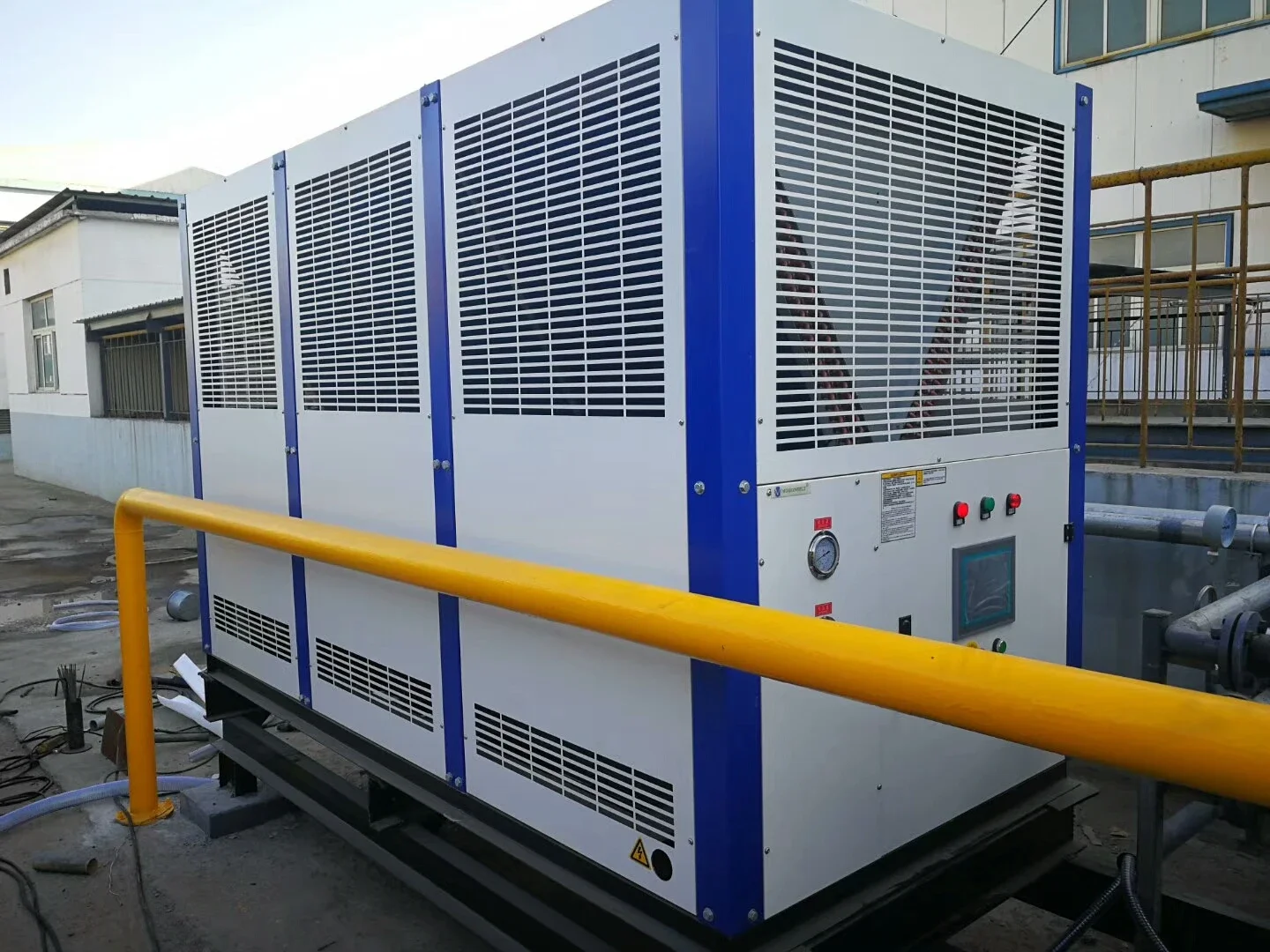

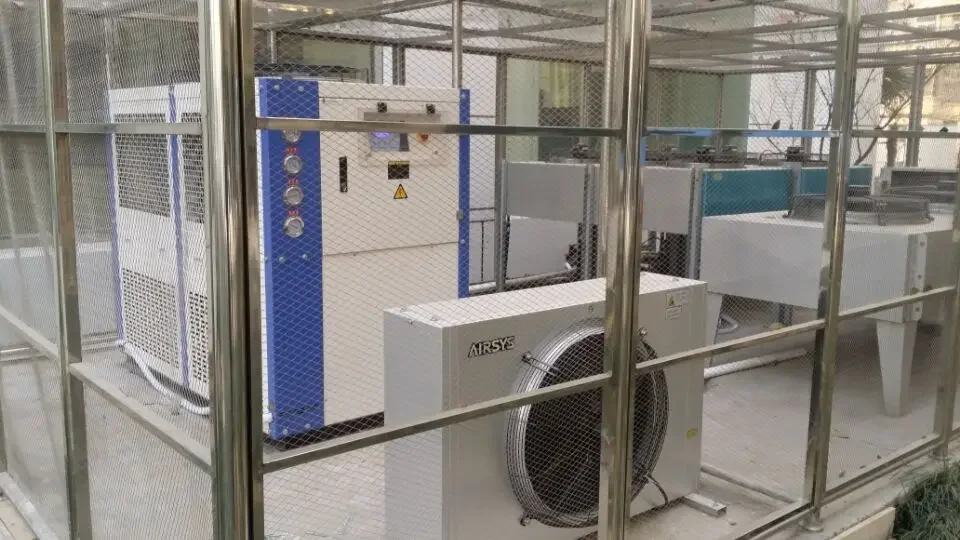

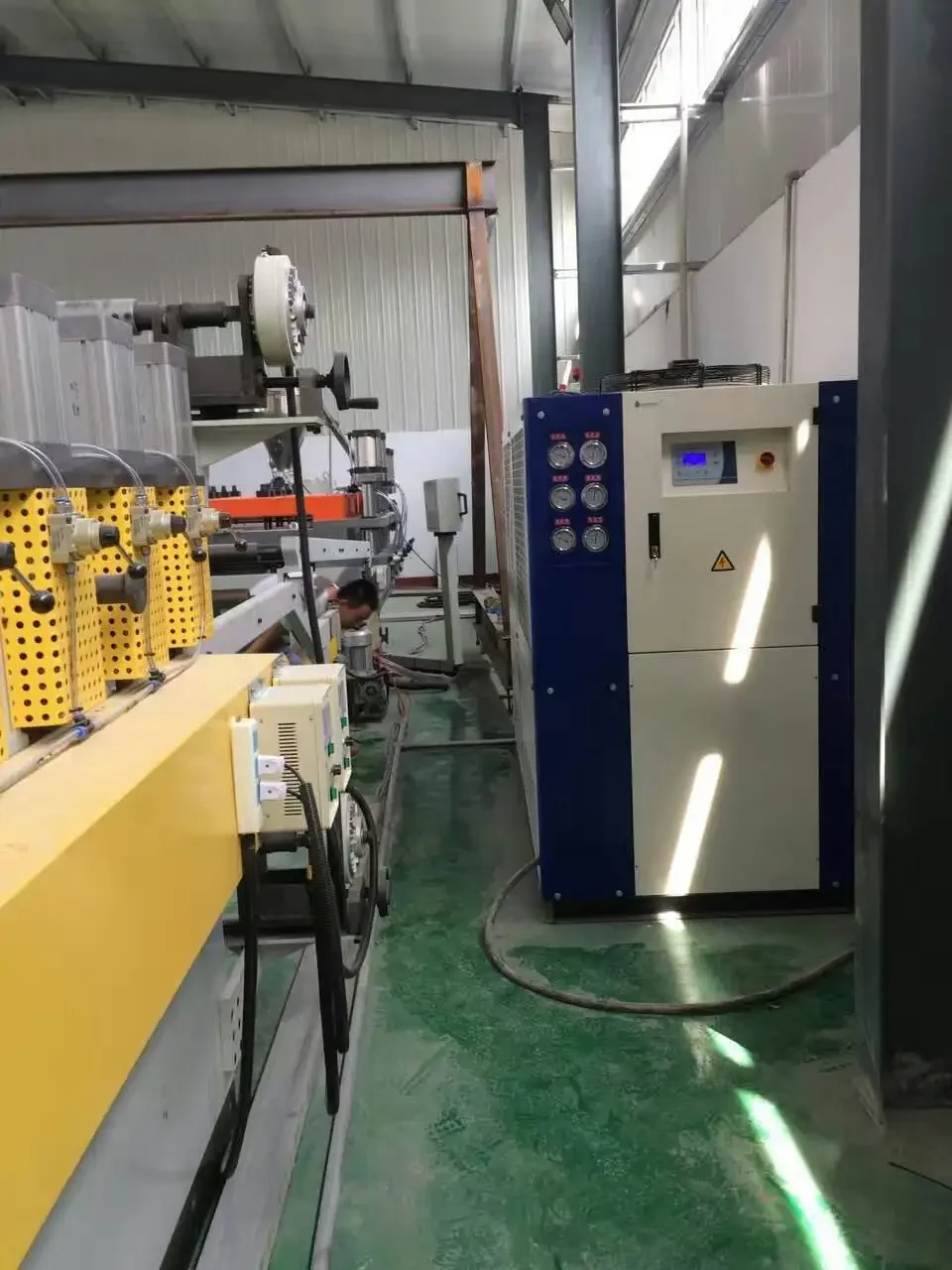

Our Customer Use It

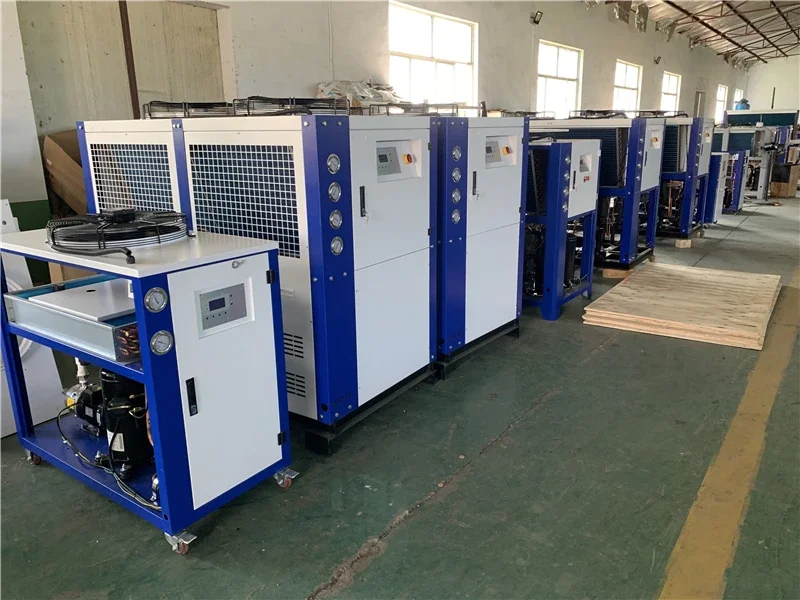

Company Introduction

Shandong Mgreenbelt Machinery Co., Ltd.

Shandong Mgreenbelt Machinery Co., Ltd. is a professional manufacturing, sales, and service as one of the water chiller equipment;

We have 18 years experience of the designer team, To provide the best service to our customer.

Our products have passed the SGS and CE , ISO9001 system certification;

The main production of Industrial Chillers, air cooled water chiller, water cooled chiller, Screw chiller, glycol chiller, brine chiller and any industrial cooling system;

As a manufacturer with 34000 squire meters workshop, and more than 50 persons team, we provide the one-station service for customer, and complete solution provide.

 Products in Europe, the Americas, Africa, Southeast Asia, more than 100 countries and gain acceptance.

FAQ

Q:How to control the products quality? We have always placed great emphasis on quality level is matintained. Moreover, the principle we always maintain is "to provide customers better quality, better price and better service"

Q:Can you provide OEM service? Yes, We work on OEM orders.Q:Where is MGREENBELT? Is it possible to visit your factory? MGREENBELT is located in Jinan city, China, You are welcome to visit us, and many clients from all over the worlds have visited us.Q:Shipping Method and Shipping Time? 1. Express courier like DHL, FEDEX to USA, and TNT to European, etc. Shipping time is about one month depends on country and aera. 2. By air port to port: about 5-10 days depends on port. 3. By sea port to port: about 20-55 days depends on port. 4. Agent appointed by clients

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1+ unit: US $1860 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this hydraulic oil tank chiller?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the hydraulic oil tank chiller be supplied for my local voltage?

The standard configuration is 220-480 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
