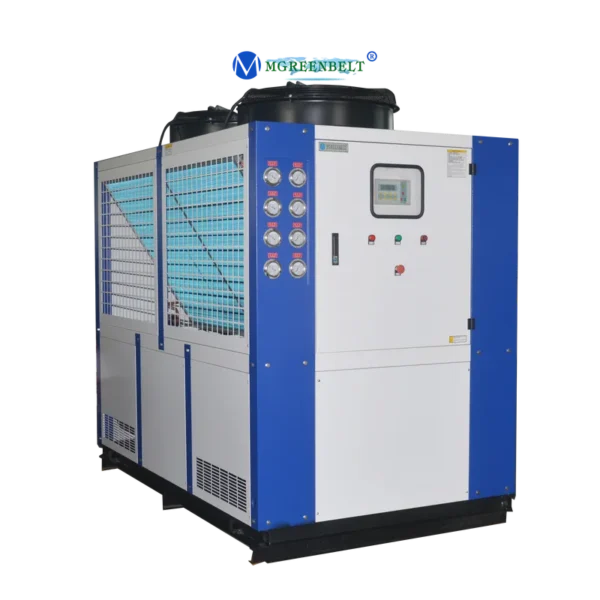

Key specification for this ice rink water chiller: voltage 3PH~220V/380/415V~50HZ/60HZ, 5.3KW. Everything below is reproduced from the factory data sheet. Made by Shandong Mgreenbelt Machinery Co., Ltd. (15 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Ice Rink Water Chiller
- Power: 5.3KW
- Voltage: 3PH~220V/380/415V~50HZ/60HZ
- Refrigerant: R404A/R507/R448A
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Evaporator Type: Shell and tube type
Technical Specifications
| Voltage | 3PH~220V/380/415V~50HZ/60HZ |
|---|---|
| Power | 5.3KW |
| Compressor Brand | Copeland, Daikin, Sanyo, Fusheng |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High Productivity |
| Core Components | Motor, Pump |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 100 |
| Brand Name | MGREENBELT |
| Dimension(L*W*H) | 2050*1000*1700mm |
| Working Temperature Range | -20C |
| Evaporator Type | Shell and tube type |
| Control Of Refigerant | Thermostatic expansion valve |
| Outlet Temperature | -15 degree C |
| Condenser | high efficiency V type finned copper tube |
| Compressor Quantity | 2 unit |
| Compressor Type | Hermetic Scroll type |
| Controller | Microcomputer or Siemens PLC |
| Refrigerant | R404A/R507/R448A |
| Selling Units | Single item |
| Single Package Size | 160X60X160 cm |
| Single Gross Weight | 100.0 kg |
Product Details
Design of Outdoor Ice Rink Chiller
(1). Electrical waterproof IP55 grade, chiller could be placed outdoor without shelter.
(2) Design working condition ambient temperature from -20C degree to +50C degree.
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available, chiller with stop/off function remote and alarm remote optional.
(5). Power off – Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel;
(7). Supply outlet water temperature : -15C ~ +30C
SPECIFICATIONS FOR MINUS 15C GLYCOL CHILLER | |||||||
Model | MG-30C(D) | MG-20C(D) | |||||
Total input power | kW | 32.2 | 19.5 | ||||
Electric power supply | AC 380-415V, 440-480V, 50HZ/60HZ, 3P | ||||||
Cooling capacity (KW) | -5 DEGREE C | 56.8 | 37.6 | ||||
-10 DEGREE C | 39.75 | 34 | |||||
-15 DEGREE C | 36 | 28 | |||||
Compressor | Type | Hermetic scroll type | |||||
Brand | Copeland( USA), Danfoss(Denmark), Panasonic( Japan) | ||||||
Quantity | unit | 3 or 2 | 2 | ||||
Power | kW | 9.05*3 | 8*2 | ||||
Refrigerant | Type | R-22, R-134A, R-410A, R-407C, R-404A | |||||
Control type | Thermostatic expansion valve | ||||||
Evaporator | Type | Shell and tube or Plate or Tank with coil | |||||
Tank volume | Litres | 450 | 350 | ||||
Cold water flow | m3/hr | 14.33 | 10.6 | ||||
Pipe size | Water inlet/outlet | inch | 2-1/2" | 1-1/2" | |||
Condenser | Type | High efficiency V type copper tube covered aluminum fins | |||||
Air fans | Volume | m3/h | 30000 | 20000 | |||
Motor power | kW | 0.75*3 | 0.85*2 | ||||
Water pump( Built inside chiller) | Type | Centrifugal Vertical /horizontal type | |||||
Power | kW | 2.2 | 1.5 | ||||
Head pressure | bar | 2.0 | 2.0 | ||||
Safety protection | Chiller safety protection include Compressor over current protection, overload protection, High/low pressure protection ,Phase sequence/phase missing protection,Anti freezing protection,Over temperature protection,Flow switch protection, water level protection | ||||||
Chiller size | L*W*H | mm | 2500*1200*1800 | 2080*1000*1700 | |||
Net Weight | KG | 1150 | 800 | ||||
Main Features of Outdoor Glycol Chiller
1) Cooling capacity: 8.8kw~110.6kw 2) Normal conditions: Chilled water inlet temperature is 12 degrees, outlet temperature is 7 degrees. Ambient temperature is 35 degrees. 3) Operating range: Chilled water inlet temperature 9~20 degrees. 4) Input power: 3P-380V-50Hz, Allowable fluctuate voltage: ± 10%, allowable voltage difference in phase: ± 2%. 5) Accept orders for special requirements. 6) Scroll hermetic compressor international brand-free maintenance. 7) Electrical elements and refrigeration components are used from world-renowned brand. 8) Industrial and durable design, with stainless steel water tank and high-lift pumps. 9) Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year. 10) Designed as an independent refrigeration circuit, each compressor corresponding to one refrigeration circuit. 11) Friendly choose to use environmentally R407C or R134A refrigerant. CHILLER, WATER CHILLER, AIR COOLED GLYCOL CHILLER

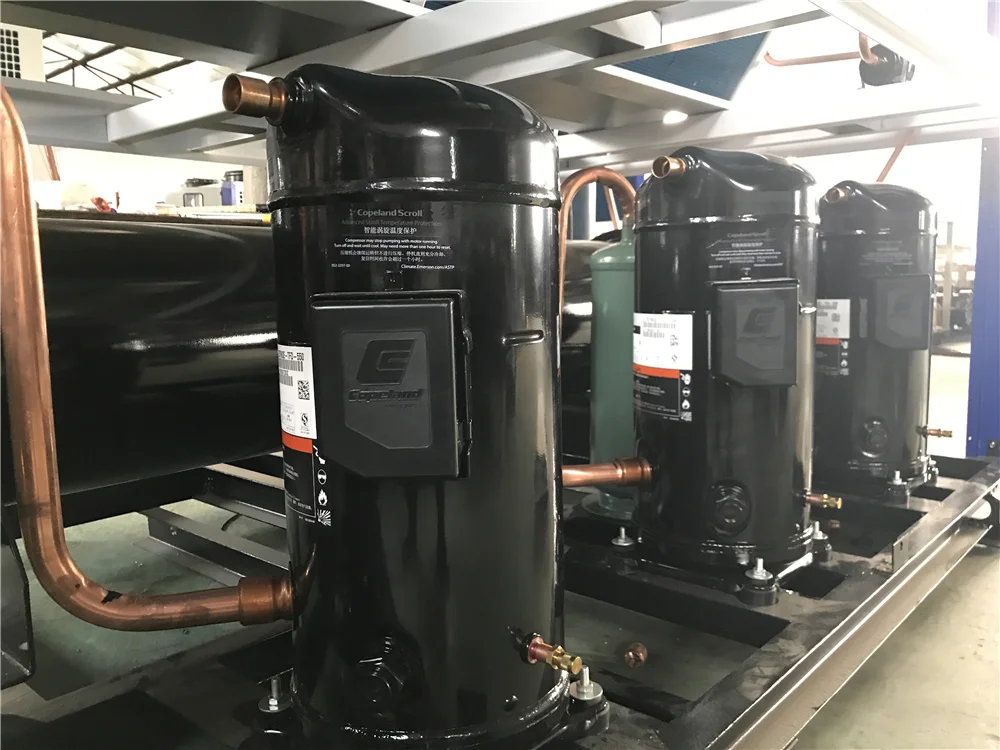

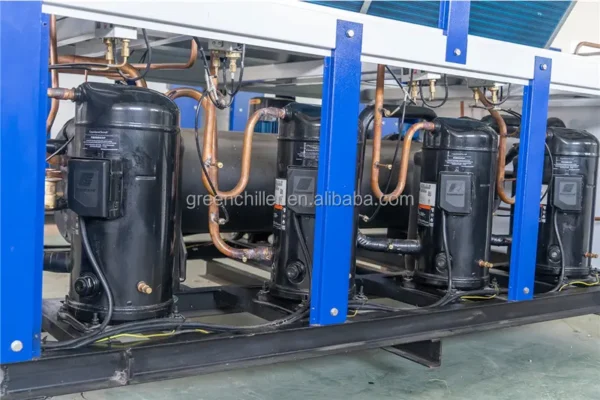

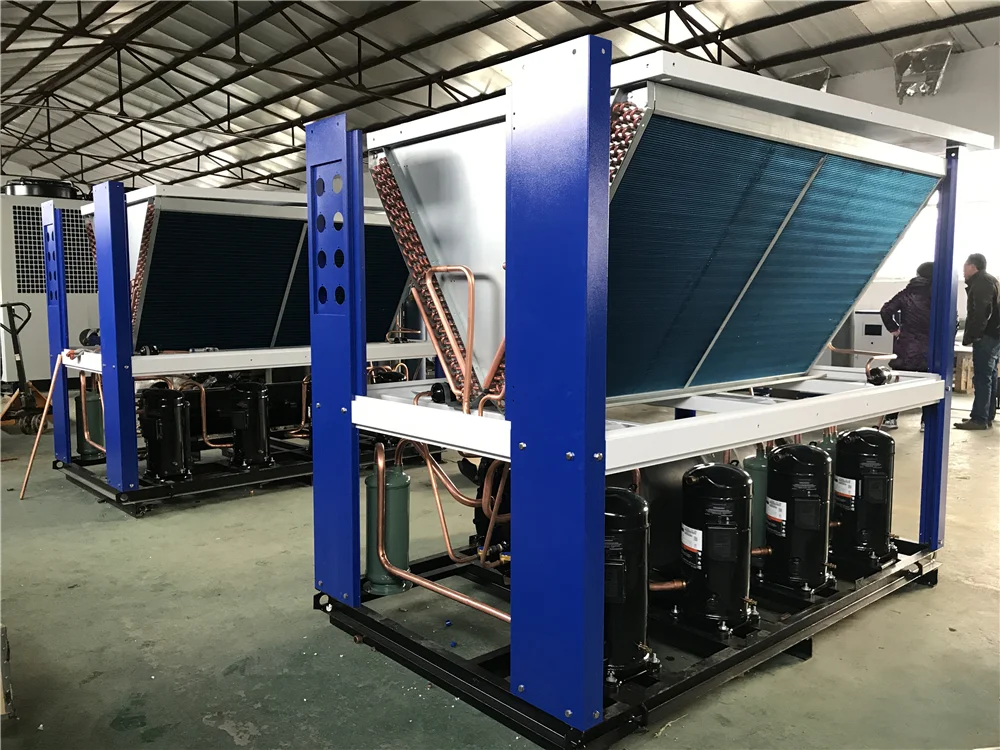

Compressor
COPELAND/Danfoss/ Panaonic brand scroll compressors available, with diffrent types choice for media and working condition request

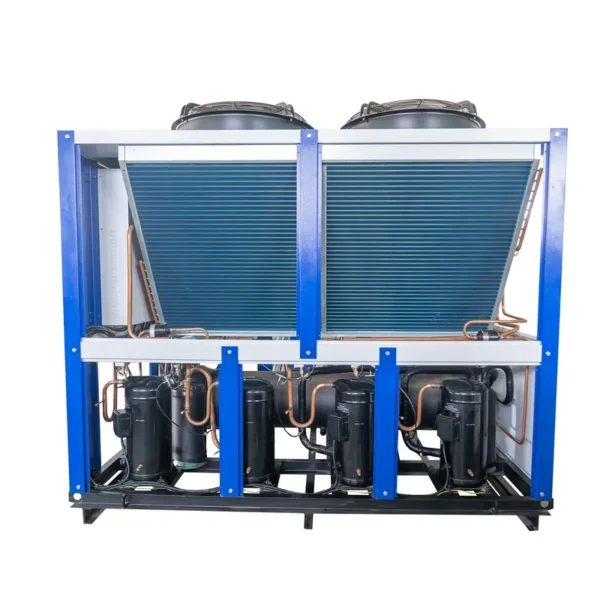

Condenser
High efficient V type condenser: Screw copper tube covered aluminum fins

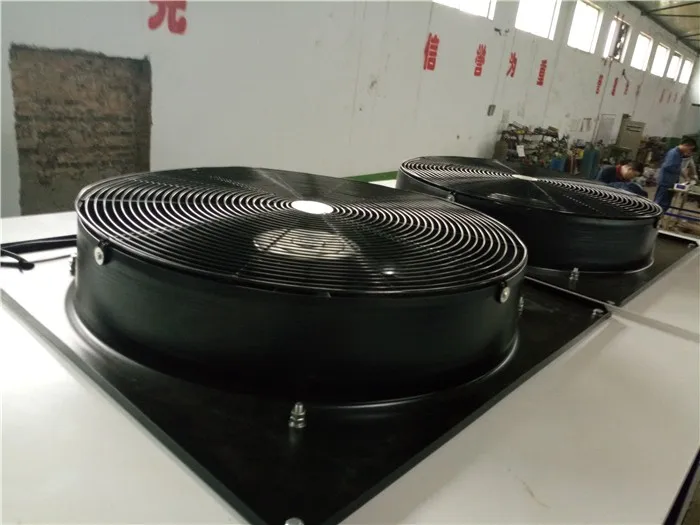

Air fans
High grade air fans, low noise and small vibration. Air cooled chiller is easy installation, not need cooling tower
Evaporator
Shell and tube type , closed with pressure, high efficiency
Water pump
Centrifugal circulation cold water pump, with Gurndfus , Wilo, CNP, and others different brand available, both vertical and horizontal options

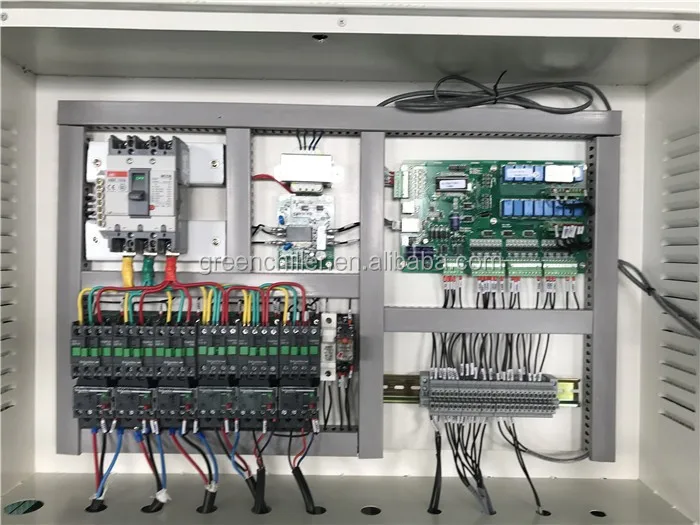

Electric components
Schneider, LS/ABB and other cutomize for optional

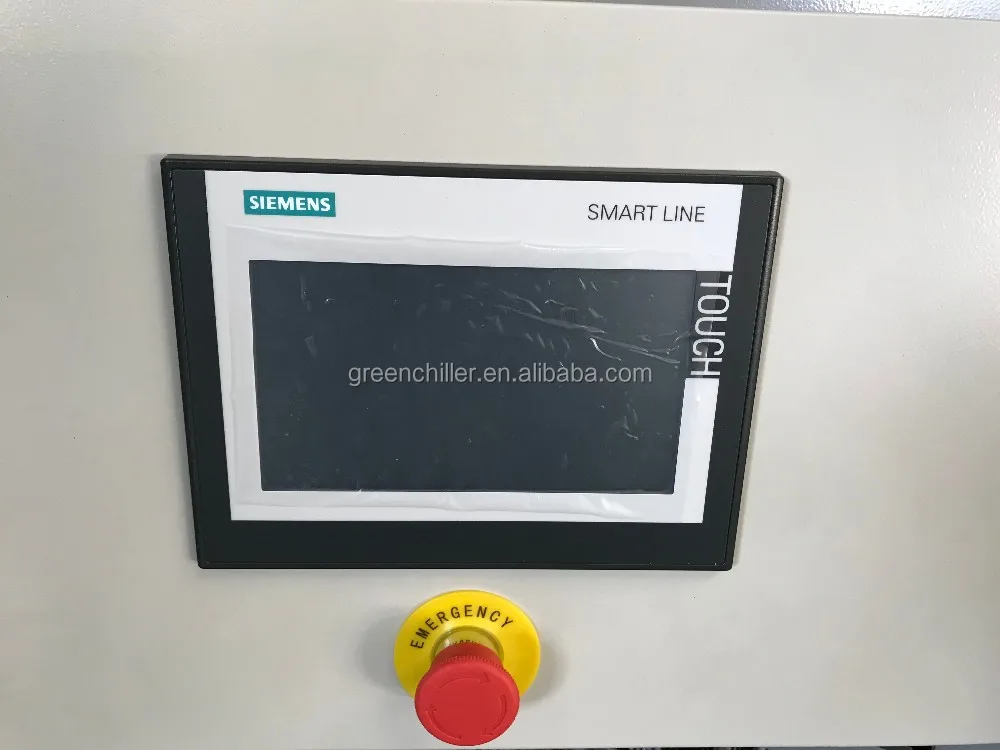

Siemens PLCcontroller, support Modbus 485 protocol
Each part situation and faulty checked inside the controller
Microcomputer control, auto display and compressor, working situation, each parts para is shown

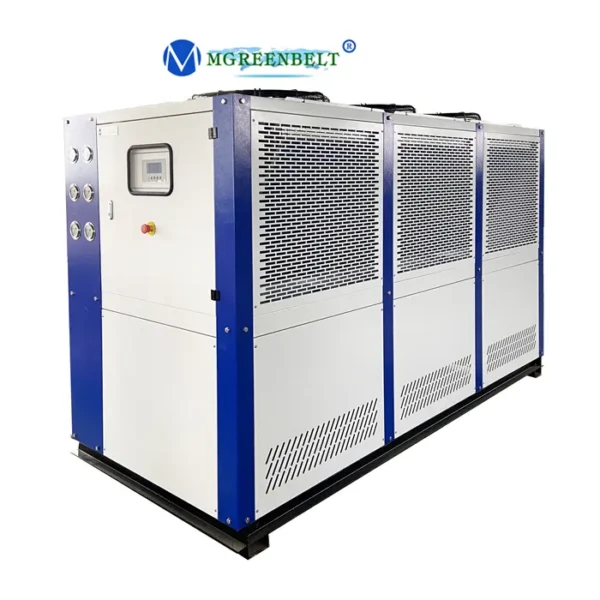

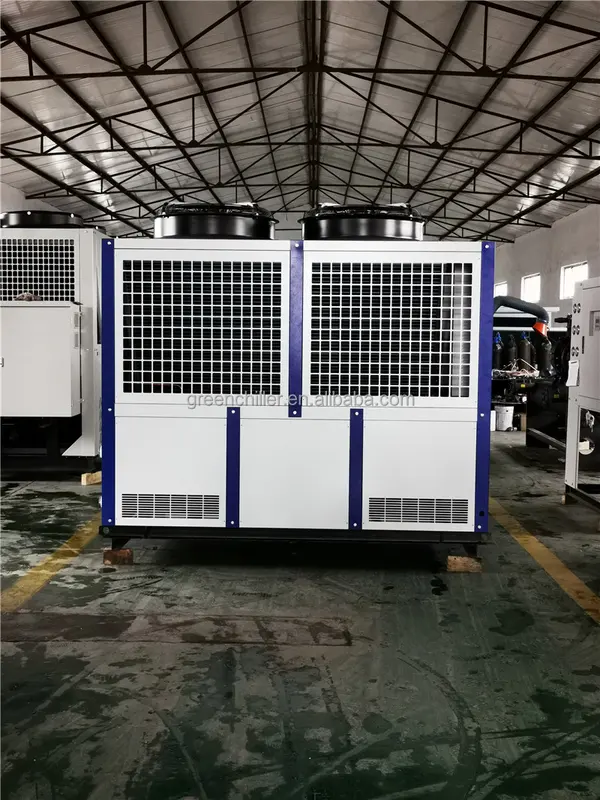

Outdoor Minus 15 degree C Glycol Chiller

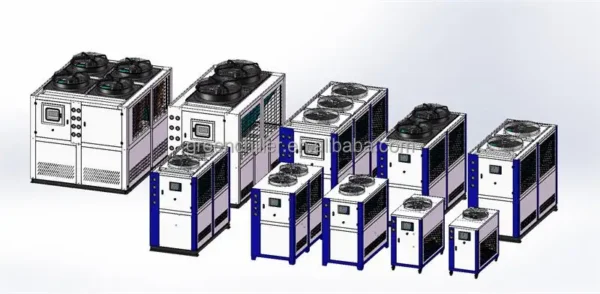

Many different capacity ice rink chiller we are in production, out temp -15C, -10C, -20C, -25C, cooling capacity from 5 ton to 100 tons.
Welcome to contact us and talk more in detail specification and price.

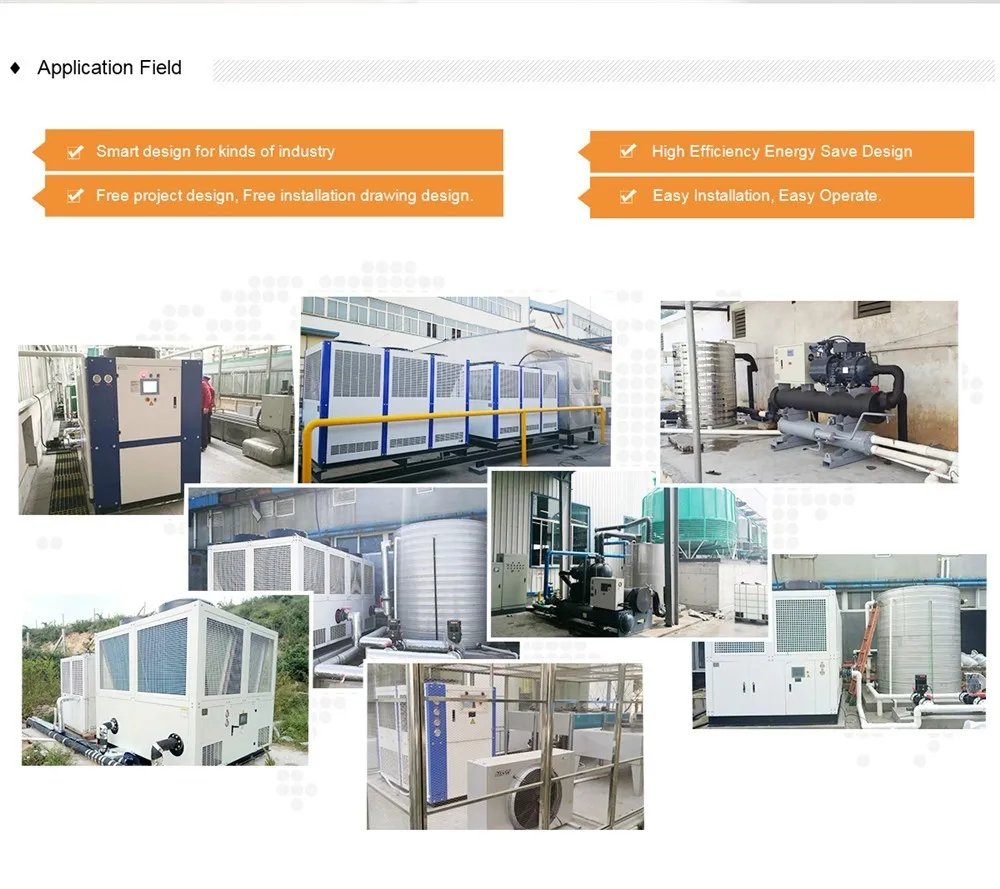

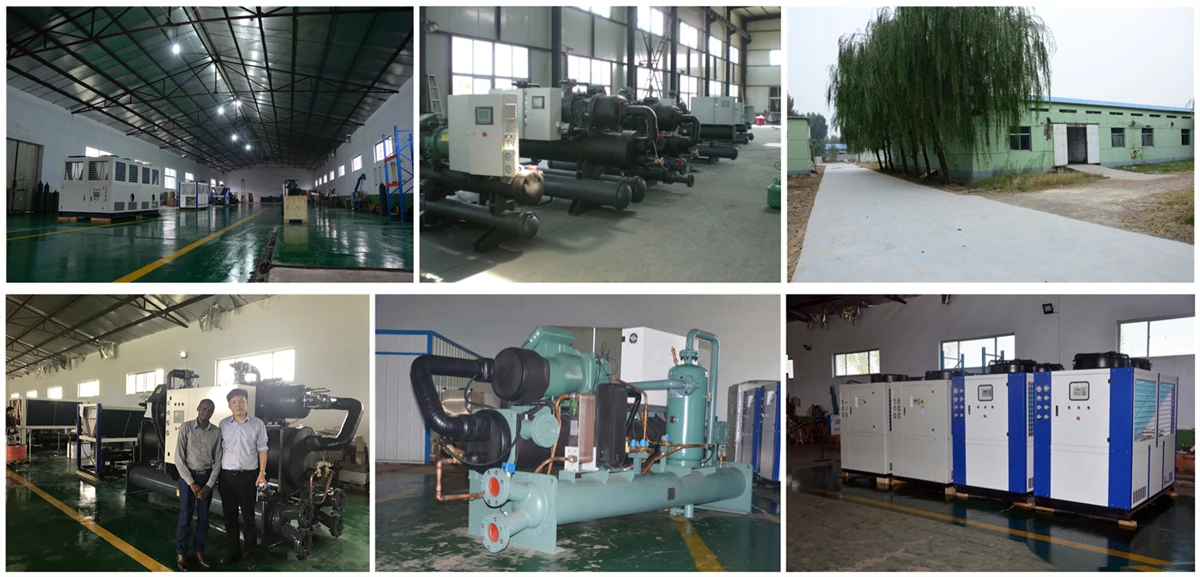

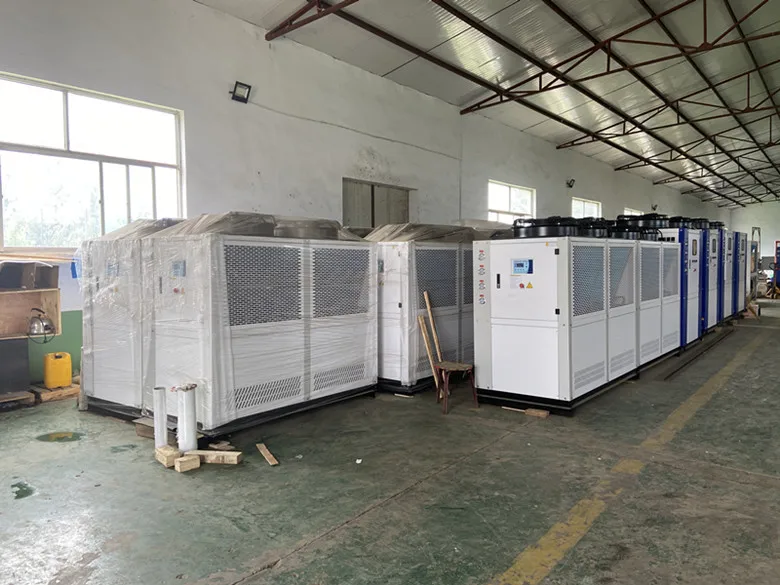

WATER CHILLER WORKING SITE
This model chiller is popular and hot sale, for export to end user and trading company with large quantities.
All the products is CE certififcation
UL listed parts adopted for compressor, pump, fans and electric

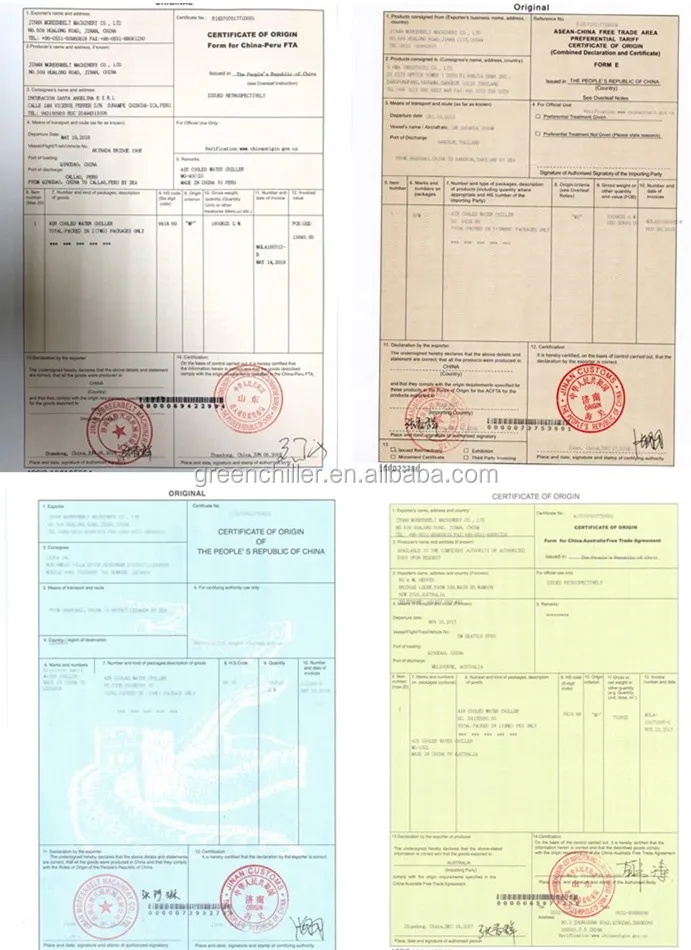

Provide FORM E, FORM R, FORM A, and C/O for customs clearance
Pre-Sales Service (1) Inquiry and consulting support. (2) Cooling system drawing and confirm proposal. (3) View our Factory.
After-Sales Service (1)Provide customers with installation and commissioning online instructions. And we also provide local whole project installation. (2) Well-trained engineers available to overseas service. (3) Worldwide agents and after-sale service available.
Stadard plywood case for package, no need funigation
Delivery by sea or railway
MGREENBELT Company Certificate & Customer Visiting We, MGREENBELT, which established in year 2003, is a modern hi-tech enterprise, specializing in Industrial Refrigeration System research, development, production, sales and engineering services. MGREENBELT team with almost 20 years experience water cooling system both in home and abroad market, has provided qualified chilling equipment, installation and service to 50+ countries around the world.
More water chiller range at follows:
1) Chilled outlet water temperature: -35℃ to +35℃
2) Cooling capacity: 2.85kw~1750kw(0.8 ton ~ 500 Tons)
3) Cooling way: Air cooled and water cooled
4) Compressor type:Screw type,Scroll type
5) Power supply:1/3PH-200V/220V/380V/415V/460V-50HZ/60HZ
6) Refrigerant available R22/R407c/R410a/R134a/R404a
Outdoor Minus 15 degree C Glycol Chiller
More capacity and models for -10C, –15C low temperature glycol chiller available. Please contact us for price and detail information want to know.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–3 unit: US $9500 / unit
- 4+ unit: US $8900 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ice rink water chiller?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ice rink water chiller be supplied for my local voltage?
The standard configuration is 3PH~220V/380/415V~50HZ/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
