Cooling Axial Fan, CLINKER, ROTATING, KILN

Cooling axial fan — voltage 220/1/50 or 380/3/50 V/Ph/Hz, blade material Aluminium/SS400/SUS201/SUS304/SUS316. The complete factory specification follows. Made by TOMECO MECHANIC ELECTRICAL JOINT STOCK COMPANY (6 years on the platform, typical reply ≤7h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Cooling Axial Fan

• Model Number: AFM.SWF
• Voltage: 220/1/50 or 380/3/50 V/Ph/Hz
• Blade Material: Aluminium/SS400/SUS201/SUS304/SUS316
• Warranty: 1 Year
• Certification: Other
• Place Of Origin: Hanoi, Vietnam

Technical Specifications

Product Details

Product Photo

Application

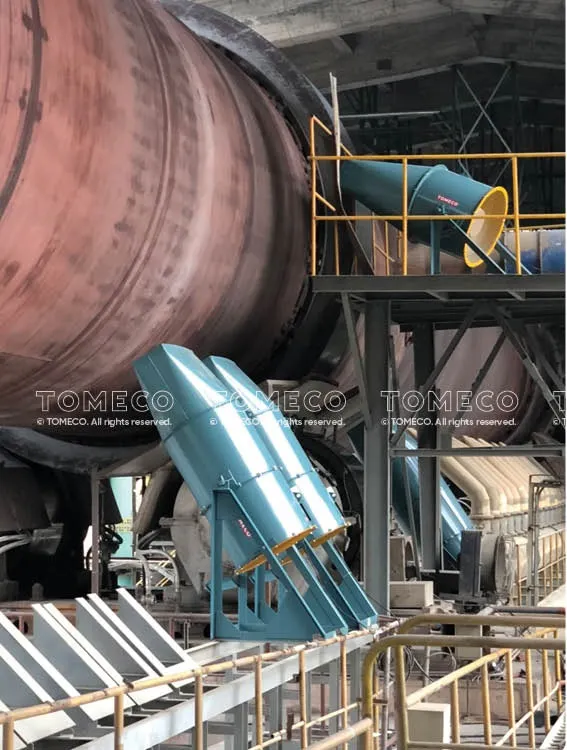

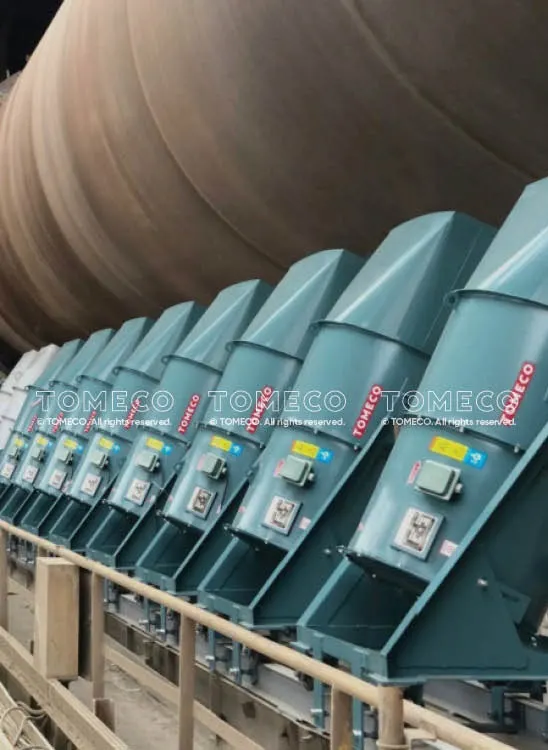

Rotary kilns produce cement according to new technology, when operating, the furnace shell temperature is very high (when not cooled, it can reach 300°C), greatly affecting the life of the kiln as well as the clinker firing capacity. In order to increase the life of the kiln and the firing capacity, it is necessary to have a cooling fan system that operates continuously to reduce the outside temperature of the furnace shell and the inner refractory brick layer.

PREMIUM CHARACTERISTICS

Outstanding heat resistance: The TOMECO SWF axial fan uses a sealed flange-type motor with an auxiliary air-cooled mechanism, ensuring durable operation in high-temperature environments.

Durable operation – long life: The fan is dynamically balanced and calibrated on a digital dynamic balancer, in accordance with ISO 10816 vibration assessment standard. Construction materials and important details such as: Engines and bearings are all imported from reputable manufacturers.

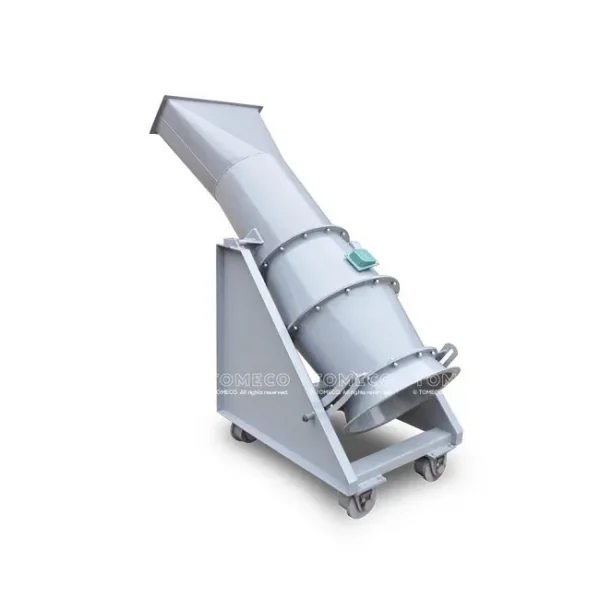

Flexible moving structure: In order to maximize working efficiency, SWF fan products are equipped with a special bracket, allowing the operator to easily move or fix the fan position along the direction. the length of the rotary kiln and the blowing direction of the fan.

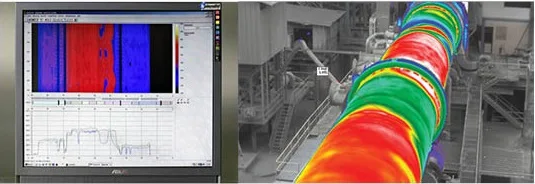

The heat graph displayed on the control system shows the outstanding cooling performance of SWF TOMECO axial fan products.In the image, the blue areas are the areas cooled by the SWF TOMECO fan, the remaining areas have high temperatures, shown in red or yellow depending on the temperature class.

Technical Specifications

Air volume	3.000-90.000	m3/h
Pressure	500-100	Pa
Motor power	0,25-37	kW
Speed	325-2.920	Rpm
Impeller diameter	400-1.500	mm
Voltage	220/1/50 or 380/3/50	V/Ph/Hz

CONFIGURATION

Material	SS400/SUS201/SUS304/SUS316
Drive type	Belt Drive
Motor brand	ABB/SIEMENS/WEG/HEM(VIETNAM)
Motor type	Foot mount
Impeller design	Propeller Axial Impeller
Finish	Powder coated, Epoxy coated, hot dip galvanized

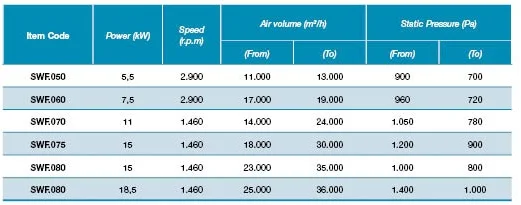

TECHNICAL DATA TABLE

Company Profile

TOMECO is a leading company in Vietnam in the field of researching, designing and manufacturing industrial fans. With great diversity, industrial fans manufactured by TOMECO can serve from small products, small capacity to large capacity, specific requirements to mass production to meet the demand of the Vietnamese market as well as foreign counterparts . We are known as a professional unit, knowledgeable about the system and own absolute technology solutions. TOMECO's mission is to bring customers the perfect experience, beyond expectation, with the motto of "Prestige and quality in every detail."

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: VN
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cooling axial fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this cooling axial fan carry?

It is supplied with Other documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the cooling axial fan be supplied for my local voltage?

The standard configuration is 220/1/50 or 380/3/50 V/Ph/Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by TOMECO MECHANIC ELECTRICAL JOINT STOCK COMPANY. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full TOMECO MECHANIC ELECTRICAL JOINT STOCK COMPANY range on HVACR Nexus.
