The cooling fan listed here carries 5V / 12V, power source Electric, documented exactly as the manufacturer publishes it. Made by Guangzhou Mega Technology Limited Company (8 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cooling Fan
- Model Number: 2057
- Power Source: Electric
- Power:: 0.72-1.08W
- Voltage: 5V / 12V
- Voltage:: 5V / 12V
- Material: Plastic
Technical Specifications
| Blade Diameter | 0.59 in |
|---|---|
| Voltage | 5V / 12V |
| Speed | 7000-17000RPM |
| Type | Duct Axial Fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | screw mounting |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Guangdong, China |
| Brand Name | mega |
| Model Number | 2057 |
| Electric Current Type: | DC |
| Mounting: | screw mounting |
| Blade Material: | Plastic |
| Power: | 0.72-1.08W |
| Voltage: | 5V / 12V |
| Air Volume: | 1.22-2.81CFM |
| Speed: | 7000RPM – 17000 RPM |
| Bearing Type: | Double ball /sleeve |
| Air Pressure: | 2.16-4.5mmH2O |
| Selling Units | Single item |
| Single Package Size | 2.5X2.5X0.7 cm |
| Single Gross Weight | 0.51 kg |
Product Details

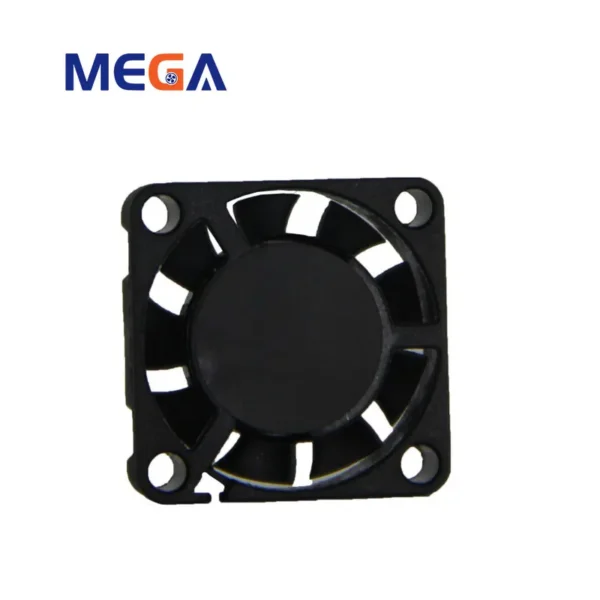

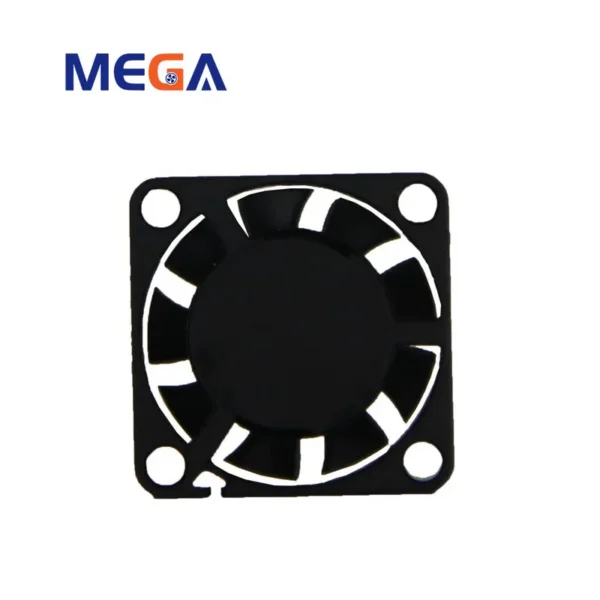

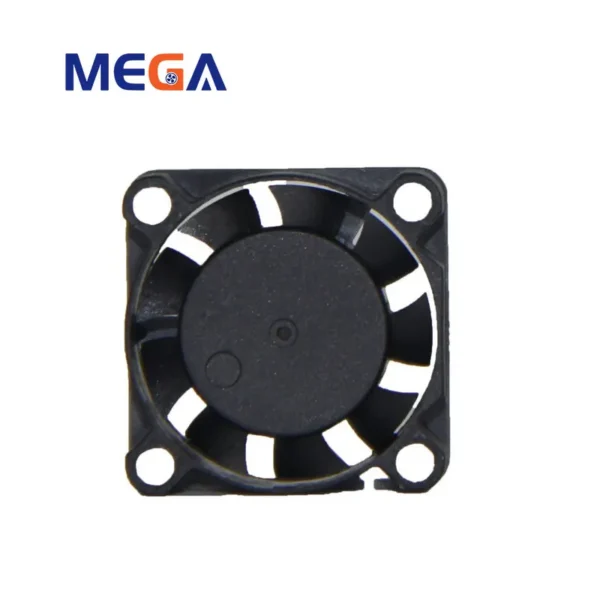

2507 25mm Dc Axial Brushless 25x25mm Cooling fan
www.cnmegatech.com
We can custom all kinds of famous brand fan, some data replacement fan, please feel free to contact
lisa@cnmegatech.com
whatsapp: 86-13570567086
Product Description
Product Overview
This is a DC brushless fan, model 25x25x7mm-A Type, manufactured by Guangzhou Mega Technology Co., Ltd. This type of fan is. commonly used for heat dissipation in electronic devices, such as computers, servers, and industrial control equipment.
Parameter Value
1. Product Type: DC brushless fan
2. Size: 25x25x7mm
3. Bearing Type: Ball、sleeve、HY、other
4. Frame Material: plastic (UL94V-0)
5. Blade Material: plastic (UL94V-0)
6. Weight: 6g
7. Rated Voltage: 5V，12V
8. Operating Voltage Range: 1.8-3-6V （5V）, 8.5-13.5V（12V）
9. Rated Current: 0.06-0.22A
10. Rated Input Power: 0.72-1.08W
11. Speed: 7000-17000RPM
12. Air Flow: 1.22-2.81CFM
13. Maximum Air Pressure: 2.16-4.5mmH2O
14. Noise Level: 19.6-31.2dB-A
This is a DC brushless fan, model 25x25x7mm-A Type, manufactured by Guangzhou Mega Technology Co., Ltd. This type of fan is. commonly used for heat dissipation in electronic devices, such as computers, servers, and industrial control equipment.
Parameter Value
1. Product Type: DC brushless fan
2. Size: 25x25x7mm
3. Bearing Type: Ball、sleeve、HY、other
4. Frame Material: plastic (UL94V-0)
5. Blade Material: plastic (UL94V-0)
6. Weight: 6g
7. Rated Voltage: 5V，12V
8. Operating Voltage Range: 1.8-3-6V （5V）, 8.5-13.5V（12V）
9. Rated Current: 0.06-0.22A
10. Rated Input Power: 0.72-1.08W
11. Speed: 7000-17000RPM
12. Air Flow: 1.22-2.81CFM
13. Maximum Air Pressure: 2.16-4.5mmH2O
14. Noise Level: 19.6-31.2dB-A
Product Parameters
Model | Rated Voltage | Operationg Voltage Range | Rated Current | Rated Input Power | Speed | Maximum Air Flow | Maximum Air Pressure | Noise |
PART.NO. | VDC | VDC | Amp | Watt | R.P.M | CFM | mmH2O | dB-A |
MG2507L05X | 5 | 1.8~3~6 | 0.14 | 0.72 | 7000 | 1.22 | 2.16 | 19.6 |
MG2507M05X | 5 | 1.8~3~6 | 0.17 | 0.84 | 10000 | 1.55 | 3.1 | 23.5 |
MG2507H05X | 5 | 1.8~3~6 | 0.19 | 0.96 | 14000 | 1.9 | 3.8 | 26.4 |
MG2507HH05X | 5 | 1.8~3~6 | 0.22 | 1.08 | 17000 | 2.81 | 4.5 | 31.2 |
MG2507L12X | 12 | 8.5~13.5 | 0.06 | 0.72 | 7000 | 1.22 | 2.16 | 19.6 |
MG2507M12X | 12 | 8.5~13.5 | 0.07 | 0.84 | 10000 | 1.55 | 3.1 | 23.5 |
MG2507H12X | 12 | 8.5~13.5 | 0.08 | 0.96 | 14000 | 1.9 | 3.8 | 26.4 |
MG2507HH12X | 12 | 8.5~13.5 | 0.09 | 1.08 | 17000 | 2.81 | 4.5 | 31.2 |
Product Advantages
Key Features and Advantages of the Product
1. Compact Size: With dimensions of only 25x25x7mm, the fan is extremely compact, making it ideal for devices with limited space.
2. Diverse Specifications: The product offers a wide range of specifications, covering various voltage, current, and airflow
requirements, allowing users to select the most suitable model based on their specific needs.
3. Safe Materials: Both the fan frame and impeller are constructed from UL94V-0 flame-retardant plastic, ensuring excellent high-temperature resistance and flame retardancy for safe operation.
4. Lightweight: Weighing only 5g, the fan has minimal impact on the overall weight of the device.
5. Stable Performance: The product provides a detailed P-Q curve, demonstrating the fan's airflow and air pressure performance at different speeds, ensuring stable and reliable performance.
6. Clear Coding Rules: The product model coding rules are clear and concise, facilitating quick identification and selection by users.
Advantages:
1. Wide Range of Applications: Due to its compact size and diverse specifications, this fan is suitable for heat dissipation in various electronic devices, such as computers, servers, industrial control equipment, and more.
2. Excellent Cooling Performance: The various airflow and air pressure options provided by different fan specifications can meet the cooling requirements of different devices.
3. Long Service Life: The use of high-quality materials and manufacturing processes ensures a long service life for the fan.
4. Low Noise: Based on the provided parameters, the fan's noise level is relatively low, making it suitable for noise-sensitive applications.
5. Easy Installation: The fan's installation dimensions are standard, making installation convenient.
Key Features and Advantages of the Product
1. Compact Size: With dimensions of only 25x25x7mm, the fan is extremely compact, making it ideal for devices with limited space.
2. Diverse Specifications: The product offers a wide range of specifications, covering various voltage, current, and airflow
requirements, allowing users to select the most suitable model based on their specific needs.
3. Safe Materials: Both the fan frame and impeller are constructed from UL94V-0 flame-retardant plastic, ensuring excellent high-temperature resistance and flame retardancy for safe operation.
4. Lightweight: Weighing only 5g, the fan has minimal impact on the overall weight of the device.
5. Stable Performance: The product provides a detailed P-Q curve, demonstrating the fan's airflow and air pressure performance at different speeds, ensuring stable and reliable performance.
6. Clear Coding Rules: The product model coding rules are clear and concise, facilitating quick identification and selection by users.
Advantages:
1. Wide Range of Applications: Due to its compact size and diverse specifications, this fan is suitable for heat dissipation in various electronic devices, such as computers, servers, industrial control equipment, and more.
2. Excellent Cooling Performance: The various airflow and air pressure options provided by different fan specifications can meet the cooling requirements of different devices.
3. Long Service Life: The use of high-quality materials and manufacturing processes ensures a long service life for the fan.
4. Low Noise: Based on the provided parameters, the fan's noise level is relatively low, making it suitable for noise-sensitive applications.
5. Easy Installation: The fan's installation dimensions are standard, making installation convenient.
Product Applications
1. Computers and Peripherals
2. Inside the host: CPU heat sinks, GPU heat sinks, case fans, etc.
3. Laptops: CPU cooling fans, GPU cooling fans.
4. Peripherals: Hard drive enclosures, routers, network cards, etc.
5. Servers
6. Chassis fans: Used for air circulation inside the chassis to dissipate heat.
7. Component cooling: Used for cooling components such as CPUs and hard drives.
8. Network Equipment
9. Switches: Used for cooling components inside switches.
10. Routers: Used for cooling chips inside routers.
11. Firewalls: Used for cooling firewall devices.
12. Industrial Control Equipment
13. PLC cabinets: Used for cooling components inside PLC cabinets.
14. Inverters: Used for cooling components inside inverters.
15. Servo drives: Used for cooling components inside servo drives.
16. Home Appliances
17. Set-top boxes: Used for cooling chips inside set-top boxes.
18. Audio equipment: Used for cooling amplifier circuits.
19. Small appliances: Such as rice cookers, hair dryers, and cooling internal circuits.
20. Automotive Electronics
21. In-vehicle computers: Used for cooling chips inside in-vehicle computers.
22. Car audio: Used for cooling car audio amplifier circuits.
23. Medical Equipment
24. Small medical instruments: Used for cooling internal circuits of medical instruments.
25. Other Electronic Products
26. Digital cameras: Used for cooling chips inside digital cameras.
27. Drones: Used for cooling electronic controllers in drones.
1. Computers and Peripherals
2. Inside the host: CPU heat sinks, GPU heat sinks, case fans, etc.
3. Laptops: CPU cooling fans, GPU cooling fans.
4. Peripherals: Hard drive enclosures, routers, network cards, etc.
5. Servers
6. Chassis fans: Used for air circulation inside the chassis to dissipate heat.
7. Component cooling: Used for cooling components such as CPUs and hard drives.
8. Network Equipment
9. Switches: Used for cooling components inside switches.
10. Routers: Used for cooling chips inside routers.
11. Firewalls: Used for cooling firewall devices.
12. Industrial Control Equipment
13. PLC cabinets: Used for cooling components inside PLC cabinets.
14. Inverters: Used for cooling components inside inverters.
15. Servo drives: Used for cooling components inside servo drives.
16. Home Appliances
17. Set-top boxes: Used for cooling chips inside set-top boxes.
18. Audio equipment: Used for cooling amplifier circuits.
19. Small appliances: Such as rice cookers, hair dryers, and cooling internal circuits.
20. Automotive Electronics
21. In-vehicle computers: Used for cooling chips inside in-vehicle computers.
22. Car audio: Used for cooling car audio amplifier circuits.
23. Medical Equipment
24. Small medical instruments: Used for cooling internal circuits of medical instruments.
25. Other Electronic Products
26. Digital cameras: Used for cooling chips inside digital cameras.
27. Drones: Used for cooling electronic controllers in drones.
Our advantage
Guangzhou Mega Technology Co., Ltd. is located in Guangzhou, Guangdong Province. We benchmark against leading cooling fan manufacturers like Delta Electronics, Nidec Corporation, Sunon, Sanyo Denki, and Orion Fans. Offering AC, DC, and EC fans, we provide customized cooling solutions for various industrial and commercial applications. Our strong R&D and technical expertise ensure our products match top manufacturers' performance at significantly lower prices.
We pride ourselves on delivering tailored solutions to meet unique client needs. Our team collaborates closely with customers to design products that optimize cooling performance, energy efficiency, and reliability. Whether for electronic devices, industrial machinery, or commercial systems, Guangzhou Mega Technology Co., Ltd. is dedicated to providing high-quality, cost-effective solutions that exceed expectations. Our commitment to innovation and customer satisfaction keeps us at the forefront of the cooling fan industry.
Guangzhou Mega Technology Co., Ltd. is located in Guangzhou, Guangdong Province. We benchmark against leading cooling fan manufacturers like Delta Electronics, Nidec Corporation, Sunon, Sanyo Denki, and Orion Fans. Offering AC, DC, and EC fans, we provide customized cooling solutions for various industrial and commercial applications. Our strong R&D and technical expertise ensure our products match top manufacturers' performance at significantly lower prices.
We pride ourselves on delivering tailored solutions to meet unique client needs. Our team collaborates closely with customers to design products that optimize cooling performance, energy efficiency, and reliability. Whether for electronic devices, industrial machinery, or commercial systems, Guangzhou Mega Technology Co., Ltd. is dedicated to providing high-quality, cost-effective solutions that exceed expectations. Our commitment to innovation and customer satisfaction keeps us at the forefront of the cooling fan industry.
Application
Automotive | Computers and laptops | Drones | HVAC equipment |
Telecommunications | Consumer appliances | Medical devices | Industrial machinery |
Medical diagnostic | 3d Printers | Refrigerator | Solar Photovoltaic |
Company Profile
Guangzhou Mega technology Co.,LTD
*Established in 2008, specializes in the R&D and production of DC/AC cooling fans, blowers.
*Products are customized according to Clients' application.
*Sample Available, Small Quanity 0rder Available, Quick Delivery
*Our products are mainly used for equipment ventilation heat dissipation in the fields such as computers, home appliances, cars, medical equipment, industrial controls, electrical power, printing, electric welding machines and instrument panels.
*Our monthly capacity is 0.8 million to 1.0 million pieces, we not only guarantee on time delivery on big quantity order, but alsohave special production line to support clients with small quantity order.
* Your Satisfaction Is Our Aim. Feel free to contact us !
* Your Satisfaction Is Our Aim. Feel free to contact us !
Product packaging
Packing And Deliver are all according to Client's requirement
Why Choose Us
Always Give Customer Best
* Experienced Staff * Guarantee/Warranty
* International Approvals * Packaging
* Competitive Price * Good Product Features
* Excellent Product Performance * Prompt Delivery
* 100% Quality Approvals * Good Reputation
* Customized Sample * Small Orders Accepted
* International Approvals * Packaging
* Competitive Price * Good Product Features
* Excellent Product Performance * Prompt Delivery
* 100% Quality Approvals * Good Reputation
* Customized Sample * Small Orders Accepted
Customer Satisfaction
FAQ
1. What is a bearing?
A:Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.
A:Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.
2. What kind of function can we choose for fan?
Optional function :Auto-restart ,Speed detection,Stoppage Alarm,Waterproof (IP68 optional), PWM function ,Temperature control etc.
3. How do we carry out quality control?
A:Usually, there are two ways to monitor reliability during the manufacturing process.
Optional function :Auto-restart ,Speed detection,Stoppage Alarm,Waterproof (IP68 optional), PWM function ,Temperature control etc.
3. How do we carry out quality control?
A:Usually, there are two ways to monitor reliability during the manufacturing process.
One is testing during production
Another is 100% testing before packing.
4. Are you a manufacturer?
A: Sure, We are manufacturer specialized in large various of Cooling fan for over 10 years, Our products include DC cooling fan, AC cooling fan, EC cooling fan and frameless fan.
4. Are you a manufacturer?
A: Sure, We are manufacturer specialized in large various of Cooling fan for over 10 years, Our products include DC cooling fan, AC cooling fan, EC cooling fan and frameless fan.
5. What's your MOQ and delivery date ?
We don't have MOQ requirement, We can accept sample, small batch and mass production.
Sample lead time: 5-10 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
We don't have MOQ requirement, We can accept sample, small batch and mass production.
Sample lead time: 5-10 working days
Mass production:10-20 working days for off peak season, 1 month for peak season
Waterproof fans need 1 more week
Home
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–999 piece: US $3.1 / piece
- 1000–9999 piece: US $2.4 / piece
- 10000+ piece: US $1.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling fan?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling fan be supplied for my local voltage?
The standard configuration is 5V / 12V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Mega Technology Limited Company, based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Mega Technology Limited Company range on HVACR Nexus.
See more in Axial Flow Fans on HVACR Nexus.
