Key specification for this split industrial air conditioner: voltage –, material Copper. Everything below is reproduced from the factory data sheet. Made by Jiangsu Baode Heat-Exchanger Equipment Co., Ltd. (20 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Split Industrial Air Conditioner
- Voltage: —
- Material: Copper
- Plate Material: Stainless steel AISI316
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Main Application: condenser
Technical Specifications
| Heat Exchanger Type | Plate Heat Exchanger |
|---|---|
| Material | Copper |
| Voltage | — |
| Core Components | Engine, Pressure Vessel, Pump |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 1 |
| Brand Name | Baode |
| Liquid Flow Rate | — |
| Maximum Pressure Rating | 4.5Mpa |
| Dimension(L*W*H) | — |
| After-Sales Service Provided | Overseas service center available |
| Product Name | split air conditioner condenser |
| Main Application | condenser |
| Plate Material | Stainless steel AISI316 |
| Connections | Stainless steel AISI 316, 304 |
| Design Data | Max 45 bar up to 225C, testing pressure 60 bar |
| Advantage | high efficient |
| Application | heating cooling |
| Connection Type | customized |
| Selling Units | Single item |
| Single Package Size | XX cm |
| Single Gross Weight | 0.0 kg |
Product Details

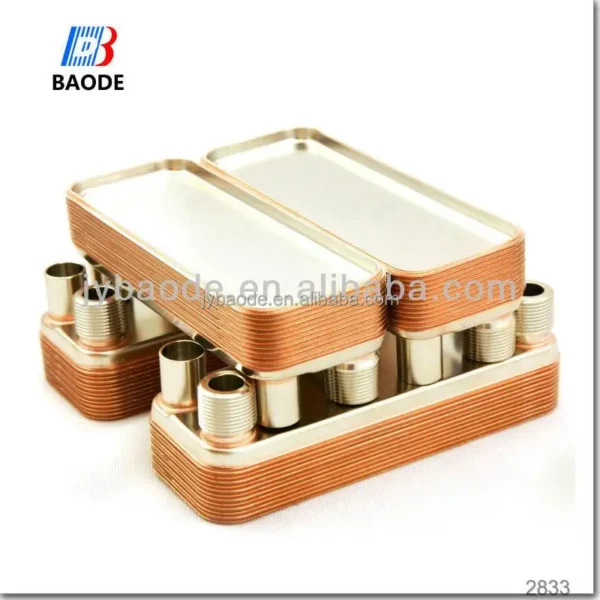

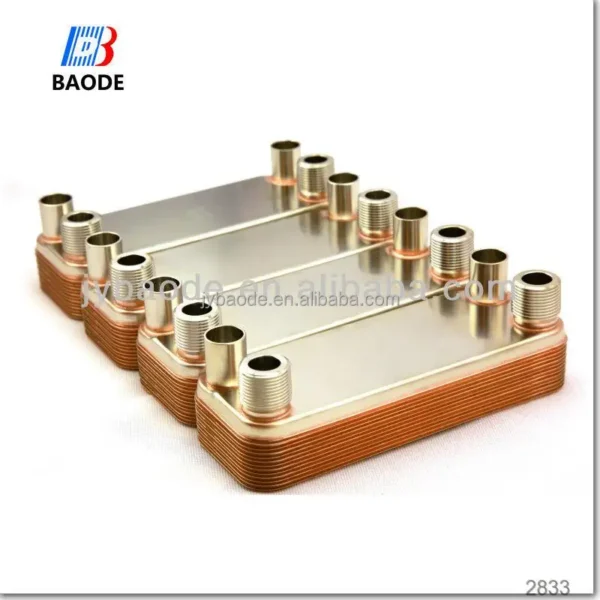

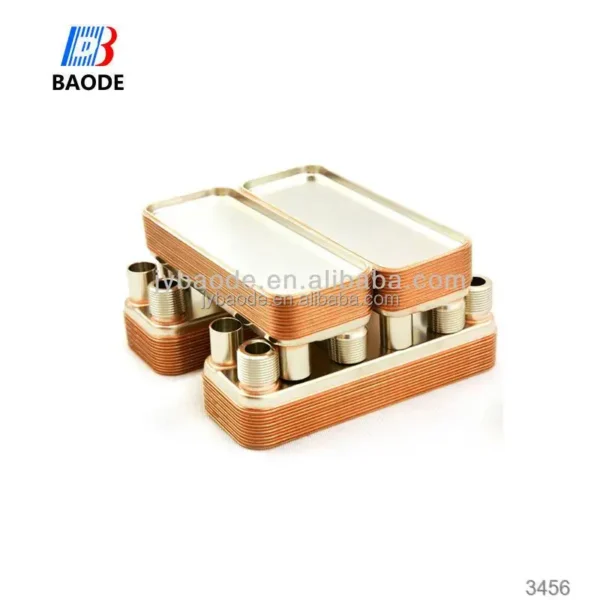

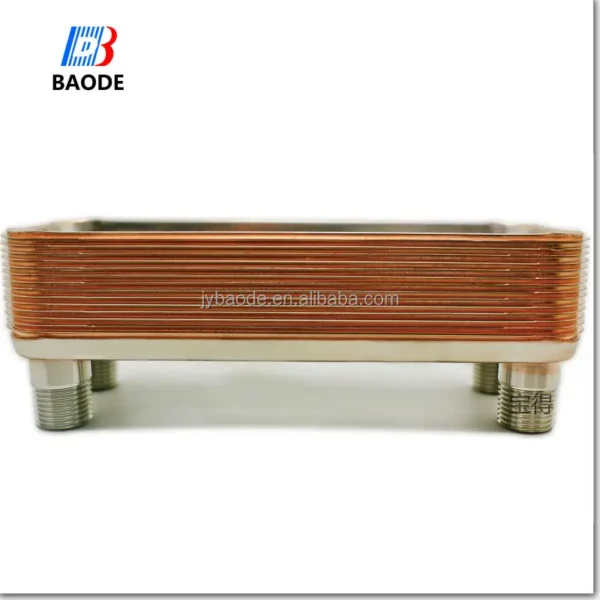

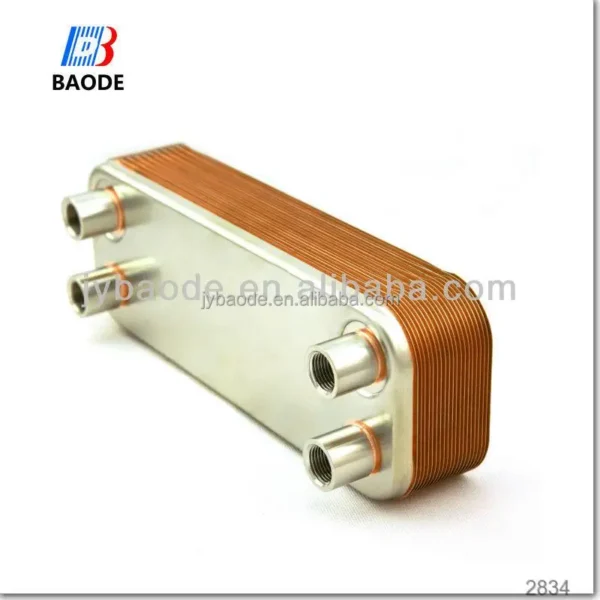

Best supplier Credible split air conditioner industrial condenser price
| Brazed plate heat exchangers specification | |||
| Model | BL14 | BL20 | BL26 |
| Width (mm) | 78 | 76 | 111 |
| Height (mm) | 206 | 310 | 310 |
| Length (m) | 9+2.3n | 9+2.3n | 10+2.36n |
| Horizontal port distance (mm) | 42 | 42 | 50 |
| Vertical port distance (mm) | 172 | 282 | 250 |
| Max pressure [Mpa] | 3 | 3 | 3/4.5 |
| Max flowrate (M3/h) | 3.6 | 3.6 | 8.1 |
| Weight(kg) | 0.6+0.06n | 1.0+0.08n | 1.3+0.12n |
| Model | BL26C | BL50 | BL95 |
| Width (mm) | 124 | 111 | 191 |
| Height(mm) | 304 | 525 | 616 |
| Length (m) | 13+2.4n | 10+2.35n | 11+2.35n |
| Horizontal port distance (mm) | 70 | 50 | 92 |
| Vertical port distance (mm) | 250 | 466 | 519 |
| Maxpressure(Mpa) | 3 | 3/4.5 | 3/4.5 |
| Max flowrate (M3/h) | 8.1 | 12.7 | 39 |
| Weight[kg] | 2.2+0.16n | 2.6+0.19n | 7.8+0.36n |
| Model | BL120 | BL190 | BL200 |
| Width (mm) | 246 | 307 | 321 |
| Height(mm) | 528 | 696 | 738 |
| Length (mm) | 13+2.36n | 13+2.75n | 13+2.7n |
| Horizontalportdistance (mm) | 174 | 179 | 188 |
| Vertical port distance (mm) | 456 | 567 | 603 |
| Max pressure [Mpa] | 3 | 3 | 21 |
| Max flowrate [M3/h] | 42 | 100 | 100 |
| Weight[kg] | 7.2+0.52n | 12.5+0.72n | 13+0.75n |
| Model | BL600 | BL100 | BL210 |
| Width [mm] | 429 | 248 | 322 |
| Height [mm] | 1398 | 495 | 739 |
| Length [mm] | 22+2.78n | 10+2.15n | 13+2.55n |
| Horizontalportdistance[mm] | 220 | 157 | 205.2 |
| Vertical port distance [mm] | 1190 | 405 | 631 |
| Max pressure [Mpa] | 1.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 300 | 42 | 100 |
| Weight[kg] | 31.8+1.73n | 6.5+0.37n | 13+0.78n |
BAODE Plate Heat Exchanger Co., Ltd. Is a Chinese Plate Heat Exchanger manufacturer specialized in development,Production and global marketing of plate heat exchangers. Since the very start in 2004 BAODE has grown to one of the leading companies in China Plate heat exchanger market and has developed a big range of plate heat exchangers for any task
Our main products are Brazed plate heat exchanger & Gasket plate heat exchanger & Air cross plate heat exchanger (Flat plate heat exchanger and frame and plate heat exchanger, welded plate heat exchanger). Braze plate heat exchanger include Copper brazed plate heat exchanger and Nickel brazed plate heat exchanger.
Our mission is to help you to achieve the optimum solution with regards to performance efficiency, payback and energy conservation, whatever the application. This is based on a marketing orientation concept which makes us a highly valuable partner. Our combined experience in the plate heat exchanger industry, allow us giving the best technical recommendation for our customers and end users for applications such as:Refrigeration Systems that includes,HVAC includes,Other Industrial applications.
FAQ
Q : 1. Can I have a sample order?
A : Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q : 2. What is the lead time?
A : Sample needs 1-3 days,mass production needs 7-15days,also according to the order volume.
Q : 3. Can you accept mixed batch of different products?
A : Yes,we are support different product mix wholesale.
Q : 4. How do you ship the goods and how long does it take arrive?
A : For sample order ,we usually ship by DHL,UPS,FedEx or TNT.It usually takes 3-5 days to arrive.
Q : 5. Can you provide container packed in wooden cases if I order more products?
A : Yes,we are can provide a set of wooden packaging products,but only in big quantity.
Q : 6. We want to visit your company?
A : No problem,we are a production and processing enterprises,look forward to your arrival and we will lead you to visit our factory and processing factory.
Ordering and Pricing
- Minimum order quantity: 10 unit
- Volume pricing:
- 10+ unit: US $120 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this split industrial air conditioner?
The standard minimum order quantity is 10 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the split industrial air conditioner be supplied for my local voltage?
The standard configuration is –. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Baode Heat-Exchanger Equipment Co., Ltd., based in China. The company 20 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangsu Baode Heat-Exchanger Equipment Co., Ltd. range on HVACR Nexus.
