This cpu chassis fan is published with the manufacturer’s full specification — model number Original. Made by Shenzhen Nanhongming Technology Co., Ltd. (4 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cpu Chassis Fan
- Model Number: Original
- Place Of Origin: Guangdong, China
- Application: Original
- Mounting Type: Original
- Single Package Size: 10X10X10 cm
- Single Gross Weight: 1.000 kg
Technical Specifications
| Mounting Type | Original |
|---|---|
| Place Of Origin | Guangdong, China |
| Brand Name | Original |
| Model Number | Original |
| Description | Original |
| Supplier | Shenzhen Nanhongming Technology Co., Ltd. |
| More Details | See the description below |
| Application | Original |
| Selling Units | Single item |
| Single Package Size | 10X10X10 cm |
| Single Gross Weight | 1.000 kg |
Product Details
Quantity order advantage price and shipping cost, please contact us

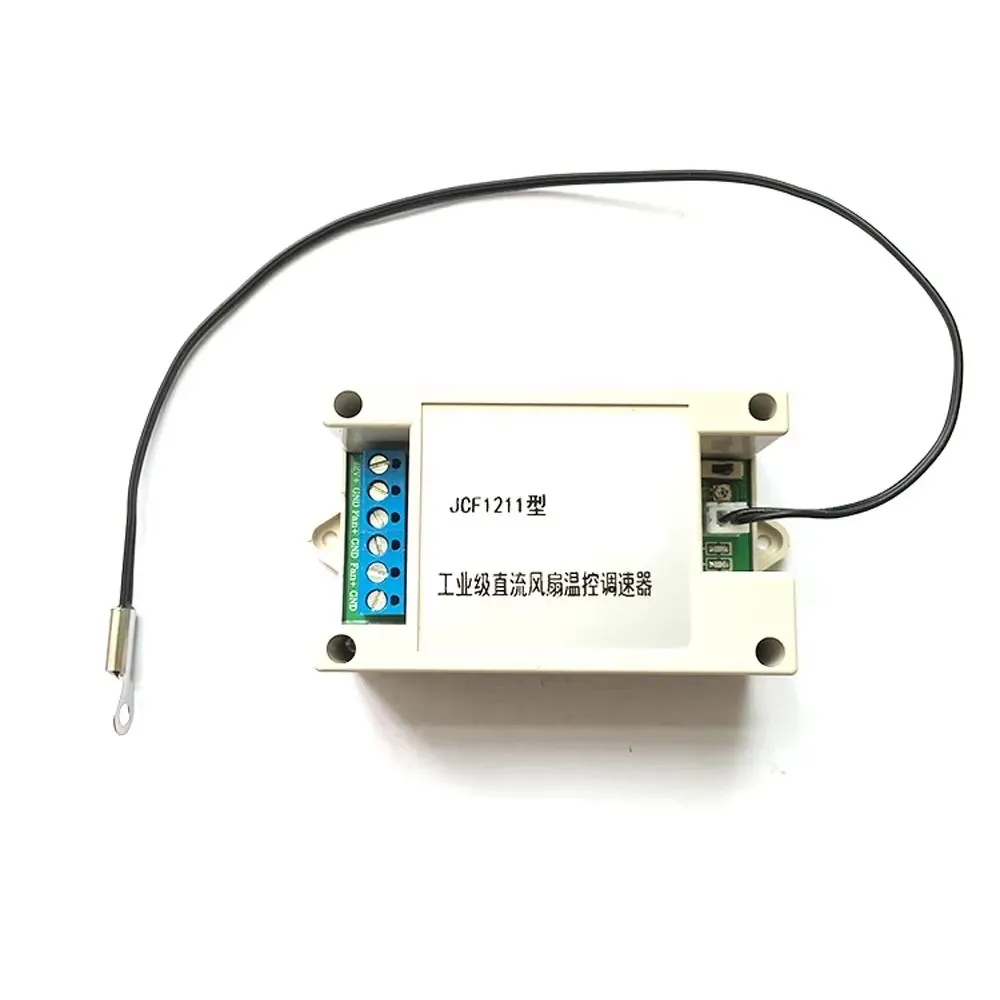

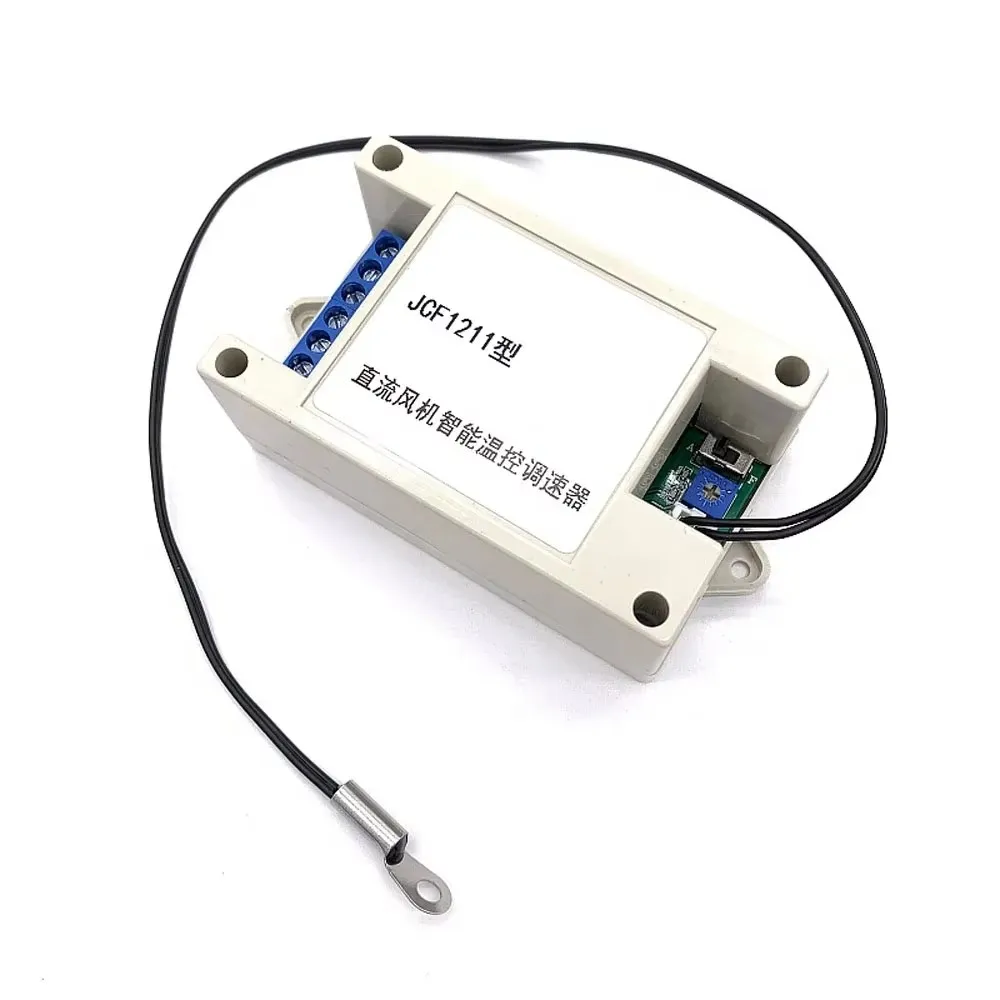

DC 12V 1A Fan temperature control PC CPU Chassis fan speed Controller regulation module PWM Thermostat Speed governor Cooling
1. Product introduction:
1. The governor can actively detect the current temperature and automatically control the fan speed according to the temperature.
2. When the temperature is lower than the set starting temperature minus 4 ℃, the fan will stop
3. After the temperature is higher than the starting temperature, the fan starts at low speed
4. As the temperature rises, the fan speed will slowly increase. When the temperature rises to full speed, the fan rotates at full
speed to cycle.
5. All kinds of 2 3 4 wire 12V fans are applicable
2. Product features:
1. With power reverse connection protection, the power cord will not burn the board if it is connected reversely
2. It is suitable for various types of 12V fans, users do not need to buy expensive 4-wire PWM fans, and can also achieve
temperature control stepless speed regulation
3. Industrial-grade temperature sensor, easy to use, more sensitive control
4. Fixed mode: the starting temperature is fixed at 30℃, and the temperature at full speed is 50℃
5. Adjustable mode: the starting temperature can be adjusted to 10°C at the lowest and 50°C at the highest (full speed temperature
+20°C)
6. Industrial-grade design scheme, suitable for various complex industrial control/outdoor environments

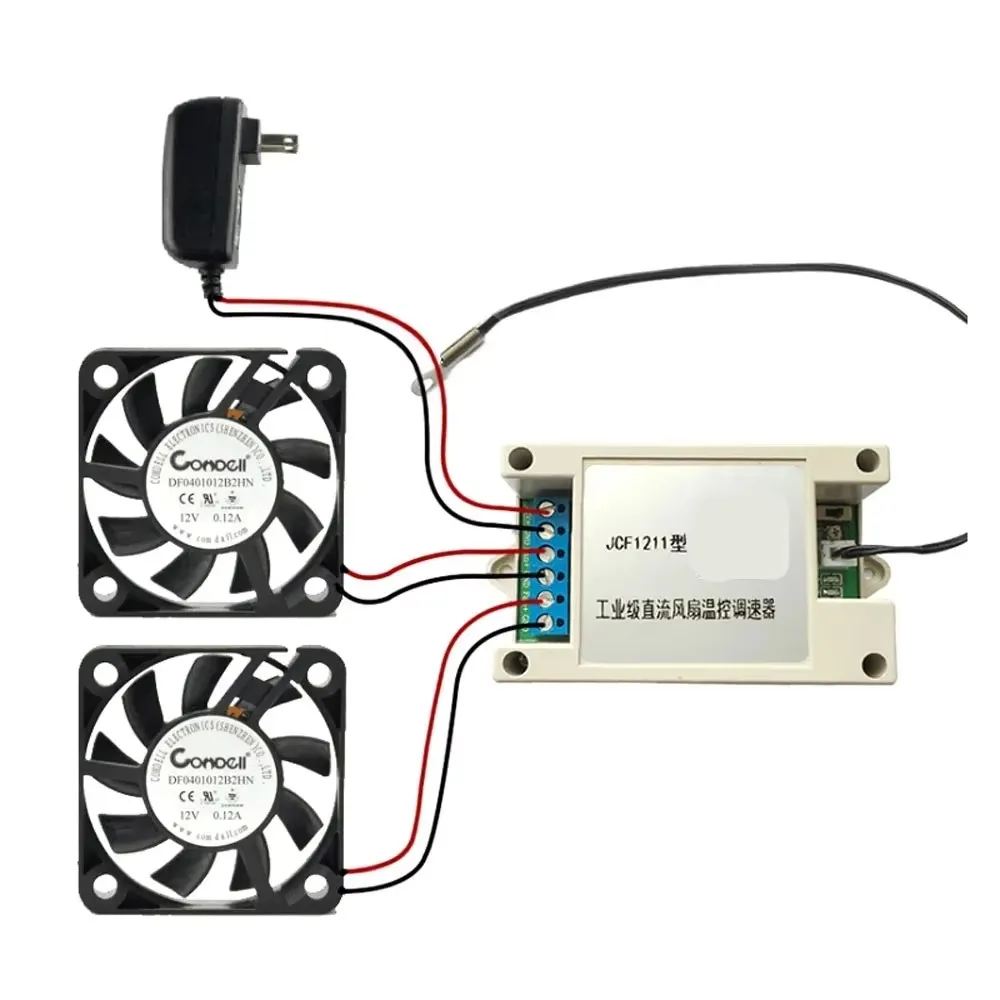

7. Support multiple fans at the same time (the total current of the fans does not exceed 1A)
Special attention: The maximum operating temperature of the temperature probe is 110 degrees. If the temperature exceeds this
temperature, the probe will be damaged

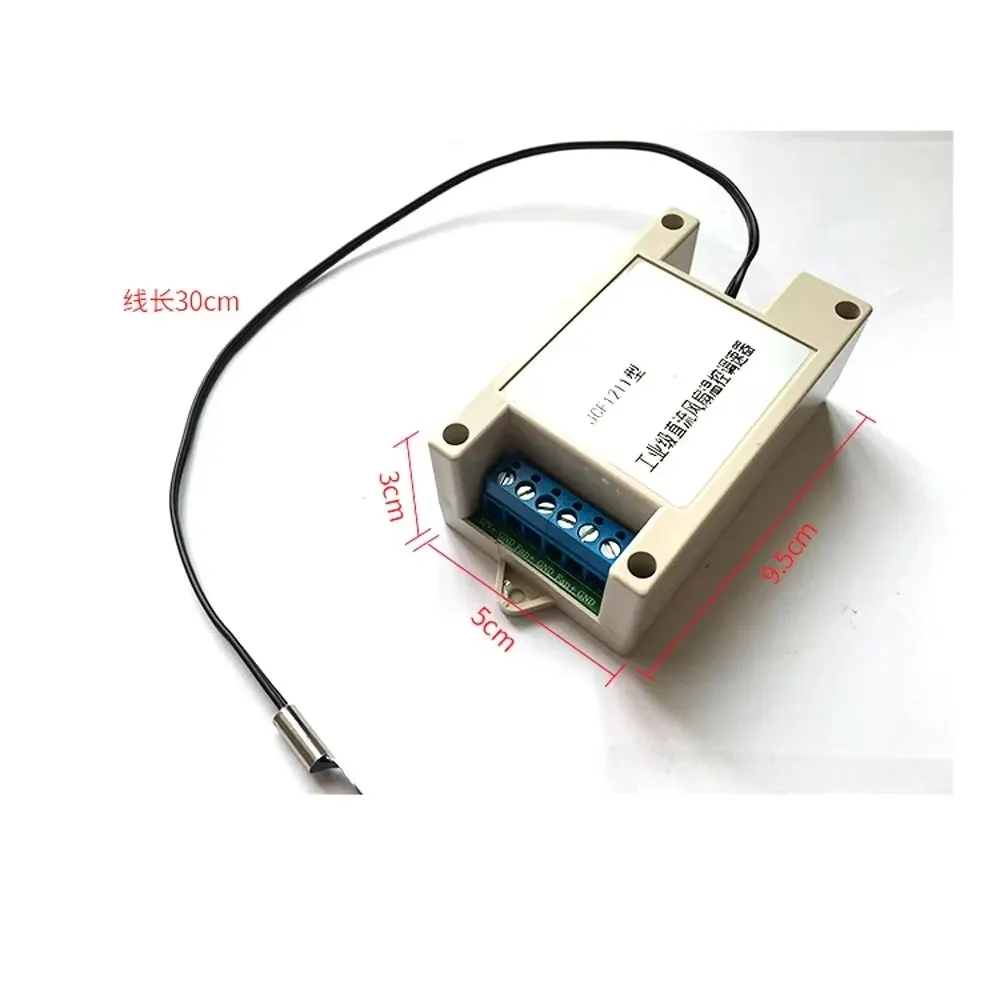

3. Specifications/dimensions and installation:
2. Size: 95mm*50mm*30mm
3. Installation: 2 M3 mounting holes, hole distance 8.8cm
1. Product introduction:
1. The governor can actively detect the current temperature and automatically control the fan speed according to the temperature.
2. When the temperature is lower than the set starting temperature minus 4 ℃, the fan will stop
3. After the temperature is higher than the starting temperature, the fan starts at low speed
4. As the temperature rises, the fan speed will slowly increase. When the temperature rises to full speed, the fan rotates at full
speed to cycle.
5. All kinds of 2 3 4 wire 12V fans are applicable
2. Product features:
1. With power reverse connection protection, the power cord will not burn the board if it is connected reversely
2. It is suitable for various types of 12V fans, users do not need to buy expensive 4-wire PWM fans, and can also achieve
temperature control stepless speed regulation
3. Industrial-grade temperature sensor, easy to use, more sensitive control
4. Fixed mode: the starting temperature is fixed at 30℃, and the temperature at full speed is 50℃
5. Adjustable mode: the starting temperature can be adjusted to 10°C at the lowest and 50°C at the highest (full speed temperature
+20°C)
6. Industrial-grade design scheme, suitable for various complex industrial control/outdoor environments
7. Support multiple fans at the same time (the total current of the fans does not exceed 1A)
Special attention: The maximum operating temperature of the temperature probe is 110 degrees. If the temperature exceeds this
temperature, the probe will be damaged
3. Specifications/dimensions and installation:
2. Size: 95mm*50mm*30mm
3. Installation: 2 M3 mounting holes, hole distance 8.8cm
24Hrs Contact
Phone：+86-18576746638 Email：erin@nhm-tech.com Wechat / WhatsApp / Skype ：+8618576746638 | Phone：+86-13612863889 Email：evan@nhm-tech.com Wechat / WhatsApp / Skype：+8613612863889 | ||||||
Company Profile
One-stop BOM list Service, clicking here to submit your inquiry
Shipment & Payment
FAQ
Q1: What is your products' lead time?
A1: For in stock items, we can pack and send within 2-3 working days after confirming your payment; for out of stock, normally from 7-15 days, it depends on different brand companies' manufacturing, we will inform you the specified lead time according to the models you inquiry.
Q2: How can I get the price?
A2: -We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q3: What's your payment method?
A3: We can accept payment by Alibaba trade assurance, TT , Paypal, and Western union.
Q4: What's your shipment method?
A4: Usually we use DHL, UPS, FedEx, TNT, HONGKONG Post, EUB and EMS. If you have forwarder in China, we also can shipment to their address.
Q5: How to choose the electronic components most suitable for my need? And what is the best price you can offer?
A5: Firstly, you'd better to know the model of electronic components; the specification of it. We will check out the best price and electronic components upon your conditions.
Q6: Can I place a sample order before I decide to do the mass production?
A6: Yes, we acceptable sample orders, please let us know your detail request then we will send you the sample asap for
confirmation.
Q7: Quality problems
A7: If there is any quality problems or questions , we could offer technical support or return service .
Q8: How do you make our business long-term and good relationship?
A8: -We keep good quality and competitive price to ensure our customers benefit ;
-We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
A1: For in stock items, we can pack and send within 2-3 working days after confirming your payment; for out of stock, normally from 7-15 days, it depends on different brand companies' manufacturing, we will inform you the specified lead time according to the models you inquiry.
Q2: How can I get the price?
A2: -We usually quote within 24 hours after we get your inquiry(Except weekend and holidays).
-If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
Q3: What's your payment method?
A3: We can accept payment by Alibaba trade assurance, TT , Paypal, and Western union.
Q4: What's your shipment method?
A4: Usually we use DHL, UPS, FedEx, TNT, HONGKONG Post, EUB and EMS. If you have forwarder in China, we also can shipment to their address.
Q5: How to choose the electronic components most suitable for my need? And what is the best price you can offer?
A5: Firstly, you'd better to know the model of electronic components; the specification of it. We will check out the best price and electronic components upon your conditions.
Q6: Can I place a sample order before I decide to do the mass production?
A6: Yes, we acceptable sample orders, please let us know your detail request then we will send you the sample asap for
confirmation.
Q7: Quality problems
A7: If there is any quality problems or questions , we could offer technical support or return service .
Q8: How do you make our business long-term and good relationship?
A8: -We keep good quality and competitive price to ensure our customers benefit ;
-We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
Ordering and Pricing
- Minimum order quantity: 5 piece
- Volume pricing:
- 5–49 piece: US $5 / piece
- 50–499 piece: US $4.8 / piece
- 500+ piece: US $4.7 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cpu chassis fan?
The standard minimum order quantity is 5 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Nanhongming Technology Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Shenzhen Nanhongming Technology Co., Ltd. range on HVACR Nexus.
See more in Speed Controllers & Regulators on HVACR Nexus.
